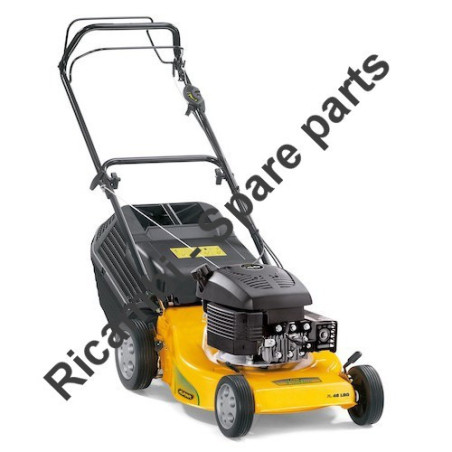

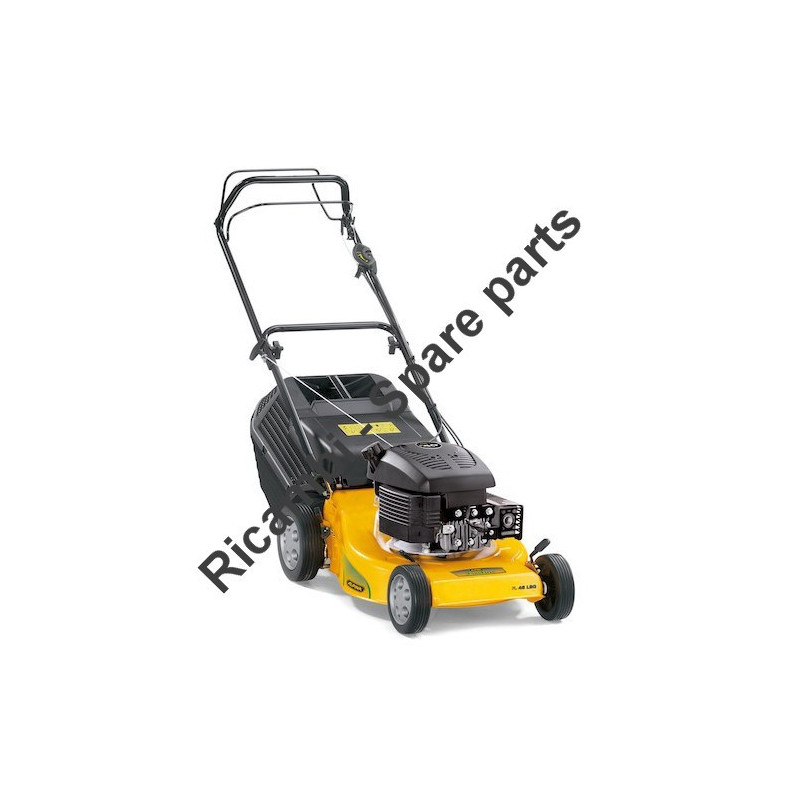

Alpina Spare Parts for Lawn Mower FL 46 LMG
€1.72
Tax included
Alpina Spare Parts for Lawn Mower FL 46 LMG
We supply original ALPINA spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower FL 46 LMG - (2010) 298436041/ALO.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Alpina Spare Parts for Lawn Mower FL 46 LMG
We supply original ALPINA spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower FL 46 LMG - (2010) 298436041/ALO.
In the following table, look for the model of the Lawn Mower and the respective parts of the code.
| ALPINA Lawn Mower FL 46 LMG - (2010) 298436041/ALO. | ||
| Chassis - Height Adjustment Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381000952/0 | Red Chassis To 31-August-2006 |
| 1 | 381000952/1 | Red Chassis From 01-September-2006 |
| 2 | 112293200/0 | Nut |
| 3 | 112583500/0 | Grower |
| 4 | 112523070/0 | Washer |
| 5 | 322735547/0 | Height Adjustment Sector |
| 6 | 381005082/0 | Wheel Support |
| 7 | 481003285/1 | Lever |
| 8 | 122519811/0 | Bolt |
| 9 | 381005084/0 | Wheel Support |
| 10 | 481003286/0 | Lifting Lever |
| Handle, Lower Part Pag.2 | ||
| 1 | 112293200/0 | Nut |
| 2 | 122399900/0 | 3 SPOKE HANDWHEEL (BLACK) |
| 3 | 122551574/0 | External plate - Substituited by 381008596/1 |
| 4 | 112691115/0 | Screw |
| 5 | 112793300/0 | Screw |
| 6 | 112155000/0 | Nut |
| 7 | 381006512/0 | Handle, Lower Side |
| 8 | 112819201/0 | Screw |
| 9 | 122680006/1 | Washer |
| 10 | 122551575/0 | Inside Plate |
| 11 | 381008596/1 | Outfit Screws |
| Handle, Upper Part Pag.3 | ||
| 1 | 381007018/1 | Handle, Upper Side |
| 2 | 181000611/0 | Motor Brake Cable SV40 / RV 40 / V35 Engine;From 01-September-2005 |
| 3 | 181003291/2 | Engine Brake Lever To 31-August-2006 |
| 3 | 181003291/3 | Engine Brake Lever From 01-September-2006 |
| 4 | 122041966/0 | Bushing |
| 5 | 112728518/0 | Screw |
| 6 | 322806612/0 | Support |
| Control Pag.4 | ||
| 1 | 112291000/0 | Nut |
| 2 | 112581500/0 | Grower |
| 3 | 122171005/0 | Spacer |
| 4 | 112521360/0 | Washer |
| 5 | 112508100/0 | Cup Spring |
| 6 | 381007220/0 | Throttle lever SV40-RV 40-V35 Engine / B&S 450-500 Series;From 01-September-2006 |
| 7 | 481007080/0 | Throttle Cable |
| 8 | 112815000/0 | Screw |
| 9 | 114356702/0 | Throttle Label (GGP) |
| Wheel + Cover Pag.5 | ||
| 1 | 122034508/0 |
Plastic Bush |
| 2 | 381007336/0 | Wheel Ø 170 |
| 3 | 322110416/0 | Hub Cover Grey |
| 4 | 381007337/0 | Wheel Ø 210 |
| 5 | 322110417/0 | Hub Cover Grey |
| 6 | 112523060/0 | Washer |
| 7 | 112155000/0 | Nut |
| Blade Pag.6 | ||
| 1 | 122463012/1 | Hub To 31-August-2008 |
| 1 | 122463012/2 | Hub, Crankshaft Ø 22.2 From 01-September-2008 |
| 2 | 181004346/3 | Mulching Left Blade From 01-September-2008 |
| 2 | 181004397/0 | Finned knife |
| 2 | 81004346/2 | Blade To 31-August-2008 |
| 3 | 122160400/0 | Elastic Disc |
| 4 | 112523080/0 | Washer |
| 5 | 112735698/0 | Screw |
| 6 | 112139100/0 | Woodruff |
| 7 | 112691100/0 | Screw |
| 8 | 112154210/0 | Nut |
| Grass Bag Pag.7 | ||
| 1 | 181007302/2 | Stoneguard black |
| 2 | 122450420/1 | Left Spring |
| 3 | 122517906/1 | Pin |
| 4 | 122450410/1 | Right Spring |
| 5 | 112000930/0 | Benzing ring |
| 6 | 122486076/0 | Bag, Upper Side |
| 7 | 122486077/0 | Bag, Lower Side |
| Engine Pag.8 | ||
| 1 | 118550139/1 | Starting hood assembly |
| 2 | 118550052/0 | Starting handle |
| 3 | 118550053/0 | Starting rope |
| 4 | 118550004/1 | Starter Coupling Kit |
| 5 | 118550138/0 | Deflector |
| 6 | 118550056/0 | Nut |
| 7 | 118550140/0 | Starting Cup |
| 8 | 118550154/0 | Flywheel fan |
| 9 | 118550197/0 | Woodruff |
| 10 | 118550005/0 | Fuel Tube |
| 11 | 118550142/0 | Screw Kit |
| 12 | 118550007/0 | Nut |
| 13 | 118550143/0 | Fuel tank |
| 14 | 118550001/0 | Tank cap |
| 15 | 118550141/0 | Fuel Filter |
| 16 | 112791400/0 | Screw |
| 17 | 118550008/0 | Dipstick level Oil Assy |
| 18 | 118550133/0 | Air Filter Cover |
| 19 | 118550011/0 | Foam Air Filter |
| 20 | 118550010/0 | Screw |
| 21 | 118550125/1 | Air Filter Base |
| 22 | 118550013/0 | Tube |
| 23 | 118550148/0 | Carburetor |
| 24 | 118550019/0 | Carburettor Kit |
| 25 | 118550017/0 | Tie |
| 26 | 118550149/0 | Carburetor tie |
| 28 | 118550129/0 | Intake manifold |
| 29 | 118550021/0 | Brake |
| 30 | 118550151/0 | Regulator Spring |
| 31 | 118550150/0 | Spring |
| 32 | 118550152/0 | Bracket |
| 33 | 118550023/0 | Screw |
| 34 | 118550022/0 | Cable Clip |
| 35 | 118550126/0 | Ignition coil |
| 36 | 118550127/0 | Plug Cap |
| 37 | 118550071/0 | Terminal-Spark Plug 2006 |
| 38 | 118550134/0 | Spark plug (Qj19Lm) |
| 39 | 118550128/0 | Screw |
| 44 | 118550027/0 | Prisoner |
| 45 | 118550028/0 | Muffler gasket |
| 46 | 118550030/0 | Spacer |
| 47 | 118550031/1 | Silencer |
| 48 | 118550032/0 | Nut |
| 49 | 118550033/0 | Silencer protection |
| 71 | 322055436/0 | Cover black |
| 72 | 322055437/0 | Cover black |
| 101 | 118550360/0 | Cylinder Head Assy |
| 102 | 118550359/0 | Cylinder Head Gaskets Assy |
| 105 | 118550131/0 | Seal ring |
| 106 | 118550364/0 | Oil breath gasket Assy |
| 108 | 118550361/0 | Crankshaft |
| 110 | 118550357/0 | Piston Assy |
| 112 | 118550356/0 | Camm rod |
| 113 | 118550363/0 | Controller assy |
| 114 | 118550130/0 | Engine Crankcase Gasket |
| 115 | 118550362/0 | Engine Carter Assy |
| 116 | 118550131/0 | Seal ring |
| 117 | 118550358/0 | Piston rings assy |
| 150 | 118550157/1 | M150 Motor Assembled |
