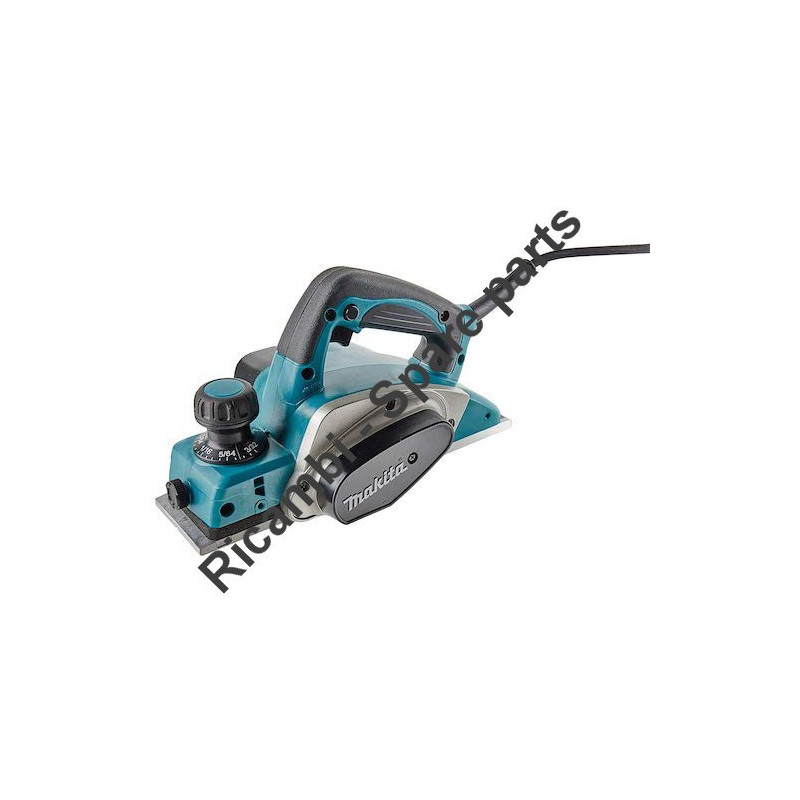

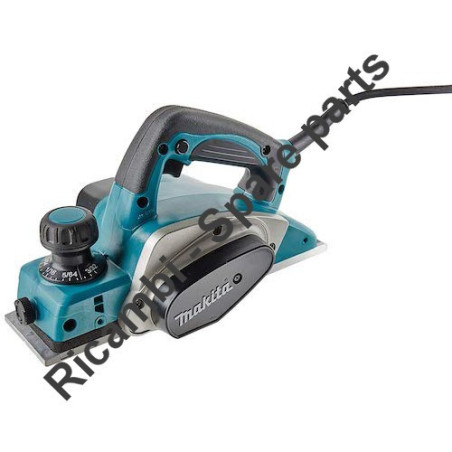

Makita Spare Parts for Power Planer for Wood KP0800

Power Planer KP0800
1	266326-2	TAPPING SCREW PT 4X18, MT951
2	451314-4	HANDLE COVER, KP0800
3	682502-4	CORD GUARD 8-85, 4100NH
5	266326-2	TAPPING SCREW PT 4X18, MT951
6	687063-9	CORD CLAMP, 6410
7	867138-2	KP0800 NAME PLATEKP0800
10	650236-7	SWITCH SGEL115CDY-13
12	451328-3	KNOB COVER, KP0800
13	961004-6	RETAINING RING S-8
14	264028-4	HEX.NUT M10, KP0800
16	232185-6	LEAF SPRING, KP0800
17	346110-2	CAM PLATE, KP0800
18	911128-8	P.H.SCREW M4*16 WITH WR, MUH308
20	643550-8	HOLDER CAP 5-8, 6300L
22	231004-3	COMPRESSION SPRING 18, 1900B
23	421007-7	RUBBER PACKING FOR M101
24	318491-4	FRONT BASE, KP0800
25	318499-8	BASE, KP0800
26	231698-4	TORSION SPRING 7, KP0810
27	451392-4	FOOT, KP0800
28	266326-2	TAPPING SCREW PT 4X18, MT951
29	654100-4	RING TERMINAL
30	451327-5	BAFFLE PLATE, KP0800
31	266052-3	TAPPING SCREW, UB1101
32	681652-2	INSULATION WASHER, 9523B
33	210017-7	BALL BEARING 607DDW, 9528B
35	240052-1	FAN 46, KP0800
36	211088-7	BALL BEARING 6000DDW, 9526NB
37	140201-9	BRACKET COMPLETE, KP0800
37	263002-9	RUBBER PIN 4, 5704R
38	266326-2	TAPPING SCREW PT 4X18, MT951
39	222163-4	V-PULLY 4-20L, GA9010
40	225007-7	POLY V-BELT 4-241, 1900B
41	451326-7	BELT COVER, KP0800
42	911128-8	P.H.SCREW M4*16 WITH WR, MUH308
43	222164-2	V-PULLY 4-37, GA9010
44	211088-7	BALL BEARING 6000DDW, 9526NB
45	161061-6	DRUM, 1900B
46	211032-4	BALL BEARING 608ZZ, 5704R
49	345644-2	ADJUST PLATE
50	265132-2	PAN HEAD SCREW M4X5, MT190
51	345007-2	DRUM PLATE, 1900B
52	251609-3	FLANGE HEX.BOLT M6X17, 2012NB
