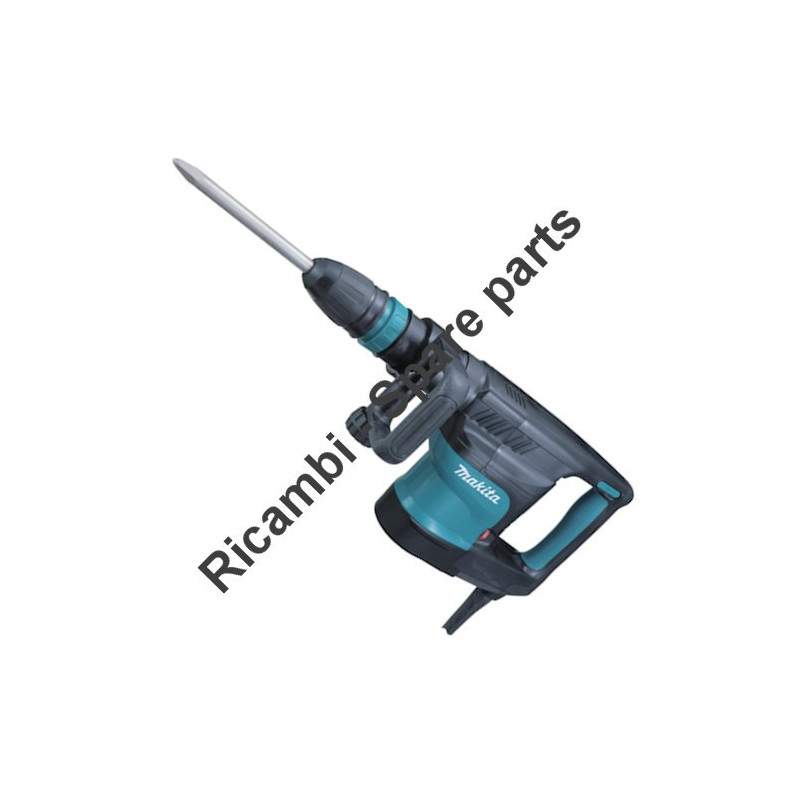

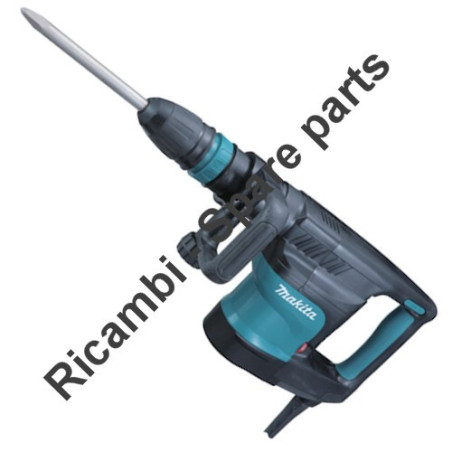

Makita Spare Parts for Demolition Hammer HM1101C
€53.55
Tax included
Makita Spare Parts for Demolition Hammer HM1101C
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Demolition Hammer SDS MAX HM1101C.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Demolition Hammer HM1101C
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Demolition Hammer SDS MAX HM1101C.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Demolition Hammer Makita HM1101C | ||
| # | Part NUm. | Description |
| 1 | 286285-4 | TOOL HOLDER CAP HR4001C / 4010C |
| 2 | 233948-3 | O-RING 25 X HR5201C |
| 3 | 257308-5 | O-RING 28 X HM1101C |
| 4 | 450064-8 | CHUCK COVER HR4501C |
| 5 | 346247-5 | CUP WASHER 28 X HM1101C |
| 6 | 262161-6 | RUBBER RING 28 X HM1101C |
| 7 | 324752-2 | RING CHUCK HR5201C |
| 8 | 451836-4 | RELEASE COVER X HM1101C |
| 9 | 310178-4 | TOOL RETAINER X HR5201C |
| 10 | 345804-6 | SPRING GUIDE HR5201C |
| 11 | 234180-2 | COMPRESSION SPRING 47 X HM1101C |
| 12 | 313193-7 | RING GEAR HM1101C |
| 13 | 233982-3 | CIRCLIP 33 X HM1101C |
| 14 | 325904-8 | LOCK RING X HM1101C |
| 15 | 451842-9 | CHANGE RING COVER X HM1101C |
| 16 | 451835-6 | BARREL COVER X HM1101C |
| 17 | 922148-7 | SCREW M4 X 25 X HR5201C |
| 18 | 451849-5 | CRANK HOUSING COVER X HM1101C |
| 19 | 140411-8 | BARREL X HM1101C |
| 20 | 922353-6 | SCREW M6 X30 X HM1202C |
| 21 | 213654-6 | O-RING 60 HR3850B / HM0810 |
| 22 | 213492-6 | O-RING 32 X HR5201C |
| 23 | 213492-6 | O-RING 32 X HR5201C |
| 24 | 262135-7 | URETHANE RING 36 X HR4501C |
| 25 | 325901-4 | TOOL HOLDER X HM1101C |
| 26 | 213281-9 | O-RING 18 X HR4001C / HR4010C |
| 27 | 213392-0 | RUBBER RING 25 X HR4000C |
| 28 | 213317-4 | O-RING 20 X HR4000C |
| 30 | 325902-2 | IMPACT BOLT HM1101C |
| 31 | 325903-0 | COLLARED SLEEVE 19 HM1101C |
| 32 | 422053-3 | RUBBER RING 20 X HM1101C |
| 33 | 325903-0 | COLLARED SLEEVE 19 HM1101C |
| 34 | 412096-3 | GUIDE SLEEVE X HM1101C |
| 35 | 213606-7 | O-RING 48 HR3850 / B / HR2510 |
| 36 | 318604-7 | CYLINDER GUIDE X HM1101C |
| 37 | 313194-5 | O-RING 39 X HM1101C |
| 38 | 234178-9 | COMPRESSION SPRING 40 X HM1101C |
| 39 | 325905-6 | STRIKER X HM1101C |
| 40 | 213536-2 | O-RING 27 X HM1101C |
| 41 | 331892-9 | CYLINDER 35 HM1101C |
| 42 | 213458-6 | O-RING 34 |
| 43 | 233981-5 | CIRCLIP 38 X HM1101C |
| 44 | 267423-7 | WASHER 40 X HM1101C |
| 45 | 233981-5 | CIRCLIP 38 X HM1101C |
| 46 | 331911-1 | PIN X HM1101C |
| 47 | 213536-2 | RING 27 X HM1101C |
| 48 | 451833-0 | PISTON X HM1101C |
| 49 | 213415-4 | RING 28 X HM1100C |
| 50 | 451834-8 | ROD HM1101C |
| 61 | 424311-3 | FILTER COVER X HM1101C |
| 62 | 443127-7 | FILTER X HM1203C |
| 63 | 911133-5 | SCREW M4X18 |
| 64 | 451838-0 | CRANK CAP HM1101C |
| 65 | 424312-1 | SEAL RING HM1101C |
| 66 | 325899-5 | CRANK SHAFT HM1101C |
| 67 | 211279-0 | BALL BEARING 6303LLU X HR4501C |
| 69 | 140408-7 | CRANK HOUSING HM1101C |
| 70 | 266041-8 | PT SCREW 5x25 |
| 71 | 419008-7 | FIX GUIDE HR4001C |
| 72 | 423345-3 | CUSHION PLATE HR4001C |
| 73 | 213133-4 | OIL SEAL 12 X HR2800 |
| 74 | 211295-2 | BALL BEARING 6202LLU X HM1101C |
| 75 | 267215-4 | WASHER 15 X BTD200 |
| 76 | 241908-1 | FAN 80 X 9049 |
| 77 | 517858-5 | ARMATURE X HM1101C |
| 78 | 681642-5 | WASHER X LS1013 |
| 79 | 210059-1 | BALL BEARING 6000 HR2010 |
| 80 | 451837-2 | BAFFLE X HM1101C |
| 81 | 266568-8 | SCREW 5 X 80 X HM1101C |
| 82 | 623418-4 | FIELD ASSY FOR HM1101C |
| 83 | 451840-3 | HOUSING MOT. X HM1101C |
| 84 | 638700-8 | HOLDER BRUSHES X HM1101C |
| 85 | 195844-2 | CARBON BRUSHE SET CB-175 |
| 86 | 267215-4 | WASHER 15 X BTD200 |
| 87 | 451839-8 | COVER POST. X HM1101C |
| 88 | 266041-8 | PT SCREW 5x25 |
| 89 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 90 | 631966-9 | CONTROLLER FOR HM1101C |
| 91 | 638718-9 | CABLE X HM1101C |
| 92 | 450240-4 | LENS X HR3200C |
| 99 | 868072-9 | LABEL X HM1101C |
| 100 | 266041-8 | PT SCREW 5x25 |
| 102 | 140410-0 | HANDLE CPL X HM1101C |
| 105 | 450897-1 | SWITCH LEVER X HM1204C |
| 106 | 232209-8 | FLAT SPRING X HM0860C |
| 107 | 450891-3 | LEVER STOPPER X X HM1203C |
| 108 | 263027-3 | RUBBER PIN 4 X HM0860C |
| 109 | 654531-7 | CLAMP X 420S |
| 110 | 651418-4 | SWITCH ST115A-40 X 9541 |
| 111 | 687169-3 | STRAIN RELIEF |
| 112 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 113 | 682560-0 | CORD GUARD X HM1202C / 9079S |
| 115 | 451841-1 | HANDLE COVER X HM1101C |
| 116 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 117 | 265439-6 | SCREW M8X150 X HM1100C |
| 118 | 417002-3 | SIDE HANDLE CAM HM1202C |
| 119 | 317282-0 | SIDE HANDLE BASE 68A X HM1101C |
| 120 | 951166-8 | SPRING PIN 5/24 |
| 121 | 317283-8 | HOLDER IMP.68B X HM1101C |
| 122 | 417003-1 | HANDLE SIDE X HM1202C |
| 123 | 417002-3 | RING HANDLE HM1202C |
| 124 | 252640-2 | HANDLE KNOB M8 X |
| 125 | 151769-0 | BASE HANDLE CPL HR4000C |
| 126 | 134890-0 | HANDLE D HR4010 |
| 999 | 195260-8 | SERVICE KIT HM1101C / 11C |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase.
