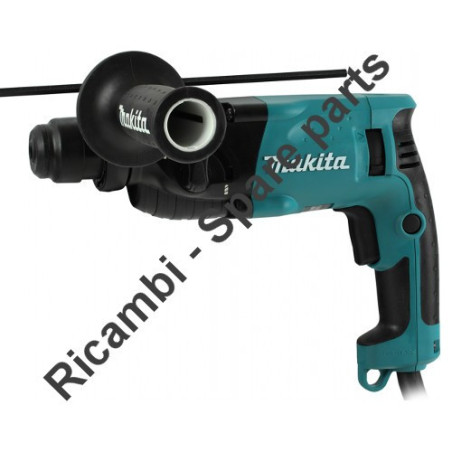

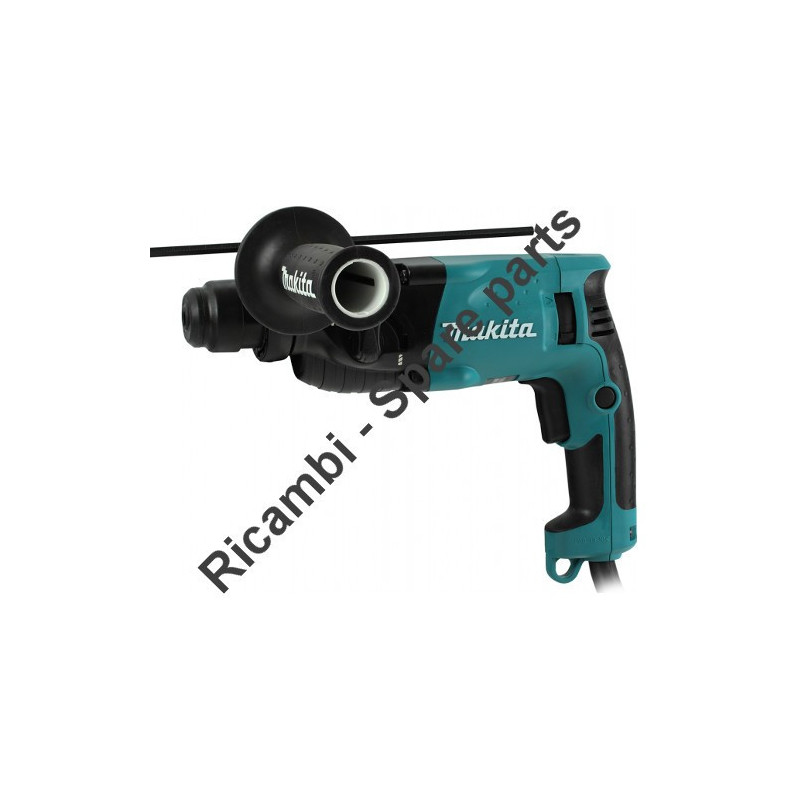

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830
search
  • Makita Spare Parts for SDS-Plus Rotary Hammer HR1830
  • Makita Spare Parts for SDS-Plus Hammers HR1830-2300-2450

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830

€33.39
Tax included

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer SDS-PLUS 18MM HR1830.

ITEM CODE: 154840-9
Quantity
on 7/10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for SDS-Plus Rotary Hammer HR1830

Distribution and Sale at attractive prices of MAKITA Original Spare Parts

. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer SDS-PLUS 18MM HR1830.

In the following table, look for the model of Rotary Hammer and the respective parts of the code.


ROTARY HAMMER SDS-PLUS 18MM 1830
1 286263-4 CAP 35 X HR2020
2 233940-9 SPRING RING 19 FOR HR2432
3 419220-9 COVER CHUCK X HR1830
4 257241-1 RING 21 X HR2020
5 345187-4 WASHER GUIDE X HR2020
6 233916-6 SPRING 21-29 X HR2020
7 921923-8 SCREW M 8 X 120 X HR2020
8 417911-6 HANDLE BASE X X HR1830
9 158057-6 HANDLE 36 CPL HR2230
10 266048-4 SCREW M 4 X 40 X 4334D
11 162242-5 LEVER CPL X HR1830
12 233459-8 COMPRESSION SPRING 3 HR1830
13 419192-8 KEY LOCK HR1830
14 213278-8 RING 13 X HR2020
15 213956-0 OIL SEAL 25 FOR HR1830
16 211375-4 BALL BEARING 6805LLB 6221D
17 211012-0 BEARING X 9524NB
18 154840-9 GEAR BOX HR1830
19 961135-1 RETAINING RING W25
20 267304-5 WASHER 25 HR1830
21 233457-2 SPRING COMPRESSION 25 HR1830
22 331707-0 GEAR 46 HR1830
26 154843-3 CHUCK CPL HR1830
27 216022-2 STEEL BALL 7
28 213183-9 RING 13 HR1830
29 324611-0 SWING HR1830
30 257275-4 RING 11 HR1830
31 233942-5 O- RING 22
32 267175-0 FLAT WASHER 24 6914DW
33 345681-6 FLANGE HR1830
34 324613-6 STRIKER X HR1830
35 213182-1 RING 14 X HR1830
36 331708-8 PISTON HR1830
37 267130-2 SPRING WASHER 9 HR2410
38 324612-8 PISTON PIN X X HR1830
39 267130-2 SPRING WASHER 9 HR2410
40 227152-4 GEAR 10 HR1830
41 331706-2 CLUTCH CAM HR1830
42 219019-0 SWASH BEARING 9 BHR162/HR1830
43 226620-4 GEAR 23 HR1830
44 423346-1 RING X HR1830
45 233458-0 COMPRESSION SPRING 32 HR1830
46 268147-8 PIN 4 HR1830
47 443123-5 FELT 4X3 FOR HR1830
48 345645-0 CHANGE PLATE FOR HR1830
49 233460-3 COMPRESSION SPRING 3 HR1830
50 345654-9 RETAINING PLATE FOR HR1830
51 211012-0 BALL BEARING X 9524NB
52 154841-7 INNER HOUSING SPL. X HR1830
53 213953-6 RING 24 HR2430
54 267302-9 WASHER 9 HR1830
55 267231-6 FLAT WASHER 9 X HR2020
56 210060-6 BALL BEARING 609LLU HR2430
57 267231-6 FLAT WASHER 9 X HR2020
58 240083-0 FAN 52 HR1830
59 515649-8 ARMATURE 240V HR1830
60 681636-0 INSULATION WASHER
61 210017-7 BALL BEARING 607DDW
62 421868-5 RUBBER RING X 9554NB
63 266091-3 SPECIAL SCREW 4 X 50
64 419196-0 BAFFLE PLATE HR1830
65 633624-3 STATOR HR1830
66 419198-6 MOTOR HOUSING HR1830
68 191962-4 CARBON BRUSHES CB-419 (406.407) 6408
70 645200-1 CAPACITOR
72 682566-8 CORD GUARD X HR2450
73 638413-1 CARBON BRUSHE HOLDER X HP2071F
74 650570-5 SWITCH TG843TB-2 HP1830
75 687052-4 STRAIN RELIEF X 6408
76 265995-6 SCREW M4X18 X 6408 / 6221DW
77 686038-5 PIN HOLDER X HP2071F
78 419197-8 COVER HANDLE HR1830
79 265999-8 SCREW 4X25
999 188389-7 SERVICE KIT HR1830
