Makita HP001GD201 40V Cordless Hammer Drill Parts
search
  • Makita HP001GD201 40V Cordless Hammer Drill Parts
  • Makita HP001GD201 40V Cordless Hammer Drill Parts - Drawing

Makita HP001GD201 40V Cordless Hammer Drill Parts

€1.47
Tax included

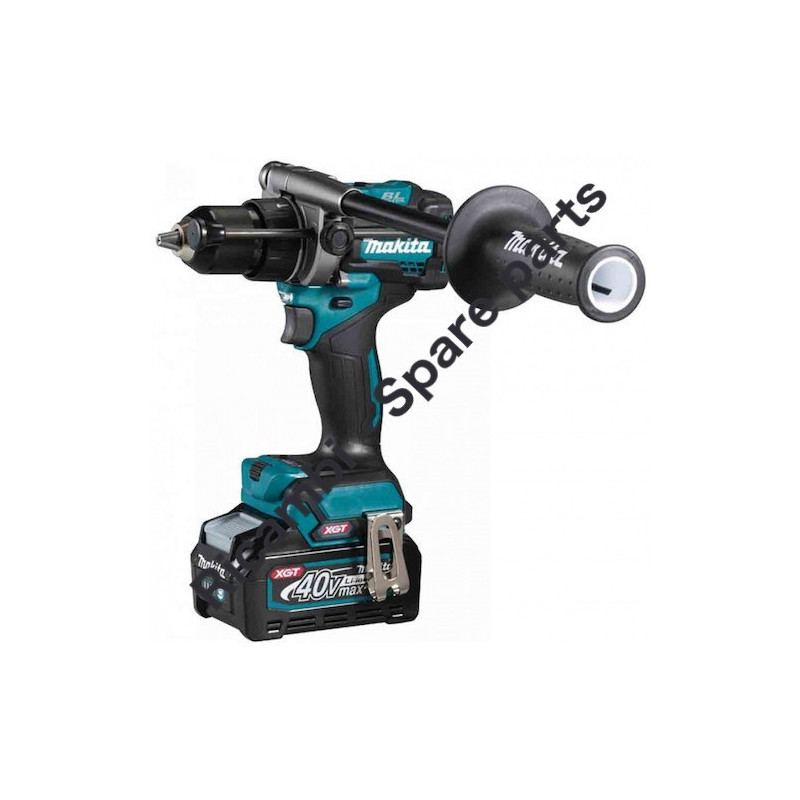

Makita HP001GD201 40V Cordless Hammer Drill Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for HP001GD201 40V Cordless Hammer Drill XGT BL.
ITEM CODE: 266130-9
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita HP001GD201 40V Cordless Hammer Drill Spare Parts

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for HP001GD201 40V Cordless Hammer Drill XGT BL

Open PDF drawing in this page for choose spare parts you need.
Makita HP001GD201 40V Cordless Hammer Drill XGT BL

Part Diagram/ Makita HP001GD201 40V Cordless Hammer Drill XGT BL / GZ Pag.1
# Part Num. Description
1 266130-9 TAPPING SCREW BIND PT 3X16
2 183N73-3 HOUSING SET
2 263005-3 RUBBER PIN 6
2 252126-6 HEX. LOCK NUT M4-7
2 422569-8 SPONGE SHEET Hp001G
002-1 183S37-7 HOUSING SET
002-1 263005-3 RUBBER PIN 6
002-1 252126-6 HEX. LOCK NUT M4-7
002-1 422569-8 SPONGE SHEET
3 127494-5 SPEED CHANGE LEVER ASSEMBLY
3 233438-6 COMPRESSION SPRING 4
4 232220-0 LEAF SPRING
7 136229-3 KEYLESS DRILL CHUCK ASS'Y
007-1 136359-0 KEYLESS DRILL CHUCK ASS'Y
007-1 763252-1 KEYLESS DRILL CHUCK 13
007-1 127727-8 GEAR ASSEMBLY
007-1 251468-5 - FLAT HEAD SCREW M6X22
007-2 136405-9 KEYLESS DRILL CHUCK ASS'Y
007-2 763252-1 KEYLESS DRILL CHUCK 13
007-2 122A40-5 GEAR ASSEMBLY
007-2 251468-5 - FLAT HEAD SCREW M6X22
8 266326-2 TAPPING SCREW 4X18
9 629476-8 STATOR COMPLETE
10 619613-2 ROTOR
11 412361-0 REAR COVER
12 266130-9 TAPPING SCREW BIND PT 3X16
13 620549-0 LED CIRCUIT
14 620C81-2 SENSOR CIRCUIT
15 419041-9 F/R CHANGE LEVER
16 651443-5 SWITCH C3JR-4B
17 256949-4 ROD 3
18 140R76-4 DIAL COMPLETE
19 313288-6 DIAL CAM
20 232597-3 COMPRESSION SPRING 3
21 632P49-4 TERMINAL UNIT Jr001G/Td001G
22 856S98-7 HP001G SERIAL NO. LABEL
23 183N73-3 HOUSING SET Hp001G
23 263005-3 RUBBER PIN 6
23 252126-6 HEX. LOCK NUT M4-7
23 422569-8 SPONGE SHEET Hp001G
023-1 183S37-7 HOUSING SET
023-1 263005-3 RUBBER PIN 6
023-1 252126-6 HEX. LOCK NUT M4-7
023-1 422569-8 SPONGE SHEET
24 8007R2-2 XGT LOGO LABEL Td001G
26 856S91-1 HP001G NAME PLATE
A01 127551-9 GRIP ASSEMBLY
A01 140S65-5 ARM R COMPLETE
A01 140S66-3 POLE COMPLETE
A01 266886-4 HEX. BOLT M8X65
A01 319966-6 ARM L
A01 962055-2 RETAINING RING (INT) R-15
A01 265785-7 THUMB SCREW M5X10
A01 931202-6 HEX. NUT M5
A02 251314-2 + SCREW M4X12
A03 346317-0 HOOK
A04 784637-8 +- BIT 2-45
A05 452947-8 BIT HOLDER
A06 122576-8 STOPPER POLE ASS'Y
A07B 412393-7 BATTERY COVER
A08B 191E07-8 DC40RA FAST CHARGER DC40RA 40V MAX
A08B 191J81-6 KITENERGY40VmaxBL4025 2,5Ax2+DC40RA
A08B 191J97-1 KITENERGY40VmaxBL4040 4Ax2+DC40RA
A08B 630B63-0 CARICA BATTERIE DC40RA (BULK)
COMPO-PARTS Pag.2
A09B 191B43-6 BATTERY BL4025 SET
A09-1B 191B36-3 BATTERY BL4025 SET
A10B 821551-8 CONNECTOR PLASTIC CASE (TYPE3)
A10B 453974-8 LATCH
A11B 835F93-2 INNER TRAY
A12B 8010K2-4 HP001GD201 INDICATION LABEL
A13B 8010K3-2 HP001GD201 PLASTIC CASE LABEL
