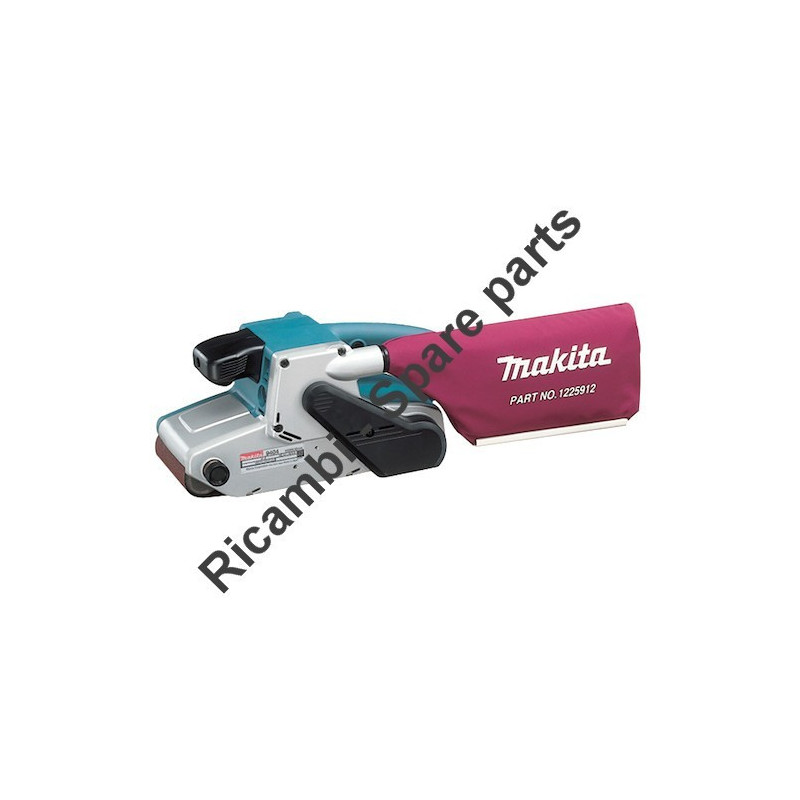

Makita Spare Parts for Belt Sander 9404
Makita genuine spare parts or replacement parts for to repair Belt Sander 9404.Fix Your Belt Sander 9404. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Belt Sander 9404
Fix Your Belt Sander 9404. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Orbital Sander and the respective parts of the code.
| Makita 9404 - Belt Sander spares and accessories | ||
| # | Part Num. | Description |
| 1 | 650230-9 | SWITCH, 2107F |
| 2 | 151743-8 | MOTOR HOUSING CPL., 9903 |
| 4 | 417049-7 | FRONT GRIP, 9903 |
| 5 | 266173-1 | T. SCREW FLANGE PT5X3, GA7011c |
| 6 | 660023-6 | CORD (2X18X16 SJ), HR2010 |
| 7 | 682503-2 | CORD GUARD 8-90, 9903 |
| 8 | 687063-9 | STRAIN RELIEF, 4323K |
| 9 | 265A48-7 | TAPPING SCREW 4X18, BO4556K |
| 10 | 211088-7 | BALL BEARING 6000DDW, 9005B |
| 11 | 681649-1 | INSULATION WASHER, 9921 |
| 12 | 523401-0 | FIELD ASS'Y, 9903 |
| 13 | 266056-5 | T. SCREW FLANGE PT5X45, LXWT01 |
| 14 | 643750-0 | BRUSH HOLDER CAP, HM1100C |
| 15 | 191963-2 | CARBON BRUSH CB-303 SET, 9227C |
| 16 | 513339-7 | ARMATURE ASS'Y 115V, 9903 |
| 17 | 417050-2 | BAFFLE PLATE, 9903 |
| 18 | 240026-2 | FAN 75, 9903 |
| 19 | 210193-7 | BALL BEARING 627DDW, RT0700C |
| 20 | 417048-9 | MOTOR COVER,9404 |
| 21 | 819001-5 | MAKITA LABEL, 9005B |
| 22 | 265A48-7 | TAPPING SCREW 4X18, BO4556K |
| 23 | 417051-0 | HANDLE COVER, 9903 |
| 24 | 417052-8 | BELT COVER, 9903 |
| 25 | 252153-3 | HEX NUT M6-10, 9910 |
| 26 | 225084-9 | SYNCHRO BELT 6-330, 9903 |
| 27 | 241663-5 | FAN 76, 9903 |
| 28 | 265B65-3 | SCREW M6X25, 9900B |
| 29 | 253707-9 | F. WASHER 16, 6802BV |
| 30 | 232573-7 | COMP. SPRING 16, 9900B |
| 31 | 266050-7 | P.T. SCREW 4X30, 4304 |
| 32 | 931402-8 | HEX NUT M8, 5037NB |
| 33 | 222156-1 | PULLEY 9.5-46.0, 9903 |
| 34 | 317273-1 | GEAR COVER, 9903 |
| 35 | 210078-7 | BALL BEARING, 2107F |
| 36 | 226520-8 | HELICAL GEAR 10, 9903 |
| 37 | 151755-1 | HELICAL GEAR 39 CPL., 9903 |
| 38 | 852039-7 | NAME PLATE, 9404 |
| 39 | 151748-8 | FRAME COMPLETE, 9404 |
| 40 | 211088-7 | BALL BEARING 6000DDW, 9005B |
| 41 | 162217-4 | DRIVING ROLLER, 9903 |
| 42 | 252154-1 | HEX NUT M8-13, 9910 |
| 43 | 961052-5 | RETAINING RING S-12, LS1016L |
| 44 | 323932-7 | TENSION ROLLER SHAFT, 9404 |
| 45 | 253922-5 | CUP WASHER 12, 9900B |
| 46 | 151754-3 | TENSION ROLLER COMPLETE,9404 |
| 47 | 344823-9 | LEVER, 9903 |
| 48 | 267731-6 | CUP WASHER, 9910 |
| 49 | 265059-6 | SHOULDER SCREW M4, 9910 |
| 50 | 416417-1 | ROLLER, 9903 |
| 51 | 233249-9 | COMPRESSION SPRING 7, 9903 |
| 52 | 151745-4 | TENSION ROLLER ARM COMPLETE,9404 |
| 53 | 267746-3 | CUP WASHER 17, 9903 |
| 54 | 233250-4 | COMPRESSION SPRING 12, 9903 |
| 55 | 266034-5 | TAPPING SCREW 4X16, LS1016L |
| 56 | 344822-1 | SAFETY COVER,9404 |
| 57 | 911116-5 | P.H. SCREW M4X12, 4301BV |
| 60 | 631379-4 | CONTROLLER, 9903 |
| 61 | 151751-9 | STEEL PLATE CPL.,9404 |
| 64 | 265A48-7 | TAPPING SCREW 4X18, BO4556K |
| 65 | 266034-5 | TAPPING SCREW 4X16, LS1016L |
| 500 | 122591-2 | DUST BAG ASS'Y, 9903 |
| 501 | 654475-1 | TERMINAL BLOCK, BO4556 |
| 502 | 821551-8 | STACKING CASE TYPE 3 210MM |
| 503 | 837653-0 | INNER TRAY |
| 504 | 654475-1 | TERMINAL BLOCK HS7100/KP0800 |
| 505 | 645006-7 | NOISE SUPPRESSOR 240V |
| 506 | 645089-7 | *NOISE SUPPRESSOR4100KB HS7611 |
| 507 | 654091-9 | *NON INSULATED TERMINAL GD0801 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
