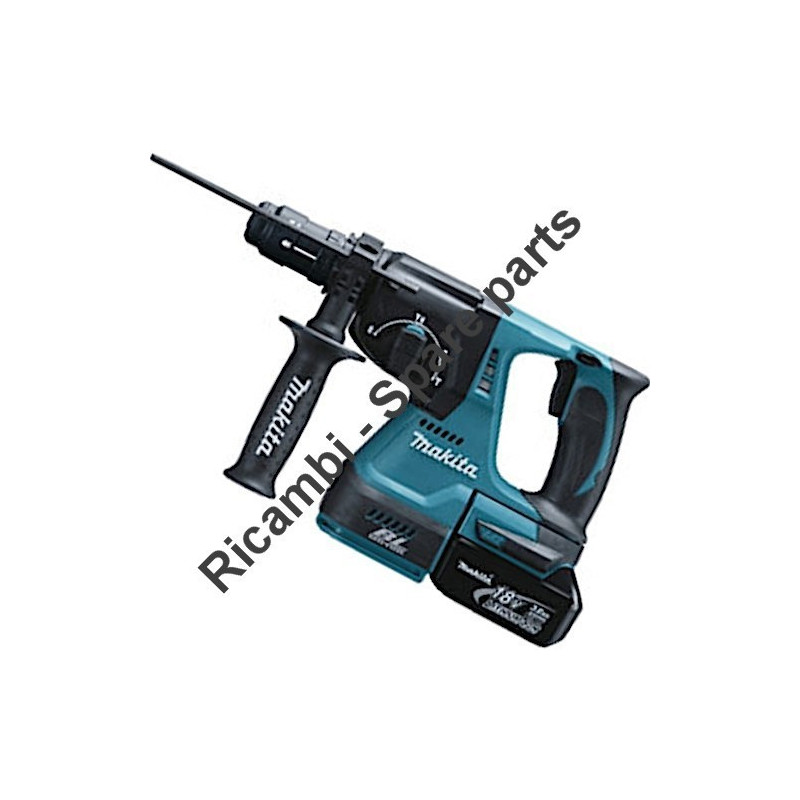

Makita Spares for Cordless Combination Hammer DHR243
Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Makita DHR243 18V 24MM Cordless Combination Hammer.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spares for Cordless Combination Hammer DHR243
Makita Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair deteriorated parts for Makita DHR243 18V 24MM Cordless Combination Hammer.
In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
| Makita DHR243 18V 24MM Cordless Combination Hammer | ||
| # | Part Num. | Description |
| 1 | 194080-7 | SDS Chuck BHR243 HR2450 HR2470 HR2811 HR2611 BHR243 |
| 11 | 266745-2 | HEX.BOLT M8X90 |
| 12 | 453129-5 | GRIP BASE |
| 13 | 158057-6 | GRIP 36 COMPLETE |
| 14 | 266351-3 | TAPPING SCREW 4X35 |
| 15 | 141229-0 | GEAR HOUSING COMPLETE |
| C10 | 213345-9 | OIL SEAL 25 |
| C20 | 890903-4 | INDICATION LABEL |
| 16 | 331890-3 | CUP SLEEVE |
| 17 | 211294-4 | BALL BEARING 6806LLU |
| 18 | 454112-5 | LOCK BUTTON |
| 19 | 234264-6 | Compression Spring 3 Bhr242/ |
| 20 | 453131-8 | Change Lever Cover Bhr242/243 |
| 21 | 453125-3 | Change Lever Bhr242/243 |
| 22 | 213381-5 | O Ring 21 Hr3511 |
| 23 | 253308-3 | FLAT WASHER 6 |
| 24 | 234147-0 | Compression Spring 5 Hr2300 |
| 25 | 325785-0 | PUSH CORN |
| 26 | 233360-7 | COMPRESSION SPRING 4 |
| 27 | 346537-6 | LOCK PLATE |
| 29 | 216019-1 | STEEL BALL 3 |
| 30 | 140266-1 | TOOL HOLDER GUIDE COMPLETE |
| 31 | 313149-0 | DRIVING FLANGE |
| 031-1 | 332139-4 | DRIVING FLANGE |
| 32 | 227232-6 | SPUR GEAR 51 |
| 032-1 | 227360-7 | SPUR GEAR 51 |
| 33 | 268226-2 | PIN 6 |
| 34 | 267414-8 | FLAT WASHER 30 |
| 35 | 234148-8 | COMPRESSION SPRING 31 |
| 36 | 267153-0 | FLAT WASHER 30 |
| 37 | 257932-4 | SPIRO LOCK WASHER 30 |
| 38 | 267153-0 | FLAT WASHER 30 |
| 39 | 325783-4 | SLEEVE 9B |
| 40 | 325791-5 | IMPACT BOLT B |
| 41 | 325792-3 | WASHER 10 |
| 42 | 234149-6 | COMPRESSION SPRING 20 |
| 43 | 325793-1 | O-RING CASE B |
| 44 | 213073-6 | O RING 9 |
| 45 | 233979-2 | RING SPRING 28 |
| 46 | 326139-4 | STRIKER |
| 47 | 213258-4 | O Ring 17.5 Hr2210/Hr2630T |
| 48 | 310345-1 | Piston Cylinder Hr2300/26/261 |
| 49 | 346036-8 | GUIDE PLATE |
| 50 | 324215-8 | PISTON JOINT |
| 51 | 234098-7 | COMPRESSION SPRING 14 |
| 52 | 267447-3 | FLAT WASHER 14 |
| 53 | 211012-0 | Ball Bearing 606Zz Hr2410/Dh |
| 54 | 257336-0 | STOP RING EXT U-6 |
| 55 | 253186-1 | FLAT WASHER 7 |
| 56 | 227231-8 | SPUR GEAR 10 |
| 57 | 331814-9 | CLUTCH CAM A |
| 58 | 326140-9 | CAM SHAFT |
| 59 | 219020-5 | SWASH BEARING 10 |
| 60 | 227588-7 | SPIRAL BEVEL GEAR 32 |
| 61 | 257323-9 | RING 8 |
| 62 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 |
| 63 | 346038-4 | BEARING RETAINER B |
| 64 | 211032-4 | BALL BEARING 608ZZ |
| 65 | 324212-4 | RING 8 |
| 66 | 922147-9 | HEX. SOCKET HEAD BOLT M4X25 |
| 67 | 141230-5 | INNER SUPPORT COMPLETE |
| 68 | 213767-3 | O-RING 75 |
| 69 | 318810-4 | INNER HOUSING |
| 70 | 443153-6 | FELT |
| 71 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 |
| 72 | 346536-8 | BEARING RETAINER A |
| 73 | 256536-9 | FLAT FILLISTER HD PIN 6 |
| 74 | 346538-4 | WEIGHT HOLDER GUIDE |
| 75 | 313224-2 | COUNTER WEIGHT |
| 76 | 346538-4 | WEIGHT HOLDER GUIDE |
| 77 | 253726-5 | FLAT WASHER 6 |
| 78 | 961018-5 | STOP RING E-5 |
| 79 | 213008-7 | O RING 22.4 |
| 80 | 141458-5 | SPIRAL BEVEL GEAR 11 COMPLETE |
| 81 | 210024-0 | BALL BEARING 608LLU |
| 82 | 253835-0 | FLAT WASHER 8 |
| 83 | 619293-4 | Rotor Bhr243 |
| 84 | 210022-4 | BALL BEARING 626DDW |
| 85 | 629922-1 | STATOR |
| 86 | 620241-8 | CONTROLLER |
| 87 | 187687-6 | HOUSING SET |
| 087-1 | 183A34-5 | HOUSING SET |
| 88 | 815B50-2 | DHR243 SERIAL NO. LABEL |
| 89 | 815B44-7 | DHR243 NAME PLATE |
| 90 | 266326-2 | Tapping Screw M4X18 Ebh253/Eb3 |
| 91 | 187687-6 | HOUSING SET |
| 091-1 | 183A34-5 | HOUSING SET |
| 92 | 453124-5 | F/R CHANGE LEVER |
| 93 | 453123-7 | SWITCH LEVER |
| 94 | 650709-0 | SWITCH C3JW-1A-P |
| 95 | 233598-4 | TORSION SPRING 6 |
| 96 | 313226-8 | OPENER |
| 97 | 644808-8 | TERMINAL |
| 98 | 424476-1 | CUSHION |
| 99 | 187377-1 | BATTERY HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| 100 | 263036-2 | RUBBER PIN 5 |
| 101 | 268184-2 | PIN 1.5 |
| 102 | 424473-7 | CUSHION RUBBER |
| 103 | 424473-7 | CUSHION RUBBER |
| 104 | 187377-1 | BATTERY HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| 105 | 286263-4 | Cap 35 Dhr164/Dhr165/2440/245 |
| 106 | 233940-9 | Ring Spring 19 Dhr164/165,Hr |
| 107 | 418217-5 | CHUCK COVER |
| 108 | 345333-9 | STOPPER |
| 109 | 216022-2 | Steel Ball 7.0 M3601/M8701 |
| 110 | 345187-4 | Guide Washer Dhr164/Dhr165 |
| 111 | 233916-6 | Conical Comp Spring 21-29 Dhr |
| 112 | 267279-8 | FLAT WASHER 21 |
| 113 | 324355-2 | Tool Holder Hr2450T/Hr2610/F |
| 114 | 216013-3 | Steel Ball 6 Bhr262T/Bhr |
| 115 | 231669-1 | TORSION SPRING 31 |
| 116 | 345334-7 | CHANGE RING |
| 117 | 418218-3 | CHANGE COVER |
| 118 | 216018-3 | STEEL BALL 5.0 |
| 119 | 345335-5 | LEAF SPRING |
| 120 | 267270-6 | FLAT WASHER 24 |
| 121 | 233924-7 | RING SPRING 21 |
| 122 | 893072-0 | CLEAR LABEL |
| 123 | 890994-5 | CLEAR LABEL |
| A01 | 324219-0 | DEPTH GAUGE |
| A02 | 194079-2 | DRILL CHUCK SET |
| C10 | 251425-3 | #NOME? |
| C20 | 324353-6 | CHUCK HOLDER |
| C30 | 418216-7 | SPACER |
| A03H | ***DC18RC | DC18RC FAST CHARGER |
| A03J | ***DC18RC | DC18RC FAST CHARGER |
| A03K | ***DC18RC | DC18RC FAST CHARGER |
| A03L | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) |
| C10 | 453974-8 | LATCH |
| A03M | ***DC18RC | DC18RC FAST CHARGER |
| A03N | ***DC18RC | DC18RC FAST CHARGER |
| A03O | ***DC18RC | DC18RC FAST CHARGER |
| A03P | ***DC18RC | DC18RC FAST CHARGER |
| A03Q | ***DC18RC | DC18RC FAST CHARGER |
| A04H | 194204-5 | BATTERY BL1830 SET |
| A04J | 194204-5 | BATTERY BL1830 SET |
| A04K | 194204-5 | BATTERY BL1830 SET |
| A04L | 837677-6 | INNER TRAY |
| A04M | 194204-5 | BATTERY BL1830 SET |
| A04N | 196399-0 | BATTERY BL1840 SET |
| A04O | 196399-0 | BATTERY BL1840 SET |
| A04P | 196399-0 | BATTERY BL1840 SET |
| A04Q | 196671-0 | BATTERY BL1850 SET |
| A04-1H | 194204-5 | BATTERY BL1830 SET |
| A04-1J | 194204-5 | BATTERY BL1830 SET |
| A04-1K | 194204-5 | BATTERY BL1830 SET |
| A04-1M | 194204-5 | BATTERY BL1830 SET |
| A04-1N | 196399-0 | BATTERY BL1840 SET |
| A04-1O | 196399-0 | BATTERY BL1840 SET |
| A04-1P | 196399-0 | BATTERY BL1840 SET |
| A04-1Q | 196671-0 | BATTERY BL1850 SET |
| A05H | 450128-8 | BATTERY COVER |
| A05J | 450128-8 | BATTERY COVER |
| A05K | 450128-8 | BATTERY COVER |
| A05L | 802M30-3 | DHR243ZJ INDICATION LABEL |
| A05M | 450128-8 | BATTERY COVER |
| A05N | 450128-8 | BATTERY COVER |
| A05O | 450128-8 | BATTERY COVER |
| A05P | 450128-8 | BATTERY COVER |
| A05Q | 450128-8 | BATTERY COVER |
| A06H | 141401-4 | PLASTIC CASE COMPLETE |
| C10 | 162271-8 | LATCH |
| C20 | 890904-2 | INDICATION LABEL |
| A06J | 141402-2 | PLASTIC CASE COMPLETE |
| C10 | 162271-8 | LATCH |
| C20 | 890904-2 | INDICATION LABEL |
| A06K | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) |
| C10 | 453974-8 | LATCH |
| A06L | 802M33-7 | DHR243ZJ PLASTIC CASE LABEL |
| A06M | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) |
| C10 | 453974-8 | LATCH |
| A06N | 141401-4 | PLASTIC CASE COMPLETE |
| C10 | 162271-8 | LATCH |
| C20 | 890904-2 | INDICATION LABEL |
| A06O | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) |
| C10 | 453974-8 | LATCH |
| A06P | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) |
| C10 | 453974-8 | LATCH |
| A06Q | 141401-4 | PLASTIC CASE COMPLETE |
| C10 | 162271-8 | LATCH |
| C20 | 890904-2 | INDICATION LABEL |
| A07H | 802M42-6 | DHR243RFE PLASTIC CASE LABEL |
| A07J | 802M46-8 | DHR243RFEV PLASTIC CASE LABEL |
| A07K | 837677-6 | INNER TRAY |
| A07M | 837677-6 | INNER TRAY |
| A07N | 802M36-1 | DHR243RME PLASTIC CASE LABEL |
| A07O | 837677-6 | INNER TRAY |
| A07P | 837677-6 | INNER TRAY |
| A07Q | 804H95-1 | DHR243RTE PLASTIC CASE LABEL |
| A08J | ***DX02 | DUST EXTRACTION SYSTEM |
| A08K | 802M29-8 | DHR243RFJ INDICATION LABEL |
| A08M | 802M31-1 | DHR243RFJV INDICATION LABEL |
| A08O | 802M47-6 | DHR243RMJ INDICATION LABEL |
| A08P | 802M50-7 | DHR243RMJV INDICATION LABEL |
| A09J | 424474-5 | SEALING CAP |
| A09K | 802M32-9 | DHR243RFJ PLASTIC CASE LABEL |
| A09M | 802M34-5 | DHR243RFJV PLASTIC CASE LABEL |
| A09O | 802M48-4 | DHR243RMJ PLASTIC CASE LABEL |
| A09P | 802M51-5 | DHR243RMJV PLASTIC CASE LABEL |
| A10M | ***DX02 | DUST EXTRACTION SYSTEM |
| A10P | ***DX02 | DUST EXTRACTION SYSTEM |
| A11M | 424474-5 | SEALING CAP |
| A11P | 424474-5 | SEALING CAP |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
