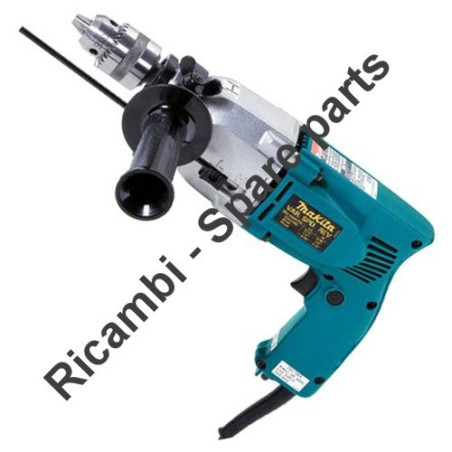

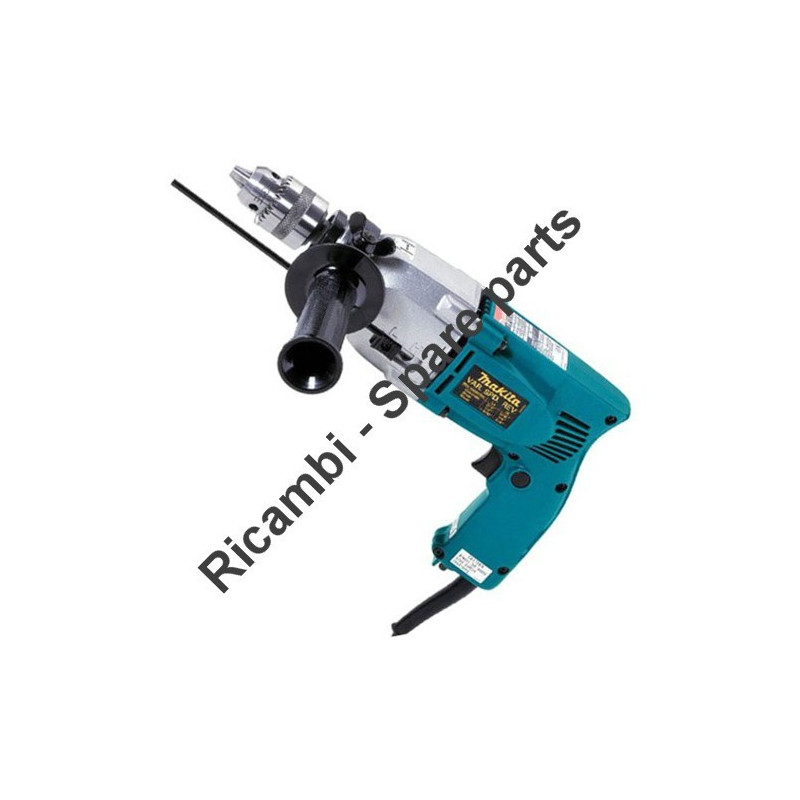

Makita Spare Parts for Percussion Drill HP2000
€1.36
Tax included
Makita Spare Parts for Percussion Drill HP2000
We have the original Spares MAKITA for Percussion Drill HP2000 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Percussion Drill HP2000. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Percussion Drill HP2000
We have the original Spares MAKITA for Percussion Drill HP2000 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Percussion Drill HP2000. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
In the following table, look for the model of Drill and the respective parts of the code.
| HP2000 - PERCUSSION DRILL | ||
| # | Part Num. | Description |
| 1 | 251425-3 | 13MM KEYED DRILL CHUCK METAL H / DUTY |
| 2 | 192877-8 | SPINDLE THREAD 1/2 X 20 |
| 3 | 962151-6 | RETAINING RING R-32 /EM4350/DGA505 |
| 4 | 213301-9 | DUST SEAL 20 /8419B-2 |
| 5 | 152167-1 | SPINDLE X HP2010 / N |
| 6 | 323679-3 | CHANGE RING 8419B-2 / HP201 |
| 7 | 213458-6 | O-RING 34 |
| 8 | 159691-5 | GEAR HOUSING HP1020 / N |
| 9 | 253798-0 | FLAT WASHER 13 XM / HP2010N |
| 10 | 961052-5 | RETAINING RING S12 |
| 11 | 226038-9 | GEAR 39-49 |
| 12 | 210025-8 | BALL BEARING X 4324 |
| 13 | 226039-7 | GEAR 9-19-41 |
| 14 | 210025-8 | BALL BEARING X 4324 |
| 15 | 263002-9 | RUBBER PIN 4 |
| 16 | 156741-7 | GEAR HOUSING COVER HP2010/N |
| 17 | 152135-4 | SHIFTER ROD 8419B2 / HP2010 |
| 18 | 231249-3 | COMPRESSION SPRING 5 8419B2 / HP2010 / N |
| 19 | 411475-2 | CHANGE LEVER 8419B-2 / HP2010 |
| 20 | 265029-5 | SCREW M.4 8419B-2 / HP2010 / N |
| 21 | 211043-9 | BALL BEARING 807 |
| 22 | 213002-9 | DUST SEAL 8 X 9218SB |
| 23 | 241815-8 | FAN 62 X HP2010 / N |
| 24 | 515148-0 | ARMATURE X HP2000 |
| 26 | 410772-3 | AIR BAFFLE HP2010 |
| 27 | 528160-1 | STATOR FIELD X HP2000 |
| 28 | 681600-1 | INSULATION WASHER HP1020 |
| 29 | 211028-5 | BALL BEARING 627 |
| 30 | 263002-9 | RUBBER PIN 4 |
| 31 | 253192-6 | FLAT WASHER 14 |
| 32 | 181410-1 | CARBON BRUSH CB-106 (104,111) |
| 33 | 643605-9 | CARBON BRUSH HOLDER |
| 34 | 414891-7 | GRIP COVER XHP2000 / 2010 |
| 35 | 911143-2 | SCREW M4X22 |
| 36 | 911268-2 | FLAT HEAD SCREW M4X45 |
| 37A | 651256-4 | SWITCH SGEL 106 CV 1A |
| 37B | 651934-6 | SWITCH J8907K578 |
| 38 | 411900-3 | SWITCH COVER XM / HP2010N |
| 39 | 911124-6 | SCREW M4X14X HM1301 |
| 40 | 645253-0 | NOISE SUPPRESSOR X 6408 |
| 41 | 685725-3 | SPONGE X UH3000 |
| 42 | 911133-5 | SCREW M4X18 |
| 43 | 687001-1 | STRAIN RELIEF |
| 44 | 682504-0 | CORD GUARD 10/85 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
