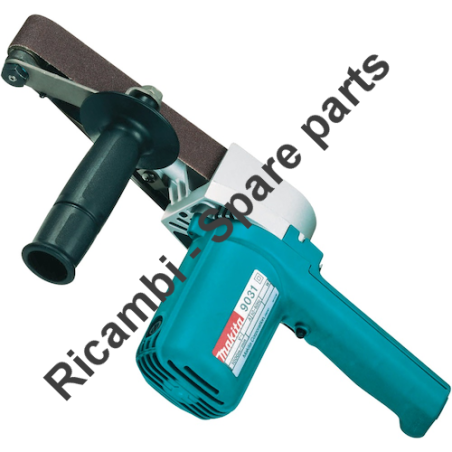

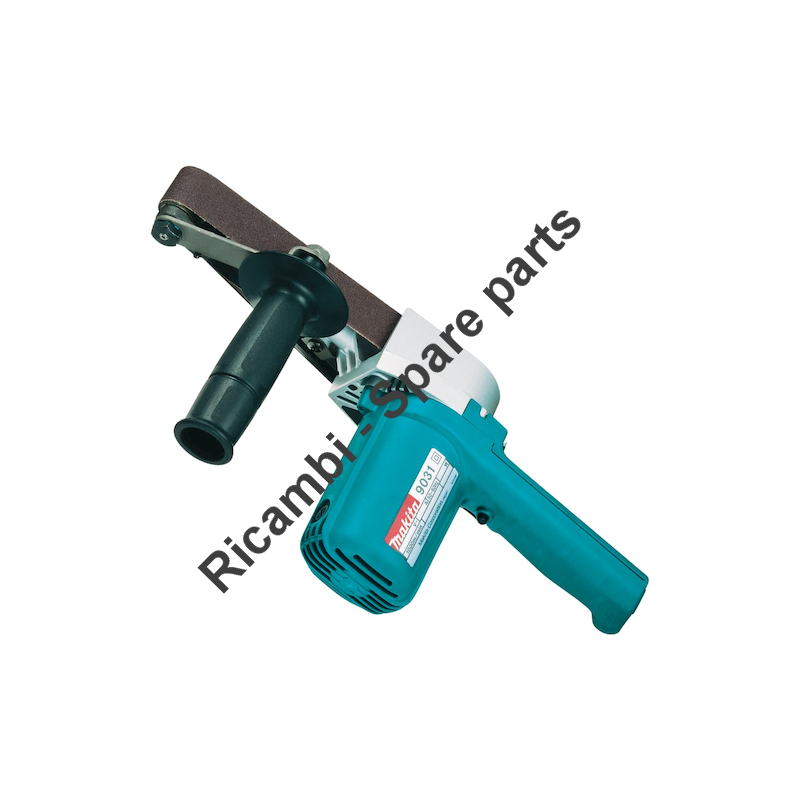

Makita Spare Parts for Belt Sander 9031
€71.19
Tax included
Makita Spare Parts for Belt Sander 9031
We have the original MAKITA parts and tool repair help you need to get your tools running like new again.Fix Your Belt Sander 9031. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Belt Sander 9031
Fix Your Belt Sander 9031. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Belt Sander and the respective parts of the code.
| Belt Sander 9031 | ||
| # | Part Num. | Description |
| 1 | 153489-2 | HANDLE 36 X 9554NB |
| 2 | 921462-8 | HEX BOLT M8*40, LS1220 |
| 3 | 286241-4 | CAP 30 |
| 4 | 951116-3 | SPRING PIN 4-20 |
| 5 | 265999-8 | TAPPING SCREW 4*25, 6827 |
| 6 | 342152-4 | FLAT SHOE |
| 7 | 266035-3 | TAPPING SCREW BIND CT 5X1 |
| 8 | 231056-4 | COMPRESSION SPRING 13 |
| 9 | 253052-2 | FLAT WASHER 12, TD0900 |
| 10 | 252605-4 | WING NUT M16 |
| 11 | 144743-5 | GEAR HOUSING ASSY |
| 12 | 210017-7 | BALL BEARING 607DDW, 9528B |
| 13 | 226435-9 | HELICAL GEAR 35 |
| 14 | 258009-8 | SPRING PIN 3.5-12 |
| 15 | 211323-3 | BALL BEARING 6904LLU, HR2412 |
| 16 | 285830-2 | BEARING RETAINER 44 |
| 17 | 266058-1 | TAPPING SCREW CT 4X12 |
| 18 | 222129-4 | PULLEY 33-64 |
| 20 | 415624-3 | PULLEY LINER |
| 21 | 941101-4 | FLAT WASHER 5, 3703 |
| 22 | 266067-0 | HEX. SOCKET HEAD BOLT M5X |
| 23 | 265995-6 | TAPPING SCREW 4X18, 4100NH |
| 24 | 415635-8 | HANDLE COVER 9031 |
| 25 | 651263-7 | SWITCH SGEL206C |
| 26 | 645209-3 | NOISE SUPPRESSOR |
| 27 | 631677-6 | CONTROLLER 200V-240V |
| 28 | 265995-6 | TAPPING SCREW 4X18, 4100NH |
| 29 | 687124-5 | CORD CLAMP, MT951 |
| 31 | 682502-4 | CORD GUARD 8-85, 4100NH |
| 32 | 951116-3 | SPRING PIN 4-20 |
| 33 | 322746-1 | TOP PULLEY SHAFT |
| 34 | 222130-9 | PULLEY 30-25 |
| 35 | 210015-1 | BALL BEARING 688DDW |
| 36 | 331450-1 | SLEEVE 12 |
| 37 | 210015-1 | BALL BEARING 688DDW |
| 38 | 154417-0 | ANGLE STAY COMPLETE |
| 39 | 165110-1 | ARM COMPLETE |
| 40 | 253904-7 | WAVE WASHER 12 |
| 41 | 252138-9 | HEX. NUT M6-17 |
| 43 | 191940-4 | CARBON BRUSH CB-411 |
| 44 | 643550-8 | HOLDER CAP 5-8, 6300L |
| 45 | 159747-4 | MOTOR HOUSING COMPLETE |
| 46 | 599112-9 | STATOR 220V |
| 47 | 266052-3 | TAPPING SCREW, UB1101 |
| 48 | 415634-0 | BAFFLE PLATE |
| 49 | 211028-5 | BALL BEARING 627LB, 1900B |
| 50 | 681614-0 | INSULATION WASHER |
| 51 | 517148-6 | ARMATURE ASS'Y 220V |
| 52 | 241884-9 | FAN 60 |
| 53 | 210005-4 | BALL BEARING 608DDW, UB1100 |
| 54 | 654100-4 | RING TERMINAL |
| 55 | 344571-0 | FLONT COVER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
