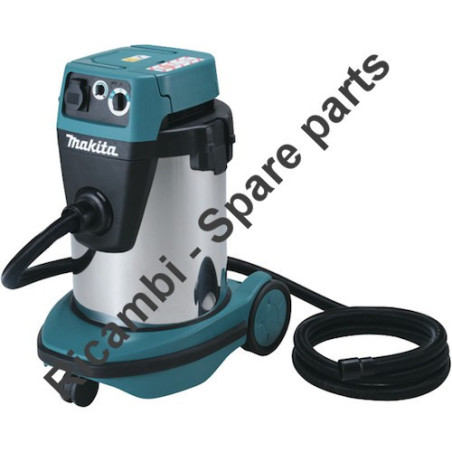

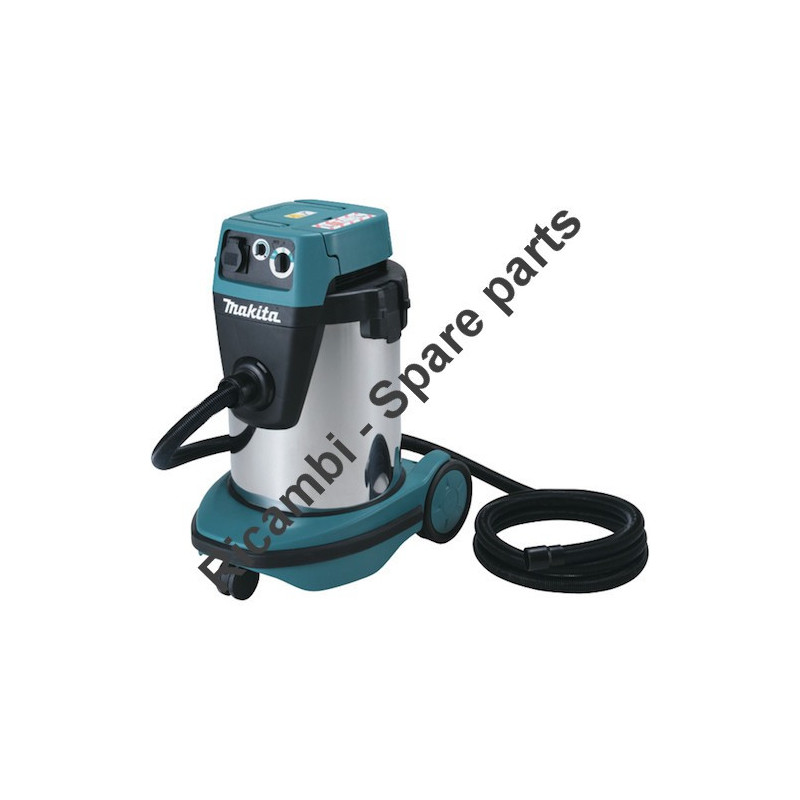

Makita Spare Parts for Vacuum Cleaner VC3210L
€177.45
Tax included
Makita Spare Parts for Vacuum Cleaner VC3210L
Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Wet/Dry Vacuum Cleaner VC3210L.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Vacuum Cleaner VC3210L
Distribution and Sale at attractive prices of MAKITA Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Wet/Dry Vacuum Cleaner VC3210L.
In the following table, look for the model of Vacuum Cleaner and the respective parts of the code.
| VC3210L VACUUM CLEANER CLASS L MAKITA Pag.1 | ||
| # | Part Num. | Description |
| 1 | 452451-7 | REAR COVER X VC3210L |
| 2 | 266048-4 | SCREW M 4 X 40 X 4334D |
| 3 | 140751-4 | TOP COVER VC3210L |
| 4 | 451340-3 | HANDLE VC3210L |
| 6 | 423393-2 | UPPER DAMPER VC3210L |
| 7 | 266060-4 | SCREW M4 X 65 JN1601 |
| 9 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 10 | 451343-7 | VC3210L SWITCH SUPPORT |
| 11 | 650623-0 | SWITCH X VC3210L |
| 12 | 686023-8 | CLAMP VC3210L |
| 13 | 631922-9 | CONTROL X VC3210L |
| 17 | 655117-0 | SOCKET X VC3210L |
| 19 | 140742-5 | BASE SWITCH X VC3210L |
| 25 | 213054-0 | GASKET 9 HR2210 / 20 / 5016N |
| 26 | 451344-5 | VC3210L SWITCH KNOB |
| 27 | 213176-6 | RING 14 X AN901 |
| 28 | 451342-9 | SWITCH LEVER X VC3210L |
| 30 | 266630-9 | SCREW 4X16 X VC3210L |
| 31 | 620033-5 | CONTROLLER FOR VC3210L |
| 32 | 213406-5 | GASKET 30 58NB / SB / HM1200 |
| 33 | 682575-7 | CABLE SLEEVE 12-90 VC3210L |
| 34 | 265999-8 | SCREW 4X25 |
| 35 | 687149-9 | CABLE CLAMP VC3210L |
| 36 | 688131-1 | LINE FILTER X MT240 |
| 37 | 140254-8 | BASE UPPER COVER VC3210L |
| 38 | 423395-8 | LOWER CUSHION VC3210L |
| 39 | 423279-0 | SEAL 70 VC3210L |
| 40 | 451338-0 | MOTOR COVER VC3210L |
| 41 | 241512-6 | FAN 62 VC3210L |
| 42 | 424228-0 | RUBBER RING 120 X VC3210L |
| 43 | 125876-5 | MOTOR X VC3210L |
| 44 | 911283-6 | SCREW M5X60 VC3210L |
| 45 | 195483-8 | CARBON BRUSHES CB-173 |
| 46 | 452106-4 | BRUSH HOLDER X VC3210L |
| 47 | 643610-6 | BRUSH HOLDER VC3210L |
| 48 | 911118-1 | SCREW M4X12 |
| 50 | 267715-4 | WAVY WASHER 20 VC3210L |
| 51 | 211092-6 | BEARING BALLS 629DD |
| 52 | 517849-6 | ARMATURE VC3210L |
| 53 | 211087-9 | BALL BEARING 6200DDW NSK |
| 54 | 526204-1 | STATOR FOR VC3210L |
| 55 | 454480-6 | MOTOR SUPPORT |
| 56 | 316795-8 | FLANGE VC3210L |
| 57 | 241910-4 | FAN 125 X VC3210L |
| 58 | 325747-8 | SPACER X VC3210L |
| 59 | 346114-4 | PROTECTION X VC3210L |
| 60 | 241910-4 | FAN 125 X VC3210L |
| 61 | 316799-0 | WASHER 10 VC3210L |
| 62 | 931403-6 | HEXAGONAL NUT M8 |
| 63 | 346115-2 | COIL COVER X VC3210L |
| VC3210L VACUUM CLEANER CLASS L MAKITA Pag.2 | ||
| 64 | 424229-8 | SUPPORT X VC3210L |
| 65 | 423396-6 | REAR FILTER X VC3210L |
| 66 | 423399-0 | SIDE FILTER X VC3210L |
| 67 | 423397-4 | SHOCK ABSORBER X VC3210L |
| 68 | 451544-7 | TANK COVER X VC3210L |
| 71 | 195441-4 | FILTER CARTRIDGE X VC3210L |
| 72 | 424377-3 | SHOCK ABSORBER X VC3210L |
| 73 | 195612-3 | PRE-FILTER VC3210L |
| 74 | 424270-1 | SHOCK ABSORBER X VC3210L |
| 75 | 266257-5 | SCREW M4 X 28 X 9561CV |
| 76 | 417587-9 | SUPPORT VC3210L |
| 77 | 451455-6 | SUPPORT X VC3210L |
| 78 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 79 | 266192-7 | SCREW 4 X 14 X HR4001C / HR4010C |
| 80 | 168537-4 | HOOK X VC3210L |
| 81 | 451545-5 | HOOK SUPPORT VC3210L |
| 82 | 188824-5 | TANK X VC3210L |
| 83 | 451546-3 | SUCTION COVER X VC3210L |
| 84 | 213655-4 | GASKET 56 HR3510 / 20 / HM12 |
| 85 | 451454-8 | RING X VC3210L |
| 86 | 424346-4 | RING T VC3210 |
| 87 | 649150-2 | CABLE MASS 120 VC3210L |
| 88 | 911103-4 | PAN HEAD SCREW M4X6 3600H |
| 89 | 911118-1 | SCREW M4X12 |
| 90 | 451643-5 | WHEEL COVER X VC3210L |
| 91 | 961060-6 | RING CHECK S20 |
| 92 | 267299-2 | WASHER 20 FOR GA9020 |
| 93 | 451642-7 | WHEEL 170 VC3210L |
| 94 | 331888-0 | JOINT X VC3210L |
| 95 | 168547-1 | WHEEL 75 X VC3210L |
| 96 | 141019-1 | FLOAT X VC3210L |
| 97 | 452446-0 | FLOATING SUPPORT VC3210L |
| 98 | 265999-8 | SCREW 4X25 |
| 99 | 424382-0 | RUBBER SUPPORT X VC3210L |
| A01-1 | 195433-3 | HOSE COMPLETE 28-3.5 SET |
| C20 | 417191-4 | CUFF LOCK |
| C30 | 417586-1 | STOPPER |
| C40 | 417662-1 | SLEEVE |
| C50 | 417766-9 | FRONT CUFF 38 |
| D10 | INC. A02,A03 | |
| A02 | 417765-1 | FRONT CUFF 22 |
| A03 | 424379-9 | FRONT CUFF 24 |
| A04 | 417764-3 | HOLDER 10-33 |
| A05 | 195440-6 | POLY BAG SET |
