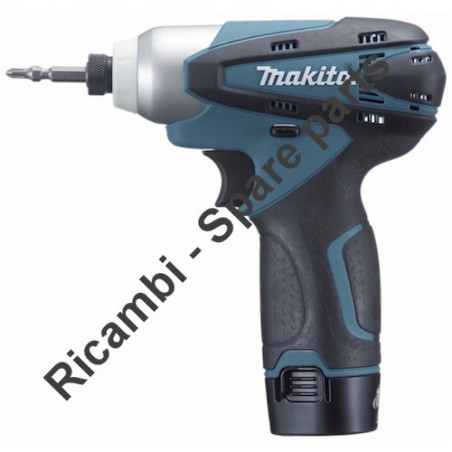

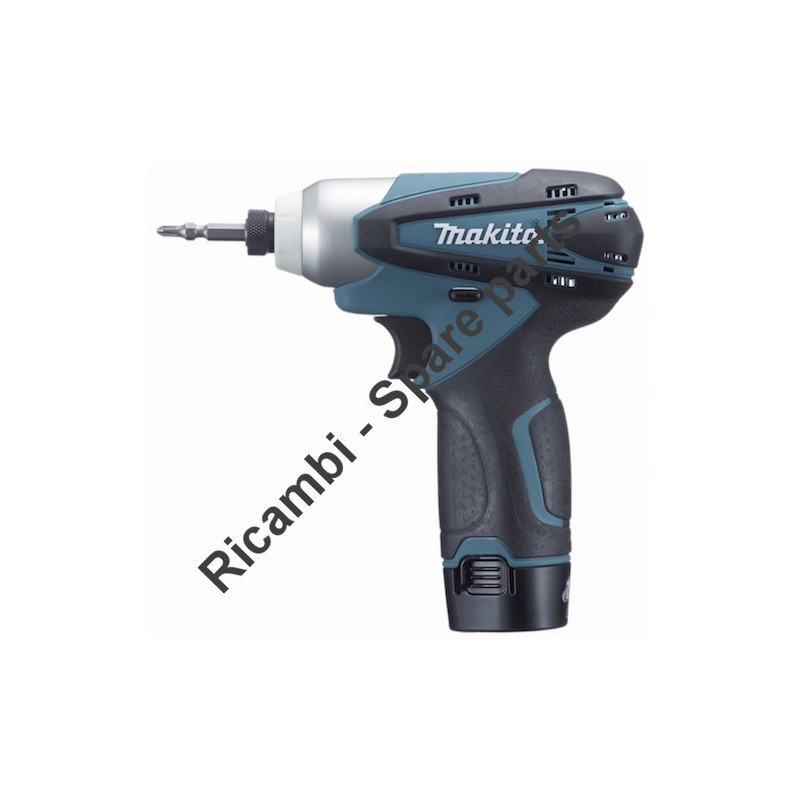

We are MAKITA original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Impact Driver TD090DWE 90NM 10,8V 1,3Ax2.
In the following table, look for the model of jackhammers and the respective parts of the code.![]()
| Cordless Impact Driver TD090DWE 90NM 10,8V 1,3Ax2 | ||
| # | Part Num. | Description |
| 1 | 187160-6 | MOTOR HOUSING TD090D |
| 2 | 865121-3 | LABEL TD090D |
| 3 | 266130-9 | SCREW 3X16 X 6203/13 / 6313DW |
| 4 | 631813-4 | LIGHT CIRCUIT X DF030D |
| 5 | 450504-6 | REVERSIBLE LEVER X DF030D |
| 6 | 650699-7 | C3HW-3A-LF1M SWITCH |
| 7 | 345998-7 | PLATE DF030D |
| 8 | 643830-2 | BATTERY TERMINAL DF030D |
| 9 | 231965-7 | RINGING RING X 6960DW |
| 10 | 267143-3 | WASHER X 6960DW |
| 11 | 233005-7 | SPRING 13 X 6903VDW / BTD130F |
| 12 | 324711-6 | SLEEVE X TD020D |
| 13 | 424109-8 | RUBBER PROTECTION TD090D |
| 14 | 158670-0 | HAMMER CASE TD090D |
| 15 | 261140-1 | NYLON WASHER 20 TD090D |
| 16 | 216019-1 | BALL 3 X DHR24 * / HR26 ** |
| 17 | 324895-0 | ANVIL M TD090D |
| 18 | 324894-2 | HAMMER TD090D |
| 19 | 216019-1 | BALL 3 X DHR24 * / HR26 ** |
| 20 | 267380-9 | WASHER 20 TD090D |
| 21 | 234064-4 | COMPRESSION SPRING 21 TD090D |
| 22 | 267813-4 | WASHER 21 TD090D |
| 23 | 216002-8 | BALL 4.8 |
| 24 | 221437-0 | GEAR 17 TD090D |
| 25 | 324897-6 | SPINDLE TD090D |
| 26 | 268217-3 | PIN 3.5 TD090D |
| 27 | 253052-2 | WASHER 12 |
| 28 | 227215-6 | GEAR 43 TD090D |
| 29 | 158671-8 | BEARING BOX TD090D |
| 30 | 629851-8 | DC MOTOR FOR TD090D |
