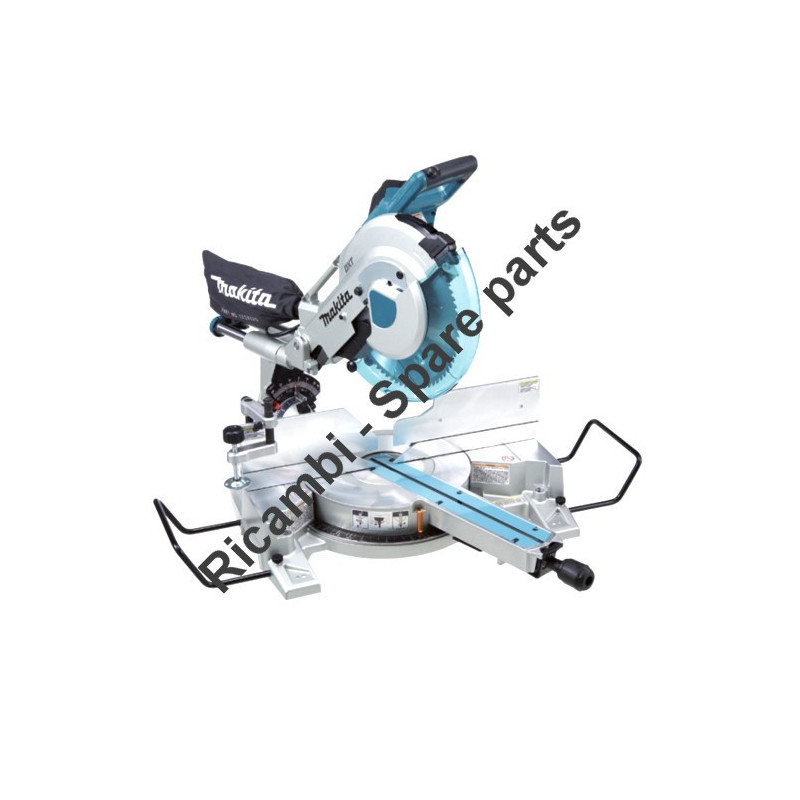

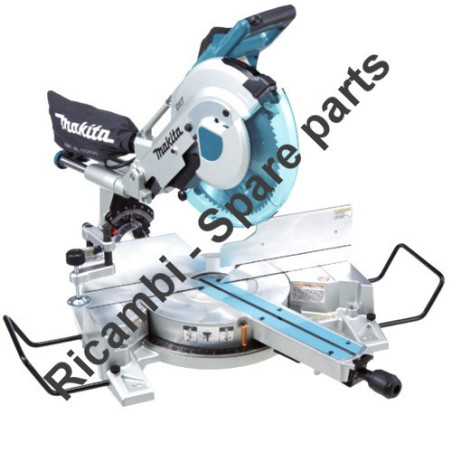

Makita Spare Parts for Slide Compound Mitre Saw LS1216F
€8.20
Tax included
Makita Spare Parts for Slide Compound Mitre Saw LS1216F
Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Slide Compound Mitre Saw with Lighting LS1216F.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Slide Compound Mitre Saw LS1216F
Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Slide Compound Mitre Saw with Lighting LS1216F.
In the following table, look for the model Bench Saw and the respective parts of the code.
| Bench Saw Makita LS1216F | ||
| # | Part Num. | Description |
| 1 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 2 | 450999-3 | BACK COVER LS1216F |
| 3 | 631866-3 | REGULATOR LS1216F |
| 4 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 6 | 687052-4 | CLAMP Cable tie X 6408 |
| 7 | 868330-3 | LABEL LS1216F |
| 8 | 266329-6 | 5x60 SCREW FOR GA9020 |
| 9 | 318471-0 | MOTOR SUPPORT LS1216F |
| 10 | 451194-8 | DEFLETTORE LS1216F |
| 11 | 961057-5 | RETAINING RING S17 |
| 12 | 210301-0 | BEARING 6003DDW RT0700C |
| 13 | 240001-8 | FAN 80 X LS1013 |
| 14 | 517844-6 | INDUCED LS1216F |
| 15 | 681642-5 | WASHER X LS1013 |
| 16 | 210067-2 | BEARING 6000ZZ X MT952 |
| 17 | 596359-6 | STATORE LS1216F |
| 18 | 158958-8 | HOUSING MOT. X LS1216F |
| 19 | 643650-4 | PLUG BRUSH |
| 20 | 181044-0 | CHARCOALS CB-153 (150/52/54) |
| 21 | 911948-0 | SCREW M6x80 LS1216F |
| 22 | 631934-2 | CIRCUIT LIGHT LS1216F |
| 23 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 24 | 140325-1 | COVER SET. X LS1216F |
| 25 | 631867-1 | SUPPLY CIRCUIT. X LS1216F |
| 26 | 451003-1 | LEVER SWITCH LS1216F |
| 27 | 650618-3 | Switch Switches TG72B-1 LS1216F |
| 28 | 416356-5 | LEVER X LF1000 |
| 29 | 231026-3 | SPRING 4 64K / 84DW / 6012HD |
| 30 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 31 | 140049-9 | HANDLE LS1216F |
| 32 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 33 | 451037-4 | KEY SWITCH LS1216F |
| 34 | 451000-7 | SUPPORT LS1216F |
| 35 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 36 | 451199-8 | COVER CABLES LS1216F |
| 37 | 231928-3 | RING RETAINING X LS1013 |
| 38 | 256633-1 | PIN 6 X LS1013 |
| 39 | 231240-1 | MOLLA7 36BR / 12BR / 2412N / 14 |
| 40 | 911113-1 | SCREW M4X10 X LS1013 |
| 41 | 262001-8 | RING 5 X 6906 / 6905B |
| 42 | 265717-4 | SCREW M6 X LS1013 |
| 43 | 266488-6 | SCREW M8X20 LS1216F |
| 44 | 922332-4 | SCREW M6X20 X SC161 |
| 45 | 687042-7 | PLATE X LS1013 |
| 46 | 266026-4 | SCREW M4 X 12 |
| 47 | 419277-0 | JOINT SUCTION X LS1013 |
| 48 | 213460-9 | GUARNIZ.35 HK / HR1800 / HM12 |
| 49 | 266321-2 | SCREW M6 X 16 X LS0714FL |
| 50 | 922331-6 | BOLT ESAG. CUT. 6x20 |
| 51 | 253804-1 | WASHER 6 X LS1013 |
| 52 | 257163-5 | RING 6 X LS1013 |
| 53 | 140164-9 | JOINT PLATE LS1216F |
| 54 | 257163-5 | RING 6 X LS1013 |
| 55 | 253804-1 | WASHER 6 X LS1013 |
| 56 | 961018-5 | RETAINING RING E5 |
| 57 | 911113-1 | SCREW M4X10 X LS1013 |
| 58 | 346050-4 | SUPPORT PROTECTION LS1216F |
| 59 | 231675-6 | SPRING TWIST 11 X LH1040F |
| 60 | 451198-0 | PROTECTION LS1216F |
| 61 | 325645-6 | PIN LS1216F |
| 62 | 265324-3 | SCREW M8X12 |
| 63 | 140152-6 | CAP BLADE LS1216F |
| 64 | 210005-4 | BALL BEARING 608 DDW |
| 65 | 961052-5 | RETAINING RING S12 |
| 66 | 253744-3 | ROND.PIANA 12 24B / 12N / 14 |
| 67 | 261104-5 | WASHER RUBBER 12 LS1216F |
| 68 | 253744-3 | ROND.PIANA 12 24B / 12N / 14 |
| 69 | 227550-2 | GEAR 32 LS1216F |
| 70 | 254001-2 | KEY CRESCENT 4 |
| 71 | 266026-4 | SCREW M4 X 12 |
| 72 | 451002-3 | RETAINING LS1216F |
| 73 | 227701-7 | GEAR 14 LS1216F |
| 74 | 227702-5 | GEAR 27 LS1216F |
| 75 | 216024-8 | STEEL BALL X BFL080FZ |
| 76 | 325643-0 | POST LS1216F |
| 77 | 210067-2 | BEARING 6000ZZ X MT952 |
| 78 | 210005-4 | BALL BEARING 608 DDW |
| 79 | 961055-9 | RETAINING RING S15 |
| 80 | 227703-3 | GEAR 28 LS1216F |
| 81 | 442147-8 | SEAL LS1216F |
| 82 | 911223-4 | HEAD SCREW CILIND. M5X16 |
| 83 | 210005-4 | BALL BEARING 608 DDW |
| 84 | 267010-2 | FLAT WASHER 5 XJS1650 |
| 85 | 942101-7 | SPRING WASHER 5 |
| 86 | 252103-8 | NUT X JR3020 |
| 87 | 285847-5 | RETAINING CUSC.14-23 X BCS550R |
| 88 | 158957-0 | BOX BEARING LS1216F |
| 89 | 211236-8 | BEARING 6002DDW X 5705R |
| 90 | 325644-8 | POST LS1216F |
| 91 | 285732-2 | RETAINING BEARING 51 LS1216F |
| 92 | 265034-2 | SCREW M5 X 16 |
| 93 | 224434-5 | INTERNAL FLANGE 62 LS1216F |
| 94 | 224433-7 | EXTERNAL FLANGE 62 LS1216F |
| 95 | 265405-3 | COLLAR SCREW M10x20 LS1214F |
| 96 | 158959-6 | PROTECTION CAP A LS1216F |
| 97 | 233554-4 | SPRING TWIST 45 LS1216F |
| 98 | 424190-9 | RUBBER LS1216F |
| 99 | 265985-9 | BOLT M6 X LS1040 |
| 100 | 346048-1 | COVER PLATE CENTRAL LS1216F |
| 101 | 253932-2 | WASHER 10 3600B / BR |
| 102 | 344539-6 | CENTERING WASHER LS1216F |
| 103 | 346047-3 | PLATE CENTERING LS1216F |
| 104 | 266034-5 | SCREW 4X16 CT |
| 105 | 266020-6 | SCREW M4 X 12 |
| 106 | 941051-3 | FLAT WASHER 4 |
| 107 | 424193-3 | WHEEL LS1216F |
| 108 | 451197-2 | PROTECTION CAP B LS1216F |
| 109 | 266026-4 | SCREW M4 X 12 |
| 122 | 451196-4 | COVER CAP BLADE LS1216F |
| 123 | 266034-5 | SCREW 4X16 CT |
| 124 | 451038-2 | PROTECTION LS1216F |
| 254 | 257785-1 | COMPASS 6 LS1216F |
| 255 | 922226-3 | SCREW M 5 X 18 X 4341FCT |
| 261 | 421589-9 | HOOD X LS1013 |
| 262 | 346097-8 | LEVER LOCK LS1216F |
| 263 | 922111-0 | SCREW ESAG. INC. 4X10 |
| 264 | 941051-3 | FLAT WASHER 4 |
| 265 | 325664-2 | PIN 8 LS1216F |
| 266 | 231633-2 | SPRING TWIST 8 X LS1040F |
| 267 | 451129-9 | SUPPORT PIN X LS1216F |
| 268 | 961012-7 | RETAINING RING E6 |
| 269 | 266034-5 | SCREW 4X16 CT |
| 275 | 942151-2 | WASHER 6 4101R |
| 277 | 253313-0 | WASHER 14 X 4340T |
| 127 | 265026-1 | BOLT M4 |
| 128 | 941102-2 | FLAT WASHER 5 |
| 129 | 233267-7 | SPRING COMPRESSION X 7 AN621 |
| 130 | 941102-2 | FLAT WASHER 5 |
| 131 | 272261-4 | LEVER 45 LS1216F |
| 132 | 325651-1 | JOINT LS1216F |
| 133 | 253804-1 | WASHER 6 X LS1013 |
| 134 | 142815-0 | UPPER GUIDE DX |
| 135 | 346058-8 | PLATE GUIDE LS1216F |
| 136 | 318476-0 | GUIDE RIGHT LOWER LS1216F |
| 137 | 265783-1 | SCREW M6x18 LS1216F |
| 138 | 318411-8 | BASIC GUIDE LS1216F |
| 139 | 922443-5 | SCREW M8X25 LS1216F |
| 140 | 256226-4 | PIN 4HP2030 |
| 141 | 266264-8 | SCREW M5 X 6 X BSR730 |
| 142 | 265783-1 | SCREW M6x18 LS1216F |
| 143 | 318475-2 | LOWER GUIDE SX LS1216F |
| 144 | 142814-2 | UPPER GUIDE SX |
| 145 | 346049-9 | STILL LS1216F |
| 146 | 253948-7 | SPRING WASHER 8 |
| 147 | 253835-0 | WASHER 8 |
| 148 | 251267-5 | SCREW M6 |
| 149 | 451202-5 | COMPASS 17 LS1216F |
| 150 | 323740-6 | TREE 16 LS1216F |
| 151 | 271601-3 | Thumbscrew X LS1030 |
| 152 | 213011-8 | RING RUBBER 7 X ML900 |
| 153 | 322629-5 | PIN RETAINING X LS1214F |
| 154 | 233542-1 | SPRING TWIST 40 LS1216F |
| 155 | 266026-4 | SCREW M4 X 12 |
| 156 | 158962-7 | LEVER LATCH LS1216F |
| 157 | 140711-6 | ARM LS1216F |
| 158 | 265783-1 | SCREW M6x18 LS1216F |
| 159 | 231240-1 | MOLLA7 36BR / 12BR / 2412N / 14 |
| 160 | 266034-5 | SCREW 4X16 CT |
| 161 | 140155-0 | SUPPORT ARM LS1216F |
| 162 | 318403-7 | SUPPORT TUBE B LS1216F |
| 163 | 266208-8 | SCREW M6 X 8 X LS0714FL |
| 164 | 266026-4 | SCREW M4 X 12 |
| 165 | 687042-7 | PLATE X LS1013 |
| 166 | 911113-1 | SCREW M4X10 X LS1013 |
| 167 | 252130-5 | NUT M10-17 X 2414B |
| 168 | 253024-7 | WASHER 10 X LS1013 |
| 169 | 216413-7 | CUSC. THRUST 1024 |
| 170 | 451019-6 | LEVER 105 LS1216F |
| 171 | 265589-7 | SCREW M10 LS1216F |
| 172 | 253024-7 | WASHER 10 X LS1013 |
| 173 | 415208-7 | RESET BUTTON X LS1211 |
| 174 | 233031-6 | SPRING COMPRES.X 9029-9029SF |
| 175 | 266488-6 | SCREW M8X20 LS1216F |
| 176 | 318405-3 | STILL LS1216F |
| 177 | 961052-5 | RETAINING RING S12 |
| 178 | 253744-3 | ROND.PIANA 12 24B / 12N / 14 |
| 179 | 231646-3 | SPRING TWIST 14 LS1216F |
| 180 | 262158-5 | RING RUBBER 9 X LS1216F |
| 181 | 346071-6 | PLATE MLS1216F |
| 182 | 266488-6 | SCREW M8X20 LS1216F |
| 183 | 451200-9 | COVER ARM LS1216F |
| 184 | 266034-5 | SCREW 4X16 CT |
| 185 | 343678-9 | INDICATOR X LS0714FL |
| 186 | 266034-5 | SCREW 4X16 CT |
| 187 | 158964-3 | SUPPORT LS1216F |
| 188 | 266488-6 | SCREW M8X20 LS1216F |
| 189 | 961011-9 | RETAINING RING E4 |
| 190 | 451044-7 | CAM LS1216F |
| 191 | 325656-1 | TREE 6 LS1216F |
| 192 | 272262-2 | LEVER 22 LS1216F |
| 193 | 911113-1 | SCREW M4X10 X LS1013 |
| 194 | 234122-6 | COMPRESSION SPRING 6 |
| 195 | 325865-2 | PIN 8 LS1216F |
| 196 | 232250-1 | SPRING BAND LS1216F |
| 197 | 325646-4 | SHAFT CENTERING LS1216F |
| 198 | 451039-0 | PLATE POSITIONING LS1214F |
| 199 | 451070-6 | COVER SUPPOR.BRACCIO |
| 200 | 266034-5 | SCREW 4X16 CT |
| 201 | 158967-7 | PLATE LS1216F |
| 202 | 925251-3 | SCREW M 5 X 30 X LS0714FL |
| 203 | 266026-4 | SCREW M4 X 12 |
| 204 | 451201-7 | AUCTION BASE LS1216F |
| 205 | 265585-5 | SCREW M8x45 LS1216F |
| 206 | 253762-1 | WASHER 8 X LS1040 |
| 207 | 140166-5 | REVOLVING BASE X LS1216F |
| 208 | 266026-4 | SCREW M4 X 12 |
| 209 | 451009-9 | GRADUATED PLATE LS1216F |
| 210 | 451011-2 | SCROLL LOCK LS1216F |
| 211 | 266385-6 | 4x14 SCREW FOR GA9020 |
| 212 | 941051-3 | FLAT WASHER 4 |
| 213 | 266026-4 | SCREW M4 X 12 |
| 214 | 346052-0 | PLATE SLIDE BLOCK |
| 215 | 286275-7 | CAP X SP6000K |
| 216 | 961013-5 | RING RITEGNOXJN3200 |
| 217 | 313165-2 | CAM LS1216F |
| 218 | 231131-6 | SPRING 11 X 8419B / 56DW |
| 219 | 267047-9 | FLAT WASHER 10 X 6703D |
| 220 | 273666-1 | LOCK GRIP KNOB LS1216F |
| 221 | 318410-0 | PLATE LS1216F |
| 222 | 266034-5 | SCREW 4X16 CT |
| 223 | 451010-4 | LOCK LEVER LS1216F |
| 224 | 345272-3 | SUPPORT LEVER LOCK BFL0714FL |
| 225 | 266034-5 | SCREW 4X16 CT |
| 226 | 266505-2 | SCREW M6x14 LS1216F |
| 228 | 346094-4 | PLATE BLOCK A LS1216F |
| 229 | 234104-8 | SPRING COMPRESSION 13 LS1216F |
| 230 | 266306-8 | SCREW M5 X LS0714FL |
| 231 | 231325-3 | SPRING COMPRRESS. 6 X LS0714FL |
| 232 | 256158-5 | PIN 3 X T221DW |
| 233 | 325695-1 | PIN LOCK 6 LS1216F |
| 234 | 158968-5 | BOX BEARING LS1216F |
| 235 | 451018-8 | GEAR 43 LS1216F |
| 236 | 232249-6 | SPRING BAND LS1216F |
| 237 | 266026-4 | SCREW M4 X 12 |
| 238 | 922441-9 | BOLT M8X25 |
| 239 | 421845-7 | FOOT LS1216F |
| 240 | 267195-4 | WASHER 4 X DCS230T |
| 241 | 266026-4 | SCREW M4 X 12 |
| 242 | 140054-6 | BASE LS1216F |
| 243 | 810495-7 | LABEL SAFETY LS1216F |
| 246 | 817283-3 | LABEL SECURITY FOR 2704 |
| 247 | 816920-6 | GRADUATED PLATE BASE LS1216F |
| 248 | 451012-0 | SLIDING PLATE LS1216F |
| 249 | 266026-4 | SCREW M4 X 12 |
| 250 | 266034-5 | SCREW 4X16 CT |
| 251 | 232075-3 | LAMIERINO ELASTICO X LS1013 |
| 252 | 817283-3 | LABEL SECURITY FOR 2704 |
| 256 | 216024-8 | STEEL BALL X BFL080FZ |
| 257 | 253874-0 | FLAT WASHER 4 |
| 258 | 266042-6 | SCREW 4X20 X 2107FK |
| 271 | 140165-7 | PLATE B LS1216F |
| 272 | 256246-8 | PIN 6 LS1216F |
| 273 | 346096-0 | PLATE LS1216F |
| 274 | 266034-5 | SCREW 4X16 CT |
| 276 | 266318-1 | SCREW M4X6 X LS0714FL |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita LS1216F
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 7/10 BUSINESS DAYS APPROX
- MORE INFO:
- info@bricoutensili.com
New
You might also like
Comments (0)
No customer reviews for the moment.
Viewed products
Customers who bought this product also bought:
16 other products in the same category:
