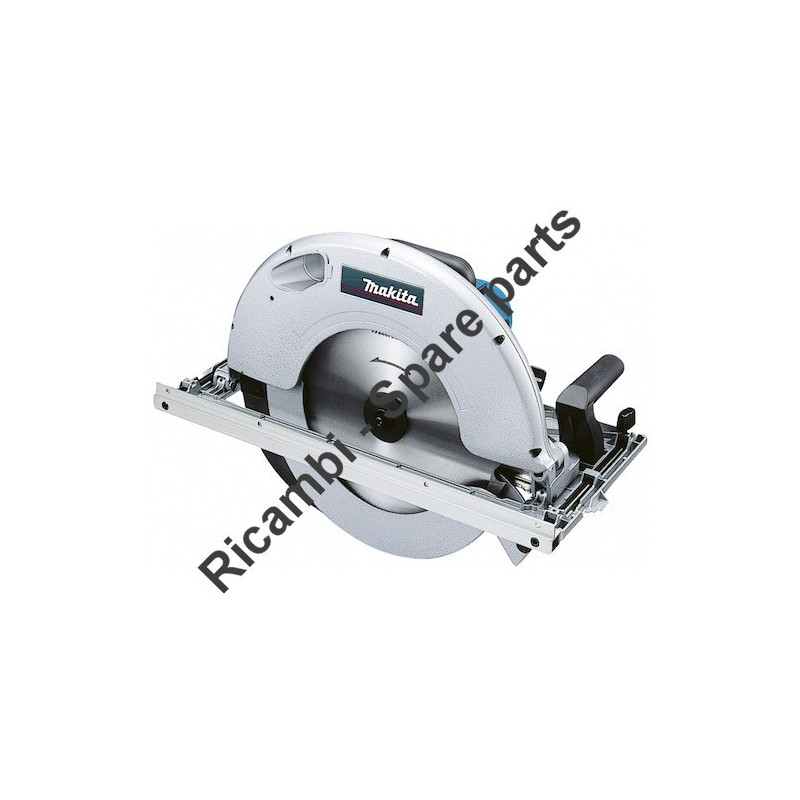

Makita Spare Parts for Circular Saw 5143R
€37.19
Tax included
Makita Spare Parts for Circular Saw 5143R
We supply original Makita spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw 5143R.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Circular Saw 5143R
We supply original Makita spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw 5143R.
In the following table, look for the model of Circular Saw and the respective parts of the code.
| Circula Saw 5143R | ||
| # | Part Num. | Description |
| 1 | 266083-2 | SCREW M10x25 X 5143R |
| 2 | 224327-6 | EXTERNAL FLANGE 65 X5143R |
| 3 | 224328-4 | INNER FLANGE 65 X5143R |
| 4 | 912222-9 | M5X16 SCREW |
| 5 | 285683-9 | STILL BEARING X 5143R |
| 6 | 318063-5 | PROTECTION BLADE X 5143R |
| 7 | 231842-3 | TENSION SPRING 8 |
| 8 | 211329-1 | BEARING 6204 X 5143R |
| 9 | 415437-2 | PIN 6 X 5903R |
| 10 | 415438-0 | WASHER 20 |
| 11 | 415438-0 | WASHER 20 |
| 12 | 415437-2 | PIN 6 X 5903R |
| 13 | 922422-3 | HEXAGON BOLT M8x16 |
| 14 | 267284-5 | WASHER 8 X DCS230T |
| 15 | 345751-1 | DIVIDING KNIFE |
| 16 | 345753-7 | HOLDER KNIFE DIVIS.X5143R |
| 17 | 344304-3 | RING THICKNESS X 5143R |
| 18 | 911223-4 | HEAD SCREW CILIND. M5X16 |
| 19 | 316753-4 | HOLDER BEARING X5143R |
| 20 | 322830-2 | SLEEVE CLOSING X5143R-5103R |
| 21 | 322828-9 | SHAFT X 5143R |
| 22 | 231969-9 | SPRING 20 X 5143R |
| 23 | 231968-1 | SPRING 27 X 5143R |
| 24 | 226453-7 | GEAR 57 X5143R |
| 25 | 211104-5 | BEARING 6001 X5143R |
| 26 | 961052-5 | RETAINING RING S12 |
| 27 | 272230-5 | LEVER 54 |
| 28 | 231955-0 | SPRING RETAINER 12 X 5903R |
| 29 | 252134-7 | NUT M8 |
| 30 | 911263-2 | HEAD SCREW CILIND. M5x40 |
| 31 | 266041-8 | PT SCREW 5x25 |
| 32 | 182773-8 | HANDLE COMPL.X5143R |
| 33 | 415440-3 | LOCK BUTTON |
| 34 | 231230-4 | SPRING COMPRESSION 4 |
| 35 | 415439-8 | LEVER SWITCH |
| 36 | 651923-1 | SWITCH TG70B X 5903R |
| 37 | 645006-7 | CAPACITOR X LS1013 |
| 38 | 631209-9 | SPEED CONTROL 'X5143R |
| 40 | 331469-0 | SOCKETS 9 X 5143R |
| 41 | 941201-0 | FLAT WASHER 8 |
| 42 | 266019-1 | BOLT M8X98 |
| 43 | 265995-6 | SCREW M4X18 X 6408 / 6221DW |
| 44 | 687063-9 | BOOT X 4304T |
| 45 | 682503-2 | SLEEVE PROTECTING_COVER X HM1500 |
| 47 | 911213-7 | SCREW M5x12 X 5143R EBH252L |
| 48 | 416250-1 | LEVER 110 X 5143R |
| 49 | 216004-4 | BALL 7.9 HR3520 / HR3850B |
| 50 | 231240-1 | MOLLA7 36BR / 12BR / 2412N / 14 |
| 51 | 158091-6 | COVER CAP BLADE CPL.X5143R |
| 52 | 233140-1 | SPRING COMPRESSION 5 X5143R |
| 53 | 344294-0 | SHAFT CLOSE X 5143R |
| 54 | 322829-7 | BAR GUIDE X 5143R |
| 55 | 266026-4 | SCREW M4 X 12 |
| 56 | 443098-8 | FELT X 5143R |
| 57 | 344263-1 | X PLATE 5143R |
| 58 | 687053-2 | CABLE CLAMP cable tie |
| 59 | 266034-5 | SCREW CT 4X16 |
| 60 | 268008-2 | PIN 10 X 5143R |
| 61 | 421966-5 | CUSHIONING |
| 62 | 353017-5 | CABLE X 5143R |
| 63 | 344295-8 | WHEEL X-5143R |
| 64 | 231625-1 | SPRING TORQUE X 5143R |
| 65 | 344296-6 | PLATE CAM X 5143R |
| 66 | 268009-0 | PIN 12 X 5143R |
| 67 | 415817-2 | COVER CAP BLADE X 5143R |
| 69 | 266036-1 | M5X20 SCREW |
| 70 | 211236-8 | BEARING 6002DDW X 5705R |
| 71 | 241889-9 | FAN 74 X 5143R |
| 72 | 415768-9 | CONVEYOR AIR X 5143R |
| 73 | 516668-7 | ARMATURE 220 / 240V X5143R |
| 74 | 911947-2 | SCREW M5X90 X 5143R |
| 75 | 596323-7 | FIELD 200/240V X 5143R |
| 77 | 911288-6 | SCREW M5X65 X 5143R |
| 78 | 191953-5 | CARBON BRUSHE SET CB-203 X 3612C |
| 79 | 643710-2 | PLUG BRUSH XHM1500 |
| 80 | 158628-9 | CASING MOTOR X 5143R |
| 81 | 210042-8 | BEARING FOR 629LLB GD0600 |
| 82 | 681633-6 | WASHER |
| 83 | 923471-3 | SCREW M8x50 X 5143R |
| 84 | 316747-9 | PLATE GUIDE ANGLE X5143R |
| 85 | 266036-1 | M5X20 SCREW |
| 86 | 941201-0 | FLAT WASHER 8 |
| 87 | 252626-6 | NUT M8 X SR2600 |
| 88 | 415815-6 | HANDLE SIDE X 5143R |
| 89 | 266041-8 | PT SCREW 5x25 |
| 90 | 268013-9 | PIN 8 X 5143R |
| 91 | 265993-0 | SCREW M4x5 |
| 92 | 266036-1 | M5X20 SCREW |
| 93 | 316746-1 | PLATE ANGLE X5143R |
| 94 | 961012-7 | RETAINING RING E6 |
| 95 | 343902-0 | TIP X 5143R |
| 96 | 266026-4 | SCREW M4 X 12 |
| 97 | 265011-4 | SCREW THREAD X JR3020 |
| 98 | 345722-8 | JOINT X 5143R |
| 99 | 961012-7 | RETAINING RING E6 |
| 100 | 268013-9 | PIN 8 X 5143R |
| 101 | 316880-7 | BASE BRIDGE X 5143R |
| 102 | 266085-8 | SCREW M6x10 X 5143R |
| 103 | 266036-1 | M5X20 SCREW |
| 104 | 316748-7 | DRIVING DEPTH 'X 5143R |
| 105 | 265993-0 | SCREW M4x5 |
| 106 | 251858-2 | BOLT M6x15 SR16 / 21/230 |
| 107 | 316752-6 | BASE X 5143R |
| 108 | 266085-8 | SCREW M6x10 X 5143R |
| 109 | 266085-8 | SCREW M6x10 X 5143R |
| 110 | 651941-9 | SWITCH X LS1013 |
| 113 | 442125-8 | SEAL X 5143R |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
