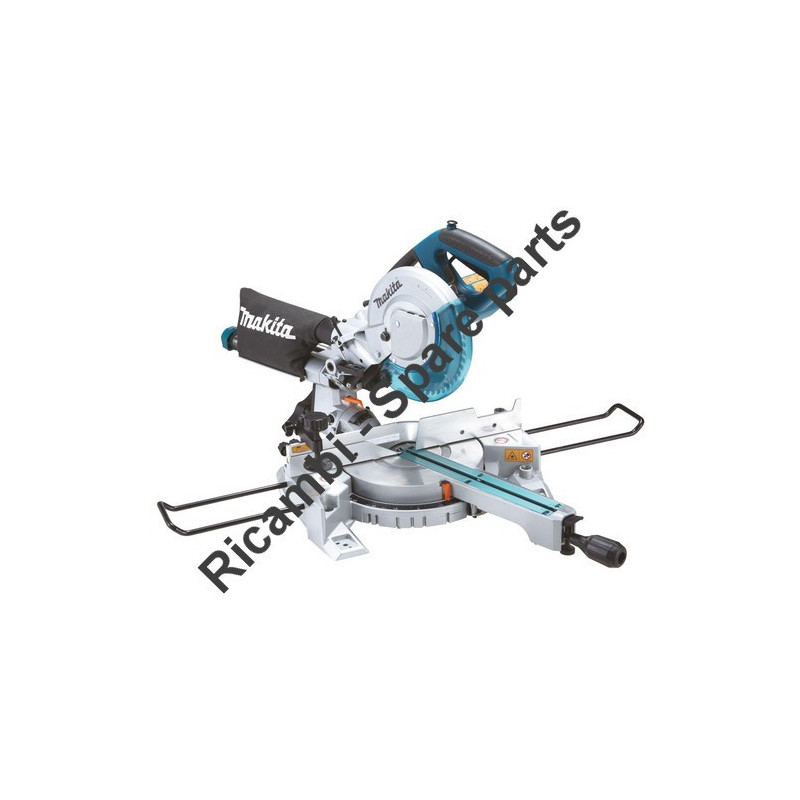

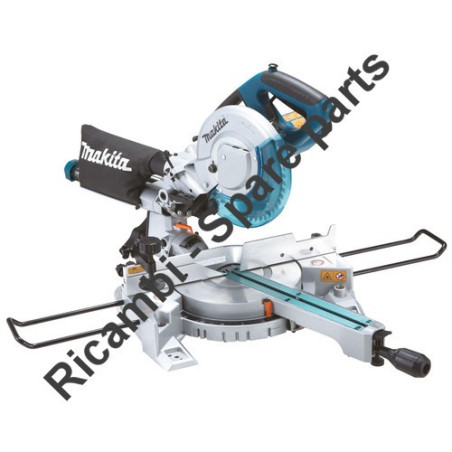

Makita Spare Parts for Slide Compound Mitre Saw LS0815FL
€1.25
Tax included
Makita Parts for Slide Compound Mitre Saw LS0815FL
We have the original Spares for MAKITA Slide Compound Mitre Saw LS0815FL, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Slide Compound Mitre Saw LS0815FL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Parts for Slide Compound Mitre Saw LS0815FL
We have the original Spares for MAKITA Slide Compound Mitre Saw LS0815FL, the diagram, parts list and tool repair that help you need to get your tools running like new again.
In the following table, look for the model of the Bench Saw and the respective parts of the code.
| Slide Compound Mitre Saw LS0815FL PAG.1 | ||
| # | Part Num. | Description |
| 1 | JM23500132 | FOOT |
| 3 | JM23100016 | WASHER 4 LS1018L |
| 4 | JM23500008 | SCREW M4X10 |
| 5 | JM23500009 | SCREW |
| 6 | JM23510001 | BASE |
| 7 | JM23100013 | KNOB LS1018L |
| 8 | JM23100025 | SUPPORT TREE B LS1018L |
| 9 | JM23100020 | PLATE BLOCK B LS1018L |
| 10 | JM23100016 | WASHER 4 LS1018L |
| 11 | JM23100015 | SPRING WASHER 4 LS1018L |
| 12 | JM23100033 | SCREW M4X12 LS1018L |
| 13 | JM23100018 | PLATE BLOCK A LS1018L |
| 14 | JM23100016 | WASHER 4 LS1018L |
| 15 | JM23100015 | SPRING WASHER 4 LS1018L |
| 16 | JM23100033 | SCREW M4X12 LS1018L |
| 17 | JM23100023 | LEVER LS1018L |
| 18 | JM23100021 | SPRING LOCK LS1018L |
| 19 | JM23100022 | PIN RETAINING LS1018L |
| 20 | JM23500015 | TREE B |
| 21 | JM23500014 | SPRING 11 |
| 22 | JM23500013 | STUD |
| 23 | JM23100027 | KNOB BASE ROTATING LS1018L |
| 24 | JM23500016 | SHAFT |
| 25 | JM23500012 | CLUTCH PLATE |
| 26 | JM23510002 | TABLE |
| 27 | JM23500008 | SCREW M4X10 |
| 28 | JM23100016 | WASHER 4 LS1018L |
| 29 | JM23100030 | PLATE REFERENCE LS0714FL |
| 30 | JM23500053 | TOOTH WASHER |
| 31 | JM23100034 | SCREW M6X28 LS1018L |
| 32 | JM23500023 | SELF-LOCKING NUT M8 |
| 33 | JM23500022 | WASHER 8 |
| 34 | JM23100035 | RING RETAINING HLS1018L |
| 35 | JM23500008 | SCREW M4X10 |
| 36 | JM23100029 | KERF BOARD LS1018L |
| 39 | JM23100013 | KNOB LS1018L |
| 40 | JM23500026 | HELP SUPPORT |
| 41 | JM23100062 | SCREW M8x30 LS1018L |
| 42 | JM23100061 | SPRING WASHER 8 LS1018L |
| 43 | JM23100060 | WASHER 8 LS1018L |
| 44 | JM23510013 | PLATE, GUIDE |
| 45 | JM23100065 | SCREW M4X8 LS1018L |
| 46 | JM23100015 | SPRING WASHER 4 LS1018L |
| 47 | JM23100016 | WASHER 4 LS1018L |
| 48 | JM23500024 | PLATE |
| 49 | JM23500095 | SUPPORT 45 |
| 50 | JM23100007 | WASHER 5 LS1018L |
| 51 | JM23100149 | SPRING WASHER 5 LS1018L |
| 52 | JM23500096 | SCREW M5x14 |
| 53 | JM23100016 | WASHER 4 LS1018L |
| 54 | JM23100015 | SPRING WASHER 4 LS1018L |
| 55 | JM23500008 | SCREW M4X10 |
| 56 | JM23500097 | COVER SUPPORT 45 |
| 57 | JM23500094 | SPRING 8 |
| 58 | JM23500093 | PLATE 45 |
| 59 | JM23100051 | KNOB LATCH LS1018L |
| 60 | JM23100049 | SPRING LS1018L |
| 61 | JM23100052 | COMPASS LS1018L |
| 62 | JM23510008 | JOINT COMPLETE |
| 63 | JM23500079 | RETAINING RING 8 |
| 64 | JM23500078 | RING |
| 65 | JM23100033 | SCREW M4X12 LS1018L |
| 66 | JM23100016 | WASHER 4 LS1018L |
| 67 | JM23100048 | PLATE REFERENCE LS1018L |
| 68 | JM23500053 | TOOTH WASHER |
| 69 | JM23500080 | SUPPORT 90 |
| 70 | JM23100086 | KNOB LS1018L |
| 71 | JM23100190 | WASHER 6 LS1018L |
| 72 | JM23100088 | SPRING LS1018L |
| 73 | JM23100010 | WASHER 10 LS1018L |
| 74 | JM23100009 | NUT M10 LS1018L |
| 75 | JM23100053 | COMPASS LS1018L |
| 76 | JM23100055 | WASHER 10X26X2,5 LS1018L |
| 77 | JM23100054 | BEARING LS1018L |
| 78 | JM23100055 | WASHER 10X26X2,5 LS1018L |
| 79 | JM23500086 | JOINT COVER |
| 80 | JM23100007 | WASHER 5 LS1018L |
| 81 | JM23100006 | SCREW M5X20 LS1018L |
| 82 | JM23100019 | SCREW M4X18 LS1018L |
| 83 | JM23100016 | WASHER 4 LS1018L |
| 84 | JM23500087 | KNOB |
| 85 | JM23500088 | NUT |
| 86 | JM23500081 | SCREW M5 |
| 87 | JM23100007 | WASHER 5 LS1018L |
| 88 | JM23100149 | SPRING WASHER 5 LS1018L |
| 89 | JM23500082 | SUPPORT |
| 90 | JM23500083 | RING DUST |
| 91 | JM23500084 | SEAL |
| 92 | JM23500083 | RING DUST |
| 93 | JM23500082 | SUPPORT |
| 94 | JM23100007 | WASHER 5 LS1018L |
| 95 | JM23100149 | SPRING WASHER 5 LS1018L |
| 96 | JM23500081 | SCREW M5 |
| 97 | JM23100019 | SCREW M4X18 LS1018L |
| 98 | JM23100016 | WASHER 4 LS1018L |
| 99 | JM23100072 | CLAMP cable tie LASER |
| 100 | JM23500066 | SUPPORT CABLES |
| 101 | JM23500081 | SCREW M5 |
| 102 | JM23100149 | SPRING WASHER 5 LS1018L |
| 103 | JM23100007 | WASHER 5 LS1018L |
| 104 | JM23100007 | WASHER 5 LS1018L |
| 105 | JM23500081 | SCREW M5 |
| 106 | JM23100149 | SPRING WASHER 5 LS1018L |
| 107 | JM23500085 | SUPPORT |
| 108 | JM23100091 | SUPPORT FOR KEY LS1018L |
| 109 | JM23100016 | WASHER 4 LS1018L |
| 110 | JM23100015 | SPRING WASHER 4 LS1018L |
| 111 | JM23100033 | SCREW M4X12 LS1018L |
| 113 | JM23100103 | RING RETAINING LS1018L |
| 114 | JM23100102 | WHEEL LS1018L |
| 115 | JM23500031 | SCREW M5X12 |
| 116 | JM23510004 | BLADE PROTECTION |
| 117 | JM23500035 | SPRING TORSION |
| 118 | JM23500134 | SCREW M8x15 |
| 119 | JM23100113 | SCREW LS1018L |
| 120 | JM23500036 | COVER CENTERING |
| 121 | JM23500037 | FLANGE |
| 122 | JM23100007 | WASHER 5 LS1018L |
| 123 | JM23100141 | NUT M5 LS1018L |
| 124 | JM23500135 | SCREW |
| 125 | JM23500038 | EXTERNAL FLANGE |
| 126 | JM23100144 | INNER RING LS1018L |
| 128 | JM23500039 | CONVOGLIATORE |
| 129 | JM23100193 | PIN C LS1018L |
| 130 | JM23100193 | PIN C LS1018L |
| 131 | JM23500034 | CROSS HEAD SCREW M5x25 |
| 132 | JM23510005 | CAP BLADE |
| 133 | JM23500047 | INSERT |
| 134 | JM23100016 | WASHER 4 LS1018L |
| 135 | JM23100015 | SPRING WASHER 4 LS1018L |
| 136 | JM23100033 | SCREW M4X12 LS1018L |
| 137 | JM23500048 | PLATE LOCK |
| 138 | JM23100138 | COVER |
| 139 | JM23500050 | PLATE LOCK |
| 140 | JM23500049 | SPRING 5 |
| 141 | JM23100119 | KNOB LS1018L |
| 142 | JM23100035 | RING RETAINING HLS1018L |
| 143 | JM23500051 | SCREW M6X25 |
| 144 | JM23100035 | RING RETAINING HLS1018L |
| 145 | JM23500052 | SCREW |
| 146 | JM23100098 | COMPASS PLATE ARTIC. LS1018L |
| 147 | JM23510003 | PLATE STRUCTURE |
| 148 | JM23100071 | WASHER 6 LS1018L |
| 149 | JM23100115 | RING RETAINING 5 LS1018L |
| 150 | JM23500027 | NUT |
| 151 | JM23100071 | WASHER 6 LS1018L |
| 152 | JM23100098 | COMPASS PLATE ARTIC. LS1018L |
| 153 | JM23500055 | PLATE FISAGGIO |
| 154 | JM23500054 | SCREW M6x14 |
| 155 | JM23500071 | SCREW M6X12 |
| 156 | JM23100151 | SPRING WASHER 6 LS1018L |
| 157 | JM23100190 | WASHER 6 LS1018L |
| 158 | JM23500056 | SCREW M4X28 |
| 159 | JM23100016 | WASHER 4 LS1018L |
| 160 | JM23500057 | COVER BULB |
| 161 | JM23500058 | LENS BULB |
| 162 | JM23500059 | RING |
| 163 | JM23510006 | BULB |
| 164 | JM23500128 | WASHER 3 |
| 165 | JM23500062 | SCREW M9X13 |
| 166 | JM23100019 | SCREW M4X18 LS1018L |
| 167 | JM23100016 | WASHER 4 LS1018L |
| 168 | JM23100072 | CLAMP cable tie LASER |
| 169 | JM23500066 | SUPPORT CABLES |
| 170 | JM23500008 | SCREW M4X10 |
| 171 | JM23100016 | WASHER 4 LS1018L |
| 172 | JM23500077 | COVER |
| 173 | JM23510007 | SUPPORT |
| 174 | JM23500064 | POST |
| 175 | JM23500072 | SPRING 32 |
| 176 | JM23500022 | WASHER 8 |
| 177 | JM23500071 | SCREW M6X12 |
| 178 | JM23100097 | HOOD PIN LS1018L |
| 179 | JM23500065 | SUPPORT SPRING |
| 180 | JM23500063 | PIN |
| 181 | JM23500070 | LASER |
| 182 | JM23500068 | SCREW M4X8 |
| 183 | JM23500069 | SCREW |
| 184 | JM23100016 | WASHER 4 LS1018L |
| 185 | JM23500067 | LASER HOLDER |
| 186 | JM23100016 | WASHER 4 LS1018L |
| 187 | JM23100067 | SCREW M4X12 LS1018L |
| 188 | JM23500073 | LASER PLATE |
| 189 | JM23100093 | PIN C LS1018L |
| 190 | JM23100150 | SEAL LS1018L |
| 191 | JM23100096 | SCREW PLATE REG.PROF.LS1018L |
| 192 | JM23100060 | WASHER 8 LS1018L |
| 193 | JM23100094 | CORRUGATED WASHER LS1018L |
| 194 | JM23100092 | PLATE REGOLAZ.PROF.LS1018L |
| 195 | JM23500041 | SCREW M6X40 |
| 196 | JM23100151 | SPRING WASHER 6 LS1018L |
| 197 | JM23100190 | WASHER 6 LS1018L |
| 198 | JM23100033 | SCREW M4X12 LS1018L |
| 199 | JM23100015 | SPRING WASHER 4 LS1018L |
| 200 | JM23100016 | WASHER 4 LS1018L |
| 201 | JM23100141 | NUT M5 LS1018L |
| 202 | JM23100007 | WASHER 5 LS1018L |
| 203 | JM23100139 | SCREW LS1018L |
| 204 | JM23500045 | SPRING TORSION |
| 205 | JM23500044 | SUPPORT LEVER |
| 206 | JM23500043 | LOCKOUT LEVER |
| 207 | JM23500103 | POST |
| 208 | JM23100156 | KEY 5X10 |
| 209 | JM23100157 | BEARING 6304 |
| 210 | JM23100158 | 20 RETAINING RING |
| 211 | JM23500104 | GEAR |
| 212 | JM23100160 | 16 RETAINING RING |
| 213 | JM23100161 | SCREW M8X12 |
| 214 | JM23510011 | GEAR BOX |
| 215 | JM23100165 | CABLE SLEEVE LS1018L |
| 217 | JM23100166 | CLAMP CABLE SQUEEZE LS1018L |
| 218 | JM23100193 | PIN C LS1018L |
| 219 | JM23500108 | COMPASS |
| 220 | JM23500133 | MAGNETIC WASHER |
| 221 | JM23500109 | TRANSFORMER |
| 222 | JM23100177 | BUTTON BRAKE LS1018L |
| 223 | JM23100175 | PLATE SWITCH LS1018L |
| 224 | JM23100171 | TERMINAL LS1018L |
| 225 | JM23100173 | SUPPORT SWITCH LS1018L |
| 226 | JM23100169 | CAPACITOR LS1018L |
| 227 | JM23100179 | SWITCH LS1018L |
| 228 | JM23100176 | SPRING SWITCH LS1018L |
| 229 | JM23100174 | LEVER SWITCH LS1018L |
| 230 | JM23500110 | DEFLETTORE |
| 232 | JM23500001 | INDUCED |
| 233 | JM23500111 | BEARING 608 |
| 234 | JM23500112 | RING |
| 235 | JM23500113 | SCREW 4,2X65 |
| 236 | JM23500004 | FIELD |
| 237 | JM23510012 | MOTOR HOUSING |
| 238 | JM23500116 | COVER BRUSH |
| 239 | JM23500117 | CARBON BRUSHE SET |
| 240 | JM23100190 | WASHER 6 LS1018L |
| 241 | JM23500118 | SCREW M6x60 |
| 242 | JM23100186 | SOFT START LS1018L |
| 243 | JM23500119 | BACK COVER |
| 244 | JM23100167 | SCREW M4x16 LS1018L |
| 245 | JM23500121 | HANDLE RIGHT |
| 246 | JM23100007 | WASHER 5 LS1018L |
| 247 | JM23500123 | SCREW M5x40 |
| 248 | JM23100167 | SCREW M4x16 LS1018L |
| 249 | JM23500124 | SUPPORT SWITCH |
| 250 | JM23500125 | SWITCH LASER |
| 251 | JM23500126 | COVER |
| 252 | JM23500120 | SCREW M4,2X28 |
| 253 | JM23500107 | HANDLE LEFT |
| ACCESSORIES PAG.2 | ||
| 500 | DEAWST07 | Folding Legs Mitre Saw Stand 1,15-3,83m |
| 501 | DEBWST06 | Folding Legs Mitre Saw Stand 1,15-2,55m |
| 502 | E-06987 | DISC EFFICUT WOOD 216X30X45T |
| 503 | E-08903 | DISC EFFICUT WOOD 216X30X60T |
| 504 | E-08919 | DISC EFFICUT WOOD 216X30X80T |
| 505 | E-12267 | DISC EFFICUT C.DECK 216X30X60T |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
