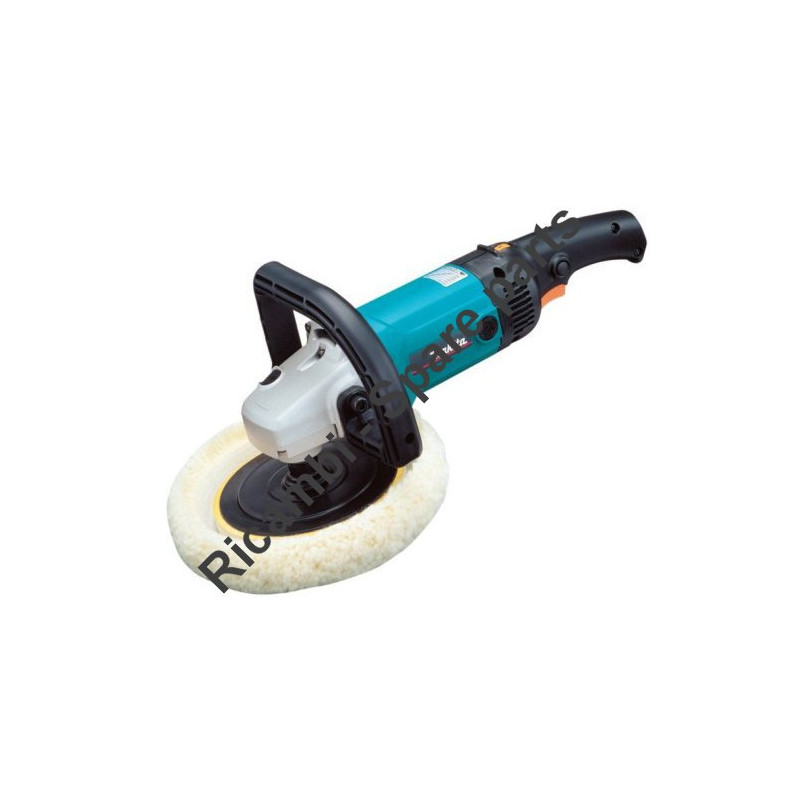

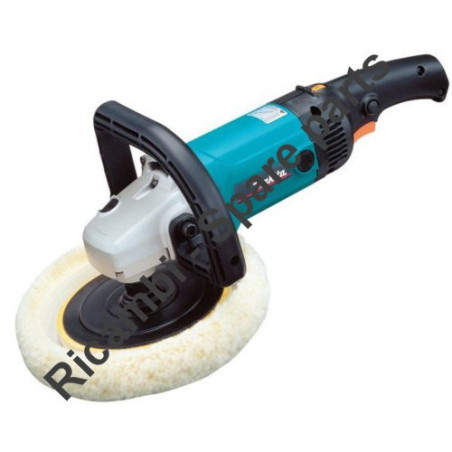

We supply MAKITA original spare parts on offer at lower prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Polisher 9237CB.
In the following table, look for the model of Polsher and the respective parts of the code.![]()
| Polisher Makita 9237CB | ||
| # | Part Num. | Description |
| 1 | 539168-0 | SUPPORT COMPLETE 9227CB |
| 2 | 634293-3 | FIELD 240V 9227CB |
| 3 | 416253-5 | BAFFLE PLATE 9227CB |
| 4 | 211031-6 | BALL BEARING 608LLB X 4304T |
| 5 | 681644-1 | INSULATED WASHER X 9227CB |
| 6 | 516308-7 | ARMATURE ASSY 9227CB |
| 7 | 240002-6 | FAN 70 X 9227CB |
| 8 | 285687-1 | BEARING RETAINER 9227CB |
| 9 | 211106-1 | BEARING 6201LLB |
| 10 | 961052-5 | EXT DIN 471 CIRCLIP-12 |
| 11 | 266012-5 | PT SCREW 5X35 HR160D - HR160DW |
| 12 | 455291-2 | HEAD COVER |
| 13 | 911118-1 | PAN HEAD SCREW M4X12 |
| 14 | 415491-6 | PIN CAP 9020NB/9522NB/9526NB |
| 15 | 233072-2 | COMPRESSION SPRING 8 X 9541 |
| 16 | 911221-8 | PAN HD SCREW 5X16 W/SP HM1303 |
| 17 | 911211-1 | PAN HD SCREW 5X12 W/SP |
| 18 | 142747-1 | GEAR HOUSING COMPLETE |
| 19 | 256504-2 | SHOULDER PIN 9 9227CB |
| 20 | 227512-0 | SPIRAL BEVEL GEAR 52 9227CB |
| 21 | 962151-6 | RETAINING RING R-32 BPJ141/81 |
| 22 | 211106-1 | BALL BEARING 6201LLB |
| 23 | 316896-2 | BEARING BOX 9227CB |
| 24 | 266034-5 | CT SCREW M4X16 |
| 25 | 152551-0 | SPINDLE COMPLETE 9227CB |
| 26 | 743053-3 | PAD 165 X 9227CB |
| 29 | 266038-7 | PT SCREW 5X70 HP2032 HP2030 |
| 31 | 688110-9 | MAGNET SLEEVE 9227CB |
| 32 | 961012-7 | EXT E-RING JIS JE-6 |
| 33 | 187958-1 | MOTOR HOUSING SET |
| 34 | 191963-2 | CARBON BRUSHE PAIR CB-303 |
| 36 | 643750-0 | BRUSH HOLDER CAP |
| 38 | 271417-6 | DIAL 28 X 9227CB |
| 39 | 631227-7 | CONTROLLER 240V 9227CB |
| 40 | 255058-6 | SOLID RIVET 2-9 9227CB |
| 41 | 233002-3 | COMPRESSION SPRING T221DW |
| 42 | 187917-5 | HANDLE SET |
| 43 | 645200-1 | NOISE SUPPRESSOR |
| 44 | 646077-7 | CHOKE COIL 9046/5604R |
| 45 | 651282-3 | SWITCH 9227CB |
| 49 | 265995-6 | PT SCREW 4X18 KP0810C 6408 / 6221DW |
| 50 | 687052-4 | STRAIN RELIEF HS7100/BO5041 6408 |
| 51 | 682573-1 | CORD GUARD 10 GA7010/9010/SA7 GA9010C |
| 53 | 265995-6 | PT SCREW 4X18 KP0810C 6408 / 6221DW |
| 55 | 455288-1 | DUST COVER |
| 56 | 265995-6 | PT SCREW 4X18 KP0810C 6408 / 6221DW |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
