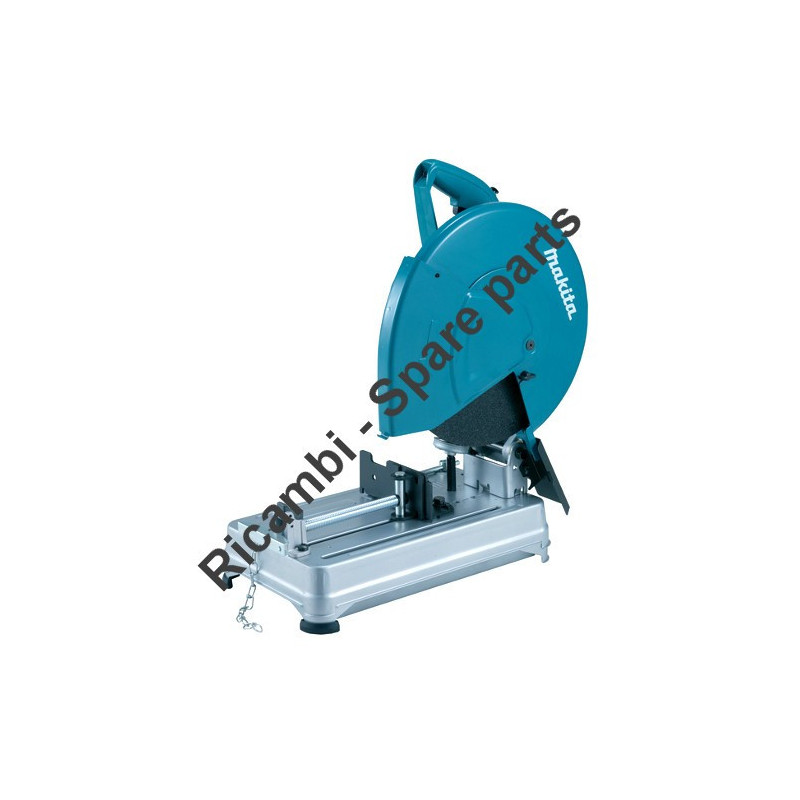

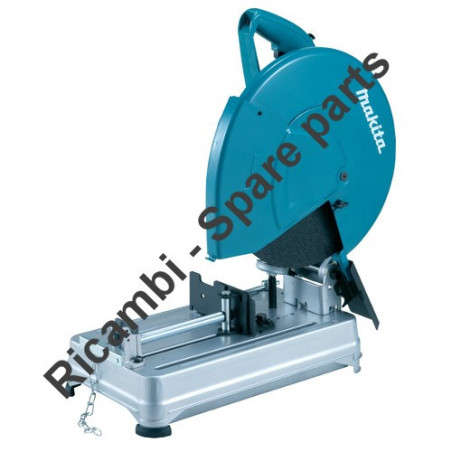

Makita Spare Parts for CUT-OFF Machine 2414K
€52.30
Tax included
Makita Spare Parts for CUT-OFF Machine 2414K
We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for CUT-OFF Machine 2414K.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for CUT-OFF Machine 2414K
We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for CUT-OFF Machine 2414K.
In the following table, look for the model of the CUT-OFF Machine and the respective parts of the code.
| Miter Saw Makita 2414K | ||
| # | Part Num. | Description |
| 1 | 911546-0 | CILIND. HEAD SCREW M4x25 |
| 2 | 911546-0 | CILIND. HEAD SCREW M4x25 |
| 3 | 911271-3 | CILIND. HEAD SCREW M5x50 |
| 4 | 911251-9 | CILIND. HEAD SCREW. M5x30 |
| 5 | 911546-0 | CILIND. HEAD SCREW M4x25 |
| 6 | 182751-8 | HANDLE COMP. 2412N / 14 |
| 7 | 911133-5 | M4X18 SCREW |
| 8 | 687001-1 | CLAMP cable tie |
| 9 | 682507-4 | SLEEVE CABLE 12-200 |
| 12 | 322049-3 | HOOK |
| 13 | 924206-5 | BUTTERFLY SCREW M5X10 |
| 14 | 942101-7 | WASHER 5 |
| 16 | 931301-4 | HEX NUT M6 |
| 17 | 931301-4 | HEX NUT M6 |
| 18 | 942151-2 | WASHER 6 |
| 19 | 253011-6 | FLAT WASHER 6 |
| 24 | 284010-7 | COP. REAR |
| 25 | 651018-0 | HPAHR2-3S SWITCH |
| 26 | 911211-1 | SCREW M5x12 |
| 27 | 645006-7 | CAPACITOR X LS1013 |
| 28 | 911101-8 | HEAD SCREW CILIND. M4X6 |
| 29 | 263002-9 | RUBBER PIN 4 |
| 30 | 643650-4 | PLUG BRUSH HOLDER |
| 31 | 181044-0 | CARBON BRUSCHES CB 153 |
| 32 | 156419-2 | MOTOR HOUSING |
| 33 | 681002-1 | INSULATING WASHER |
| 34 | 343299-7 | GUIDE FAN 2412N / 14 |
| 35 | 211087-9 | BALL BEARING 6200DDW |
| 36 | 213051-6 | DUST WASHER 10 |
| 37 | 524878-2 | STATOR |
| 39 | 514918-4 | ARMATURE (WITH 35-36-40-41-42) |
| 40 | 241515-0 | FAN 92 |
| 41 | 213202-1 | DUST WASHER 15 |
| 42 | 211228-7 | BALL BEARING 6202DD |
| 44 | 325517-5 | TREE |
| 45 | 254032-1 | CRESCENT KEY 5 |
| 46 | 211306-3 | BALL BEARING 6204DD |
| 47 | 263005-3 | RUBBER PIN 6 |
| 48 | 263002-9 | RUBBER PIN 4 |
| 49 | 231240-1 | SPRING 7 |
| 50 | 325518-3 | LOCK DISC |
| 51 | 213460-9 | SEAL 35 |
| 52 | 157331-9 | GEAR BOX |
| 53 | 211061-7 | BALL BEARING 6000DDW |
| 54 | 961060-6 | RETAINING RING S20 |
| 55 | 221774-2 | GEAR 41 |
| 56 | 157026-4 | BOX BEARING |
| 57 | 253755-8 | ROND. FLAT 20 |
| 58 | 911276-3 | HEAD SCREW CILIND. M5X55 |
| 59 | 224141-0 | FLANGE INT. 120 |
| 60 | 257054-0 | RING 20 |
| 61 | 224142-8 | FLANGE EST. 120 |
| 62 | 251680-7 | BOLT C / BORDINO 10X25 |
| 63 | 253751-6 | FLAT WASHER 24 |
| 65 | 942201-3 | WASHER 8 |
| 68 | 942201-3 | WASHER 8 |
| 70 | 253751-6 | FLAT WASHER 24 |
| 72 | 231526-3 | SPRING 26 |
| 74 | 265201-9 | HEXAGON BOLT M10x25 |
| 79 | 411436-2 | PILLOW 2412N / 14 |
| 80 | 342498-8 | COVER PILLOW |
| 81 | 272021-4 | KNOB |
| 82 | 951163-4 | PIN 5-20 X2414K |
| 84 | 931402-8 | NUT M8 |
| 85 | 942201-3 | WASHER 8 |
| 86 | 253752-4 | FLAT WASHER 8 |
| 88 | 253011-6 | FLAT WASHER 6 |
| 92 | 342497-0 | PIVOT COVERS |
| 93 | 253753-2 | FLAT WASHER 12 |
| 95 | 911451-1 | HEAD SCREW CILIND. M8x30 |
| 96 | 253744-3 | FLAT WASHER 12 |
| 98 | 951116-3 | PIN 4-20 |
| 100 | 961012-7 | RETAINING RING E6 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
