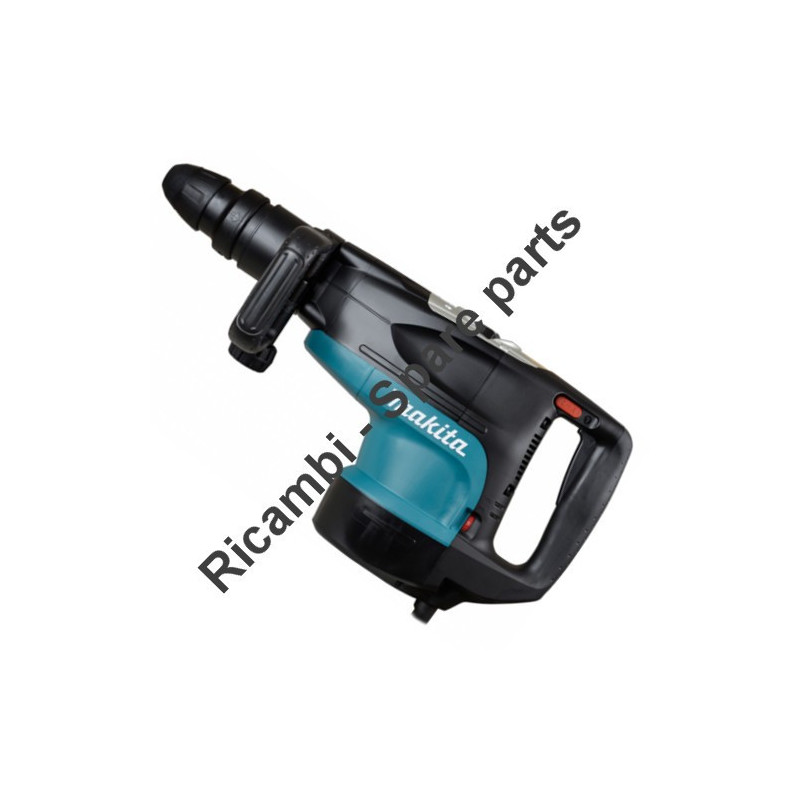

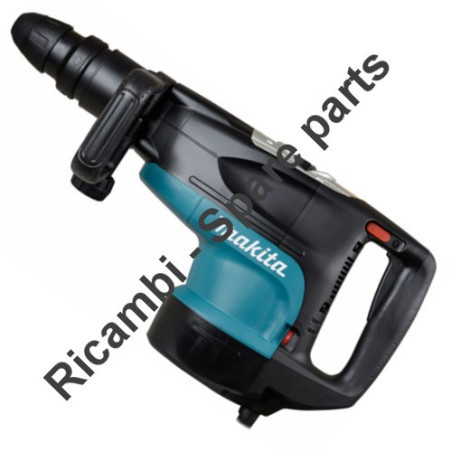

Makita Spare Parts for Rotary Hammer HR5201C
€3.28
Tax included
Makita Spare Parts for Rotary Hammer HR5201C
We supply MAKITA original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer, SDS-MAX HR5201C.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Rotary Hammer HR5201C
We supply MAKITA original spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer, SDS-MAX HR5201C.
In the following table, look for the model of jackhammers and the respective parts of the code.
| ROTARY HAMMER 52MM SDS-MAX HR5201C | ||
|
#
|
Part Num.
|
Description |
|
1
|
286285-4
|
TOOL HOLDER CAP HR4001C / 4010C |
|
2
|
233948-3
|
O-RING 25 HR5201C |
|
3
|
257280-1
|
O-RING 28 HR5201C |
|
4
|
419002-9
|
SPACER HR4001C / HR4010C |
|
5
|
233948-3
|
O-RING 25 HR5201C |
|
6
|
324752-2
|
CHUCK RING HR5201C |
|
7
|
419778-8
|
CHUCK COVER HR5201 |
|
8
|
419779-6
|
RELESE COVER HR5201C |
|
9
|
310178-4
|
TOOL RETAINER HR5201C |
|
10
|
345804-6
|
SPRING GUIDE HR5201C |
|
11
|
233496-2
|
COMPRESSION SPRING.49 HR5201C |
|
12
|
213766-5
|
O-RING 78 HR5201C |
|
13
|
BARREL COMPLETE HR5201C | |
|
14
|
158179-2
|
BARREL COVER COMPLETE HR5211C HR5201C |
|
15
|
922456-6
|
HEX SOCKET HD BOLT M8 X 35 HR5 HR5211C HM1213C HM1203C |
|
16
|
213492-6
|
O-RING 32 HR5201C |
|
17
|
324740-9
|
TOOL HOLDER A HR5201C |
|
18
|
345804-6
|
SPRING GUIDE HR5201C |
|
19
|
419791-6
|
GEAR HOUSING COMPL. HR5201C |
|
20
|
922148-7
|
SCREW M4 X 25 HR5201C |
|
21
|
213274-6
|
O-RING 18 HR3000C |
|
22
|
213392-0 | RUBBER RING FOR 25 HR4000C |
|
23
|
213317-4 | O-RING 20 HR4000C |
|
24
|
324753-0
|
IMPACT BOLT HR5201C |
|
25
|
324756-4
|
O-RING 20 HR5201C |
|
26
|
424000-0
|
RUBBER RING 24 HR5201C |
|
27
|
324757-2
|
COLLAR SLEEVE 20 HR5201C |
|
28
|
233949-1
|
O-RING 44 HR5201C |
|
29
|
257282-7
|
O-RING 47 HR5201C |
|
30
|
267287-9
|
FLAT WASHER 57 HR5201C |
|
31
|
262122-6
|
O-RING 57 FOR URETHANE HR5201C |
|
32
|
267287-9
|
FLAT WASHER 57 HR5201C |
|
33
|
256265-4
|
PIN 10 HR5001C |
|
34
|
324741-7
|
TOOL HOLDER B HR5201C |
|
35
|
419776-2
|
LOCK SLEEVE HR5201C COMPASS |
|
36
|
213654-6
|
O-RING 60 HR3850B / HM0810 |
|
37
|
165459-9
|
RINK ARM HR5201C |
|
38
|
419775-4
|
LINK ARM GUIDE HR5201C |
|
40
|
313138-5
|
DRIVING SLEEVE HR5201C |
|
41
|
419780-1
|
SLIDE SLEEVE HR5201C |
|
42
|
451516-2 | CONNECTION ROD HR5201C |
|
43
|
O-RING 35 HK / HR1800 / HM12 | |
|
44
|
PISTON FOR HR5201C | |
|
45
|
PISTON PIN 12 FOR HR5201C | |
|
46
|
213296-6 | O-RING 34 HR5201C |
|
47
|
213510-0 | O-RING 36 HR2010 |
|
48
|
331748-6
|
CYLINDER 40 FOR HR5201C |
|
49
|
213296-6 | RING 34 HR5201C |
|
50
|
324754-8
|
STRIKER FOR HR5201C |
|
51
|
227511-2
|
GEAR FOR 33 HR5201C |
|
52
|
233498-8
|
SPRING FOR COMP.46 HR5201C |
|
53
|
257281-9
|
RING FOR 45 HR5201C |
|
68
|
922361-7
|
SCREW M6x40 FOR HM1303 |
|
69
|
266192-7 | SCREW 4 TO 14 TO HR4001C / HR4010C |
|
70
|
419020-7
|
LEVER FOR HR4001C / HR4010C |
|
71
|
233436-0
|
COMPRESSION SPRING 3 HR4001C / HR4010C |
|
72
|
419777-0
|
LOCK BUTTON FOR HR5201C |
|
73
|
450687-2
|
CRANK LEVER HR5201C |
|
74
|
213534-6
|
O-RING 36 HR5201C |
|
75
|
233506-5
|
TORSION SPRING 16 HR5201C |
|
76
|
310207-3
|
LINK LEVER HR5201C |
|
77
|
345778-1
|
RETAINER PLATE HR5201C |
|
79
|
318130-6
|
CRANK CAP COVER HR5201C |
|
80
|
266192-7 | SCREW 4x14 FOR HR4001C / HR4010C |
|
81
|
911133-5
|
SCREW M4X18 |
|
82
|
419789-3
|
FLANGE HR5201C |
|
83
|
421998-2
|
SEAL RING FOR HR5201C |
|
84
|
345779-9
|
CONNECTION PLATE FOR HR5201C |
|
85
|
419781-9
|
GUIDE HR5201C |
|
86
|
158177-6
|
HOUSING HR5201C |
|
87
|
419008-7
|
FIX GUIDE FOR HR4001C |
|
88
|
423366-5
|
CUSHION PLATE FOR HR5201C |
|
89
|
324739-4
|
CRANK SHAFT HR5201C |
|
90
|
211418-2
|
BALL BEARING FOR 6006LLU HR4500C |
|
91
|
254229-2
|
5 KEY TO HR4000C |
|
92
|
226646-6
|
GEAR FOR 47 HR5201C |
|
93
|
227176-0
|
GEAR 24 HR5201C |
|
94
|
961102-6
|
RETAINING RING S22 |
|
95
|
253843-1
|
FLAT WASHER FOR LC1230 |
|
96
|
421999-0
|
SEAL RING FOR HR5201C |
|
97
|
158178-4
|
GEAR HOUSING COMPL. FOR HR5201C |
|
98
|
922341-3
|
CAP HD SCREW M6X25 |
|
99
|
TORQUE LIMITER ASS'Y FOR HR5201C | |
|
100
|
419796-6
|
HANDLE COVER HR5201C |
|
101
|
265995-6 | SCREW M4X18 FOR 6408 / 6221DW |
|
102
|
650567-4 | SWITCH TG73B-1 HR4001C |
|
103
|
154626-1
|
SWITCH HOLDER HR4001C |
|
104
|
419028-1
|
SWITCH LEVER FOR HR4001C / HR4010C |
|
107
|
266041-8
|
SCREW PT 5PER25 |
|
108
|
419799-0
|
HANDLE HR5201C |
|
111
|
863359-4
|
LABEL MOD. HR5201C |
|
117
|
419794-0
|
CRANK HOUSING COVER HR5201C |
|
118
|
631727-7
|
CONTROLLER FOR HR5201C |
|
119
|
266192-7 | SCREW 4x14 FOR HR4001C / HR4010C |
|
120
|
638510-3
|
LEAD UNIT HR5201C |
|
121
|
687169-3
|
STRAIN RELIEF HP1620 |
|
122
|
266192-7 | SCREW 4x14 FOR HR4001C / HR4010C |
|
123
|
419024-9
|
CORD CLAMP BASE HR4001C |
|
124
|
265995-6 | SCREW M4X18 FOR 6408 / 6221DW |
|
125
|
266192-7 | SCREW 4x14 FOR HR4001C / HR4010C |
|
126
|
LENS FOR HR5201C | |
|
127
|
682560-0 | CORD GUARD 10 HM1202C / 9079S |
|
129
|
266041-8
|
SCREW PT 5PER25 |
|
130
|
419790-8
|
REAR COVER FOR HR5201C |
|
131
|
252178-7
|
NUT M 8-12 FOR 4112HS |
|
132
|
253165-9
|
FLAT WASHER 8 |
|
133
|
240016-5 | FAN HR5001C |
|
134
|
419782-7
|
FAN GUIDE HR5201C |
|
135
|
CARBON BRUSCHE SET CB-175 | |
|
136
|
638447-4/HR
|
CARBON BRUSHE HOLDER HR5201C |
|
137
|
419795-8
|
MOTOR HOUSING FOR HR5201C |
|
138
|
636303-2
|
STATOR FOR HR5201C |
|
139
|
266095-5
|
SCREW 5X55 HR5001C |
|
140
|
210059-1
|
BALL BEARING 6000 HR2010 |
|
141
|
681642-5 | WASHER FOR LS1013 |
|
142
|
516993-6 | ARMATURE HR5201C |
|
143
|
267025-9
|
FLAT WASHER 15 6912D |
|
144
|
211238-4
|
BALL BEARING 6202LLU |
|
145
|
331596-3
|
SLEEVE 12 HR4500C |
|
146
|
213231-4 | OIL SEAL HR4500C |
|
147
|
419788-5
|
BAFFLE PLATE HR5201C |
|
148
|
266192-7 | SCREW 4x14 FOR HR4001C / HR4010C |
|
149
|
419786-9
|
SWITCH BOX FOR HR5201C |
|
151
|
651418-4 | SWITCH ST115A-40 FOR 9541 |
|
152
|
232209-8
|
LEAF SPRING FOR HM0860C |
|
153
|
154635-0
|
SLIDE LEVER COMPL. HR4001C / HR4010C |
|
154
|
419785-1
|
CONTROL PLATE HR5201C |
|
999
|
195191-1 | SERVICE KIT FOR HR5201C |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
