Makita Spare Parts for Electric Saw UC3520A

€19.40
Tax included

Makita Spare Parts for Electric Saw UC3520A

Makita original spare parts for to replace broken parts for to fix Electric Chain Saw UC3520A.

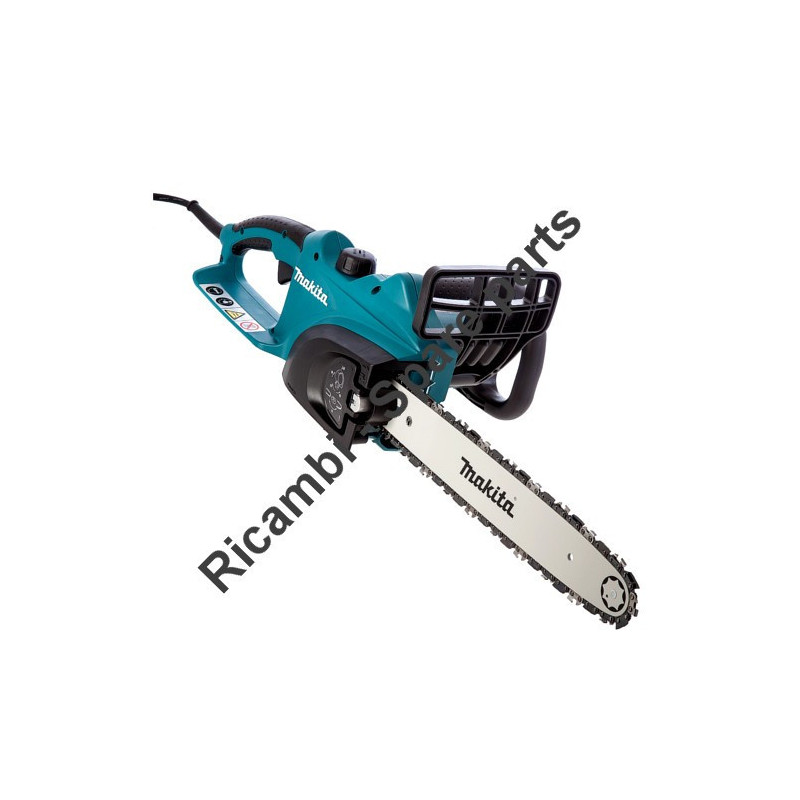

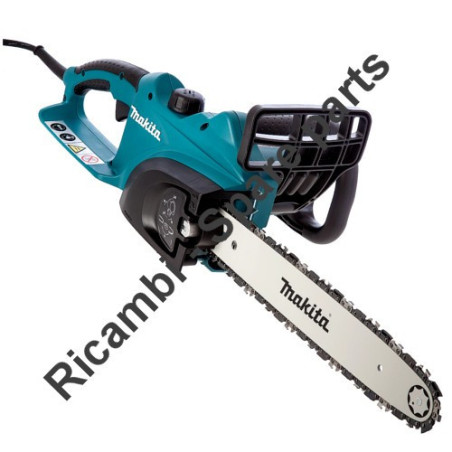

Electric chain saw with powerful 1800 W motor, 35 cm bar, automatic chain lubrication, quick chain tension adjustment, mechanical brake and compact motor.
External oil level check.
ITEM CODE: 135249-4
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Electric Saw UC3520A

Makita

 original spare parts for to replace broken parts for to fix Electric Chain Saw UC3520A.

In the following table, look for the model of Electric Saw for Wood and the respective parts of the code.
Makita UC3520A

Electric Chain Saw UC3520A
# Part Num. Description
1 266326-2 SCREW 4x18 X MT601
2 419234-8 SIDE COVER FOR UC3020A
3 191972-1 CARBON BRUSHES CB-132
4 682211-5 SOCKETS FOR RUBBER UC3020A
6 421938-0 FRONT HANDLE FOR UC3020A
7 266388-0 SCREW 5X16 FOR UC3020A
8 267189-9 WASHER FOR 5 UC3020A
9 419235-6 PROTECTION FOR THE UC3020A
10 231640-5 SPRING FOR TWIST 20 UC3020A
11 188089-9 HOUSING FOR MOTOR UC3020A
12 650577-1 SWITCH SD-006-AA-BB2AA
13 651922-3 TG71B SWITCH
14 233173-6 SPRING COMPRESSION FOR 4 UC3020A
15 416178-3 BUTTON RELEASE X UC3020A
16 416708-0 LEVER SWITCH X UC3020A
17 645200-1 CAPACITOR
18 266326-2 SCREW 4x18 X MT601
19 687052-4 MORSETTO STRINGICAVO X 6408
20 682505-8 CABLE SLEEVE 10/90
22 210029-0 BEARING 608Z X MT601
23 681644-1 INSULATING WASHER X 9227CB
24 594538-0 STATOR FOR UC3020A
25 266389-8 SCREW 5 X 70 FOR UC3020A
26 513713-9 ARMATURE ASS'Y UC3020A
28 419238-0 DEFLECTOR FOR UC3020A
29 211061-7 BALL BEARING 6000DD 6221DW
30 227153-2 GEAR FOR 12 UC3020A
31 931403-6 HEX NUT M8
32 135414-5 TANK CAP OIL CHAIN
33 421934-8 SEAL UC3520-4020
34 419240-3 OIL TANK CHAIN X UC3020A
35 213039-6 RING 6 X AN901
36 142001-3 OIL PUMP
37 421935-6 PIPE PUMP OIL UC3020A
38 231975-4 SPRING PIPE OIL X DCS230T
39 416274-7 PLUG OIL PIPE X DCS230T
40 256021-2 PIN 5 X6300-4
41 158047-9 LEVER CHAIN BRAKE
42 233175-2 SPRING COMPRESSION 9
44 266326-2 SCREW 4x18 X MT601
45 267195-4 WASHER 4 X DCS230T
46 210213500 SPRING BRAKE ES-31A
47 344688-9 RING SUPPORT FOR UC3020A
48 231817-2 SPRING TENSION 5 X UC3020A
49 452456-7 CARTER CHAIN BRAKE X UC3020A
50 213039-6 RING 6 X AN901
51 266326-2 SCREW 4x18 X MT601
52 417405-1 CAM FOR UC3020A
53 227154-0 GEAR FOR 43 UC3020A
54 324619-4 SHAFT FOR UC3020A
55 210106-8 6001LLB BEARING
56 450230-7 ECCENTRIC FOR UC3020A
57 210028-2 BEARING 606ZZ
58 324622-5 ROD FOR UC3020A
60 266326-2 SCREW 4x18 X MT601
61 345651-5 HOOK FOR UC3020A
63 266326-2 SCREW 4x18 X MT601
64 221526-1 BOBBIN FOR UC3020A
65 930108100 WASHER ES-31A SAFETY
66 266007-8 TAPPING SCREW M3 X10 HP2030
67 419241-1 COVER UC3020A
68 227496-2 BEVEL GEAR 14 UC3020A
69 227495-4 STRAIGHT BEVEL GEAR 14 UC3020A
70 324620-9 ADJUST SCREW X UC3020A
71 324621-7 ADJUST PIN
73 233033-2 SPRING FOR COMPRRESSIONE 4 UC3020A
74 216008-6 BALL 4
75 252168-0 NUT M8-13 FOR UC3020A
76 231025-5 SPRING COMPRES.8 X 8411DW
77 317977-5 LEVER HOLDER FOR UC3020A
78 453061-3 WASHER 20 X UC3020A
79 154763-1 LEVER ADJUSTMENT FOR UC3020A
80 951122-8 PIN EL. 4-28 FOR UC3020A
81 915106-0 SCREW M4X8 FOR UC3020A
82 253874-0 FLAT WASHER 4
83 419233-0 KNOB FOR 40 UC3020A
84 154761-5 COVER GEAR FOR UC3020A
85 421960-7 SPONGE UC3020A
86 324685-1 HOSE CLAMP UC3020A
89 135249-4 COVER GEAR ASSEMBLY
501 165246-6 SPROCKET BAR 14" 35 CM .043 1,1MM
502 511291752 SAW CHAIN 35 Cm 3/8-inch
