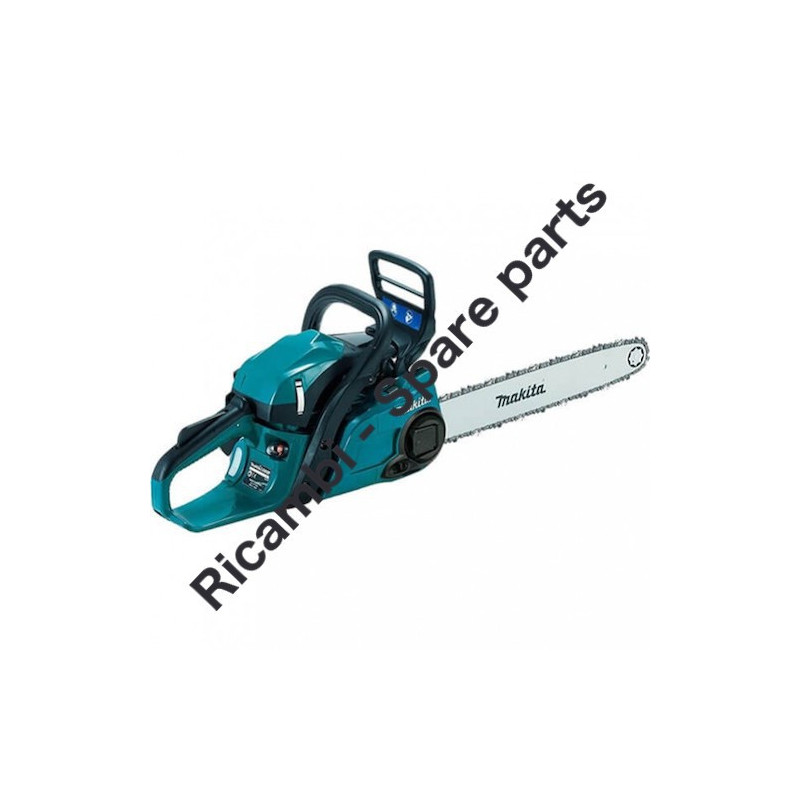

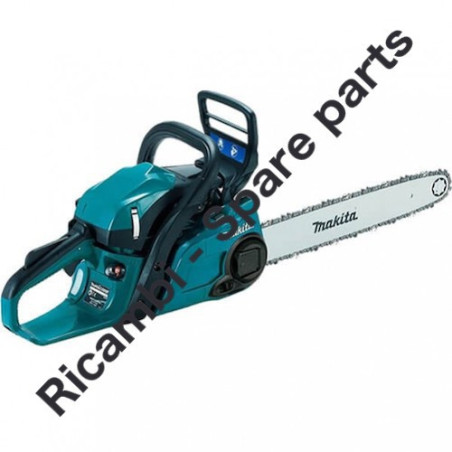

Makita EA3601F Parts
€13.07
Tax included
Makita EA3601F Spare Parts
We have the original Spares for MAKITA Chainsaw EA3601F, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita EA3601F Spare Parts
We have the original Spares for MAKITA Chainsaw EA3601F, the diagram, parts list and tool repair that help you need to get your tools running like new again.
In the following table, look for the model of Petrol Chainsaw and the respective parts of the code.
| EA3601F PETROL CHAIN SAW | ||
| # | Part Num | Description |
| 1 | 142225-1 | Front handle complete |
| 2 | 142226-9 | Damper spring R complete |
| 3 | 326339-6 | Stopper pin |
| 4 | 454506-4 | Spring holder |
| 5 | 266856-3 | Hexalobular socket tapping screw 5X20 |
| 6 | 326339-6 | Stopper pin |
| 7 | 142227-7 | Damper spring F complete |
| 9 | 454506-4 | Spring holder |
| 10 | 266856-3 | Hexalobular socket tapping screw 5X20 |
| 11 | 168396-6 | Breather |
| 12 | 424576-7 | Grommet |
| 13 | 424577-5 | Side stopper |
| 14 | 126345-9 | Right handle assembly |
| 16 | 266858-9 | Hexalobular socket tapping screw 4X18 |
| 17 | 168812-8 | Throttle cable |
| 18 | 454501-4 | Cable bracket |
| 19 | 454499-5 | Throttle lever |
| 20 | 233606-1 | Return spring |
| 21 | 454500-6 | Cable pull lever |
| 22 | 268187-6 | Pin 3 |
| 23 | 454502-2 | Lockout lever |
| 24 | 454503-0 | Grip cover |
| 25 | 326339-6 | Stopper pin |
| 26 | 424577-5 | Side stopper |
| 27 | 168507-3 | Tank cap complete |
| 27-1 | 168823-3 | Tank cap complete O |
| 28 | 213080-9 | O-ring 29.5 |
| 29 | 422116-5 | Joint pipe |
| 30 | 424573-3 | Dust grommet |
| 31 | 126347-5 | Fuel pipe assembly |
| 32 | 168398-2 | Primer pump |
| 33 | 142226-9 | Damper spring R complete |
| 34 | 814S96-7 | Name plate EA3601F |
| 35 | 454506-4 | Spring holder |
| 36 | 266856-3 | Hexalobular socket tapping screw 5X20 |
| 38 | 805U48-1 | Sound 111DB label |
| 39 | 801Y91-2 | Gas emission approval label |
| 40 | 142239-0 | Cleaner cover complete |
| C10 | 263002-9 | Rubber pin 4 |
| 41 | 266858-9 | Hexalobular socket tapping screw 4X18 |
| 42 | 126344-1 | Cylinder cover assembly |
| 43 | 632A97-3 | Switch cord |
| 44 | 632A98-1 | Earth cord |
| 45 | 454532-3 | Manifold |
| 45-1 | 457411-4 | Manifold S |
| 46 | 126370-0 | Cleaner assembly |
| C10 | 454537-3 | Knob |
| 47 | 346704-3 | Earth plate |
| 48 | 346705-1 | Switch spring |
| 49 | 266860-2 | Hexalobular socket tapping screw 4X45 |
| 50 | 266861-0 | Hexalobular socket tapping screw 4X22 |
| 51 | 424582-2 | Damper |
| 52 | 454533-1 | Switch lever |
| 53 | 424582-2 | Damper |
| 54 | 168819-4 | Carburetor assembly |
| 54-1 | 161633-7 | Carburetor assembly S |
| 54-2 | 161914-9 | Carburetor assembly S |
| 55 | 454531-5 | Bracket |
| 56 | 266848-2 | Hexalobular socket binding head bolt M4X16 |
| 57 | 454488-0 | Baffle plate |
| 58 | 332074-6 | Inner ring |
| 59 | 424571-7 | Inlet pipe |
| 60 | 332075-4 | Inner ring |
| 61 | 326304-5 | Spacer |
| 62 | 413164-5 | Muffler gasket |
| 63 | 126342-5 | Muffler assembly |
| 63-1 | 126936-6 | Muffler assembly S |
| 65 | 352023-7 | Screen |
| 66 | 266796-5 | Binding head tapping screw 4X8 |
| 67 | 266851-3 | Hexalobular socket binding head bolt M5X20 |
| 68 | 266850-5 | Hexalobular socket binding head bolt M5X10 |
| 69 | 266849-0 | Hexalobular socket head bolt M5X16 |
| 70 | 346691-6 | Dust cover |
| 71 | 266936-5 | Hexalobular socket binding head bolt M4X8 |
| 80 | 266859-7 | Hexalobular socket head bolt M5X12 |
| 81 | 266847-4 | Hexalobular socket head bolt M5 |
| 82 | 142223-5 | Cylinder complete |
| 83 | 649500-1 | Spark plug (BPMR8Y) |
| 84 | 257365-3 | Piston ring |
| 85 | 319023-0 | Piston |
| 85-1 | 319711-9 | Piston O |
| 86 | 268331-5 | Piston pin |
| 87 | 212127-6 | Needle cage 1011 |
| 88 | 346698-2 | Thrust washer |
| 89 | 234307-4 | Retaining ring |
| 90 | 142229-3 | Crankshaft complete |
| 90-1 | 140B29-7 | Crankshaft complete O |
| 91 | 413163-7 | Base gasket |
| 92 | 266848-2 | Hexalobular socket binding head bolt M4X16 |
| 93 | 424581-4 | Grommet |
| 94 | 126350-6 | Ignition coil assembly |
| C10 | 424580-6 | Plug cap |
| 95 | 454520-0 | Plate |
| 96 | 142224-3 | Crankcase complete |
| C10 | 213697-8 | Oil seal |
| 97 | 266852-1 | Hexalobular socket head bolt M5X25 |
| 98 | 413165-3 | Gasket |
| 99 | 126343-3 | Reed valve |
| 99-1 | 123924-4 | Reed valve S |
| 104 | 911013-5 | Pan head screw M3X10 WR |
| 105 | 319022-2 | Reed valve cover |
| 106 | 266848-2 | Hexalobular socket binding head bolt M4X16 |
| 107 | 266846-6 | Hexalobular socket binding head bolt M4X12 |
| 108 | 454489-8 | Bracket |
| 109 | 424572-5 | Air boot |
| 110 | 911013-5 | Pan head screw M3X10 WR |
| 111 | 126343-3 | Reed valve |
| 111-1 | 123923-6 | Reed valve S |
| 116 | 266854-7 | Hexalobular socket binding head bolt M5X14 |
| 116-1 | 251500-5 | Hexalobular socket binding head bolt M5X14 O |
| 117 | 234207-8 | Compression spring 6 |
| 118 | 452666-6 | Nipple |
| 118-1 | 452666-6 | Nipple O |
| 120 | 346695-8 | Spike bumper |
| 121 | 266857-1 | Hexalobular socket tapping screw 5X16 |
| 122 | 346694-0 | Guide plate ES |
| 123 | 421298-0 | Check valve |
| 124 | 266854-7 | Hexalobular socket binding head bolt M5X14 |
| 125 | 346722-1 | Chain catcher |
| 126 | 266856-3 | Hexalobular socket tapping screw 5X20 |
| 127 | 454509-8 | Pump cover |
| 128 | 266846-6 | Hexalobular socket binding head bolt M4X12 |
| 129 | 267047-9 | Flat washer 10 |
| 130 | 221427-3 | Worm gear |
| 131 | 212129-2 | Needle cage 1013 |
| 132 | 165725-4 | Clutch drum complete |
| 133 | 346693-2 | Back plate |
| 134 | 126348-3 | Clutch assembly |
| C10 | 231883-9 | Tension spring 8 |
| 138 | 424579-1 | Oil pipe (OUT) |
| 139 | 142156-4 | Oil pump complete |
| 139-1 | 142156-4 | Oil pump complete O |
| 140 | 266846-6 | Hexalobular socket binding head bolt M4X12 |
| 141 | 126349-1 | Oil pipe assembly |
| 142 | 126372-6 | Chain cover assembly |
| 143 | 266855-5 | Hexalobular socket tapping screw 4X12 |
| 144 | 454515-3 | Spring cover |
| 145 | 233607-9 | Torsion spring 6 |
| 146 | 346702-7 | Lever |
| 147 | 313265-8 | Weight |
| 148 | 346699-0 | Guide plate CS |
| 149 | 266166-8 | Binding head tapping screw 3X8 |
| 150 | 227496-2 | Straight bevel gear 14 |
| 151 | 326310-0 | Adjust pin |
| 152 | 326312-6 | Adjust screw |
| 154 | 234304-0 | Compression spring 7 |
| 155 | 142234-0 | Lever complete |
| 156 | 142119-0 | Brake band complete |
| 156-1 | 143383-6 | Brake band complete S |
| 157 | 266855-5 | Hexalobular socket tapping screw 4X12 |
| 158 | 454511-1 | Chain cover |
| 158-1 | 456230-5 | Chain cover < |
| 159 | 454519-5 | Nut cover |
| 160 | 142235-8 | Nut complete |
| 161 | 142288-7 | Wheel complete |
| C10 | 213011-8 | O-ring 7 |
| 170 | 142228-5 | Front guard complete |
| C10 | 802E03-8 | Caution label |
| 171 | 266857-1 | Hexalobular socket tapping screw 5X16 |
| 172 | 346697-4 | Holder |
| 173 | 346697-4 | Holder |
| 174 | 266857-1 | Hexalobular socket tapping screw 5X16 |
| 175 | 266856-3 | Hexalobular socket tapping screw 5X20 |
| 176 | 801Y96-2 | Model No. label EA3601F |
| 177 | 126351-4 | Recoil starter assembly |
| 178 | 454522-6 | Starter grip |
| 179 | 142237-4 | Starter case complete |
| 180 | SG00000020 | Spring assembly |
| 181 | SG00000025 | Starter rope |
| 182 | 454523-4 | Reel |
| 183 | SG00000023 | Damper spring |
| 184 | 454524-2 | Ratchet wheel |
| 185 | 266777-9 | Binding head tapping screw 5X12 |
| 186 | 142213-8 | Fan cover complete |
| 187 | 264094-1 | Coned disc spring hex. nut M8-12 |
| 188 | 142236-6 | Flywheel complete |
| 189 | 266866-0 | Hexalobular socket head bolt M5X12 |
| 190 | 346703-5 | Ratchet |
| 191 | 233609-5 | Torsion spring 15 |
| 192 | 266856-3 | Hexalobular socket tapping screw 5X20 |
| 193 | 454493-7 | Air guide plate |
| 194 | 266855-5 | Hexalobular socket tapping screw 4X12 |
| 195 | 424574-1 | Dumper stopper |
| 196 | 168508-1 | Tank cap complete |
| 197 | 266854-7 | Hexalobular socket binding head bolt M5X14 |
| 198 | 135660-0 | Engine case assembly |
| 199 | 234210-9 | Compression spring 3 |
| 200 | 313212-9 | Hand guard guide |
| 201 | 266856-3 | Hexalobular socket tapping screw 5X20 |
| 202 | 213355-6 | O-ring 25 |
| 203 | 163518-3 | Gasoline filter |
| 204 | 282020-8 | Hose clamp |
| 205 | 422113-1 | Outer fuel pipe |
| 206 | 422114-9 | Inner fuel pipe |
| 207 | 424575-9 | Grommet |
| 208 | 454508-0 | Hose joint |
| 209 | 424595-3 | Needle guide |
| 210 | 454496-1 | Shutter plate |
| 211 | 232284-4 | Leaf spring |
| 212 | 346696-6 | Hook |
| 215 | ZJ00000063 | Screw |
| 216 | ZJ00000014 | Screw (with serration) |
| 217 | ZJ00000055 | Cover, metering |
| 218 | ZJ00000058 | Diaphragm ass'y, metering |
| 219 | ZJ00000011 | Gasket, metering chamber |
| 220 | ZJ00000006 | Lever |
| 221 | ZJ00000009 | Screw (metering lever pin) |
| 222 | ZJ00000008 | Pin |
| 223 | ZJ00000010 | Spring, metering lever |
| 224 | ZJ00000007 | Valve, inlet needle |
| 225 | ZJ00000048 | Lever, choke |
| 226 | ZJ00000003 | Strainer |
| 227 | ZJ00000029 | Diaphragm, pump |
| 228 | ZJ00000016 | Gasket, pump |
| 229 | ZJ00000056 | Cover, pump |
| 230 | ZJ00000020 | Screw (pump cover) |
| 231 | ZJ00000051 | Screw, main mixture |
| 232 | ZJ00000050 | Screw, idle mixture |
| 233 | ZJ00000074 | Plunger |
| 234 | ZJ00000054 | O-ring |
| 235 | ZJ00000073 | Spring |
| 236A | ZJ00000062 | Piece, friction |
| 237 | ZJ00000061 | Screw, throttle adjust |
| 238 | ZJ00000068 | Spring, adjust screw |
| 239 | ZJ00000075 | Air head kit |
| 240 | ZJ00000076 | Gasket and diaphragm kit |
| A01A | 165201-8 | Guide bar 14" |
| A01B | 165202-6 | Guide bar 16" |
| A01-1 A | 165201-8 | Guide bar 14" O |
| A01-1 B | 165202-6 | Guide bar 16" O |
| A02A | 419559-0 | Chain cover 330 |
| A02B | 419560-5 | Chain cover 430 |
| A03 | 782027-9 | Box wrench |
| A03-1 | 782042-3 | Box wrench 13 O |
| A04A | 196207-5 | Saw chain set |
| A04B | 196208-3 | Saw chain set |
| A04-1 A | 191H11-5 | Saw chain 14 set O |
| A04-1 B | 191H12-3 | Saw chain 16 set O |
| E01 | 347558-1 | Heat protection foil S |
| F05 | 199464-4 | Engine maintenance kit M |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita EA3601F
