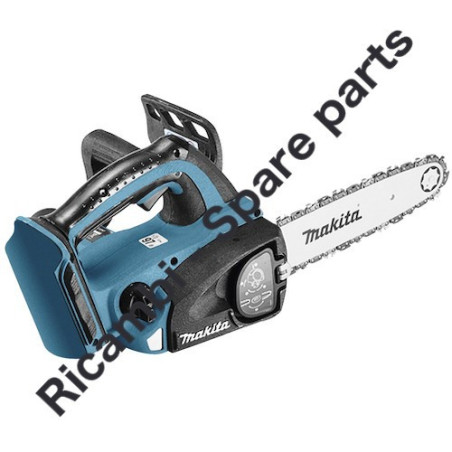

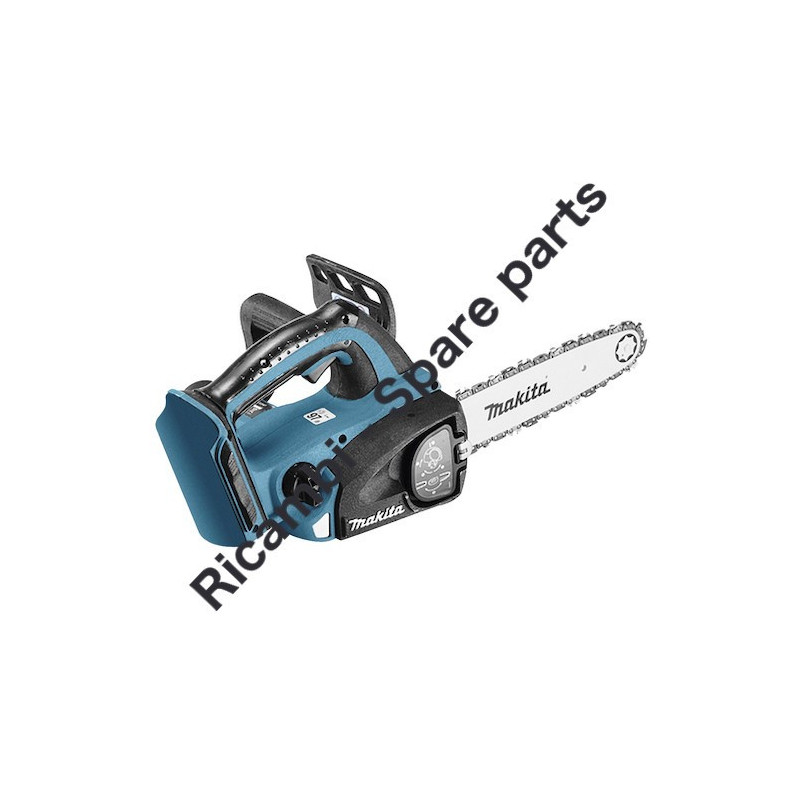

Makita Cordless Chain Saw BUC250 Parts
€20.12
Tax included
Makita Spare parts for Cordless Chain Saw BUC250
Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw BUC250.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare parts for Cordless Chain Saw BUC250
Makita original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Chain Saw BUC250.
In the following table, look for the model of the Cordless Chain Saw and the respective parts of the code.
| MAKITA BUC250 250MM CORDLESS CHAIN | ||
| # | Part Num | Description |
| 1 | 451972-6 | FRONT HANDLE |
| 2 | 266053-1 | TAPPING SCREW 4X35 |
| 3 | 265995-6 | TAPPING SCREW 4X18 |
| 4 | 643941-3 | BRUSH HOLDER CAP |
| 5 | 194928-3 | CARBON BRUSH CB-442 |
| 5-1 | 195023-2 | CARBON BRUSH SET CB-442 |
| 6 | 643813-2 | BRUSH HOLDER |
| 6-1 | 643891-2 | BRUSH HOLDER |
| 7 | 643853-0 | BRUSH HOLDER |
| 7-1 | 643892-0 | BRUSH HOLDER |
| 8 | 868008-8 | BUC250 NAME PLATE |
| 9 | 631971-6 | CONTROLLER |
| 10 | 188910-2 | HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| D10 | INC. 53 | |
| 10-1 | 187378-9 | HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| D10 | INC. 53 | |
| 11 | 266173-1 | TAPPING SCREW 5X30 |
| 12 | 140494-8 | FRONT HAND GUARD COMPLETE |
| C10 | 819515-4 | CAUTION LABEL |
| 12-1 | 140494-8 | FRONT HAND GUARD COMPLETE |
| C10 | 819515-4 | CAUTION LABEL |
| 12-2 | 140494-8 | FRONT HAND GUARD COMPLETE |
| C10 | 819515-4 | CAUTION LABEL |
| 12-3 | 141677-3 | FRONT HAND GUARD COMPLETE |
| C10 | 800A01-2 | CAUTION LABEL |
| 13 | 231298-0 | COMPRESSION SPRING 6 |
| 14 | 451973-4 | HAND GUARD SUPPORT |
| 15 | 416178-3 | LOCK-OFF BUTTON |
| 16 | 233173-6 | COMPRESSION SPRING 4 |
| 17 | 650631-1 | SWITCH |
| 18 | 450212-9 | SWITCH LEVER |
| 19 | 643849-1 | TERMINAL |
| 20 | 346039-2 | SUPPORT PLATE |
| 21 | 638571-3 | YOKE UNIT |
| 22 | 451970-0 | BAFFLE PLATE |
| 23 | 266292-3 | TAPPING SCREW 4X65 |
| 24 | 210062-2 | BALL BEARING 607ZZ |
| 25 | 519268-2 | ARMATURE ASS'Y 36V |
| D10 | INC. 24,26 | |
| 26 | 211092-6 | BALL BEARING 629DDW |
| 27 | 227252-0 | SPUR GEAR 16 |
| 28 | 252186-8 | HEX. NUT M6 |
| 29 | 256123-4 | PIN 5 |
| 30 | 158047-9 | LINK PLATE COMPLETE |
| 31 | 233175-2 | COMPRESSION SPRING 9 |
| 32 | 265995-6 | TAPPING SCREW 4X18 |
| 32-1 | 265620-9 | TAPPING SCREW FLANGE 4X18 |
| 33 | 267195-4 | FLAT WASHER 4 |
| 34 | 168321-7 | BRAKE BAND |
| 35 | 140488-3 | BEARING HOUSING COMPLETE |
| 36 | 213039-6 | O RING 6 |
| 37 | 422058-3 | CONNECTOR |
| 38 | 210028-2 | BALL BEARING 606ZZ |
| 39 | 961006-2 | RETAINING RING S-10 |
| 40 | 221422-3 | WORM GEAR |
| 41 | 227251-2 | SPUR GEAR 73 |
| 42 | 325931-5 | SPINDLE |
| 43 | 210109-2 | BALL BEARING 6001DDW |
| 43-1 | 210163-6 | BALL BEARING 6001DDW |
| 44 | 265995-6 | TAPPING SCREW 4X18 |
| 45 | 257264-9 | RING 30 |
| 45-1 | 257311-6 | RING 28 |
| 46 | 168393-2 | OIL PUMP |
| 47 | 421875-8 | GROMMET |
| 48 | 265995-6 | TAPPING SCREW 4X18 |
| 49 | 422057-5 | CONNECTOR |
| 49-1 | 422313-3 | CONNECTOR |
| 50 | 450437-5 | FILTER |
| 51 | 451974-2 | OIL TANK |
| 52 | 424326-0 | SPONGE SHEET |
| 53 | 188910-2 | HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| D10 | INC. 10 | |
| 53-1 | 187378-9 | HOUSING SET |
| C10 | 263005-3 | RUBBER PIN 6 |
| D10 | INC. 10 | |
| 54 | 158810-0 | TANK CAP COMPLETE |
| 54-1 | 140L59-8 | TANK CAP COMPLETE |
| 55 | 221526-1 | SPROCKET |
| 56 | 961014-3 | STOP RING E-8 |
| 57 | 265995-6 | TAPPING SCREW 4X18 |
| 58 | 266007-8 | TAPPING SCREW BIND PT 3X10 |
| 59 | 419241-1 | COVER |
| 60 | 227496-2 | STRAIGHT BEVEL GEAR 14 |
| 61 | 227495-4 | STRAIGHT BEVEL GEAR 14 |
| 62 | 324620-9 | ADJUST SCREW |
| 63 | 324621-7 | ADJUST PIN |
| 64 | 233033-2 | COMPRESSION SPRING 4 |
| 65 | 216008-6 | STEEL BALL 4 |
| 66 | 140486-7 | SPROCKET COVER COMPLETE |
| 67 | 252168-0 | HEX. NUT M8-13 |
| 68 | 231025-5 | COMPRESSION SPRING 8 |
| 69 | 317977-5 | LEVER HOLDER |
| 70 | 419271-2 | CUP WASHER 20 |
| 71 | 154763-1 | LEVER COMPLETE |
| C10 | 816853-5 | INDICATION LABEL |
| 72 | 951122-8 | SPRING PIN 4-28 |
| 73 | 915106-0 | BINDING HEAD SCREW M4X8 |
| 74 | 253874-0 | FLAT WASHER 4 |
| 75 | 419233-0 | DIAL 40 |
| 76 | 234207-8 | COMPRESSION SPRING 6 |
| 77 | 452666-6 | NIPPLE |
| 77-1 | 452666-6 | NIPPLE |
| A01 | 182229-1 | OIL SUPPLY 100CC |
| A01-1 | 199897-3 | OIL VESSEL SET |
| A02 | 168408-5 | GUIDE BAR 10 |
| A02-1 | 168408-5 | GUIDE BAR 10 |
| A03 | 452093-7 | GUIDE BAR CASE |
| A04 | 194099-6 | SAW CHAIN SET |
| A04-1 | 196205-9 | SAW CHAIN SET |
| A04-2 | 191H08-4 | SAW CHAIN 10 SET |
| A05 | 744003-1 | FILE 4 |
| A06 | ***DC36RA | DC36RA FAST CHARGER |
| A07 | 194873-2 | BATTERY BL3626 SET |
| A07-1 | 194873-2 | BATTERY BL3626 SET |
| A07-2 | 194873-2 | BATTERY BL3626 SET |
| A08 | 451153-2 | BATTERY COVER |
| E01 | 810111-1 | CAUTION TAG |
| E02 | 688131-1 | LINE FILTER |
| E02-1 | 688131-1 | LINE FILTER |
| E03 | 688172-7 | LINE FILTER |
| E04 | 817D83-5 | CAUTION TAG |
| F03-2 | 194873-2 | BATTERY BL3626 SET |
| F07-1 | 196205-9 | SAW CHAIN SET |
| F07-2 | 191H08-4 | SAW CHAIN 10 SET |
| F09-1 | 195448-0 | TOOL BAG SET |
