Makita Spare Parts for BruschCutter RBC415
We are MAKITA original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Bruschcutter RBC415.In the following table, look for the model of Brusch Cutter and the respective parts of the code.
|

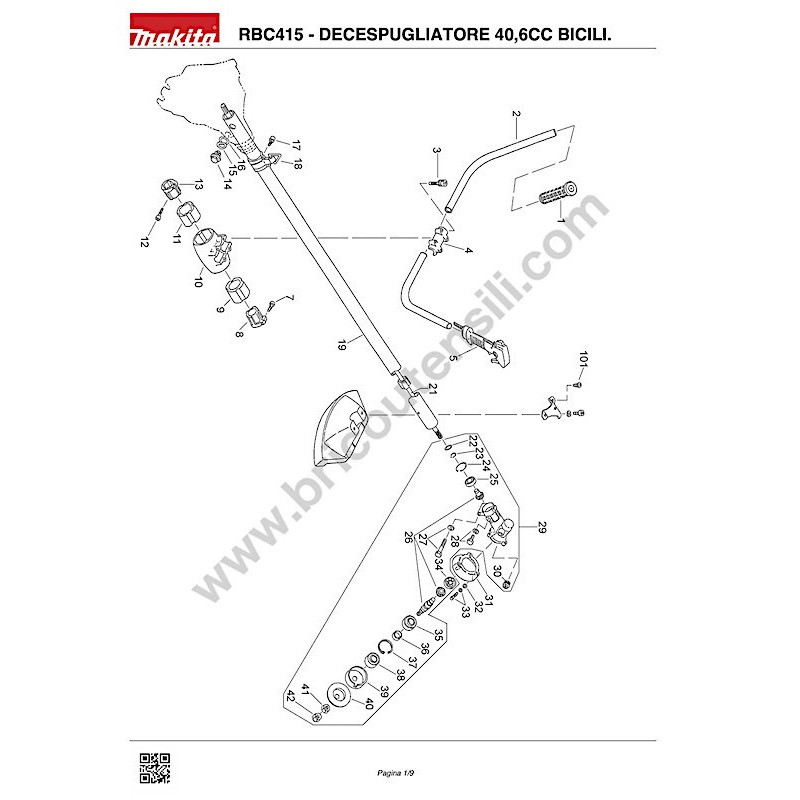

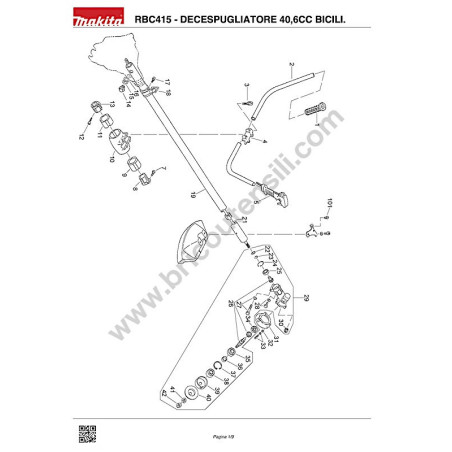

RBC415 - BRUSH CUTTER 40,6CC BICILI.
|
||
|
Pag.1
|
||
|
#
|
Part Number
|
Description
|
| 1 | 6404502400 | KNOB FOR RBC 410 P10 |
| 2 | 6414500600 | HANDLE 22 RBC 310 |
| 3 | 0119059840 | M5X25 SCREW MOD. RBC415 P03 |
| 4 | 318735-2 | HANDLE SUPPORT FOR RBC415 P18 |
| 5 | 6415014000 | COMPLETE CONTROL LEVER FOR RBC415 P27 |
| 7 | 0119069930 | M6X30 SCREW MOD. RBC415 P02 |
| 8 | 6404506200 | LOCK FOR RBC415 P21 |
| 9 | 6404504100 | RING NUT FOR RBC415 P17 |
| 10 | 6414503900 | LOWER SYSTEM SUPPORT X RBC415 P31 |
| 11 | 6404504100 | RING NUT X RBC415 P17 |
| 12 | 0119069930 | M6X30 SCREW MOD RBC415 P02 |
| 13 | 6404506200 | LOCK X RBC415 P21 |
| 14 | 6211005000 | BOLT X RBC230 P16 |
| 15 | 0032214000 | SPRING WASHER X RBC260/230 P01 |
| 16 | 6219500400 | WASHER X RBC260/230 P03 |
| 17 | 0043505180 | M5X18 SCREW X RBC415 P01 |
| 18 | 6417013000 | SUPPORT X RBC415 P26 |
| 19 | 6411027000 | ASSEMBLY SHAFT SUPPORT X RBC415 P44 |
| 21 | 6411502900 | SHAFT X RBC415 P25 |
| 22 | 0062610070 | RING X RBC415 P03 |
| 23 | 0031512000 | EXTERNAL RING X RBC260/520RBK410 P02 |
| 24 | 0031428000 | INNER RING X RBC410/520 P03 |
| 25 | 0600129980 | BALL BEARING 6001ZZ P18 |
| 26 | 6413003000 | SHAFT SET X RBC410 P31 |
| 27 | 0011306320 | BOLT WITH WASHER X RBC410 P02 |
| 28 | 0011306140 | BOLT WITH WASHER X RBC410 P01 |
| 29 | 6353003000 | GEARBOX ASSEMBLY X RBC415 P45 |
| 30 | 266671-5 | OIL CAP P04 |
| 31 | 412099-7 | CUTTER PROTECTION P05 |
| 32 | 0031005000 | WASHER FOR RBC230/410/RBK410 P01 |
| 33 | 0119059900 | BOLT M5X12 FOR RBC225-255 P02 |
| 34 | 0600079990 | BEARING 627 FOR RBC415 P09 |
| 35 | 0600129970 | BEARING 6201 FOR RBC415 P12 |
| 36 | 6413500500 | SPACER FOR RBC410 P08 |
| 37 | 0031432000 | INTERNAL RETAINER FOR RBC260/310/410 P03 |
| 38 | 6413500400 | OIL SEAL FOR RBC410 P05 |
| 39 | 326053-4 | UPPER FLANGE FOR RBC410 P15 |
| 40 | 346441-9 | EXTERNAL FLANGE P18 |
| 41 | 264058-5 | NUT FOR RBC 410/RBC520 P05 |
| 42 | 6308503300 | NUT FOR RBC 410/RBC520 P09 |
| 101 | 0150059940 | SCREW FOR RBK250-RBC225-RBC255 P01 |
| Pag.2 | ||
| 43 | 5427500002 | SPARE PLUG CAP FOR RBC415 P13 |
| 44 | 054001-10 | NGK SPARK PLUG - BPM7A (10 PCS) A39 |
| 46 | 0119059730 | BOLT FOR RBC 260/230/225/255 P02 |
| 47 | 5231501300 | CYLINDER GASKET FOR RBC230 P02 |
| 48 | 257320-5 | PISTON RING P06 |
| 49 | 5212500600 | PISTON FOR RBC415 P17 |
| 50 | 5212500400 | PIN FOR RBC415 P03 |
| 51 | 233976-8-4 | PIN FORK RING EBH252L (4 PCS) P07 |
| 52 | 0119059670 | M5X55 SCREW FOR RBC415 P03 |
| 53 | 0031005000 | WASHER FOR RBC230/410/RBK410 P01 |
| 54 | 5423001000 | MUFFLER FOR RBC415 P33 |
| 55 | 0140059920 | 5X8 SCREW FOR RBC 310 P01 |
| 56 | 5423500000 | MUFFLER GASKET FOR RBC415 P20 |
| 57 | 5427500002 | SPIN SPARK PLUG CAP FOR RBC415 P13 |
| 58 | 054001-10 | NGK SPARK PLUG - BPM7A (10 PCS) A39 |
| 60 | 0119059730 | BOLT FOR RBC 260/230/225/255 P02 |
| 61 | 5231501300 | CYLINDER SEAL FOR RBC230 P02 |
| 62 | 257320-5 | PISTON RING P06 |
| 63 | 5212500600 | PISTON FOR RBC415 P17 |
| 64 | 5212500400 | PIN FOR RBC415 P03 |
| 65 | 233976-8-4 | PIN FORK RING EBH252L (4 pcs) P07 |
| 66 | 0031435000 | INTERNAL RETAINER FOR RBC410/520/RBK410 P04 |
| 67 | 0600179850 | BEARINGS BALLS 6003DD FOR RBC/K 410 P17 |
| 68 | 6301501600 | WASHER FOR RBC520 P04 |
| 69 | 424103-0 | SHOCK ABSORBER EBH341U P01 |
| 70 | 6411024000 | COMPLETE CASING FOR RBC415 P39 |
| 71 | 0566079970 | CLAMP FOR RBC520 P02 |
| 72 | 0031205000 | WASHER FOR RBC415/RBL250 P01 |
| 73 | 0119059950 | BOLT M5X18 FOR RBC230/310/225/ P02 |
| 74 | 0119059730 | BOLT FOR RBC 260/230/225/255 P02 |
| 75 | 6411021000 | DAMPER FOR RBC415 P31 |
| 76 | 0150049970 | SCREW FOR RBC415 P01 |
| 77 | 5427001030 | LOCK FOR RBC415 P31 |
| 78 | 0119059870 | BOLT FOR RBC230 P03 |
| 79 | 195144-0 | SUPPORT EBH341U P05 |
| 80 | 0119059950 | BOLT M5X18 FOR RBC230/310/225/ P02 |
| 81 | 324891-8 | SPRING FOR SPARK PLUG CAP EBH341 P01 |
| 83 | 0119059950 | BOLT M5X18 XRBC230/310/225/ P02 |
| 85 | 424102-2 | SHOCK ABSORBER EBH341U P01 |
| 86 | 0031517000 | EXTERNAL RETAINER FOR RBC 410 RBK410 P01 |
| 87 | 0062610070 | RING FOR RBC415 P03 |
| 88 | 6412002001 | CLUTCH BELL FOR RBC415 P27 |
| 89 | 0150049980 | SCREW M4X8 FOR RBC225-255 P01 |
| 90 | 0031004000 | WASHER FOR RBC415 P01 |
| 91 | 5427500200 | COIL COVER FOR RBC415 P12 |
| 92 | 0119059680 | SCREW M5X14 FOR RBC415 P03 |
| 93 | 0031005003 | WASHER FOR RBC415 P01 |
| 94 | 5425500201 | SPIN COVER FOR RBC415 P07 |
| 95 | 5425008000 | CYLINDER COVER COMPLETE FOR RBC415 P25 |
| 96 | 0031005003 | WASHER FOR RBC415 P01 |
| 97 | 0119059680 | M5X14 SCREW FOR RBC415 P03 |
| 98 | 5425500100 | DEFLECTOR PLATE FOR RBC415 P12 |
| 99 | 0119059900 | M5X12 BOLT FOR RBC225-255 P02 |
| 100 | 5215002020 | STARTER SPOOL FOR RBC 230 P06 |
| 101 | 232258-5 | STARTER SPRING EBH252L P12 |
| 102 | 0031005003 | WASHER FOR RBC415 P01 |
| 103 | 0119059680 | M5X14 SCREW FOR RBC415 P03 |
| 104 | 5215002110 | STARTER FOR RBC 230-225-255 P04 |
| 105 | 5315001030 | LOCK FOR RBC415 P07 |
| 106 | 5215002060 | STARTER CABLE FOR RBC230 P11 |
| 107 | 0119059680 | M5X14 SCREW FOR RBC415 P03 |
| 108 | 5036500100 | PLATE FOR RBC415 P07 |
| 109 | 5425001000 | STARTER SPOOL FOR RBC415 P19 |
| 110 | 5425003010 | SCREW SET FOR RBC415-225-255 P05 |
| 111 | 5425004000 | PULLEY FOR RBC415 P20 |
| 113 | 5425004030 | RETURN SPRING FOR RBC415 P04 |
| 114 | 5421501100 | OIL SEAL FOR RBC415 P22 |
| 115 | 5421500500 | CLIP FOR RBC415 P04 |
| 116 | 0610089990 | ROLLER BEARINGS FOR RBC260/230/310/P08 |
| 117 | 5421002000 | ENGINE CASE ASSEMBLY FOR RBC415 P42 |
| 118 | 0440129991 | OIL SEAL FOR RBC415 P03 |
| 119 | 5427001010 | FLYWHEEL FOR RBC415 P30 |
| 120 | 267429-5 | WASHER 6 P01 |
| 121 | 267817-6 | WASHER 8 EBH252L P01 |
| 122 | 6252500500 | CLUTCH BOLT FOR RBC415 P10 |
| 123 | 6112500000 | SPRING FOR RBC415 P04 |
| 124 | 6412500601 | CLUTCH SHOE FOR RBC415 P21 |
| 125 | 0011306160 | BOLT FOR RBC230/260/225/255 P01 |
| 126 | 0031206000 | WASHER G.24/35 - RBC225-255 P01 |
| 127 | 0053203101 | WRECKER RBC/RBK 410 P02 |
| 128 | 0119059870 | BOLT FOR RBC230 P03 |
| 129 | 5216500200 | RUBBER FOR RBC230-225-255 P01 |
| 130 | 5422002000 | ECCENTRIC SHAFT COMPLETE FOR RBC415 P47 |
| 131 | 0021705000 | NUT M5 FOR RBC415 P01 |
| 132 | 5423500901 | INSULATOR FOR RBC415 P16 |
| 133 | 5423500702 | CARBURETOR GASKET FOR RBC415 P04 |
| 134 | 5423500103 | AIR FILTER COVER FOR RBC415 P19 |
| 135 | 5423501000 | CHOKE GASKET FOR RBC415 P15 |
| 136 | 0230059920 | SPACER FOR RBC415 P01 |
| 137 | 5423502300 | CHOKE LEVER (A) FOR RBC415 P06 |
| 138 | 424523-8 | WASHER FOR RBC415-RBC350 P05 |
| 139 | 0032005000 | WASHER FOR RBC520 P01 |
| 140 | 5423501200 | AIR FILTER ELEMENT FOR RBC415 P10 |
| 141 | 5423501100 | AIR FILTER COVER FOR RBC415 P08 |
| 142 | 0119059870 | BOLT FOR RBC230 P03 |
| 143 | 0140059830 | SCREW M5X66 FOR RBC415 P02 |
| 144 | 0031005000 | WASHER FOR RBC230/410/RBK410 P01 |
| 145 | 5423500500 | CHOKE BAR FOR RBC415 P05 |
| 146 | 5423502400 | CHOKE LEVER (B) FOR RBC415 P05 |
| 147 | 0119059640 | BOLT M5X25 FOR RBC415 P04 |
| 148 | 5423500600 | GASKET FOR RBC415 P03 |
| 149 | 0851169970 | FUEL PIPE FOR RBC415 P12 |
| 150 | 163447-0 | FUEL FILTER FOR DCS230T P05 |
| 152 | 452920-8 | FUEL CAP P09 |
| 153 | 140436-2 | DISK EBH341U P10 |
| Pag.3 | ||
| 153 | 5426002001 | CARBURETOR FOR RBC415 P39 |
| 154 | 5236018020 | GASKET FOR RBC 260/230/310 P07 |
| 155 | 5246001010 | GASKET FOR RBC 260/230/310/ P06 |
| 156 | 5036002010 | JET FOR RBC230/310/225/255 P13 |
| 157 | 5246001030 | PUMP SEAL RBC260-230-310- P08 |
| 158 | WJ00009599 | PUMP DIAPHRAGM FOR DCS230T P07 |
| 160 | 442154-1 | DIAPHRAGM SEAL EBH341U P06 |
| 161 | 168574-8 | DIAPHRAGM ASSEMBLY EBH341U P19 |
| 163 | 424314-7 | PRIMING PUMP EBH341 P08 |
| 165 | 266582-4 | SCREW 3X24 EBH341U P02 |
| 166 | 5216008010 | SCREW CABLE ADJUSTMENT ACC. XRBC260 310 P07 |
| 167 | 5316005450 | ADJUSTMENT STOP NUT RBC260/310 P03 |
| 168 | 266581-6 | M3X8 SCREW EBH341U P02 |
| 169 | 5316005360 | SPRING FOR RBC415 P04 |
| 170 | 5316005260 | SCREW FOR RBC415 P07 |
| 171 | 5426001020 | RETAINING RING FOR RBC415 P09 |
| 172 | 5426001030 | RETAINING RING FOR RBC415 P09 |
| 173 | 5426001250 | STUD FOR RBC415 P16 |
| 174 | 5016004010 | CONNECTOR FOR RBC 260/230/310/225 P05 |
| Pag.4 | ||
| 101 | 6407003003 | BELT FOR RBC350-RBC420 A46 |
