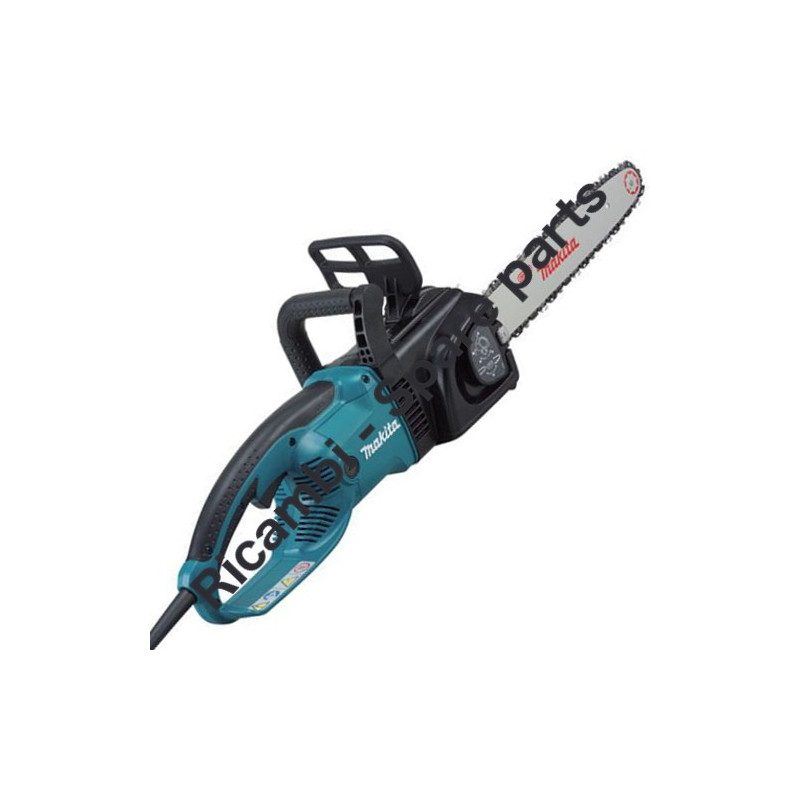

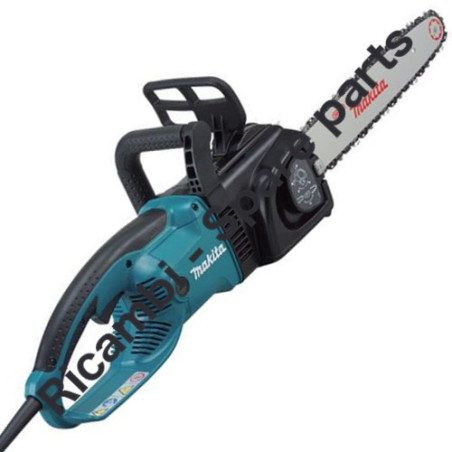

Makita Chainsaws UC3530A Parts
€4.70
Tax included
Makita Spare Parts for Electric Chainsaw UC3530A
We have the original Makita Spare Parts for Electric Chainsaw UC3530A, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Electric Chainsaw UC3530A
Fix Your Electric Chainsaw UC3530A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Electric Saws and the respective parts of the code.
| Electric Chainsaws UC3530A | ||
| # | Part Num. | Description |
| 1 | 226743-8 | STRAIGHT BEVEL GEAR 14 |
| 2 | 419410-4 | BAFFLE PLATE |
| 3 | 211111-8 | BALL BEARING 6301LLB |
| 4 | 240001-8 | FAN 80 |
| 5 | 616969-4 | ARMATURE 240V |
| 6 | 681666-1 | INSULATION WASHER |
| 6-1 | 681666-1 | INSULATION WASHER |
| 7 | 211057-8 | BALL BEARING 629ZZ |
| 8 | 639530-0 | FIELD 240V |
| 9 | 266095-5 | TAPPING SCREW 5X55 |
| 10 | 265995-6 | TAPPING SCREW 4X18 |
| 11 | 188818-0 | HANDLE SET |
| C10 | 810198-3 | CAUTION LABEL |
| D10 | INC. 28 | |
| 12 | 654532-5 | TERMINAL BLOCK 1P |
| 12-1 | 654475-1 | TERMINAL BLOCK |
| 13 | 867109-9 | UC3530A NAME PLATE |
| 14 | 650577-1 | SWITCH SD-006-BB2AA-AA |
| 15 | 631719-6 | CONTROLLER |
| 15-1 | 620M13-9 | CONTROLLER |
| 16 | 682574-9 | CORD GUARD 10-90 |
| 17 | 665883-1 | POWER SUPPLY CORD 1.0-2-5.0 |
| 18 | 687124-5 | STRAIN RELIEF |
| 19 | 265995-6 | TAPPING SCREW 4X18 |
| 20 | 416178-3 | LOCK-OFF BUTTON |
| 21 | 233173-6 | COMPRESSION SPRING 4 |
| 22 | 419411-2 | SWITCH LEVER |
| 23 | 645239-4 | NOISE SUPPRESSOR |
| 24 | 651923-1 | SWITCH TG70B |
| 25 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 |
| 25-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 |
| 26 | 181044-0 | CARBON BRUSH CB-153 |
| 26-1 | 194985-1 | CARBON BRUSH SET CB-153 |
| 27 | 154867-9 | MOTOR HOUSING COMPLETE |
| C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 |
| C11 | 643536-2 | BRUSH HOLDER 6.5X13.5 |
| 28 | 188818-0 | HANDLE SET |
| C10 | 810198-3 | CAUTION LABEL |
| D10 | INC. 11 | |
| 29 | 265995-6 | TAPPING SCREW 4X18 |
| 30 | 265995-6 | TAPPING SCREW 4X18 |
| 32 | 154870-0 | TANK CAP COMPLETE |
| 33 | 419412-0 | GEAR HOUSING COVER |
| 34 | 140089-7 | OIL PUMP COMPLETE |
| 34-1 | 142002-1 | OIL PUMP COMPLETE |
| 35 | 213039-6 | O RING 6 |
| E02 | 8040V6-2 | SOUND LABEL |
| E01 | 8039U0-8 | CAUTION TAG |
| 66 | 191V91-5 | SPROCKET 7 SET |
| E02 | 8040V6-2 | SOUND LABEL |
| 36 | 421959-2 | SPONGE SEAL |
| 37 | 419407-3 | OIL TANK |
| 38 | 416274-7 | CAP |
| 39 | 231975-4 | SPRING |
| 40 | 421958-4 | OIL TUBE |
| 41 | 419408-1 | GEAR HOUSING |
| 42 | 419413-8 | ROD |
| 43 | 233174-4 | COMPRESSION SPRING 6 |
| 44 | 451130-4 | FRONT HAND GUARD |
| 45 | 158044-5 | LINK PLATE COMPLETE |
| 46 | 234005-0 | COMPRESSION SPRING 9 |
| 47 | 213039-6 | O RING 6 |
| 48 | 211012-0 | BALL BEARING 606ZZ |
| 49 | 450230-7 | CRANK |
| 50 | 417405-1 | CAM |
| 51 | 259034-2 | RETAINING RING E TYPE 10 |
| 52 | 266095-5 | TAPPING SCREW 5X55 |
| 52-1 | 266044-2 | TAPPING SCREW 5X60 |
| 53 | 266173-1 | TAPPING SCREW 5X30 |
| 54 | 226741-2 | STRAIGHT BEVEL GEAR 43 |
| 55 | 324662-3 | SPINDLE |
| 56 | 211107-9 | BALL BEARING 6201ZZ |
| 57 | 419409-9 | FRONT HANDLE |
| 57-1 | 455487-5 | FRONT HANDLE |
| 58 | 266173-1 | TAPPING SCREW 5X30 |
| 59 | 921452-1 | HEX. BOLT M8X30 |
| 60 | 318013-0 | BEARING HOUSING |
| 63 | 345651-5 | SPIKE BUMPER |
| 64 | 266173-1 | TAPPING SCREW 5X30 |
| 65 | 168426-3 | BRAKE BAND |
| 66 | 267195-4 | FLAT WASHER 4 |
| 67 | 266026-4 | TAPPING SCREW BIND CT 4X12 |
| 68 | 125331-7 | BRAKE DRUM ASSEMBLY |
| 68-1 | 123886-6 | BRAKE DRUM ASSEMBLY |
| 68-2 | 125331-7 | BRAKE DRUM ASSEMBLY |
| 69 | 253215-0 | FLAT WASHER 8 |
| 70 | 259033-4 | RETAINING RING E TYPE 6 |
| 71 | 266007-8 | TAPPING SCREW BIND PT 3X10 |
| 72 | 419241-1 | COVER |
| 73 | 227496-2 | STRAIGHT BEVEL GEAR 14 |
| 74 | 227495-4 | STRAIGHT BEVEL GEAR 14 |
| 75 | 154869-5 | SPROCKET COVER COMPLETE |
| 76 | 419233-0 | DIAL 40 |
| 77 | 253874-0 | FLAT WASHER 4 |
| 78 | 915106-0 | BINDING HEAD SCREW M4X8 |
| 79 | 233033-2 | COMPRESSION SPRING 4 |
| 80 | 216008-6 | STEEL BALL 4 |
| 81 | 154763-1 | LEVER COMPLETE |
| 82 | 951122-8 | SPRING PIN 4-28 |
| 83 | 419271-2 | CUP WASHER 20 |
| 83-1 | 453061-3 | CUP WASHER 20 |
| 84 | 317977-5 | LEVER HOLDER |
| 85 | 231025-5 | COMPRESSION SPRING 8 |
| 86 | 252168-0 | HEX. NUT M8-13 |
| 87 | 324621-7 | ADJUST PIN |
| 88 | 324620-9 | ADJUST SCREW |
| 89 | 188858-8 | SPROCKET COVER SET |
| D10 | INC. 71-88 | |
| 89-1 | 187088-8 | SPROCKET COVER SET |
| D10 | INC. 71-88 | |
| 90 | 188859-6 | LEVER COMPLETE SET |
| D10 | INC. 81-84 | |
| 90-1 | 187089-6 | LEVER COMPLETE SET |
| D10 | INC. 81-84 | |
| 91 | 188929-1 | OIL PUMP COMPLETE SET |
| D10 | INC. 34,35,49 | |
| 91-1 | 187573-1 | OIL PUMP COMPLETE SET |
| D10 | INC. 34,35,49 | |
| A01 | 419559-0 | CHAIN PROTECTION COVER 330 |
| A02 | 158024-1 | HOOK COMPLETE |
| A03 | 165201-8 | GUIDE BAR 14 |
| A03-1 | 165201-8 | GUIDE BAR 14 |
| A03-2 | 165201-8 | GUIDE BAR 14 |
| A04 | 837010-2 | OIL ABSORBENT SHEET |
| A05 | 528092652 | SAW CHAIN 14" |
| A05-1 | 195304-4 | SAW CHAIN SET |
| A05-2 | 196212-2 | SAW CHAIN 14 SET |
| A05-3 | 196212-2 | SAW CHAIN 14 SET |
| A05-4 | 191H11-5 | SAW CHAIN 14 SET |
| A03 | 165456-5 | GUIDE BAR 14 |
| A03-1 | 165456-5 | GUIDE BAR 14 |
| A04 | 195089-2 | CHAIN EDGER SET |
| A04-1 | D-70948 | FILE HOLDER SET 4.0MM(5/32") |
| A06 | 195093-1 | CHAIN OIL SET |
| A07 | 819393-2 | MAKITA LOGO LABEL |
| A08 | 823311-4 | METAL CASE |
| A08-1 | 823320-3 | METAL CASE |
| A08-2 | 823333-4 | METAL CASE |
| A09 | 195090-7 | GLOVES SET |
| A10 | 195091-5 | SAFETY GOGGLES SET |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
