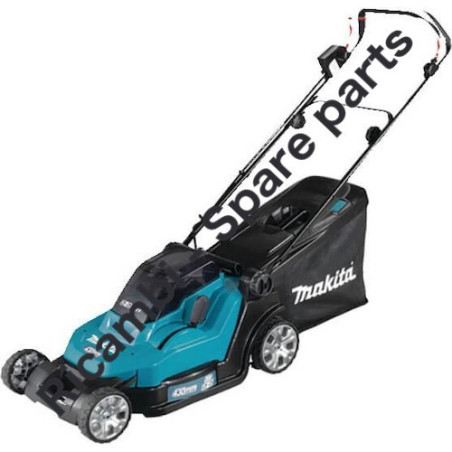

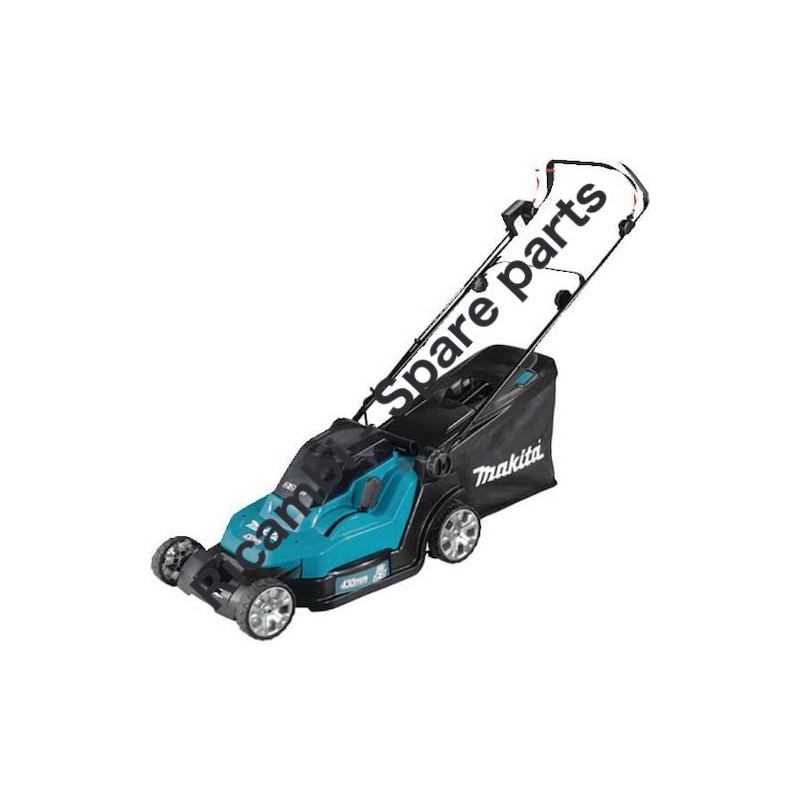

Makita DLM432 Cordless Lawn Mower Spare Parts
€7.02
Tax included
Makita DLM432 Cordless Lawn Mower Spare Parts
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower DLM432.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita DLM432 Cordless Lawn Mower Spare Parts
We are MAKITA original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower DLM432.In the following table, look for the model of Lawn Mower and the respective parts of the code.
| Makita DLM432 430MM CORDLESS LAWN MOWER Spare Parts Pag.1 | ||
| # | Part Num. | Description |
| 1 | 326636-0 | SWITCH LEVER |
| 2 | 231876-6 | TENSION SPRING 9 |
| 3 | 911536-3 | P.H.SCREW M4X20 WITH WR |
| 4 | 455075-8 | LEVER |
| 5 | 455078-2 | ARM |
| 7 | 143510-5 | UPPER PIPE COMPLETE |
| 8 | 459804-1 | SWITCH BOX |
| 9 | 233068-3 | COMPRESSION SPRING 6 |
| 10 | 455074-0 | SWITCH BUTTON |
| 11 | 650730-9 | SWITCH TG72BD-6 |
| 12 | 687124-5 | STRAIN RELIEF |
| 13 | 265999-8 | TAPPING SCREW 4X25 |
| 14 | 140N15-0 | SWITCH BOX COVER COMPLETE K |
| 15 | 265620-9 | TAPPING SCREW 4X18 |
| 16 | 265620-9 | TAPPING SCREW 4X18 |
| 17 | 456352-1 | SWITCH LEVER CASE COVER |
| 18 | 456351-3 | SWITCH LEVER CASE |
| 19 | 326635-2 | LOWER PIPE |
| 20 | 265A14-4 | CUP H. SQUARE NECK BOLT M6X50 |
| 21 | 264070-5 | THUMB NUT M6 |
| 24 | 266729-0 | THUMB SCREW M8X35 |
| 26 | 459809-1 | HOLDER |
| 27 | 660393-3 | POWER SUPPLY CORD |
| 28 | 140N21-5 | BATTERY COVER COMPLETE E |
| Makita DLM432 430MM CORDLESS LAWN MOWER Pag.2 | ||
| 35 | 266459-3 | TAPPING SCREW 5X25 |
| 36 | 273675-0 | GRIP A |
| 37 | 643890-4 | KEY |
| 38 | 265620-9 | TAPPING SCREW 4X18 |
| 39 | 183N35-1 | TERMINAL HOUSING SET |
| 40 | 644809-6 | TERMINAL |
| 41 | 183N35-1 | TERMINAL HOUSING SET |
| 42 | 265620-9 | TAPPING SCREW 4X18 |
| 43 | 127387-6 | COWLING M ASSEMBLY |
| 44 | 265620-9 | TAPPING SCREW 4X18 |
| 45 | 453250-0 | LOCK LEVER |
| 46 | 233173-6 | COMPRESSION SPRING 4 |
| 47 | 453251-8 | LOCK LEVER SUPPORT |
| 48 | 265620-9 | TAPPING SCREW 4X18 |
| 49 | 620B91-3 | LED CIRCUIT |
| 50 | 455070-8 | LED COVER |
| 51 | 265620-9 | TAPPING SCREW 4X18 |
| 52 | 629A18-4 | DC MOTOR |
| 53 | 265672-0 | PAN HEAD SCREW M6X35 WITH WR + |
| 54 | 265999-8 | TAPPING SCREW 4X25 |
| 55 | 687124-5 | STRAIN RELIEF |
| 56 | 265620-9 | TAPPING SCREW 4X18 |
| 57 | 638946-6 | LEAD UNIT |
| 58 | 688162-0 | FILTER LINE |
| 59 | 688165-4 | LINE FILTER X AH3655 |
| 60 | 632P19-3 | CONTROLLER UNIT |
| 61 | 688162-0 | FILTER LINE |
| 62 | 224444-2 | INNER FLANGE 40 |
| 63 | 191D43-8 | BLADE 430 SET |
| 64 | 266731-3 | HEX. BOLT M10X25 |
| Makita DLM432 430MM CORDLESS LAWN MOWER Pag.3 | ||
| 65 | 140S15-0 | REAR FLAP COMPLETE |
| 66 | LC961018-5 | STOP RING (EXT) E-5 |
| 67 | 259067-7 | ROD 6 |
| 68 | LC233597-6 | TORSION SPRING 8 |
| 70 | 459780-9 | DECK |
| 71 | 412272-9 | UNDER COVER |
| 72 | 265620-9 | TAPPING SCREW 4X18 |
| 73 | LC231875-8 | TENSION SPRING 16 |
| 74 | 265620-9 | TAPPING SCREW 4X18 |
| 75 | LC267102A7 | FLAT WASHER 4 |
| 76 | LC231297-2 | COMPRESSION SPRING 9 |
| 77 | LC253808A3 | FLAT WASHER 9 |
| 78 | 265620-9 | TAPPING SCREW 4X18 |
| 79 | 252273-3 | HEX. NUT M6 |
| 80 | LC257670A8 | SLEEVE 6 |
| 81 | 453255-0 | ADJUST PLATE |
| 82 | 459099-6 | CHANGE LEVER |
| 83 | LC921352-5 | HEX.BOLT M6X30 |
| 84 | 346543-1 | CONNECTING ROD |
| 85 | LC941101-4 | FLAT WASHER 5 |
| 86 | 252286-4 | HEX. LOCK NUT M5-8 |
| 87 | LC252145-2 | COLLARED HEX. NUT M8 |
| 88 | 459101-5 | REAR WHEEL |
| 89 | LC210070-3 | BALL BEARING 6200ZZ |
| 90 | 165669-8 | REAR SHAFT |
| 91 | LC346545-7 | PLATE |
| 92 | 265620-9 | TAPPING SCREW 4X18 |
| 93 | LC252145-2 | COLLARED HEX. NUT M8 |
| 94 | 459100-7 | FRONT WHEEL |
| 95 | LC210070-3 | BALL BEARING 6200ZZ |
| 96 | 165668-0 | FRONT SHAFT |
| 97 | 456353-9 | FRONT COVER |
| 98 | 265620-9 | TAPPING SCREW 4X18 |
| Makita DLM432 430MM CORDLESS LAWN MOWER Pag.4 | ||
| 99 | 327409-4 | REAR BAG ROD |
| 100 | 267438-4 | FLAT WASHER 5 |
| 101 | 265620-9 | TAPPING SCREW 4X18 |
| 102 | 127386-8 | REAR BAG ASSEMBLY M |
| 104 | 273676-8 | GRIP B |
| 105 | 459807-5 | REAR BAG COVER |
| 106 | 265620-9 | TAPPING SCREW 4X18 |
| 107 | 162680-1 | REAR BAG |
| 108 | 459806-7 | INDICATOR M |
| 109 | 224445-0 | OUTER FLANGE 40 |
| 110 | 688238-3 | LINE FILTER |
| A01 | 782210-8 | SOCKET WRENCH 17 |
| A02B | 196933-6 | DC18RD TWO PORT FAST CHARGER |
| A02B | 197629-2 | KITENERGY18VBL1850B5Ax2+DC18RD |
| A03B | 197280-8 | BATTERY BL1850B SET |
| A04B | 197720-6 | KITENERGY18VBL1830 3Ax4+DC18RD |
