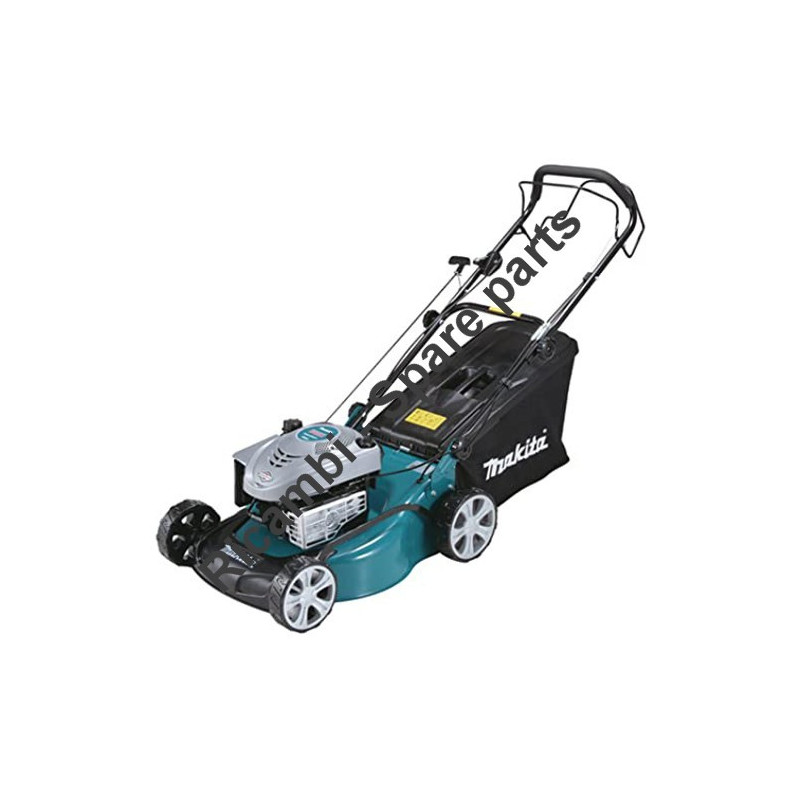

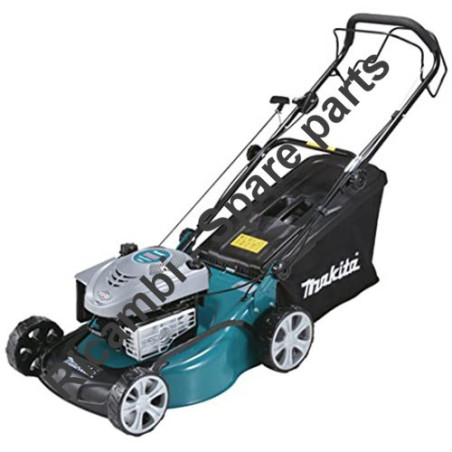

Makita Spare Parts for Lawn Mower PLM4611

€7.73
Tax included

Makita Spare Parts for Lawn Mower PLM4611

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4611.

ITEM CODE: 671006062
Quantity
Usually Ships in: 7/10 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Lawn Mower PLM4611

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawn Mower PLM4611.

In the following table, look for the model of Lawn Mower and the respective parts of the code.
Makita PLM4611
PLM4611 - LAWNMOWER MAKITA 46CM 3,6HP
# Part Num. Description
1 671006062 BLADE TIGHTEN SCREW PM5100S3
2 671010730 LID SHAPE WASHER D.44.5 / 10.2X2.5
3 671014610 BLADE 460MM FOR PM4602S - PM4602S3
4 671015252 BLADE BOSS PM5100S3
5 671090002 FLAT KEY PLM4110-4610-4611
6 671003005 HEXAGON BOLT M6X10 PLM4110-4610-4611
7 671004002 PULLEY PLM4110-4610-4611
8 671002043 RUBBER BELT 762MM PLM4110-4610
9 671001045 SCREW PLM4110-4610-4611
10 671005008 HEXAGON LOCKING NUT M8 PLM4110-4610-4611
11 671002075 BEARING PRESSING PLATE 12/4
12 671580013 BELT COVER PLM4110-4610-11
13 671003044 SPECIAL SCREW M8X17X35 PLM4110-4610-11
14 671006025 HEXAGON BOLT M8X35 PLM4110-4610-4611
15 671003024 BOLT M8X60X17 PLM4110-4610-11
16 671008002 SPRING RING ELM4110
17 671007007 FLAT WASHER 8 ELM3310-3710
18 671001054 SELF-TAPPING SCREW 5X12 ELM3310-3710
19 671001176 7" 175 MM WHEEL COVER ELM4110
20 671005028 HEXAGONAL LOCKING NUT M8 ELM4110
21 671004012 BALL BEARING 6201Z ELM4110
22 671020150 WHEEL ASSY 7" 175MM PLM4110-4610-4611
23 671418001 FIXED BRACKET ELM4110
24 671002028 TRIGGER BOLT M6*45 ELM4110
25 671659001 FRONT DECORATIVE COVER   PLM4110-4610-4611
26 671445001 BRACKET PRESSING BOARD ELM4110
27 671005005 LOCKING NUT M6 ELM4110
28 671001439 FRONT AXLE PLM4110-4610-11
29 671011125 EXTENSION SPRING OF FRONT WHE ELM4110
30 671001177 WHEEL COVER 200 ELM4110
31 671020300 REAR WHEEL ASSY 200MM
32 DA00000602 WHEEL GEAR PLM4110-4610
33 671001005 SELF-TAPPING SCREW M4X16 ELM3310-3710
34 671650010 Dust-Pro/ Wheel Cover
35 671001440 LINK ROD 528MM PLM4611/4612 PLM4110-4610-4611
36 671001218 DECK BLUE PLM4110-4610-4611
37 671005024 HEXAGONAL LOCKING NUT M6 ELM4110
38 671001018 HEIGHT ADJUSTMENT PLATE ELM4110
39 671002019 TRIGGER SCREW M6X12 ELM4110
40 671090020 SAFETY WASHER PLM4110-4610-4611
41 DA00001090 LEFT OUTPUT GEAR ASSEMBLY PLM4110-4610-4611
42 DA00001029 BALL BEARING FOR ELM4611 new model
43 DA00000610 PLM5121N2 BEARING DLM460
44 671090001 CYLINDRICAL PIN 5X21.5
45 671001244 RING OF AXIS FIXING ELM4110
46 671502016 Gear Box PLM4110-4610
47 DA00001091 RIGHT GEAR PLM4611
48 DA00000915 FIXED BOARD 2
49 671001460 Fixed Board Of Gear Box PLM4110-4610-4611
50 671008003 SPRING WASHE PLM4110-4610-4611
51 671009003 SAFETY WASHER D.19X1.5 PLM4611
52 671144602 REAR AXLE PLM4110-4610
53 671002029 TRUSS HEAD SCREW M5X12 ELM4110
54 DA00001073 HANDLE SET
55 671005011 HEXAGON LOCKING NUT M5 M5 ELM4110
57 671006064 HEXAGON HEAD BOLT M8X6 ELM4110
58 671001180 LEFT SUPPORT BLUE ELM4110
59 671009017 OPEN BLOCK RING ELM4110
60 671001518 WRENCH POLE PLM4110-4610-4611
61 671011101 SPRING ELM4110
62 671001179 RIGHT SUPPORT ELM4110
66 671001003 SCREW 4X12 ELM3310-3710
67 671317001 PRESSING PLATE / LOCK' BUTTON PLM4110-4610-4611
68 671011005 SPRING PLM4110-4610-4611
69 671316004 LOCKING BUTTON OF MULCHING KIT PLM4110-4610-
70 671660001 FRONT AXLE PLATE PLM4610-PM4600S
71 671001454 Driving Pole PLM4110-4610
72 671001448 "lever, Motor Brake" PM4110-4610
73 671002001 HANDLE, UPPER PART   PLM4110-4610-4611
74 671006011 BOLT M6X35 PLM4110-4610-4611
75 671001113 "CONTROL CABLE (MOTOR BRAKE)"   PLM4611
76 671001123 CABLE
77 671336001 FIXED BRACKET PLM4110-4610-4611
78 671005016 HEX. LOCK NUT M6 PLM4110-4610-4611
79 671007008 WASHER PLM4110-4610-4611
80 671611001 CABLE CLAMP
81 671001137 THROTTLE CONTROL BOX ASSY PLM4110-4610
82 671006059 BOLT M6X50 PLM4110-4610-4611
83 671001120 CABLE HOOK
84 671005023 HEX NUT M8
85 671530010 KNOB PLM5600
86 671001085 WASHER ELM4110
87 671006004 FLAT HEAD BOLT M8X52
88 671178001 "CORD PROTECTING SHEATH" PLM4110-4610-4611
89 671001453 LOWER HANDLE BAR PLM4110-4610-4611
90 DA00000880 FLAT HEAD BOLT M8*35 ELM4410
91 671454001 GRASS CATCHER HANDLE ELM4410
92 671467001 GRASS CATCHER COVER PLM4110-4610
93 671468001 REAR COVER BOARD PLM4110-4610-4611
94 671001443 GRASS CATCHER BRACKET PLM4110-4610-4611
95 671001436 PRESSING PLATE ELM4110
96 671001203 PRESSING PLATE ELM4110
97 671001353 PRESSING BAR PLM4110-4610-4611
98 671001418 GRASS CATCHER PLM4610
99 671001078 SPANNER 21 MM PLM4110-4610-4611
100 671001079 SPANNER POLE X SPANNER 21 PLM4110-4610
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
