Makita Spare Parts for Backpack Bruschcutter RBK410

€52.75
Tax included

Makita Spare Parts for Backpack Bruschcutter RBK410

Makita original spare parts for to replace broken parts for to fix Backpack Bruschcutter RBK410.

Fix Your Backpack Bruschcutter RBK410. All Spares can be supplied. Our Spares are Genuine Parts and Come with a Full Guarantee.
ITEM CODE: 6111500300
Quantity
on 7/10 Business Days Approx

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Makita Spare Parts for Backpack Bruschcutter RBK410

Makita original spare parts for to replace broken parts for to fix Backpack Bruschcutter RBK410.

Fix Your Backpack Bruschcutter RBK410. All Spares can be supplied. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Brusch Cutter and the respective parts of the code.
Backpack Bruschcutter RBK410

RBK410 - BACKPACK BRUSHCUTTER 40,2CC pag.1
# Part NUm. Description
2 6111500300 CASE X RBK 410
3 0043106300 SCREW X RBK 410
4 0062610250 GASKET X RBK 410
5 6111500600 WASHER X RBK 410
6 6101500600 BALL BEARING X RBK410
7 6111012000 SHAFT ASS'Y X RBC 410
8 6111503402 BUSH X RBK 410
9 6985501600 LEVER KNOB X RBK 410
10 6111017000 FLEXIBLE SHAFT ASS'Y X RBK 410
12 6116500200 SPRING X RBK 410
13 6111011000 FLEXIBLE SHAFT ASS'Y X RBK 410
14 0043106160 PAN HEAD SCREW M6X16 RBK410
15 6404503500 SPACER X RBK 410
16 0052106340 PIN X RBK 410
17 0011606250 BOLT ASS'YX RBK 410
18 6116500300 DAMPER X RBK 410
19 6116500300 DAMPER X RBK 410
20 6116500000 BASE X RBK 410
21 0032006000 SPRING WASHER X RBC / RBK410-G2400R
22 0021806000 NUT M6 X RBC 410 / RBC520
23 6116500100 SPRING X RBK 410
24 0011606120 BOLT ASS'Y X RBK 410
25 6116003000 BRACKET COMPLETE X RBK410
26 0031012000 WASHER M12 X RBK 410
27 6116500400 DAMPER X RBK 410
28 0031512000 OUTER SNAP RING DBC260L/U/RBC RBC260 / 520RBK410
29 6495500000 CLAMP X RBK 410
30 6202500400 BOLT M6X14 X RBC 410 / RBK410
31 0032006000 SPRING WASHER M6 X RBC / RBK410-G2400R
32 267429-5 WASHER M6
33 6112003001 CLUTCH X RBK 410
34 6117005000 BAND ASS'Y X RBK 410
35 6116001000 FLAME COMPLETE RBK410
36 6116002001 CUSHION CPL X RBK 410
37 0230069962 SPACER X RBK 410
38 6214500400 GRIP X RBC230 / RBK 410
39 0043605250 PAN HEAD SCREW M5X25 RBK410
40 6255018000 CONTROL LEVERS X RBK410
41 0024306000 CAP NUT X RBK410
42 0032006000 SPRING WASHER M6 X RBC / RBK410-G2400R
43 0031006000 WASHER X RBC 410 / RBK410 G2400-5
44 6112005000 CLUTCH UNIT RBK410
45 6112500700 DRUM X RBK 410
46 6112500600 SPRING X RBK 410
47 0031435000 INNER SNAP RING RBC410/RBC420
48 0600179850 BALL BEARING 6003DD X RBC / K 410
49 0031517000 OUTER SNAP RING RBC410/RBC420
50 6116502400 CLUTCH CASE RBK 410
52 0630129920 CONTROL CABLE X RBK410
53 6101501000 WIRE CLAMP X RBK410
54 6115502600 WIRE X RBK 410
55 0031510000 OUTER SNAP RING 10 RBK410
56 6253004001 GEAR ASS'Y CASE RBC310 / RBK410
58 6114500000 PLATE X RBK 410
59 266573-5 SCREW M5X33 EBH341U
60 6117003000 BAND COMPLETE X RBK 410
61 6251010000 PIPESHAFT CPL X RBK410
62 0022705000 NUT M5 X RBC230 / 310 / RBK410
64 412099-7 PROTECTION ASS'Y X DECESP.
65 922213-2 SOCKET HEAD BOLT M5X12 EH7500
66 6258500001 CLAMP WASHER RBC310/RBC3101
67 0203089990 SPRING WASHER RBC230/260/310
68 264018-7 NUT M8 RBC2510
165 6253005000 CUTTER SHAFT SET RBC310 / RBK410
166 327195-7 RECEIVE WASHER RBC310/RBC3101
167 6253501100 OIL SEAL X RBC310 / K410
168 0031430000 INNER RING X RBC310 / RBK410
169 6253501300 SPACER
170 0600109990 BALL BEARING 6200
171 6253500200 BALL BEARING 627
172 266671-5 OIL BOLT
173 210049-4 BALL BEARING 609ZZ EBH252L
174 6253502600 OUTER SNAPRING RBC310/MS3200E RBC310 / RBK410
175 0031424000 INNER SNAP RING DBC260L/U/RBC RBC260-230-225-
176 0011306120 BOLT ASS'Y M6X12 X RBC310 / 520
RBK410 - BACKPACK BRUSHCUTTER 40,2CC pag.2
69 5416501900 DAMPER X RBC410 / RBK 410
71 5305002110 STARTER KNOB G1700I - RBC260 / RBK41
72 0031005000 WASHER M5 X RBC230 / 410 / RBK410
73 0119059810 SOCKET HEAD BOLT M5X50 EH561 RBC / RBK410
75 5416501201 FUEL TANK RBK420G
76 125799-7 FUEL TANK CAP ASS'Y RBC 410 RBK 410
77 0641279990 FILTER X RBC 410 / RBK 410
78 5516500500 GASKET X RBC 410 / RBK 410
79 0561139982 HOSE CLAMP X RBC 410 / RBK 410
80 422060-6 FUEL TUBE X RBC 410 / RBK410
81 5416501300 CARBURATOR GASKET X RBC410 / RBK 410
82 0043705200 PAN HEAD SCREW M5X20 RBC410 / RBK 410 M5X20
83 5413501100 INSULATOR X RBC 410 / RBK410
84 0021705000 NUT M5 X RBC415
85 5413501200 INSULATOR GASKET X RBC410 / RBK410
86 125796-3 VALVE REED ASS'Y RBC410 / RBK410
87 442160-6 LEAD VALVE GASKET
88 0016706160 BOLT M6X16 X RBC / RBK 410
89 0032006000 SPRING WASHER M5 RBC / RBK410-G2400R
90 0200069920 WASHER M6 RBC310/320E/420 / 410 / RBK410
91 5417001010 FLYWHEEL RBC / RBK 410
92 0119059790 HEX SOCKET HEAD BOLT M5X22 RB
93 168587-9 IGNITION COIL
94 0011406120 BOLT X RBC / RBK 410 M6X12
95 5413504300 MUFFLER BRACKET X RBC / RBK 410
96 0011405100 BOLT ASS'Y M5X20 X RBC / RBK 410
97 5411005000 CRANK CASE ASS'Y RBC / RBK
98 5412001000 CRANKSHAFT CPL.X RBC / RBK 410
99 0053203101 WOODRUFF KEY RBC / RBK 410
100 212085-6 NEEDLE ROLLER BEARING 1014 - EPH1000
101 233983-1 PISTON CLIP EPH1000/RBC410/420E/EM43 - EBH341
102 257797-4 PISTON PIN RBC410/420E
103 5411501200 CRANK CASE GASKET RBC410/RBC4 RBC410 / RBK 410
104 318631-4 PISTON X RBC410 / RBK410
105 257309-3 PISTON RING RBC410 / RBK4
106 0119059790 HEX SOCKET HEAD BOLT M5X22 RB
108 0119059940 HEX SOCKET HEAD BOLT M5X30 RB RBC 410 / RBK 410
109 5416057000 FUEL TANK BRACKET ASSY RBC
110 0230059990 SPACER X RBC260 / 410 / RBK 410
111 0043405140 PAN HEAD SCREW M5X14 RBC410
112 5415032000 STARTER ASS'Y RBC / RBK 410
113 233993-8 SPIRAL SPRING X RBC 410 / RBK410
114 5415001140 STARTER ROPE X RBC 260/410 / RBK 410
115 452766-2 REEL RBC / RBK 410
116 452767-0 RARCHET RBC / RBK 410
117 5415001220 THRUST WASHER X RBC RBK 410
118 452768-8 RATCHET GUIDE X RBC 410 / RBK41
119 5415001050 FRICTION SPRING X RBC / RBK 410
120 5415001060 WASHER X RBC / RBK 410
121 5245001010 BIND SCREW X RBC RBK 410
122 324891-8 PLUG CAP SPRING EBH341
123 0655009940 PLUG CAP X RBC410 / RBK410RBC520
124 054001-10 SPARK PLUG NGK - BPM7A (10PCS)
125 0119069990 HEX SOCKET HEAD BOLT RBC 410 / RBK 410
126 442156-7 CYLINDER GASKET X RBC420E
127 318630-6 CYLINDER X RBC 410 / RBK 410
128 5415504600 CYLINDER COVER X RBC 410 / RBK
129 0043705200 PAN HEAD SCREW M5X20 RBC 410 / RBK 410 M5X20
130 0043705140 PAN HEAD SCREW M5X14 RBC 410 / RBK 410
131 5323500200 MUFFLER GASKET X RBC RBK / 410
132 0031006000 WASHER X RBC 410 / RBK410 G2400-5
133 0119069860 HEX SOCKET HEAD BOLT M6X55 RB RBC 410 / RBK 410
134 346541-5 MUFFLER COVER RBC 410 / RBK41
135 0031005000 WASHER M5 X RBC230 / 410 / RBK410
136 0016505100 BOLT M5X10 X RBC RBK 410
137 5413023000 EXHAUST MUFFLER X RBC410 / RBK 410
138 0031005000 WASHER M5 X RBC230 / 410 / RBK410
139 0016505100 BOLT M5X10 RBC RBK 410
140 213546-9 OIL SEAL X PB500R-RBC525
141 0600159880 BALL BEARING 6202C3 X PB500R
142 0600159880 BALL BEARING 6202C3 X PB500R
143 213546-9 OIL SEAL X PB500R-RBC525
RBK410 - BACKPACK BRUSHCUTTER 40,2CC pag.3
140 0043405140 PAN HEAD SCREW M5X14 RBC 410 / RBK 410
141 0230059990 SPACER X RBC260 / 410 / RBK 410
142 0043605580 PAN HEAD SCREW M5X58 RBC RBK 410
143 5413503502 AIR CLEANER COVER RBC410 / RBK410
144 5413500900 ELEMENT X RBC RBK 410
145 5413503900 AIR CLEANER CASE RBC 410 / RBK 410
146 5413503100 AIR CLEANER GASKET RBC RBK 410
147 8046001530 PAN HEAD SCREW RBC410 - RBK 410
148 140633-0 COCK BODY ASS'Y RBC RBK 410
149 442163-0 GASKET
150 5306009050 FILTER X RBC RBK 410
151 5416016040 HOSE X RBC RBK 410
152 5306009020 FLOAT X RBC 410 / RBK 410
153 5306009160 STRAIGHT PIN RBC / RBK 410
154 346350-2 FLOAT ARM
155 163519-1 NEEDLE ASS'Y RBC RBK 410
156 5306018020 MAIN JET X RBC RBK 410
158 5416001110 SPRING X RBC RBK 410
159 5416001060 ADJUST SCREW X RBC RBK 410
160 442162-2 GASKET X RBC RBK 410
161 5306002410 O-RING RBC RBK 410
162 5306002240 SCREW X RBC RBK 410
163 5416016030 PLATE X RBC 410
164 5306009510 PAN HEAD SCREW RBC410 - RBK 410
201 B-02945 TAP & GO HEAD M8-M10X1.25F
203 0717049990 HEX WRENCH RBC350-RBC420
B-01884 STAR BLADE 255-4T
B-14124 STAR BLADE 255X4TX25.4
6418500701 CUTTER COVER DBC260U/EM4251
6418500700 CUTTER COVER RBC230/260/310
6119006000 TOOL SET RBC221
6119019000 TOOL KIT

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita RBK410
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS APPROX
MORE INFO:
info@bricoutensili.com
New

Download

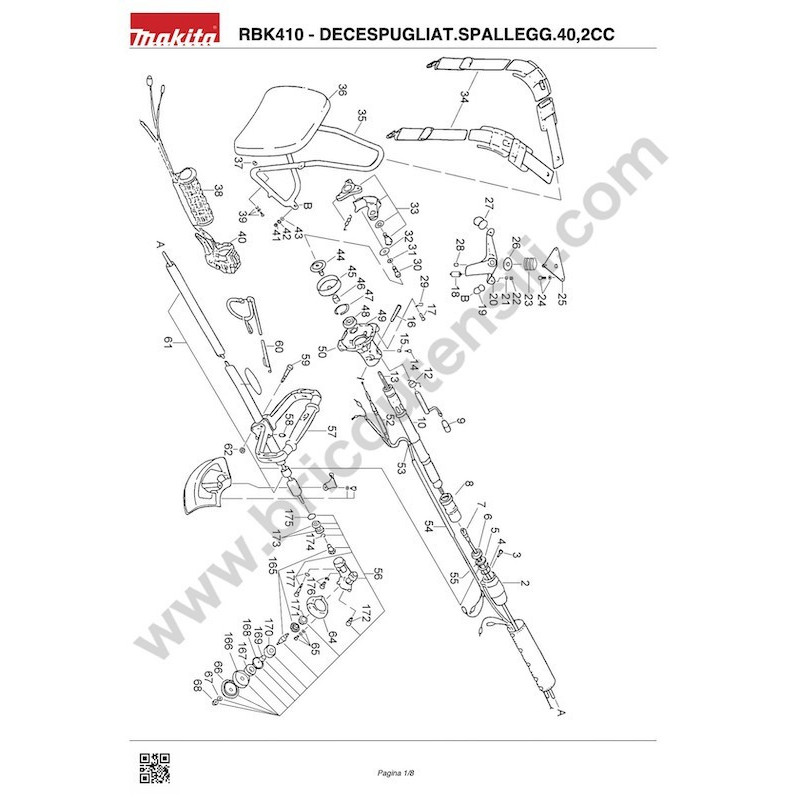

Drawing Makita RBK410
