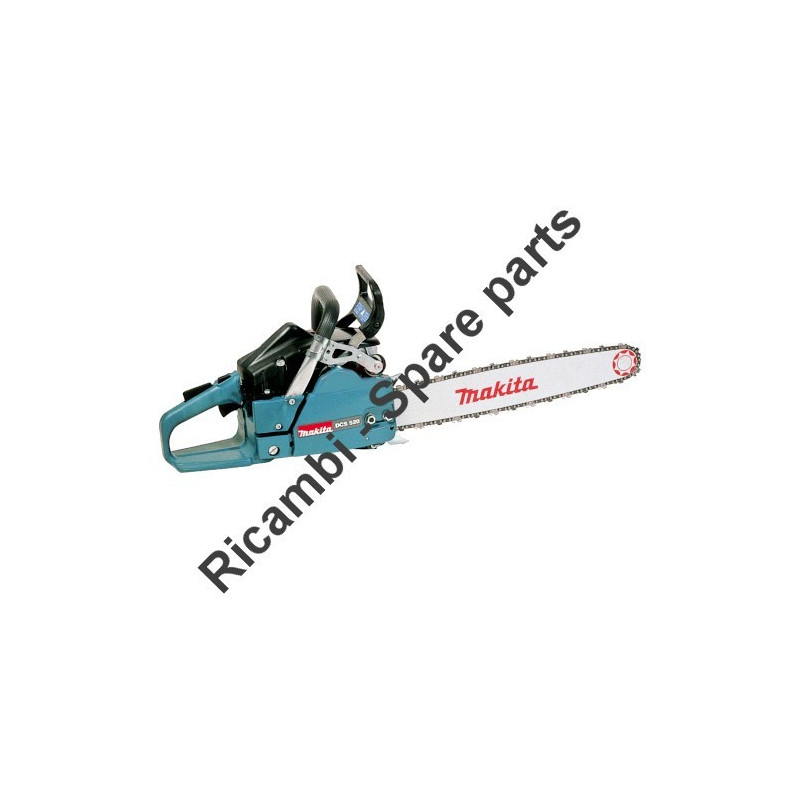

Makita Spare Parts for Chainsaw DCS52/45
€356.63
Tax included
Makita Spare Parts for Chainsaw DCS52/45
Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chainsaw DCS52/45.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Chainsaw DCS52/45
Makita original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Chainsaw DCS52/45.
In the following table, look for the model of Chainsaw and the respective parts of the code.
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.1 | ||
| # | Part Num. | Description |
| 1A | 027130034 | PISTON + CYLINDER CPL X 111/115 |
| 2A | 027132050 | PISTON DIAM. 44MM |
| 3B | 020132100 | PISTON RING |
| 4B | 001132010 | PISTON PIN X DCS430 |
| 5 | 020132050 | SPRING RING C10X0,8 |
| 6 | 266476-3 | SCREW M5X20 (TORX) |
| 7 | 965525042 | GASKET |
| 10 | 001142012 | CLAMP |
| 11 | 965401011 | RUBBER BUSCH |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.2 | ||
| 1B | 027111680 | CRANKCASE CLUTCH SIDE |
| 1C | 020111660 | CRANKCASE CLUTCH SIDE |
| 2B | 027111640 | CRANKCASE X DCS430 |
| 3B | 027120010 | CRANKSHAFT CPL |
| 4A | 211154-0 | BALL BEARING 6202 |
| 4B | 960102131 | BALL BEARING 6201 |
| 5 | 939620371 | KEY 2.0X3.7 |
| 6 | 962211030 | NEEDLE BEARING |
| 7 | 213814-0 | RADIAL GASKET 15 / 24X7 |
| 8 | 213141-5 | OIL SEAL |
| 9 | 258038-1 | ELASTIC PIN |
| 10 | 965525002 | GASKET |
| 11 | 027213320 | FLAT SPRING |
| 12A | 027213230 | BOLT |
| 12B | 934950160 | RUBBER BUSH 5 X 16 X DCS430 |
| 14 | 027213520 | HEX HEAD SCREW |
| 15 | 027213270 | SPRING |
| 16 | 027213510 | RING |
| 17 | 027213500 | NUT |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.3 | ||
| 11 | 266945-4 | SCREW M5X30 (TORX) |
| 12 | 908105204 | SCREW M5X20 (TORX) |
| 13 | 001111012 | SCREW M12X1 |
| 15 | 905808305 | STUD M8X30 |
| 16 | 389213081 | TENSION SCREW |
| 17 | 001213020 | NUT WITH PLUG |
| 22 | 020111082 | CHAIN CATCH |
| 23 | 266946-2 | SCREW M5X12 (TORX) |
| 24 | 020111172 | GUIDE PLATE |
| 25 | 915135100 | SCREW 3.5 X 9.5 |
| 26 | 020250020 | OUTSIDE SPIKE BAR |
| 27 | 266474-7 | SCREW M5X8 (TORX) |
| 28 | 020173011 | PRE FILTER |
| 29 | 020173612 | PRE FILTER COVER |
| 30 | 266947-0 | TORX SCREW |
| 32 | 957605112 | SHORT CIRCUIT SWITCH ASSY |
| 33 | 980115888 | IGNITION LABEL |
| 34 | 965401011 | RUBBER BUSHING |
| 35 | 010114032 | OIL TANK CAP COMPL. |
| 36 | 963100051 | GASKET |
| 37 | 010245010 | VENT VALVE X PS6000I-6800I |
| 38 | 921905004 | NUT |
| 39 | 020111070 | CLAMP |
| 40 | 020173061 | SNOW FILTER |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.4 | ||
| 1 | 957310027 | TUBULAR HANDLE ASSY |
| 3 | 965403491 | RUBBER BUFFER |
| 4 | 021114051 | FIXING BUSHING |
| 5 | 266945-4 | SCREW M5X30 (TORX) |
| 8 | 020310600 | COVER |
| 9 | 266478-9 | SCREW 5,5X16 (TORX) |
| 15 | 020114640 | COMPLETE TANK |
| 16 | 965451901 | SCREW PLUG CPL DCS / PS9010 |
| 17 | 963232045 | PACKING RING 32X4,5 |
| 18 | 163532-9 | FILTER |
| 19 | 963601240 | FELT |
| 20 | 957114011 | TANK VALVE |
| 21 | 965404460 | FUEL LINE |
| 22 | 965404521 | GASKET |
| 23 | 020117291 | THROTTLE LEVER AND LEVERAGE |
| 24 | 020117273 | SPRING |
| 25 | 020117301 | HOOKING LEVER |
| 26 | 020117160 | SPRING |
| 27 | 935932320 | CYLINDRICAL PIN |
| 29 | 965403282 | RUBBER BUFFER |
| 30 | 913447134 | SCREW 4.7X13 |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.5 | ||
| 1 | 026160640 | STARTER ASSY |
| 2 | 020112631 | CASE FOR FAN |
| 3 | 965402262 | STARTER HANDLE X DCS9000 |
| 4 | 108164020 | STARTER ROPE 3,5X980MM |
| 5 | 266605-8 | SCREW M5X16 PS32CTLC |
| 6 | 020163031 | STARTER PRING |
| 7 | 915135100 | SCREW 3.5 X 9.5 |
| 8 | 027162070 | CABLE DRUM ASSY |
| 9 | 924108410 | WASHER 8.4 |
| 10 | 929108080 | SAFETY WASHER 8X0.8 |
| 11 | 020112010 | AIR DUCT |
| 13 | 168648-5 | SPARK PLUG X RBC350-RBC420-PB500R |
| 14 | 957604260 | SPARK PLUG CAP |
| 15 | 965604180 | SPRING |
| 17 | 027140001 | IGNITION ASSY |
| 18 | 027141021 | FLY WHEEL COMPL. |
| 19 | 181166050 | STARTER PAWL COMPL. |
| 20A | 122166020 | TORSION SPRING |
| 21 | 264022-6 | NUT |
| 22 | 926208001 | SPRING WASHER 8 |
| 23 | 020143032 | IGNITION COIL (DUCATI) |
| 24 | 266607-4 | SCREW M5X20 PS32CTLC |
| 25 | 001147000 | SHORT CIRCUIT CABLE |
| 26 | 970310200 | IGNITION CABLE 1mt |
| 27 | 444042-8 | ISOLATING TUBE PS32TCLC |
| 28 | 970502050 | ISOLATING TUBE (M) |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.6 | ||
| 1 | 027213452 | HAND GUARD CPL. |
| 2 | 027213462 | HAND GUARD |
| 3 | 810449-4 | LABEL |
| 4 | 027213430 | BUSHING SET |
| 5 | 027213150 | RUBBER BUSH |
| 6 | 027213161 | BUSH |
| 7 | 266476-3 | SCREW M5X20 (TORX) |
| 8 | 027213221 | DISENGANGING LRVER |
| 20 | 027213652 | SPROCKET GUARD ASSY |
| 21 | 027213280 | PROTECTION COVER |
| 22 | 027213050 | SPRING BRAKE WITH FULL LEVER |
| 23 | 027213352 | BRAKE BAND HOLDER |
| 24 | 913205125 | SCREW 5 X 12 X DCS430 |
| 25 | 027213111 | COVER PLATE |
| 26 | 257934-0 | RETAINING RING E-4 X UH6580 |
| 27 | 027111042 | GUIDE PLATE |
| 28 | 915135100 | SCREW 3.5 X 9.5 |
| 29 | 027213120 | SPRING |
| 30 | 027213560 | PLATE |
| 31 | 027213130 | SHAFT FOR LEVER |
| 32 | 027213140 | SHAFT FOR LEVER |
| 34 | 924500049 | WASHER 5,2X12X1 |
| 35 | 264055-1 | NUT M8 |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.7 | ||
| 1 | 027245161 | OIL PUMP ASSY |
| 2 | 030245070 | OIL PUMP REPAIR KIT |
| 3 | 027245010 | WORM SCREW |
| 4 | 234366-8 | RETAINING RING 16X1 |
| 5 | 346872-2 | RETAINING RING |
| 6 | 020245020 | PRESSURE LINE FOR OIL |
| 7 | 020245041 | SUCTION LINE OIL |
| 8 | 266946-2 | SCREW M5X12 (TORX) |
| 10 | 027223101 | CLUTCH DRUM |
| 11A | 020224070 | RIM SPROCKET .325",T=8 |
| 11B | 026224010 | RIM SPROCKET 3/8",T=7 |
| 12 | 962210025 | ROLLER CAGE |
| 13 | 027245021 | RING |
| 30 | 957180030 | CLUTCH ASSEMBLY 109-115 |
| 36 | 957180030 | CLUTCH ASSEMBLY 109-115 |
| 37 | 181184020 | TENSION SPRING |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.8 | ||
| 1 | 027118155 | HOOD FILTER COMPLETE |
| 2 | 266605-8 | SCREW M5X16 PS32CTLC |
| 3 | 020118121 | COVER ASSY |
| 4 | 001118062 | NUT M5 |
| 5A | 020173202 | AIR FILTER ASSY (NYLON) |
| 5B | 020173300 | AIR FILTER - FLOCK TYPE |
| 6 | 266947-0 | TORX SCREW |
| 8 | 027118010 | BOTTOM WITH HOOD |
| 9 | 266474-7 | SCREW M5X8 (TORX) |
| 10 | 965401024 | RUBBER BUSH |
| 11 | 965404780 | GASKET |
| 12 | 965525032 | GASKET |
| 13 | 965404230 | PLUG (CARBURETOR HEATING) |
| 14 | 965404410 | RUBBER BUSH |
| 15 | 965404341 | GASKET |
| 17 | 965524023 | GASKET |
| 18 | 020171100 | CONNECTION MUFF |
| 19 | 908205658 | FILLISTER HEAD SCREW M5X65 |
| 21 | 020117281 | THROTTLE LINKAGE |
| 22 | 020118030 | GUIDE |
| 25 | 957151102 | CARBURETOR WT-76 COMPL.PS52 |
| 26 | 027150840 | AIR VALVE LEVER, PS52 |
| 35 | 020174160 | MUFFLER |
| 36 | 346304-9 | MUFFLER GASKET PS32CTLC |
| 37 | 266474-7 | SCREW M5X8 (TORX) |
| 38 | 908205625 | SCREW M5X62 |
| 39 | 267821-5 | SPRING WASHER |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.9 | ||
| 1A | 957151102 | CARBURETOR WT-76 COMPL.PS52 |
| 6 | 021151540 | GASKET + DIAPHRAGM KIT |
| 7 | 021151150 | PUMP DIAPHRAGM |
| 9 | 001151310 | SPRING |
| 21 | 001151470 | IDLING ADJUSTMENT SCREW (L) |
| 24 | 021151480 | SPRING (L) |
| 27 | 957150040 | SET OF CONTROL PIECES |
| 28 | 144150030 | COVER WASHER |
| 29 | 021151180 | FUEL FILTER |
| DCS52/45 - CHAINSAW 45CM MAKITA 52CC pag.10 | ||
| 1 | 445045631 | SPROCKET NOSE BAR 45CM THICKNESS 1,5MM |
| 1A | 445045631 | SPROCKET NOSE BAR 45CM THICKNESS 1,5MM |
| 2 | 528086772 | SUPERGUARD CHAIN LINK 72 |
| 3 | 558083010 | TIE STRAP WITH RIVETS 0.325 " |
| 4 | 510086040 | TIE STRAP 0.325" |
| 6B | 415325710 | SPROCKET 0.325 " |
| 7 | 952020650 | CHAINSAW BAR PROTECTION 38/45 CM |
| 11 | 957004002 | TOOL SET DCS430 |
| 12 | 941719133 | UNIVERSAL WRENCH 19/13 |
| 13 | 782025-3 | TORX WRENCH |
| 15 | 950004001 | PLASTIC CASE |
