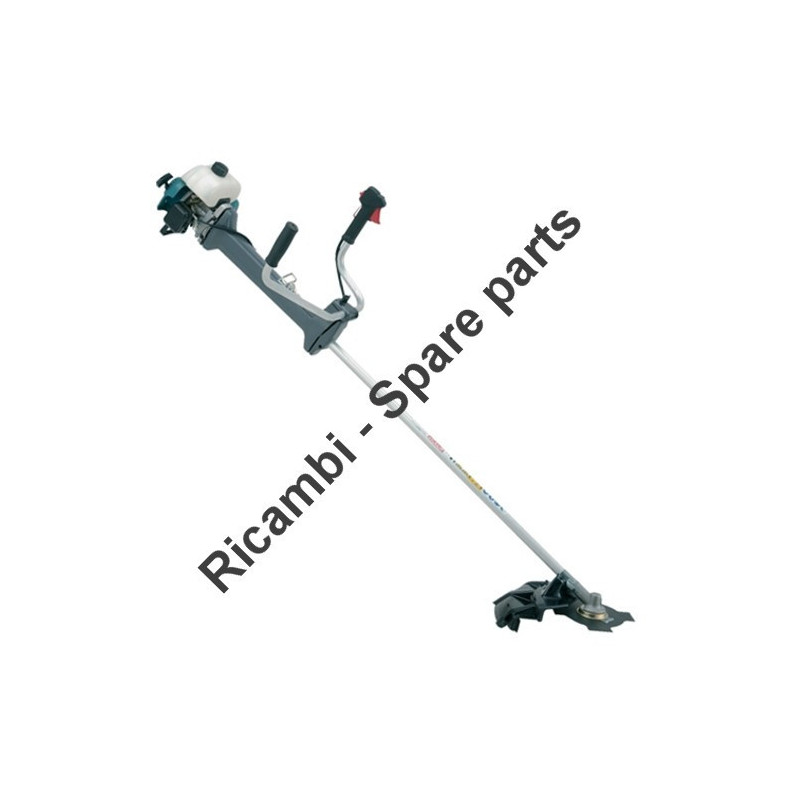

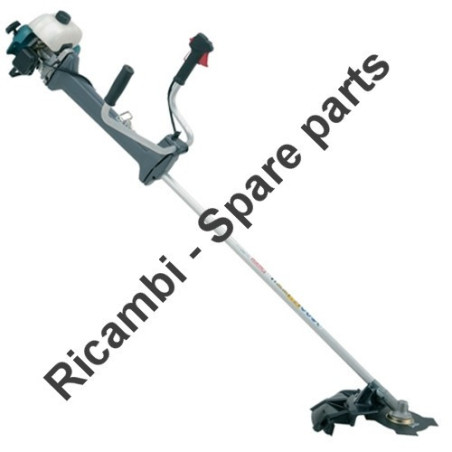

Makita Spare Parts for Engine Bruschcutter RBC421L
€1.44
Tax included
Makita Spare Parts for Engine Bruschcutter RBC421L
Makita original spare parts for to replace broken parts for to fix Engine Bruschcutter RBC421L.Fix Your Bruschcutter. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Makita Spare Parts for Engine Bruschcutter RBC421L
Makita original spare parts for to replace broken parts for to fix Engine Bruschcutter RBC421L.
Fix Your Bruschcutter. All Spares can be supplied at low and discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Brusch Cutter and the respective parts of the code.
| RBC421L - BRUSHCUTTER 40,2CC MAKITA PAG.1 | ||
| # | Part Num. | Description |
| 1 | 6411057000 | MAIN SHAFT 28 X RBC421L |
| 2 | 140878-0 | CRANKSHAFT X MS351-4U |
| 3 | 424403-8 | GROMMET X RBC 410 |
| 4 | 140846-3 | CLUTCH DRUM X MS351-4U |
| 5 | 0600179810 | BEARING X MS351-4U |
| 6 | 267429-5 | WASHER 6 |
| 7 | 6202500400 | BOLT X RBC 410 / RBK410 |
| 8 | 0031435000 | INTERNAL LOCK X RBC410 / 520 / RBK410 |
| 9 | 0031517000 | EXTERNAL LOCK X RBC 410 RBK410 |
| 10 | 6341500700 | CLUTCH CABLE X MS351-4U |
| 11 | 6414040010 | BRACKET X RBC421L |
| 12 | 6414040020 | BRACKET COVER X RBC421L |
| 13 | 6344001120 | SHOCK ABSORBER X RBC421L |
| 14 | 6344001040 | SCREW X MS351-4U |
| 15 | 6344001050 | HANDLEGRIP SUPPORT MS351-4U |
| 16 | 6344001060 | HANDLEGRIP SUPPORT MS351-4U |
| 17 | 6341500800 | SPACER X MS351-4U |
| 18 | 6115501800 | CABLE X RBK350 |
| 19 | 0119069750 | SCREW M 6 X 22 X MS351-4U |
| 20 | 0119059460 | SCREW M 5 X 8 X MS351-4U |
| 21 | 0119069750 | SCREW M 6 X 22 X MS351-4U |
| 22 | 6419520400 | SAFETY LABEL RBC421L |
| 23 | 126272-0 | GEAR BOX |
| 24 | 6343004010 | WASHER X MS351-4U |
| 25 | 310458-8 | WASHER X MS351-4U |
| 26 | 6343004030 | NUT M10 X MS351-4U |
| 27 | 6343004040 | PROTECTION X HEAD MS351-4U |
| 28 | 6343004050 | SCREW X MS351-4U |
| 29 | 6343004110 | BEARING X MS351-4U |
| 30 | 0600129950 | BALL BEARING X RBC260 |
| 31 | 0600109940 | BEARING X MS351-4U |
| 32 | 0043505100 | SCREW M 5 X 20 X MS351-4U |
| 33 | 6343004160 | SCREW M 6 X 30 X MS351-4U |
| 34 | 6343005001 | GEAR BOX EM4340 |
| 35 | 0031432000 | INTERNAL LOCK X RBC260 / 310/410 |
| 36 | 0031510000 | PIN X RBK 410 |
| 37 | 0031426000 | RETAINER RING X RBC260 / 230/225/2 |
| 38 | 6413501500 | TAPPO X EM4340 |
| 39 | 911218-7 | CYLINDER HEAD SCREW M5x14 |
| 40 | 6344002000 | HOSE TUBE X MS351-4U |
| 41 | 6415023000 | CPL CONTROL LEVER X RBC421L |
| 42 | 6348001001 | PROTECTION FOR BRUSHCUTTER |
| 43 | 6348002001 | UPPER PROTECTION FOR BRUSHCUTTER |
| 44 | 140424-9 | LOWER PROTECTION RBC2510 |
| 45 | 0140059380 | SCREW ASSY M5X40 X RBC2110 |
| 46 | 0021805000 | NUT X RBC201-221-251 |
| RBC421L - BRUSHCUTTER 40,2CC MAKITA PAG.2 | ||
| 47 | 6415023000 | CPL CONTROL LEVER X RBC421L |
| 48 | 6215022030 | LEVER X MS251.4 |
| 49 | 6195013010 | LEVER X RBC3110 |
| 50 | 6195006050 | SPRING X MS251.4 |
| 51 | 6195006060 | SCREW M 4 X 20 X MS251.4 |
| 52 | 0119059980 | SCREW M 5 X 30 X MS251.4 |
| 53 | 6215022040 | NUT M 5 X MS251.4 |
| 54 | 6415023010 | SET CABLE X RBC421L |
| 55 | 6415023020 | CABLE X RBC421L |
| 56 | 6195006150 | X MH2556 COVERAGE |
| RBC421L - BRUSHCUTTER 40,2CC MAKITA PAG.3 | ||
| 57 | 5411005001 | CONROD CASE X RBC420E |
| 58 | 0600159880 | BEARING 6202C3 X PB500R |
| 59 | 213546-9 | SEAL OIL X PB500R-RBC525 |
| 60 | 318630-6 | CYLINDER X RBC 410 / RBK 410 |
| 61 | 442156-7 | CYLINDER GASKET X RBC420E |
| 62 | 5411501200 | HOUSING GASKET X RBC410 / RBK 410 |
| 63 | 0119069990 | BOLT X RBC 410 / RBK 410 |
| 64 | 0119059940 | BOLT X RBC 410 / RBK 410 |
| 65 | 5412001000 | COMPLETE CRANKSHAFT X RBC / RBK 410 |
| 66 | 318631-4 | PISTON X RBC410 / RBK410 |
| 67 | 257309-3 | PISTON RING RBC410 / RBK4 |
| 68 | 257797-4 | PISTON PIN |
| 69 | 212085-6 | NEEDLE BEARING 1014 |
| 70 | 233983-1 | CIRCLIP EBH341 |
| 71 | 0323039990 | KEY X RBC350-RBC420 |
| 72 | 5413068000 | MUFFLER X RBC421L |
| 73 | 0119069780 | BOLT M6X60 X RBC350-RBC420 |
| 74 | 5413507500 | MUFFLER COVER RBC421L |
| 75 | 5323500600 | MUFFLER GASKET X RBC421L |
| 76 | 911218-7 | CYLINDER HEAD SCREW M5x14 |
| 77 | 5413006000 | CPL VALVE X RBC350-RBC420 |
| 78 | 453971-4 | INSULATOR X RBC350-RBC420 |
| 79 | 5403500600 | INSULATOR GASKET X RBC350 |
| 80 | 5416504000 | CARBURETOR GASKET RBC350 |
| 81 | 442160-6 | LEAD VALVE GASKET |
| 82 | 0119059640 | BOLT M5X25 X RBC415 |
| 83 | 5415061000 | STARTER CPL X RBC421L |
| 84 | 452766-2 | RBC RBK RBK 410 |
| 85 | 452767-0 | STARTER BRACKET RBC / RBK 410 |
| 86 | 233993-8 | SPIRAL SPRING X RBC 410 / RBK410 |
| 87 | 452768-8 | STARTER GUIDE X RBC 410 / RBK41 |
| 88 | 5415001050 | RETURN SPRING X RBC / RBK 410 |
| 89 | 5415001060 | WASHER X RBC / RBK 410 |
| 90 | 5245001010 | SCREW X RBC RBK 410 |
| 91 | 5415001140 | STARTER CABLE X RBC 260/410 / RBK 410 |
| 92 | 5305002110 | STARTER KNOB X RBC260 / RBK41 |
| 93 | 5415001220 | ELASTIC WASHER X RBC RBK 410 |
| 94 | 5415507600 | CYLINDER COVER RBC421L |
| 95 | 0140059330 | SCREW M5 X 20 DBC260U |
| 96 | 0119059661 | SCREW M5 X 20 RBC421L |
| 97 | 0119059790 | BOLT X RBC / RBK 410 M5X22 |
| 98 | 0031005000 | WASHER X RBC230 / 410 / RBK410 |
| 99 | 6419520500 | LABEL X RBC421L |
| 100 | 0736309960 | LABEL 118DB L |
| 101 | 5416504801 | FUEL TANK RBC421L |
| 102 | 168765-1 | TUBE X RBC350-RBC420 |
| 103 | 168766-9 | TUBE |
| 104 | 0561059990 | FILTER CLAMP X RBC230-310 / 520 |
| 105 | 163447-0 | FUEL FILTER X DCS230T |
| 106 | 5416057000 | TANK PROTECTION |
| 107 | 0230059990 | BUSHING X RBC260 / 410 / RBK 410 |
| 109 | 5416501900 | GROMMET X RBC410 / RBK 410 |
| 110 | 0130059980 | SCREW M5 X 14 X RBC421L |
| 111 | 5417023010 | FLYWHEEL X RBC421L |
| 112 | 168587-9 | COIL |
| 113 | 5417037001 | SPARK PLUG CAP X MS5250E |
| 114 | 0654009931 | PIN X RBC415-225-255 |
| 115 | 0650149661 | SPARK PLUG X RBC350-RBC420-PB500R |
| 116 | 5417500300 | TUBE X RBC350-RBC420 |
| 117 | 0119059790 | BOLT X RBC / RBK 410 M5X22 |
| 118 | 0130069970 | COMPLETE SCREW X RBK420G |
| 119 | 0200069920 | WASHER M6 X RBC310 / 410 / RBK410 |
| 120 | 5607005000 | COMPLETE CABLE X RBC350-RBC420-HT225 |
| 121 | 140897-6 | CLUTCH (MS4211) |
| 122 | 234291-3 | CLUTCH SPRING |
| 123 | 6452500600 | CLUTCH SCREW X RBC421L |
| 124 | 6452500300 | CLUTCH HUB X RBC421L |
| 125 | 168803-9 | CLUTCH JAW |
| 126 | 6202500400 | BOLT X RBC 410 / RBK410 |
| 127 | 267429-5 | WASHER 6 |
| 128 | 0032006000 | ELASTIC WASHER X RBC / RBK410-G2400R |
| 129 | 346286-5 | SUPPORT X RBC 310 |
| 130 | 0119069720 | SCREW M6 X 14 X RBC421L |
| 131 | 168668-9 | COMPLETE TANK CAP RBC2510 |
| 132 | 452920-8 | TANK CAP |
| 133 | 140436-2 | ROD EBH341U |
| RBC421L - BRUSHCUTTER 40,2CC MAKITA PAG.4 | ||
| 134 | 5416046000 | CARBURETOR X RBC421L |
| 135 | 5236046130 | COMPLETE PUMP BODY X RBC350-RBC42 |
| 136 | 5016004010 | FITTING X RBC 260/230/310/225 |
| 137 | 5236046060 | COMPLETE AIR FILTER BODY RBC350 |
| 138 | 5236046050 | PUMP COVER X RBC350-RBC42 |
| 139 | 424314-7 | EBH341 PRIMING PUMP |
| 140 | 168574-8 | COMPLETE DIAPHRAGM EBH341U |
| 141 | 442154-1 | EBH341U DIAPHRAGM GASKET |
| 142 | 5246001040 | PUMP DIAPHRAGM RBC260 / 230/310/225 |
| 143 | 5246001030 | PUMP GASKET RBC260-230-310 |
| 144 | 5316005120 | RING X RBC 260/230/310/225/2 |
| 145 | 5236018040 | CABLE ACCELERATOR XRBC230-260-310-225 |
| 147 | 5236052020 | CABLE SUPPORT RBC350-RBC420 |
| 148 | 5316005450 | NUT ADJUSTER RBC260 / 310 |
| 149 | 5216008010 | SCREW ADJUSTMENT THROTTLE CABLE XRBC260 310 |
| 150 | 5236018020 | GASKET X RBC 260/230 / 310 |
| 151 | 266582-4 | SCREW 3X24 EBH341U |
| 152 | 5246001010 | GASKET X RBC 260/230/310 |
| 153 | 5416046010 | JET NR.50 X RBC421L |
| 154 | 5236052030 | WASHER X RBC321 |
| 156 | 453981-1 | FILTER HOUSING |
| 157 | 453982-9 | FILTER COVER |
| 158 | 443180-3 | AIR FILTER |
| 159 | 424523-8 | WASHER X RBC415-RBC350 |
| 160 | 332044-5 | BUSHING |
| 161 | 5233013040 | PLATE X RBC350-RBC420 |
| 162 | 346627-5 | AIR SCREW |
| 163 | 5313003110 | BRACKET COVER X RBC350-420 |
| 164 | 0119059810 | BOLT M5X50 XRBC / RBK410 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
