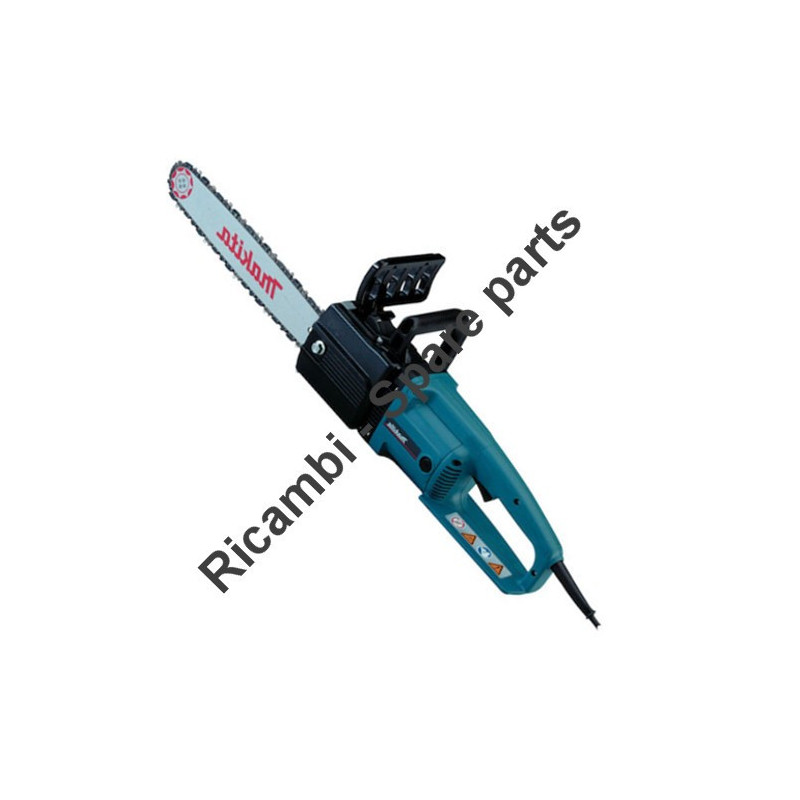

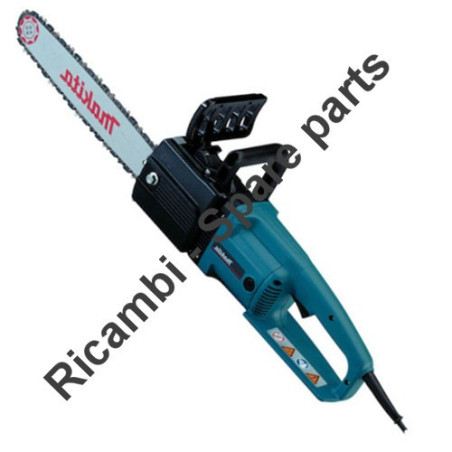

We have the original Makita Spare Parts for Electric Chainsaw UC3500A, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Electric Chainsaw UC3500A. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Electric Saws and the respective parts of the code.![]()
| Electric Chainsaws UC3500A | ||
| # | Part Num. | Description |
| 3 | 416178-3 | UNLOCKING BUTTON X UC3020A |
| 4 | 233173-6 | COMPRESSION SPRING 4 FOR UC3020A |
| 5 | 416177-5 | LEVER SWITCH X UC-ES |
| 6 | 913540185 | SCREW 4X18 UC3000-3500-4000A |
| 10 | 225111660 | HOUSING MOTOR X UC3000-3500 |
| 12 | 957802410 | CARBON BRUSHES X UH4520-5520-7020 |
| 13 | 643755-0 | CAP BRUSH HOLDER X UB1101 |
| 2 | 616733-3 | ARMATURE X UC3000-3500-4000A |
| 3 | 211111-8 | BEARING 6301 X UC |
| 4 | 211057-8 | BEARING 629 X UC |
| 5 | 970802610 | SPACER X UC3000-3500-40 |
| 6 | 913550555 | SCREW 5X55 UC3000-3500-4000A |
| 7 | 970001180 | SWITCH DES380 |
| 8 | 970001200 | SWITCH X UC3000-3500-4000A |
| 9 | 651923-1 | SWITCH TG70B X 5903R |
| 10 | 970109810 | CAPACITOR XUC3000-3500-4000 |
| 11 | 632681-8 | CABLE (ORANGE) XUC3000-3500 |
| 14 | 970311330 | CABLE (YELLOW) X UC3000-3500 |
| 17 | 632686-8 | CABLE BLACK / WHITE UC3000-3500 |
| 26 | 913540185 | SCREW 4X18 UC3000-3500-4000A |
| 27 | 682574-9 | CORD GUARD HOSE 10-90 PC5000C |
| 30 | 970102110 | COMPLETE CABLE X DES380 |
| 40 | 416179-1 | SWITCH ROD UC3000-3500-4000A |
| 1 | 225310021 | HANDLE CX UC3000-3500 |
| 2 | 913550255 | SCREW 5X25 X UC |
| 3 | 913550555 | SCREW 5X55 UC3000-3500-4000A |
| 6 | 233174-4 | SPRING X UC |
| 10 | 225118010 | GUIDE PLATE X UC |
| 12 | 913540185 | SCREW 4X18 UC3000-3500-4000A |
| 13 | 316875-0 | GEAR HOUSING |
| 15 | 001213042 | PIN TENSIONER X PS 34 |
| 16 | 901505354 | SCREW M5X35 X UC |
| 17 | 921452-1 | HEXAGONAL BOLT 8X30 |
| 21 | 231975-4 | SPRING OIL TUBE X DCS230T |
| 22 | 416274-7 | OIL TUBE CAP X DCS230T |
| 23 | 965452382 | FUEL TUBE 1mt Diam.3 / 5.5 |
| 26 | 021245007 | METAL OIL PUMP |
| 29 | 203245002 | HOLDER OIL PUMP X DES |
| 30 | 915135100 | SCREW 3.5 X 9.5 |
| 31 | 021245040 | WORM |
| 34 | 226743-8 | PINION UC3000-3500-4000A |
| 35 | 226741-2 | CPL GEARGE UC |
| 36 | 225221030 | SHAFT X UC3000-3500-4000A - DISCONTINUED |
| 37 | 259034-2 | SAFETY WASHER X UC |
| 38 | 960101084 | BEARING 608Z X UC |
| 39 | 211107-9 | BEARING 6201 X 9524NB |
| 40 | 225213050 | BRAKE SPRING X UC |
| 41 | 158044-5 | RETAINING BRAKE SPRING X UC |
| 42 | 930304030 | FIXING WASHER X UC |
| 43 | 028213521 | SPRING X UC3000-3500-4000A |
| 45 | 225223112 | CLUTCH DRUM X UC |
| 47 | 225184012 | PRESSURE SPRING UC3000-3500 |
| 48 | 253215-0 | FLAT WASHER 8 6510PBL / LVR |
| 49 | 259033-4 | SAFETY WASHER X UC |
| 52 | 915835100 | SCREW 3.5X9.5 CU |
| 54 | 264055-1 | NUT M8 |
