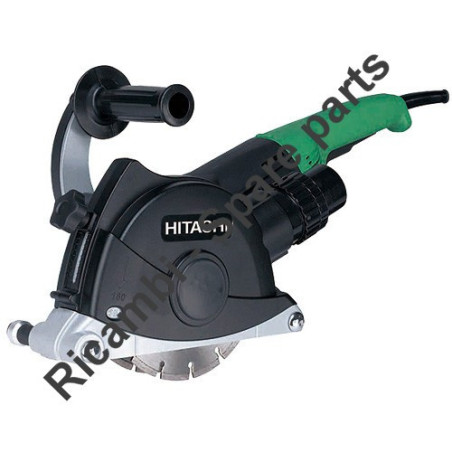

Hitachi Spare Parts for Wall Chaser CM7MR
€40.34
Tax included
Hitachi Spare Parts for Wall Chaser CM7MR
We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser CM7MR.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Wall Chaser CM7MR
We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Wall Chaser CM7MR.
In the following table, look for the model of the Miter Saw and theirs spare part.
| WALL CHASER CM 7MR | ||
| # | Part Num. | Description |
| 1 | 994192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 |
| 2 | 320227 | PACKING GLAND |
| 3 | 320228 | SEAL PLATE |
| 4 | 320234 | SPINDLE |
| 5 | 990852 | FELT PACKING (B) |
| 6 | 6302VV | BALL BEARING 6302VVCMPS2L |
| 7 | 320229 | BEARING COVER (B) |
| 9 | 939542 | RETAINING RING FOR D12 SHAFT |
| 10 | 323209 | TAPPING SCREW (W/FLANGE) D5X35 (BLACK) |
| 11 | 984509 | SEAL LOCK HEX. SOCKET HD. BOLT M5X14 |
| 12 | 320217 | GEAR COVER ASS'Y |
| 13 | 331050 | BOLT M14 |
| 14 | 331045 | NYLON WASHER D14 |
| 15 | 320219 | SPRING |
| 16 | 306888 | PUSHING BUTTON |
| 17 | 320226 | SPECIAL NUT M10 |
| 19 | 320221 | SEAL WASHER |
| 20 | 320222 | FELT PACKING |
| 21 | 6301VV | BALL BEARING 6301VVCMPS2L |
| 22 | 994208 | RUBBER RING (B) |
| 23 | 320220 | BEARING COVER (A) |
| 24 | 949236 | MACHINE SCREW M5X10 |
| 25 | 306890 | LOCK PIN |
| 26 | 320218 | O-RING |
| 27 | 330032 | GEAR AND PINION SET |
| 28 | 360762E | ARMATURE 220V-240V |
| 29 | 320215 | FAN GUIDE |
| 30 | 961501 | HEX. HD. TAPPING SCREW D5X60 |
| 31 | 340664E | STATOR ASS'Y 220V-230V |
| 32 | 958032 | BRUSH TERMINAL |
| 33 | 320216 | DUST SEAL |
| 34 | 6000VV | BALL BEARING 6000VVCMPS2L |
| 35 | 321536 | BEARING BUSHING |
| 36 | 325640 | HOUSING ASS'Y |
| 38 | 938477 | HEX. SOCKET SET SCREW M5X8 |
| 40 | 940540 | BRUSH CAP |
| 41 | 999044 | CARBON BRUSH (1 PAIR) |
| 42 | 980487 | BRUSH HOLDER |
| 43 | 325641 | HANDLE (B) |
| 44 | 320238 | SWITCH (2P PILLAR TYPE) W/SAFETY LOCK |
| 45 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 45 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 46 | 960266 | CORD CLIP |
| 47 | 325642 | HANDLE (A) |
| 48 | 305812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 49 | 981373 | TUBE (D) |
| 50 | 940778 | CORD ARMOR D10.7 |
| 52 | 937981 | SIDE HANDLE FOR M14 |
| 53 | 331027 | HANDLE ARM (B) |
| 54 | 331058 | HANDLE ARM (A) |
| 55 | 331053 | NYLON WASHER D12 |
| 56 | 331037 | HANDLE PLUG |
| 57 | 331026 | GEAR BOX BRACKET |
| 58 | 331048 | HEX. SOCKET HD. BOLT M5X12 |
| 59 | 331059 | HANDLE RATCHET |
| 60 | 331043 | BOLT WASHER D12 |
| 61 | 331044 | BOLT M12 |
| 63 | 331028 | ROLLER |
| 64 | 331031 | ROLLER SPACER (30) |
| 65 | 331029 | ROLLER SHAFT |
| 66 | 331052 | KNOB BOLT |
| 67 | 331062 | LOCK WASHER |
| 68 | 331040 | SQUARE NUT M8 |
| 69 | 331041 | SHAFT CAP |
| 70 | 331046 | HEX. SOCKET HD. BOLT M4X12 |
| 71 | 331032 | BLADE SPACER (3) |
| 72A | 937907Z | WHEEL WASHER (C) |
| 73 | 331042 | NYLOCK NUT M12 |
| 74 | 331038 | RUBBER GROMMET |
| 75 | 331050 | BOLT M14 |
| 76 | 331056 | DUST GUARD (A) |
| 77A | 332984 | DUST COVER SET |
| 78 | 331034 | BLADE WASHER |
| 79 | 331033 | BLADE SPACER (5) |
| 80 | 331035 | DRIVE SHAFT |
| 81 | 331030 | ROLLER SPACER(20) |
| 82 | 331049 | HEX. SOCKET HD. BOLT M6X25 |
| 83 | 331060 | GEAR BOX CLAMP |
| 84 | 331051 | NYLOCK NUT M5 |
| 85 | 331048 | HEX. SOCKET HD. BOLT M5X12 |
| 86 | 331047 | HEX. SOCKET HD. BOLT M4X20 |
| 88 | 331057 | DUST GUARD (B) |
| 89 | 331061 | VACUUM COUPLING |
| 90 | 331025 | DUST COVER ASS'Y |
| 91 | 937033 | FELT WASHER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
