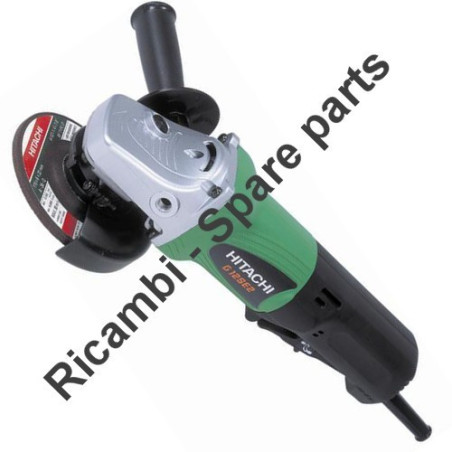

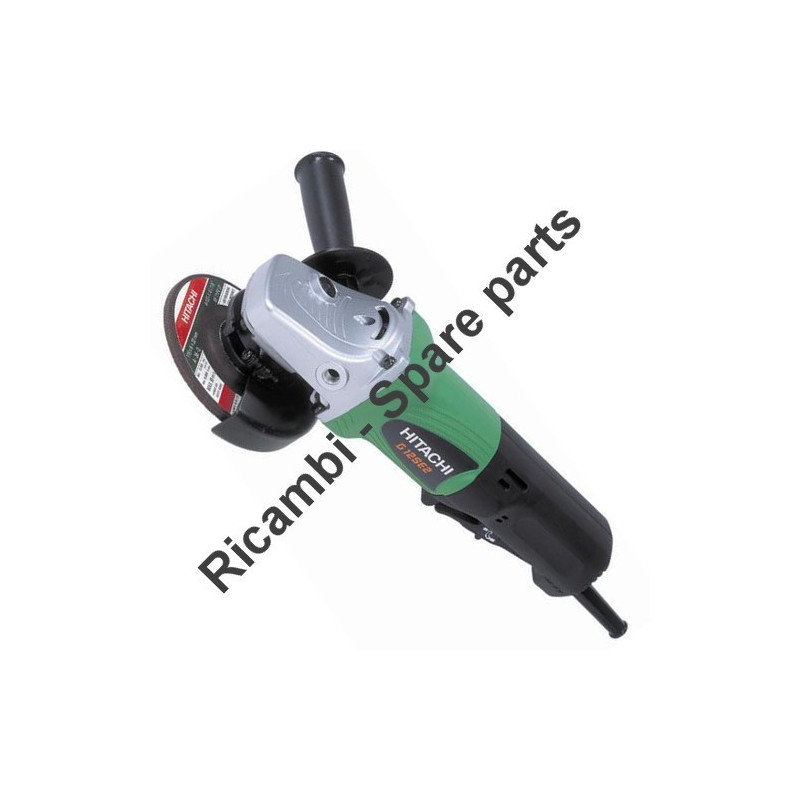

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G 12SE.
In the following table, look for the model of the Angle Grinder and their spare part.
| HITACHI G12SE PARTS - GRINDER | ||
| # | Part Num. | Description |
| 1 | 303255 | Seal Lock Screw M4X10 G12Se |
| 2 | 937807 | TAPPING SCREW W/O FLANGE D5x25 |
| 3 | 301944 | Pushing Button G18Dl G14Dsl |
| 4 | 308542 | Gear Cover Assy G12Se G12Sa2 |
| 5 | 301941 | Special Nut M7 G10Sr G12Sr |
| 6 | 329054 | GEAR ASS'Y G12SE2 G12SA2 G12SA3 |
| 7 | 308543 | Seal Ring (A) G12Se G12Sa2/3 |
| 8 | 980866 | Washer (C) G12Se G13Se G12Sa2 |
| 9 | 629T12 | Ball Bearing 629T12Ddc3Ps2-L |
| 10 | 957754 | Rubber Ring G12Sa/2/3 G12Se |
| 11 | 994320 | Felt G12Sa G12Sa2 |
| 12 | 308538 | Bearing Cover G12Se G12Sa2 |
| 13 | 360375E | ARMATURE 220V240V |
| 13 | 360375U | Armature Assy 115V G12Se |
| 14 | 308537 | Fan Guide G12Sa/G12Se/G12Sa2 |
| 15 | 982021 | Tapping Screw D4X70 G10Sr/12Sr |
| 16 | 340339C | STATOR 110V |
| 17 | 311737 | Thrust Washer G12Se G12Va |
| 16 | 340339E | STATOR 220V240V |
| 18 | 311435 | Dust Seal (A) G12Se C7D G12Va |
| 16 | 340339D | Stator 115V G12Se |
| 19 | 608VVM | Ball Bearing G10Sr Sp18Sa C7Sb |
| 20 | 301943 | Lock Pin G10Sd1 G10Sr/2 G12Se |
| 21 | 329054 | GEAR ASS'Y G12SE G12SA2 |
| 22 | 991207 | Seal Lock Screw W/Washer M4X8 |
| 24 | 6201DD | Ball Bearing Sp18Sa P12R |
| 25 | 308548 | Tail Cover (A) G12Se 308548 |
| 26 | 308547 | Seal Packing G12Se G12Sa2 |
| 27 | 308545 | Packing Gland G12Se G12Sa2 |
| 28 | 307046 | Seal Lock Screw M5X16 G12Se |
| 29 | 944109 | Feather Key 3X3X8 Dh24Vb Sb10T |
| 30 | 994301 | SPINDLE (A) 22.23mm G12SA/SE |
| 30 | 994302 | Spindle (B) 5/8"-11 Umc Cm5Sb |
| 31 | 311492 | Label G12Se G18Se3 G23Sc3 |
| 32 | 311744 | Set Pin G12Se G12Va G13Va |
| 33 | 311743 | Lever G12Se |
| 34 | 880734 | Machine Screw M5X25 C12Lsh |
| 35 | 311491 | Set Piece (B) G12Se G12Va |
| 37 | 311745 | Wheel Guard Assy G12Se2 G12Se |
| 38 | 937817Z | WHEEL WASHER G12SR2 G12SR3 |
| 38 | 937922P | WHEEL WASHER (B) G13SC2 |
| 38 | 874759 | Retaining Ring G12Se N3804Ab3 |
| 39 | 937819Z | D.C. WHEELS 115MM |
| 40 | 937923P | WHEEL NUT 5/811 UMC THREAD |
| 41 | 329054 | GEAR ASSY G12SE G12SA2 |
| 43 | 308559 | Housing G12Se |
| 46 | 311738 | Switch Box G12Se2 G13Se2 |
| 47 | 930039 | NOISE SUPPRESSOR 1 |
| 48 | 311741 | Terminal (Since 8/2001) Sp18V |
| 48 | 980063 | Terminal Cr12V D13V Dh38Ye G12 |
| 49 | 308549 | Tail Cover (B) G12Se |
| 50 | 303694 | Tap Screw W/Flange D4X35 |
| 51 | 959140 | Connector 50091 C8Fb2 10Pcs Cv |
| 51 | 959141 | Connector 50092 C10Fs 10Pcs C |
| 52 | 938307 | Pillar Terminal C7Bd C7Sb C8 |
| 53 | 301653 | Tap Screw W/Flange Blk D4X20 |
| 54 | 999088 | Carbon Brush (Pair) G12Sa2/3 |
| 55 | 308535 | Brush Holder G12Se G12Va |
| 56 | 306945 | Tapping Screw D3X10 Dh20Dv |
| 57 | 308536 | Spring G12Se G12S2 G12Sa2/3 |
| 59 | 311739 | SWITCH |
| 59 | 311740 | Switch 1P Screwtype W/O Lock |
| 60 | 984750 | Tap Screw W/Flange D4X16 C8 C |
| 62 | 960266 | Cord Clip C7Bd/Sb C8 Dh38Ye |
| 63 | 953327 | Cord Armor D8.8 D10Vh Sv13Yb |
| 64 | 714500 | CORD 5M 2X1.0 + PLUG |
| 64 | 500436Z | CORD 1 (CORD ARMOR D8.8) |
| 64 | 500237Z | CORD |
| 64 | 500240Z | Cord, Electrical, 2 Wires |
| 65 | 983595 | Spring Cr10V G12Se G12Se2 |
| 67 | 308557 | Lever Action Seal G12Se |
| 69 | 982696 | Feather Key 3X3X15 Dh25V G12Se |
| 70 | 308555 | Lock Lever (Black) W/Lock |
| 70 | 308556 | Lock Lever (Gray) W/O Lock |
| 86 | 308554 | Paddle Lever G12Se |
| 87 | 308558 | LEVER 308558 |
| 88 | 301631 | Spring (F) Nv65Ah C6Dc2 C18Dmr |
