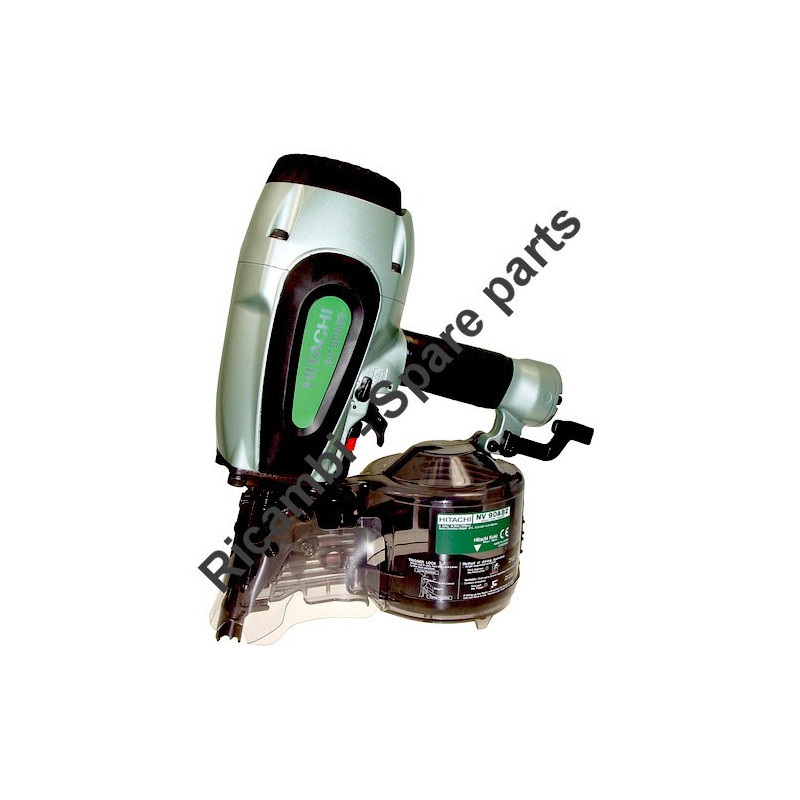

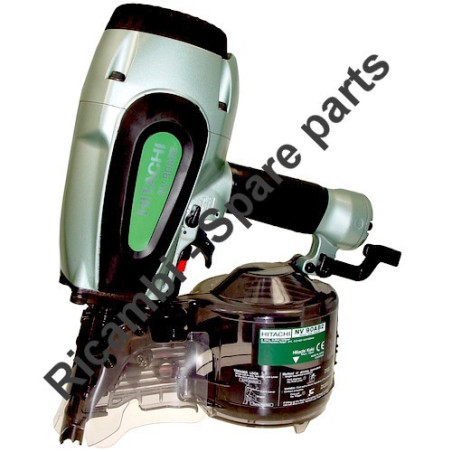

Hitachi Spare Parts for Pneumatic Coil Nailer NV 90AB2
Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for High Pressure Pneumatic Coil Nailer NV 90AB2.
In the following table, look for the model of the Low Pressure Pneumatic Coil Nailer and their spare part.
| Pneumatic Coil Nailer NV 90AB2 | ||
| # | Part Num. | Description |
| 2 | 883321 | PLATE |
| 3 | 883319 | TOP COVER |
| 4 | 883320 | MUFFLER (A) |
| 5 | 318451 | NYLOCK BOLT (W/FLANGE) M6X35 |
| 7 | 884397 | EXHAUST COVER |
| 8 | 883317 | PACKING |
| 9 | 881945 | EXHAUST VALVE RUBBER |
| 10 | 883328 | WASHER |
| 11 | 881944 | HEAD VALVE SPRING |
| 12 | 877124 | CYLINDER O-RING (B) |
| 13 | 881942 | HEAD VALVE |
| 14 | 877312 | CYLINDER O-RING (I.D 63.1) |
| 15 | 881943 | HEAD VALVE RUBBER |
| 16 | 883310 | CYLINDER |
| 17 | 883312 | PLATE O-RING (B) |
| 18 | 883311 | CYLINDER O-RING |
| 19 | 883314 | PLATE O-RING (A) |
| 20 | 883327 | CYLINDER PLATE |
| 21 | 881930 | PISTON RING |
| 22 | 883290 | PISTON (H) |
| 23 | 968643 | RETAINING RING (E-TYPE) FOR D4 SHAFT |
| 25 | 884394 | PROTECTOR |
| 27 | 882896 | TRIGGER PIECE |
| 28 | 882897 | SPRING |
| 29 | 882895 | TRIGGER ARM (B) |
| 30 | 882894 | TRIGGER |
| 31 | 883759 | TRIGGER SPRING |
| 32 | 882885 | PUSHING LEVER GUIDE |
| 33 | 884398 | PUSHING LEVER SPRING (C) |
| 34 | 883291 | PISTON BUMPER (A) |
| 35 | 881967 | PISTON BUMPER (B) |
| 36 | 956996 | O-RING (1AS-60) |
| 37 | 874436 | O-RING (P-4) |
| 38 | 878964 | WASHER |
| 39 | 883293 | NOSE |
| 40 | 306437 | NYLOCK HEX. SOCKET HD. BOLT M8X30 |
| 41 | 883093 | PLUNGER (B) |
| 42 | 949497 | ROLL PIN D4X16 (10 PCS.) |
| 43 | 883144 | FEEDER ARM (B) |
| 44 | 883143 | FEEDER SPRING |
| 45 | 883299 | FEEDER (A) |
| 46 | 883307 | PUSHING LEVER COVER (B) |
| 47 | 883303 | PUSHING LEVER (A) |
| 48 | 883106 | NOSE CAP (A) |
| 49 | 877371 | NYLON NUT M5 |
| 50 | 881768 | GRIP TAPE (A) |
| 52 | 883309 | GASKET (B) |
| 53 | 881949 | CAP |
| 55 | 872035 | DUST CAP |
| 57 | 881827 | HOOK |
| 59 | 949865 | ROLL PIN D3X28 (10 PCS.) |
| 60 | 949866 | ROLL PIN D3X30 (10 PCS.) |
| 61 | 884400 | LOCK KNOB |
| 62 | 959148 | STEEL BALL D3.175 (10 PCS.) |
| 63 | 882923 | LOCK SPRING |
| 65 | 881951 | ROLL PIN D2.5X16 |
| 66 | 884399 | PUSHING LEVER SPRING (D) |
| 67 | 882891 | PUSHING LEVER (C) |
| 68 | 882889 | ADJUSTER |
| 69 | 882890 | ADJUSTER SPRING |
| 70 | 882887 | ADJUSTER PLATE (B) |
| 71 | 880093 | ROLL PIN D2X16 |
| 72 | 882886 | ADJUSTER PLATE (A) |
| 73 | 981317 | O-RING (S-4) |
| 74 | 882888 | PUSHING LEVER (B) |
| 75 | 883304 | PUSHING LEVER O-RING |
| 76 | 872971 | RETAINING RING (E-TYPE) FOR D3 SHAFT |
| 77 | 872645 | O-RING (P-9) |
| 78 | 944486 | O-RING (1AP-20) |
| 79 | 883300 | FEED PISTON |
| 80 | 883301 | FEED SPRING |
| 81 | 877711 | BUMPER |
| 82 | 880331 | FEED PISTON COVER |
| 83 | 939555 | RETAINING RING FOR D28 HOLE (10 PCS.) |
| 84 | 880319 | SHAFT RING |
| 86 | 883294 | NAIL GUIDE |
| 87 | 883295 | NAIL GUIDE COVER |
| 88 | 883298 | NAIL GUIDE SHAFT |
| 89 | 883296 | COVER |
| 90 | 883297 | SHAFT |
| 91 | 886107 | GUIDE LOCK |
| 92 | 880446 | SPRING |
| 93 | 883329 | NAIL STOPPER (A) |
| 94 | 883088 | STOPPER SPRING (A) |
| 95 | 883086 | NAIL STOPPER (B) |
| 96 | 883087 | STOPPER SPRING (B) |
| 97A | 877826 | FEEDER SHAFT RING |
| 98 | 878337 | SLEEVE (B) |
| 100 | 877699 | HEAD VALVE O-RING (I.D 16.8) |
| 101 | 878881 | VALVE BUSHING (B) |
| 102 | 878885 | O-RING (S-18) |
| 103 | 878925 | O-RING (I.D 8.8) |
| 104 | 981317 | O-RING (S-4) |
| 105 | 880672 | VALVE PISTON (B) |
| 106 | 878887 | O-RING (I.D 11) |
| 107 | 878884 | PLUNGER SPRING |
| 108 | 882921 | PLUNGER (A) |
| 109 | 878888 | O-RING (I.D. 1.8) |
| 110 | 882920 | VALVE BUSHING (A) |
| 111 | 882907 | SLEEVE |
| 112 | 883306 | PUSHING LEVER COVER (A) |
| 115 | 883111 | PIN |
| 116 | 883108 | MAGAZINE |
| 117 | 883109 | MAGAZINE COVER |
| 120 | 881003 | HOLDER CAP (A) |
| 121 | 880398 | RATCHET SPRING |
| 122 | 880503 | NAIL HOLDER |
| 123 | 878791 | ROLL PIN D2.5X12 |
| 124 | 883324 | HOLDER SHAFT |
| 125 | 881826 | SPRING |
| 126 | 883325 | MAGAZINE ASS'Y |
| 507 | 883323 | CASE |
