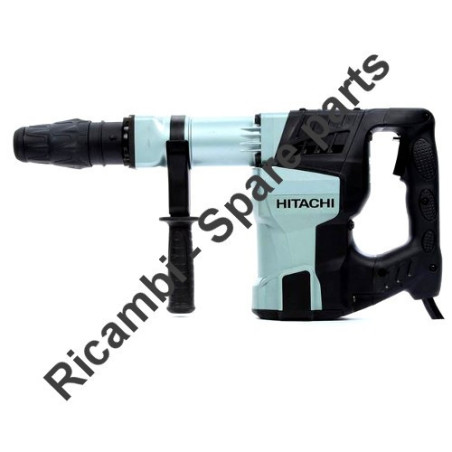

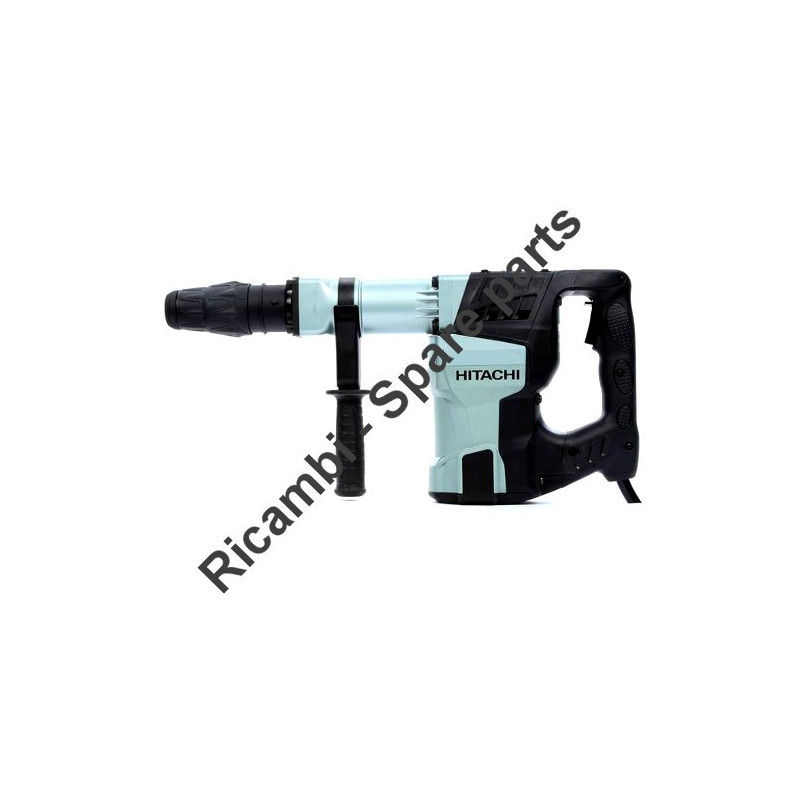

Hitachi Spare Parts for Demolition Hammers H60MC
€22.45
Tax included
Hitachi Spare Parts for Demolition Hammer H60MC
We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H60MC.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Demolition Hammer H60MC
We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H60MC.
In the following table, look for the model of the hammer and the respective parts of the code.
<
| Demolition Hammer 10 Kg H60MC | ||
| # | Part Num. | Description |
| 1 | 333211 | FRONT CAP |
| 2 | 320846 | RETAINING RING D28 |
| 3 | 333685 | DAMPER HOLDER (A) |
| 4 | 330175 | DAMPER (A) |
| 5 | 333686 | DAMPER HOLDER (B) |
| 6 | 333192 | GRIP (A) |
| 7 | 320804 | NEEDLE HOLDER |
| 8 | 333221 | SPRING (A) |
| 9 | 333255 | STOPPER RING |
| 10 | 333687 | BALL HOLDER |
| 11 | 333197 | GRIP (B) |
| 12 | 959150 | STEEL BALL D6.35 (10 PCS.) |
| 13 | 985479 | SEAL LOCK HEX. SOCKET HD. BOLT M8X25 |
| 14 | 333195 | FRONT COVER |
| 15 | 317119 | O-RING (S-56) |
| 16 | 872767 | O-RING (S-32) |
| 17 | 333217 | DAMPER |
| 24 | 331536 | NEEDLE ROLLER D8X20 |
| 25 | 333191 | RETAINER SLEEVE |
| 26 | 872470 | O-RING (S-26) |
| 27 | 333206 | SECOND HAMMER |
| 28 | 333216 | HAMMER HOLDER |
| 29 | 333218 | DAMPER WASHER |
| 30 | 333219 | SLEEVE |
| 31 | 333209 | CYLINDER CASE |
| 32 | 990083 | HEX. SOCKET HD. BOLT (W/FLANGE) M8X35 |
| 33 | 956996 | O-RING (1AS-60) |
| 34 | 333205 | STRIKER |
| 35 | 985454 | O-RING (A) (FPM810) |
| 36 | 301509 | PISTON PIN |
| 37 | 317084 | PISTON |
| 38 | 317082 | CONNECTING ROD |
| 39 | 939543 | RETAINING RING FOR D14 SHAFT (10 PCS.) |
| 40 | 333229 | GEAR COVER ASS'Y |
| 41 | 6203DD | BALL BEARING 6203DDCMPS2L |
| 42 | 333222 | BEARING WASHER |
| 43 | 333196 | FAN |
| *44 | 360899E | ARMATURE ASS'Y 220V-230V |
| 45 | 333210 | FAN GUIDE |
| 46 | 953121 | HEX. HD. TAPPING SCREW D5X50 |
| 47 | 324122 | INTERNAL WIRE 235L |
| *48 | 340780E | STATOR ASS'Y 220V-230V |
| 49 | 945932 | BRUSH TERMINAL |
| 50 | 944954 | BEARING WASHER |
| 51 | 6201DD | BALL BEARING 6201DDCMPS2L |
| 52 | 333213 | HOUSING ASS'Y |
| 53 | 940540 | BRUSH CAP |
| *54 | 999044 | CARBON BRUSH (1 PAIR) |
| *54 | 999074 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) |
| 55 | 980487 | BRUSH HOLDER |
| 56 | 938477 | HEX. SOCKET SET SCREW M5X8 |
| 57 | 328918 | BEARING HOLDER |
| 58 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 59 | 333225 | DUST SEAL |
| 60 | 333193 | TAIL COVER |
| 61 | 302089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) |
| 62 | 985442 | NEEDLE BEARING (A) (BK1512) |
| 63 | 987707 | SEAL LOCK HEX. SOCKET HD. BOLT M6X25 |
| 64 | 326541 | VINYL TUBE (I.D.9.5XT0.56X85) |
| 65 | 930804 | TERMINAL M4.0 (10 PCS.) |
| 66 | 330209 | SIDE HANDLE |
| 67 | 333198 | MOUNT |
| 68 | 333227 | HANDLE BOLT |
| 69 | 333226 | BAND |
| 70 | 990079 | SEAL LOCK HEX. SOCKET HD. BOLT M5X16 |
| 71 | 333194 | CRANK COVER |
| 72 | 326257 | O-RING (I.D 74.5) |
| 73 | 333204 | CRANK SHAFT |
| 74 | 940533 | FEATHER KEY 3X3X10 |
| 75 | 986491 | SEAL LOCK HEX. SOCKET HD. BOLT M6X50 |
| 76 | 333220 | BEARING COVER |
| 77 | 6204DD | BALL BEARING 6204DDCMPS2L |
| 78 | 333186 | CRANK CASE |
| 79 | 995403 | OIL SEAL |
| 80 | 995402 | DISTANCE RING (C) |
| 81 | 333207 | FIRST GEAR |
| 82 | 305490 | TAPPING SCREW (W/FLANGE) D4X30 (BLACK) |
| 83 | 333189 | HANDLE COVER |
| 84 | 333187 | HANDLE |
| 85 | 306143 | SWITCH (B) (1P SCREW TYPE) W/LOCK |
| 86 | 949423 | WASHER M4 (10 PCS.) |
| *87 | 981974 | INTERNAL WIRE |
| *87 | 306681 | INTERNAL WIRE |
| *89 | 980063 | TERMINAL |
| *89 | 930804 | TERMINAL M4.0 (10 PCS.) |
| 90 | 325566 | NOISE SUPPRESSOR |
| *91 | 953327 | CORD ARMOR D8.8 |
| *91 | 938051 | CORD ARMOR D10.1 |
| 93 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 94 | 960266 | CORD CLIP |
| 97 | 333364 | TAPPING SCREW D6X30 |
| 98 | 317492 | SUPPORT (B) |
| 99 | 938307 | PILLAR TERMINAL |
| *100 | 959141 | CONNECTOR 50092 (10 PCS.) |
| *100 | 959141 | CONNECTOR 50092 (10 PCS.) |
| 101 | 959140 | CONNECTOR 50091 (10 PCS.) |
| 102 | 333228 | BOLT M8 |
| 103 | 333202 | HANDLE HOLDER (B) |
| 104 | 334578 | HANDLE HOLDER |
| 105 | 333201 | GRIP |
| 106 | 333199 | SIDE HANDLE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
