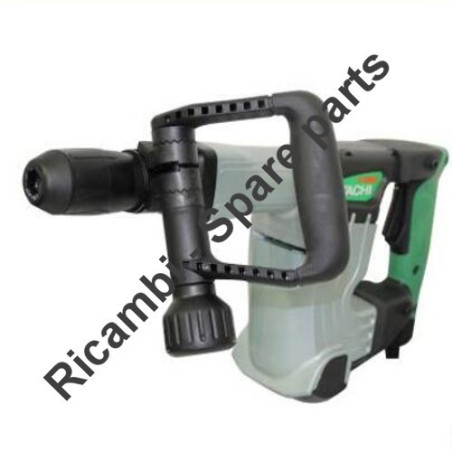

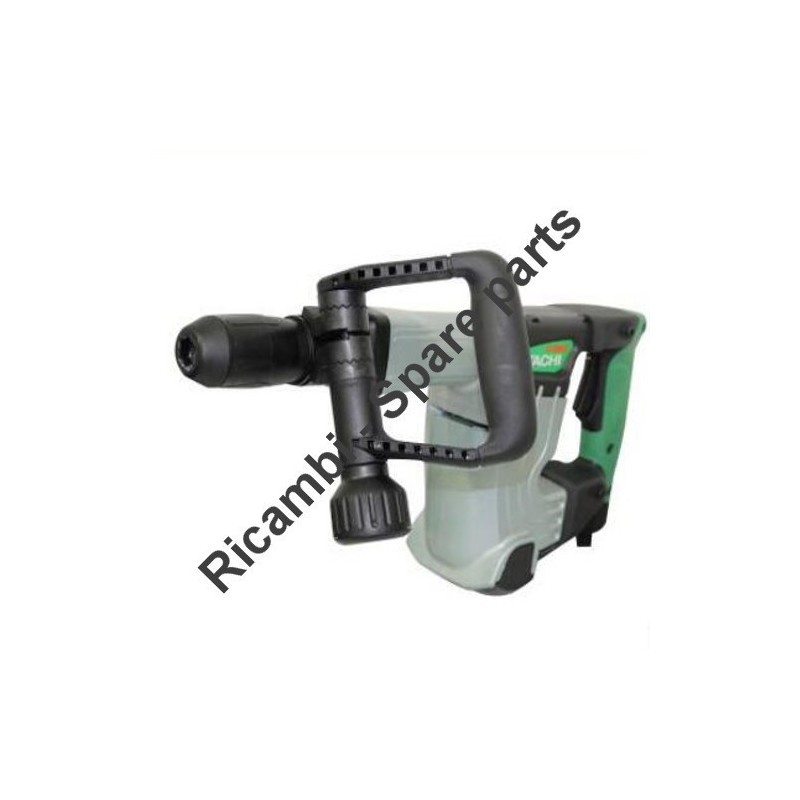

Hitachi Spare Parts for Demolition Hammer H45SR
€1.35
Tax included
Hitachi Spare Parts for Demolition Hammer H45SR
We have the original Spares for Hitachi-HIKOKI Spare Parts for Demolition Hammer H45SR, the diagram, parts list and tool repair that help you need to get your tools running like new again.Fix Your Demolition Hammer H45SR. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Demolition Hammer H45SR
We have the original Spares for Hitachi-HIKOKI Spare Parts for Demolition Hammer H45SR, the diagram, parts list and tool repair that help you need to get your tools running like new again.
In the following table, look for the model of the hammer and the respective parts of the code.
| DEMOLITION HAMMER H45SR | ||
| # | Part Num. | Description |
| 1A | 322487 | FRONT CAP (B) |
| 2 | 320846 | RETAINING RING D28 |
| 3A | 322488 | SLEEVE (C) |
| 4 | 320845 | GRIP (A) |
| 5 | 320848 | BALL HOLDER |
| 6 | 320849 | SPRING (A) |
| 7 | 944941 | STEEL BALL D7.94 |
| 8 | 320850 | RETAINING RING D35 |
| 9 | 320851 | GRIP (B) |
| 10A | 320915 | FRONT COVER ASS'Y |
| 11 | 981942 | SEAL LOCK HEX. SOCKET HD. BOLT M6X25 |
| 12 | 320853 | SLEEVE |
| 13 | 980879 | O-RING (S-34) |
| 14 | 990067 | O-RING (1AS-50) |
| 15A | 322528 | DAMPER (A) |
| 16 | 320811 | HAMMER HOLDER (A) |
| 17 | 319572 | O-RING (S-25) |
| 18 | 320854 | SECOND HAMMER |
| 19 | 320817 | DAMPER (C) |
| 20 | 320814 | HAMMER HOLDER (B) |
| 21 | 320815 | DAMPER (B) |
| 22A | 322412 | WASHER |
| 23 | 320816 | HAMMER HOLDER (C) |
| 24 | 320822 | STRIKER |
| 25 | 320823 | O-RING |
| 26 | 320818 | CYLINDER HOLDER |
| 27A | 321443 | SLEEVE (A) |
| 28 | 320821 | SPRING (C) |
| 30 | 320826 | PISTON PIN |
| 31 | 320824 | PISTON |
| 32 | 320825 | CONNECTING ROD |
| 33 | 986940 | SEAL LOCK HEX. SOCKET HD. BOLT M6X45 |
| 34 | 983162 | SEAL LOCK HEX. SOCKET HD. BOLT M4X12 |
| 36 | 320831 | CRANK COVER |
| 38A | 878867 | O-RING (JASO2060) |
| 39 | 939540 | RETAINING RING FOR D10 SHAFT |
| 40 | 320829 | CRANK SHAFT |
| 41 | 930511 | FEATHER KEY 4X4X10 |
| 42 | 980760 | SEAL LOCK HEX.SOCKET FLAT HD. BOLT M5X12 |
| 43 | 980761 | BEARING COVER (A) |
| 44 | 6203DD | BALL BEARING 6203DDCMPS2L |
| 45 | 310119 | OIL SEAL |
| 46 | 320828 | CYLINDER CRANK CASE |
| 48 | 320837 | HANDLE PACKING (A) |
| 49 | 310124 | HANDLE DAMPER |
| 50 | 310123 | TRANSATORY UNIT |
| 51 | 320830 | FIRST GEAR |
| 52 | 939299 | NEEDLE BEARING (M661) |
| 53 | 320841 | GEAR COVER ASS'Y |
| 54 | 317107 | BOLT M8 |
| 55 | 317106 | HANDLE HOLDER (B) |
| 56 | 317105 | HANDLE HOLDER (A) |
| 57 | 320635 | BAND |
| 58 | 317108 | GRIP |
| 59 | 317103 | SIDE HANDLE ASS'Y |
| 60 | 935829 | BRUSH CAP |
| *61 | 999043 | CARBON BRUSH (1 PAIR) |
| *61 | 999073 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) |
| 62 | 971001 | BRUSH HOLDER |
| 63 | 938477 | HEX. SOCKET SET SCREW M5X8 |
| 64 | 320834 | TAIL COVER |
| 65A | 321527 | SEAL LOCK HEX. SOCKET HD. BOLT M5X8 |
| 66 | 6201DD | BALL BEARING 6201DDCMPS2L |
| 67 | 302429 | DUST WASHER (B) |
| *68 | 360571E | ARMATURE ASS'Y 220V-230V |
| 69 | 320832 | FAN GUIDE |
| 70 | 953174 | HEX. HD. TAPPING SCREW D5X55 |
| *71 | 340519E | STATOR ASS'Y 220V-230V |
| 72 | 930703 | BRUSH TERMINAL |
| 73 | 930804 | TERMINAL M4.0 (10 PCS.) |
| 74 | 982631 | WASHER (A) |
| 75A | 608DDM | BALL BEARING 608DDC2PS2L |
| 76 | 320833 | HOUSING ASS'Y |
| 77 | 320836 | SLEEVE (B) |
| 78 | 320838 | HANDLE PACKING (B) |
| 80A | 326541 | VINYL TUBE (I.D.9.5XT0.56X85) |
| 81 | 991690 | SEAL LOCK HEX. SOCKET HD. BOLT M5X12 |
| 82 | 991711 | DISTANCE PIECE (B) |
| 83A | 329866 | HANDLE (A).(B) SET |
| 84 | 990861 | INTERNAL WIRE |
| *85 | 994273 | NOISE SUPPRESSOR |
| 86 | 317492 | SUPPORT (B) |
| 87 | 981974 | INTERNAL WIRE |
| 88 | 306143 | SWITCH (B) (1P SCREW TYPE) W/LOCK |
| 90 | 307028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) |
| 91 | 959140 | CONNECTOR 50091 (10 PCS.) |
| 92 | 938307 | PILLAR TERMINAL |
| 93 | 959141 | CONNECTOR 50092 (10 PCS.) |
| 94 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 95 | 960266 | CORD CLIP |
| 96 | 949423 | WASHER M4 (10 PCS.) |
| 97 | 980063 | TERMINAL |
| *98 | 953327 | CORD ARMOR D8.8 |
| *98 | 938051 | CORD ARMOR D10.1 |
| 100 | 321442 | CYLINDER ASS'Y |
| 101 | 321640 | FAN |
| 102 | 333143 | DUST SEAL |
| 616 | 981840 | GREASE (A) FOR HAMMER.HAMMER DRILL (30G) |
| 617 | 308471 | GREASE FOR HAMMER.HAMMER DRILL (70G) |
| 618 | 980927 | GREASE FOR HAMMER.HAMMER DRILL (500G) |
| 619 | 323131 | CYLINDER CASE COVER |
| 620 | 323131 | CYLINDER CASE COVER |
