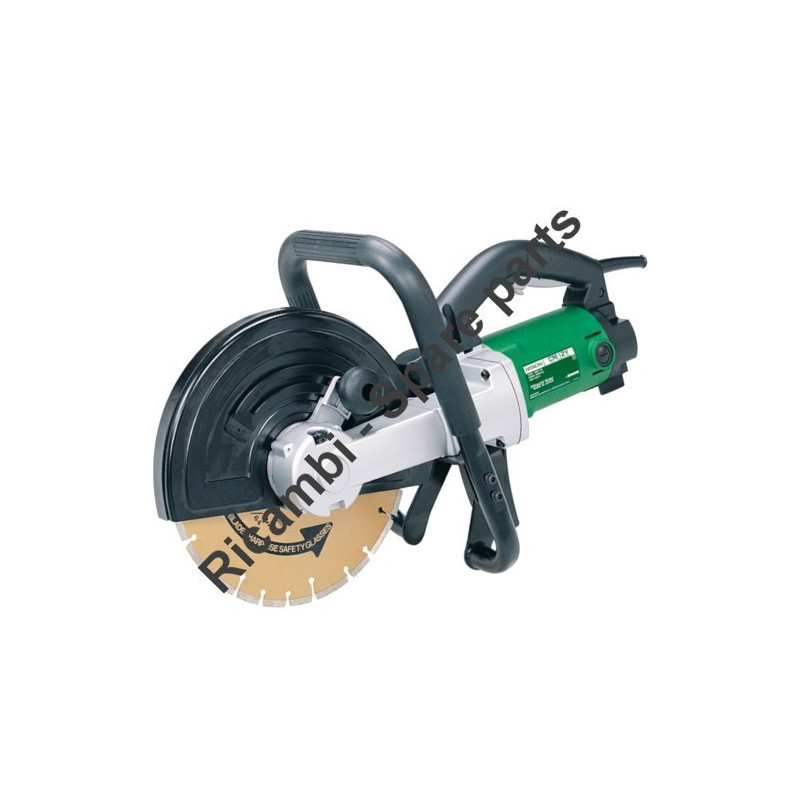

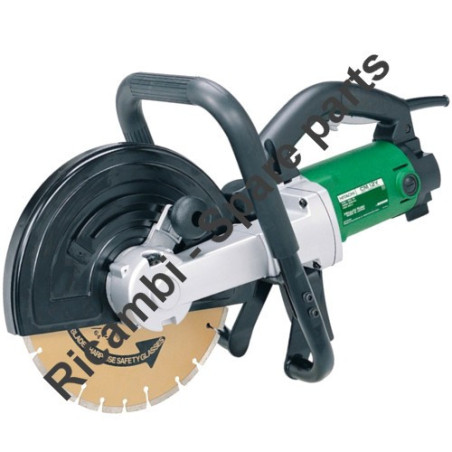

Hitachi Spare Parts for Disc Cutter CM12Y
€40.34
Tax included
Hitachi Spare Parts for Disc Cutter CM12Y
Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Disc Cutter CM12Y.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Disc Cutter CM12Y
Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Disc Cutter CM12Y.
In the following table, look for the model of the Disc Cutter and theirs spare part.
| Disc Cutter CM 12Y | ||
| # | Part Num. | Description |
| 1 | 312314 | RUBBER CAP |
| 2A | 935196 | MACHINE SCREW (W/WASHERS) M4X12 (BLACK) |
| 3 | 312312 | DUST COLLECTOR (B) |
| 4 | 312311 | DUST COLLECTOR (A) |
| 5 | 949453 | SPRING WASHER M4 (10 PCS.) |
| 6 | 949224 | MACHINE SCREW M4X30 (10 PCS.) |
| 7A | 935196 | MACHINE SCREW (W/WASHERS) M4X12 (BLACK) |
| 8 | 312310 | WHEEL GUARD |
| 9 | 312307 | GUARD HOLDER |
| 10 | 992038 | SEAL LOCK SCREW (W/SP. WASHER) M5X10 |
| 11 | 312327 | WHEEL WASHER (B) |
| 12 | 312324 | WHEEL WASHER (C) |
| 13 | 312308 | WHEEL WASHER (D) |
| 14 | 312309 | BOLT (LEFT HAND) M10X20 |
| 15 | 306888 | PUSHING BUTTON |
| 16 | 306889 | SPRING |
| 17 | 306890 | LOCK PIN |
| 18 | 312298 | MACHINE SCREW (W/WASHERS) M5X35 |
| 19 | 994192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 |
| 20A | 948920 | FEATHER KEY 4X4X30 |
| 21 | 6200VV | BALL BEARING 6200VVCMPS2L |
| 22 | 312303 | LOCK SLEEVE |
| 24 | 312304 | SEAL PLATE (A) |
| 25 | 302458 | KNOB |
| 26 | 949433 | BOLT WASHER M8 (10 PCS.) |
| 27 | 957042 | SUPER LOCK WASHER M8 |
| 28 | 312305 | PACKING GLAND |
| 29 | 302457 | BOLT (SQUARE) M8X30 |
| 30 | 6302DD | BALL BEARING 6302DDCMPS2L |
| 31 | 312302 | SPINDLE |
| 32 | 312306 | FELT PACKING |
| 33 | 312651 | SPACER |
| 34A | 332119 | GEAR SET |
| 35 | 946228 | U-NUT M8 |
| 36 | 312325 | PINION (A) |
| 37 | 312294 | SPACE WASHER |
| 38 | 990430 | SEAL LOCK FLAT HD. SCREW M4X10 |
| 39 | 312293 | BEARING COVER |
| 40 | 994208 | RUBBER RING (B) |
| 41 | 6301DD | BALL BEARING 6301DDCMPS2L |
| 42 | 312315 | PIPE HANDLE (C) |
| 43 | 312316 | JOINT PLATE |
| 44 | 878533 | HEX. SOCKET HD. BOLT (W/FLANGE) M6X16 |
| 45 | 878877 | HEX. SOCKET HD. BOLT (W/FLANGE) M6X30 |
| 46 | 949437 | BOLT WASHER M12 (10 PCS.) |
| 47 | 949463 | SPRING WASHER M12 (10 PCS.) |
| 48 | 949671 | BOLT M12X25 (10 PCS.) |
| 49 | 940533 | FEATHER KEY 3X3X10 |
| 50 | 948919 | FEATHER KEY 4X4X15 |
| 51 | 312297 | GEAR COVER ASS'Y |
| 52 | 312313 | DUST GUARD |
| 53 | 960256 | U-NUT (LEFT HAND) M8 |
| 55 | 312296 | THRUST WASHER (A) |
| 56 | 6301VV | BALL BEARING 6301VVCMPS2L |
| 57 | 312295 | DRIVE SHAFT |
| 58 | 315326 | FIRST GEAR (A) |
| 59 | 958032 | BRUSH TERMINAL |
| 60 | 981373 | TUBE (D) |
| 62 | 949425 | WASHER M6 (10 PCS.) |
| 63 | 949263 | MACHINE SCREW M6X35 (10 PCS.) |
| 64 | 312291 | SEAL PLATE (B) |
| 65 | 301654 | TAPPING SCREW (W/FLANGE) D5X35 |
| 66 | 312292 | INNER COVER |
| 67 | 360287E | ARMATURE ASS'Y 220V-230V |
| 68 | 310998 | DUST SEAL |
| 69 | 306103 | FAN GUIDE |
| 70 | 984271 | HEX. HD. TAPPING SCREW D5X75 |
| 71 | 340349E | STATOR ASS'Y 230V |
| 71 | 340349F | STATOR ASS'Y 240V |
| 71 | 340349G | STATOR ASS'Y 230V |
| 72 | 306102 | HOUSING ASS'Y |
| 74 | 940540 | BRUSH CAP |
| 75 | 999044 | CARBON BRUSH (1 PAIR) |
| 76 | 980487 | BRUSH HOLDER |
| 77 | 938477 | HEX. SOCKET SET SCREW M5X8 |
| 78A | 313306 | BEARING BUSHING |
| 79 | 949556 | NUT M6 (10 PCS.) |
| 80 | 312299 | TAIL COVER |
| 81 | 305558 | TAPPING SCREW (W/FLANGE) D5X25 (BLACK) |
| 82 | 949241 | MACHINE SCREW M5X20 (10 PCS.) |
| 83 | 949454 | SPRING WASHER M5 (10 PCS.) |
| 84 | 312300 | HANDLE (A) |
| 86 | 312301 | HANDLE (B) |
| 88 | 981373 | TUBE (D) |
| 89 | 304035 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) |
| 90 | 312317 | GRIP RUBBER |
| 91 | 960266 | CORD CLIP |
| 92 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 93 | 307650 | SWITCH (2P PILLAR TYPE) W/SAFETY LOCK |
| 94 | 981373 | TUBE (D) |
| 95 | 940778 | CORD ARMOR D10.7 |
| 97 | 6000VV | BALL BEARING 6000VVCMPS2L |
| 98 | 994202 | RUBBER RING (A) |
| 99 | 313307 | BEARING BUSHING ASS'Y |
| 100 | 322270 | THRUST WASHER |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
