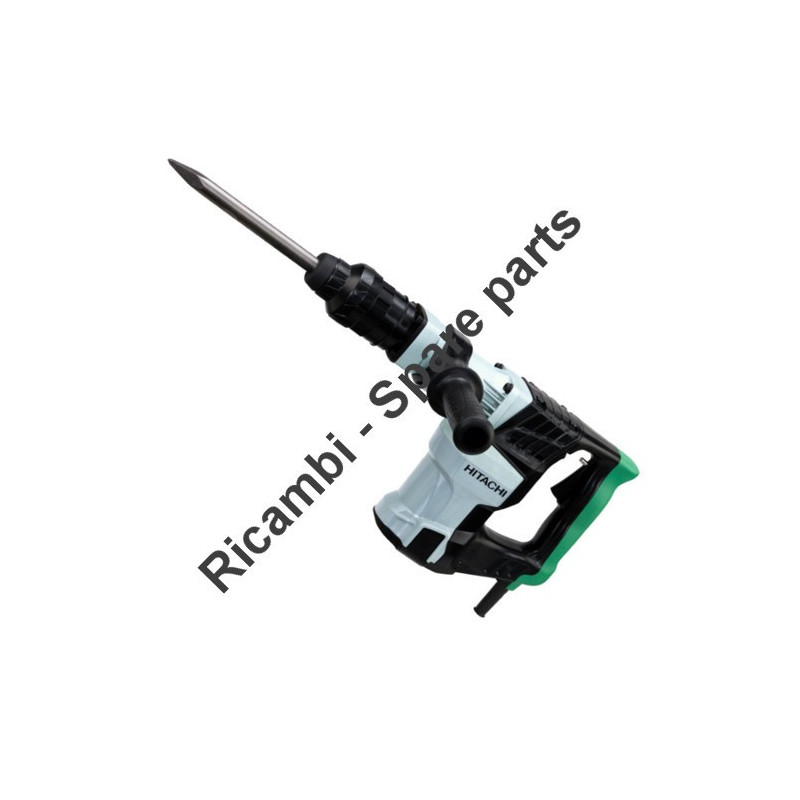

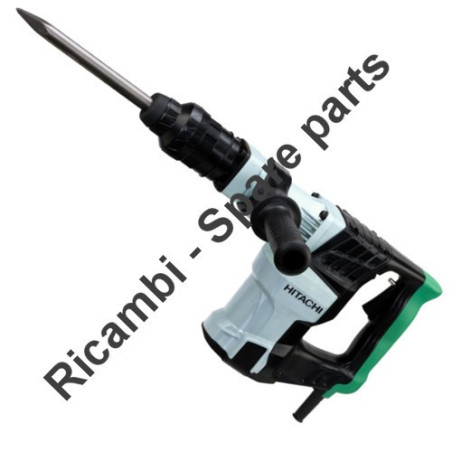

Hitachi Spare Parts for Demolition Hammer H41MB
€1.35
Tax included
Hitachi Spare Parts for Demolition Hammer H41MB
We are Dealers of Hitachi-HIKOKI original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer H41MB.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Demolition Hammer H41MB
We are Dealers of Hitachi-HIKOKI original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Demolition Hammer H41MB.
In the following table, look for the model of the hammer and the respective parts of the code.
| Demolition Hammer class 5 Kg H41MB | ||
| # | Part Num. | Description |
| 1 | 333259 | FRONT CAP |
| 2 | 333258 | GRIP (A) |
| 3 | 318590 | STOPPER RING |
| 4 | 331539 | NEEDLE HOLDER |
| 5 | 333256 | SPRING (A) |
| 6 | 333255 | STOPPER RING |
| 7 | 320810 | BALL HOLDER |
| 8 | 333254 | GRIP (B) |
| 9 | 981942 | SEAL LOCK HEX. SOCKET HD. BOLT M6X25 |
| 10 | 959150 | STEEL BALL D6.35 (10 PCS.) |
| 11 | 333248 | FRONT COVER |
| 12 | 980879 | O-RING (S-34) |
| 13 | 980715 | O-RING (S-48) |
| 14 | 333249 | RETAINER DAMPER |
| 15 | 331536 | NEEDLE ROLLER D8X20 |
| 16 | 333250 | RETAINER SLEEVE |
| 17 | 994192 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 |
| 18 | 333260 | CRANK COVER |
| 19 | 878713 | CYLINDER O-RING (B) |
| 20 | 333244 | CRANK SHAFT |
| 21 | 980809 | FEATHER KEY 4X4X8 |
| 22 | 948391 | RETAINING RING FOR D40 HOLE |
| 23 | 6203DD | BALL BEARING 6203DDCMPS2L |
| 24 | 996363 | O-RING (S-40) |
| 25 | 310119 | OIL SEAL |
| 26 | 333245 | DISTANCE RING |
| 27 | 333243 | CRANK CASE |
| 28 | 313396 | O-RING (C) |
| 29 | 334218 | SECOND HAMMER |
| 30 | 331224 | DAMPER WASHER |
| 31 | 321835 | DAMPER |
| 32 | 331225 | DAMPER HOLDER |
| 33 | 333261 | BAND |
| 34 | 333251 | CYLINDER CASE |
| 35 | 991712 | HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 |
| 36 | 333252 | CYLINDER |
| 37 | 333253 | STRIKER |
| 38 | 986104 | O-RING |
| 39 | 980708 | PISTON PIN |
| 40 | 326369 | PISTON |
| 41 | 334220 | CONNECTING ROD ASS'Y |
| 42 | 939540 | RETAINING RING FOR D10 SHAFT |
| 43 | 324056 | SEAL LOCK HEX. SOCKET HD. BOLT M6X35 |
| 44 | 333262 | MOUNT |
| 45 | 333227 | HANDLE BOLT |
| 46 | 330209 | SIDE HANDLE |
| 47 | 333246 | FIRST GEAR |
| 48 | 939299 | NEEDLE BEARING (M661) |
| 49 | 333268 | GEAR COVER ASS'Y |
| 50 | 6201DD | BALL BEARING 6201DDCMPS2L |
| 51 | 302429 | DUST WASHER (B) |
| *52 | 360903E | ARMATURE 220V-230V |
| 53 | 331252 | FAN GUIDE |
| 54 | 953121 | HEX. HD. TAPPING SCREW D5X50 |
| 55 | 990861 | INTERNAL WIRE |
| *56 | 340788F | STATOR ASS'Y 220V-230V |
| 57 | 930703 | BRUSH TERMINAL |
| 58 | 333267 | HOUSING ASS'Y |
| 59 | 945161 | BRUSH CAP |
| 60 | 999043 | CARBON BRUSH (1 PAIR) |
| 61 | 958900 | BRUSH HOLDER |
| 62 | 938477 | HEX. SOCKET SET SCREW M5X8 |
| 63 | 982631 | WASHER (A) |
| 64 | 608VVM | BALL BEARING 608VVC2PS2L |
| 65 | 331254 | BEARING HOLDER |
| 66 | 333263 | DUST SEAL |
| 67 | 333264 | TAIL COVER |
| 68 | 302089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) |
| 69 | 333265 | HANDLE |
| 71 | 959140 | CONNECTOR 50091 (10 PCS.) |
| 72 | 959141 | CONNECTOR 50092 (10 PCS.) |
| 73 | 331203 | NOISE SUPPRESSOR |
| 74 | 302089 | TAPPING SCREW (W/FLANGE) D5X20 (BLACK) |
| *75 | 958049 | CORD ARMOR D8.2 |
| *75 | 940778 | CORD ARMOR D10.7 |
| 76 | 981974 | INTERNAL WIRE |
| 77 | 949423 | WASHER M4 (10 PCS.) |
| *78 | 980063 | TERMINAL |
| *78 | 930804 | TERMINAL M4.0 (10 PCS.) |
| 79 | 938307 | PILLAR TERMINAL |
| 80 | 306143 | SWITCH (B) (1P SCREW TYPE) W/LOCK |
| 81 | 331205 | HANDLE COVER |
| 82 | 307028 | TAPPING SCREW (W/FLANGE) D4X25 (BLACK) |
| 83 | 960266 | CORD CLIP |
| 84 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 86 | 333688 | WASHER (FW) |
| 87 | 998485 | HEX. SOCKET HD. BOLT (W/FLANGE) M5X14 |
| 88 | 995396 | VALVE |
| 89 | 334217 | FELT |
| 90 | 334216 | VALVE COVER |
| 91 | 877838 | SEAL LOCK HEX. SOCKET HD. BOLT M4X8 |
| 92 | 334219 | NEEDLE BEARING |
| 93 | 325910 | SUPPORT (B) |
| 94 | 334636 | WASHER |
| 500 | 981840 | GREASE 30GR HIKOKI |
| 501 | 308471 | GREASE 70GR HIKOKI |
| 502 | 980927 | GREASE 500GR HIKOKI |
