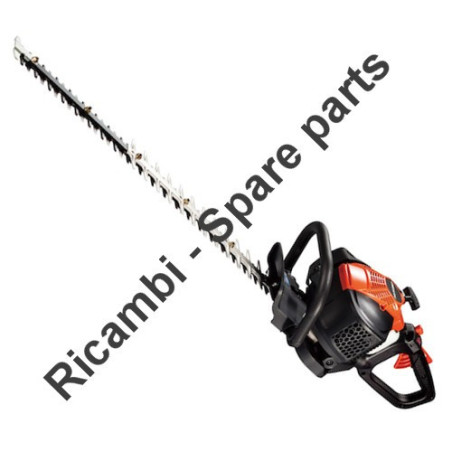

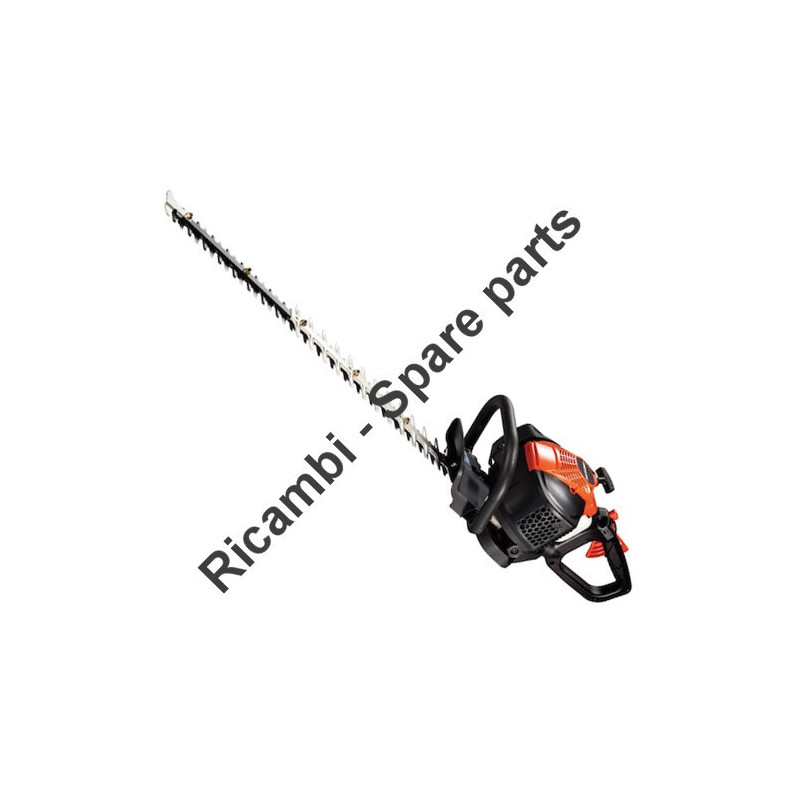

Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP
€1.04
Tax included
Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP
We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Hedge Trimmer CH24ECP.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Petrol Hedge Trimmer CH 24ECP
We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Engine Hedge Trimmer CH24ECP.
Fix Your Power Tool. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of Petrol Hedge Trimmer and the respective parts of the code.
| Petrol Hedge Trimmer CH 24ECP | ||
| # | Part Num. | Description |
| 1 | 6684655 | COVER FIXING BOLT |
| 2 | 981317 | O-RING (S-4) |
| 3 | 6601540 | AIR CLEANER COVER |
| 4 | 6601539 | AIR CLEANER ELEMENT |
| 5 | 6684697 | SWIVEL |
| 6 | 6684696 | STOP RING |
| 7 | 6684695 | O-RING |
| 9 | 6684692 | PUMP GASKET |
| 11 | 6685222 | DIAPHRAGM COVER-METERING |
| 12 | 6691312 | SET SCREW |
| 13 | 6684698 | THROTTLE SET SCREW |
| 15 | 6684693 | PUMP DIAPHRAGM |
| 16 | 6684700 | INLET SCREEN |
| 17 | 6685220 | DIAPHRAGM PACKING-METERING |
| 18 | 6684690 | METERING DIAPHRAGM |
| 19 | 6694914 | SCREW M5X55 |
| 20 | 6685407 | BOLT WASHER D5 |
| 21 | 334242 | WAVE WASHER 8 |
| 24 | 6685139 | PRIMING PUMP COMP. |
| 25 | 6601607 | FUEL PIPE |
| 26 | 6601535 | CARBURETOR ASS'Y (WYL-367) |
| 27 | 6601536 | AIR CLEANER BASE |
| 29 | 6698405 | CARBURETOR PACKING |
| 31 | 6696544 | CORD |
| 32 | 6601358 | SEAL LOCK HEX. SOCKET HD. BOLT M6X27 |
| 36 | 6600902 | CYLINDER N24 |
| 46 | 6698700 | GLASS WASHER |
| 48 | 6601612 | IGNITION COIL |
| 49 | 6601527 | CYLINDER PACKING |
| 50 | 6698404 | PISTON RING |
| 52 | 6684590 | CIR CLIP |
| 55 | 6601344 | PISTON PIN |
| 57 | 6601529 | MUFFLER ASS'Y |
| 61 | 6685068 | MACHINE SCREW (W/SP. WASHER) M4X12 |
| 63 | 6696879 | FLYWHEEL NUT M7 |
| 64 | 6696880 | BOLT WASHER D7 |
| 65 | 6685334 | STARTER PAWL |
| 66 | 6685335 | STARTER PAWL SPRING |
| 68 | 6685336 | RETAINING RING D4 |
| 70 | 6684607 | OIL SEAL TB 12227 |
| 71 | 6684608 | BALL BEARING 6001 C3 |
| 74 | 6600514 | CRANK CASE PACKING |
| 76 | 6699173 | CLUTCH (B) |
| 77 | 6601548 | CLUTCH DRUM |
| 78 | 6698740 | BALL BEARING 6002ZC3 |
| 79 | 939544 | RETAINING RING FOR D15 SHAFT |
| 80 | 6688643 | GREASE NIPPLE COMP. |
| 91 | 6693227 | STARTER HANDLE |
| 95 | 6685183 | DAMPER SPRING |
| 97 | 6684679 | SET SCREW |
| 98 | 6698402 | FUEL TANK CAP ASS'Y |
| 100 | 6698615 | CUSHION RUBBER |
| 102 | 6600358 | FUEL GROMMET |
| 103 | 6698716 | FUEL PIPE |
| 104 | 6601399 | FUEL PIPE |
| 106 | 6600351 | PUMP FILTER |
| 132 | 6698776 | FRONT HANDLE |
| 139 | 6696348 | SPRING (A) |
| 141 | 6696359 | CLIP |
| 143 | 6696344 | TRIGGER LOCKOUT |
| 144 | 6696345 | THROTTLE LEVER SPRING |
| 145 | 6601275 | STOP SWITCH |
| 147 | 305812 | TAPPING SCREW (W/FLANGE) D4X16 (BLACK) |
| 149 | 334379 | FERRITE CORE |
| 153 | 6699059 | STOP SWITCH CORD (B) |
| 154 | 6696491 | STOP SWITCH CORD |
| 156 | 6684639 | BOLT WASHER 6 |
| 157 | 6600892 | SUPPORT PLATE |
| 158 | 6698779 | SPRING HOLDER |
| 160 | 6600480 | ANTIVIBRATION SPRING |
| 161 | 6601556 | BLADE ASS'Y (660MM) |
| 161 | 6601557 | BLADE ASS'Y (780MM) |
| 162 | 6695170 | FLANGE NUT 6 |
| 162 | 6695170 | FLANGE NUT 6 |
| 164 | 6687275 | GUARD PLATE |
| 165 | 6687147 | CUTTER GUIDE 734L M6 |
| 165 | 6687144 | CUTTER GUIDE 845L M6 |
| 166 | 6695075 | HEX. HOLE FLUSH BOLT 6X25 |
| 168 | 6687187 | WASHER 7 BLACK |
| 168 | 6687187 | WASHER 7 BLACK |
| 169 | 6687158 | FIXING BOLT A M6 |
| 169 | 6687158 | FIXING BOLT A M6 |
| 180 | 6698385 | HEX. SOCKET HD. BOLT M4X12 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
