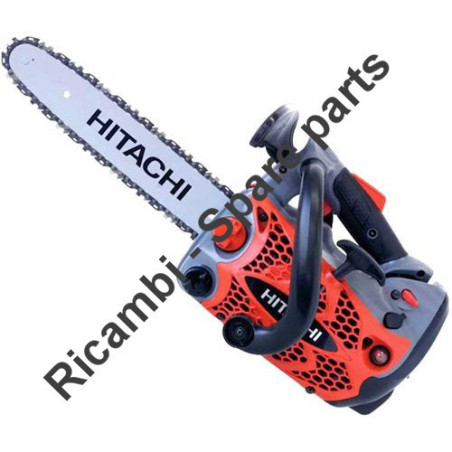

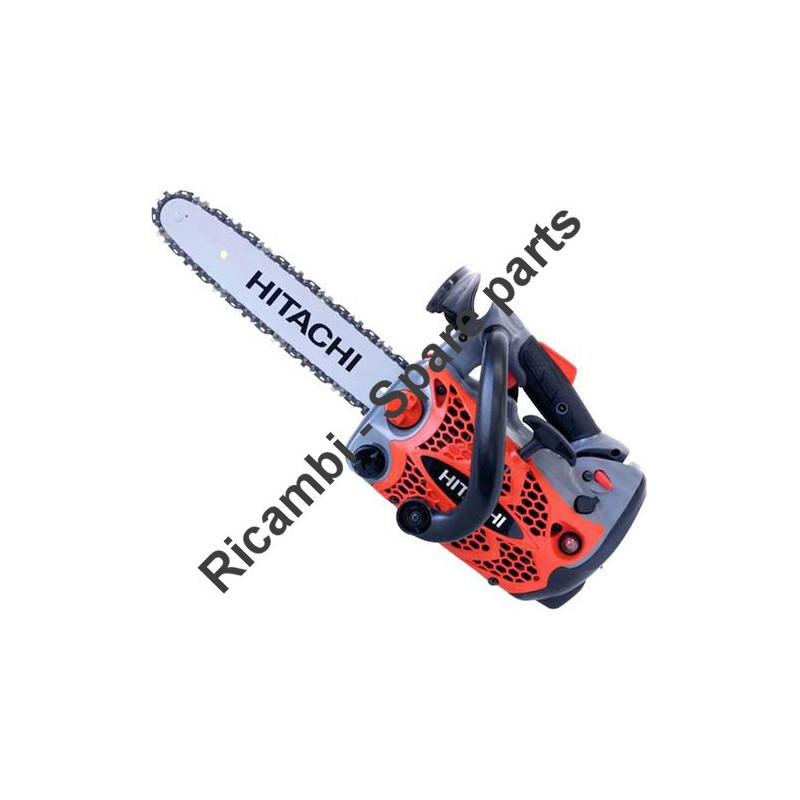

Hitachi Spare Parts for Engine Chainsaw CS33ET
€2.65
Tax included
Hitachi Spare Parts for Engine Chainsaw CS33ET
HITACHI-HIKOKI TANAKA Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Pruning Chainsaw CS33ET.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Hitachi Spare Parts for Engine Chainsaw CS33ET
HITACHI-HIKOKI TANAKA Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Pruning Chainsaw CS33ET.
In the following table, look for the model of the Chainsaw and ripettivo spare part.
| Chainsaw CS33ET | ||
| # | Part Num. | Description |
| 1A | 6685326 | CIRCLIP |
| 2A | 6696764 | PISTON PIN |
| 3 | 6685080 | PISTON SET |
| 4A | 6685331 | PISTON RING (XR1-1856) |
| 6A | 6698697 | CYLINDER PACKING |
| 7 | 6685084 | CYLINDER SET |
| 12 | 6685089 | IGNITION COIL COMP. |
| 13 | 6684602 | RUBBER CAP |
| 18A | 6698700 | GLASS WASHER |
| 21 | 6685095 | NEEDLE ROLLER 2.5X9.8 |
| 22A | 6685328 | BALL BEARING |
| 24 | 6684899 | WOODRUFF KEY 3X13X4.5 |
| 25 | 6685098 | SHIM S T0.2 |
| 25 | 6685099 | SHIM S T0.3 |
| 27 | 6684668 | HEX.HOLE BOLT M5X20/S |
| 28A | 6685336 | RETAINING RING D4 |
| 29 | 6685102 | MAGNETO ROTOR ASS'Y |
| 30 | 6685103 | BOLT WASHER M7 |
| 31 | 6685104 | FLYWHEEL NUT |
| 32A | 6685335 | STARTER PAWL SPRING |
| 33A | 6685334 | STARTER PAWL |
| 34 | 6685107 | CRANK CASE ASS'Y |
| 35 | 6685109 | MACHINE SCREW (W/SP. WASHER) M4X8 |
| 40 | 6685114 | HEX. SOCKET HD. BOLT M5X50 |
| 41 | 6684661 | WASHER 5 |
| 42 | 6685115 | MUFFLER COMP. |
| 43 | 6685117 | MUFFLER PACKING |
| 71 | 6685119 | BRAKE SUPPORT PLATE COMP. |
| 72 | 6685120 | COLLAR |
| 73A | 6685388 | BRAKE LINK |
| 74A | 6696783 | BRAKE LEVER SPRING |
| 75 | 6685123 | BRAKE HANDLE |
| 78 | 6685127 | OIL ADJUST GROMMET |
| 79 | 6685128 | OIL PUMP ADJUSTER |
| 80 | 6685129 | ADJUSTER SPRING |
| 81 | 6685070 | BOLT WASHER M4 |
| 82A | 6685130 | OIL PUMP ADJUST CAP |
| 83 | 6685131 | PUMP GEAR SPRING |
| 84 | 6685132 | PUMP GEAR COMP. |
| 85 | 6685133 | MACHINE SCREW M3X8 |
| 87A | 6685135 | OIL PUMP CASE ASS'Y |
| 91 | 6685139 | PRIMING PUMP COMP. |
| 92 | 6685140 | BRAKE BAND - DISCONTINUED |
| 93A | 6685391 | NEEDLE ROLLER D3 |
| 95A | 6685361 | NEEDLE BEARING (D) |
| 96A | 6685403 | CLUTCH HOUSING |
| 97A | 6685414 | CLUTCH WASHER |
| 98A | 6685360 | CRANK SHAFT COLLAR |
| 99 | 6685147 | OIL PUMP COVER |
| 100 | 6685148 | TAPPING SCREW D4X15 |
| 101 | 6685149 | MACHINE SCREW (W/SP. WASHER) M4X14 |
| 102 | 6685150 | OIL PIPE (A) |
| 103 | 6685151 | SCREW GEAR |
| 105 | 6685153 | TAPPING SCREW D4.5X14 |
| 106 | 6685154 | FUEL PIPE |
| 107 | 6685155 | CHAIN CATCHER |
| 108 | 6685156 | AIR VENT SPONGE |
| 109A | 6696784 | GUIDE PLATE (B) |
| 110 | 6685158 | TAPPING SCREW D3X8 |
| 112 | 6685161 | TAPPING SCREW D4X10 |
| 115 | 6685165 | SIDE COVER COMP. |
| 116A | 6685416 | CHAIN BAR CLAMP NUT |
| 117A | 6685389 | BRAKE SPRING |
| 118 | 6685168 | GEAR (A) |
| 119B | 6698986 | CHAIN PULLER |
| 121 | 6685161 | TAPPING SCREW D4X10 |
| 123 | 6685173 | AIR VENT VALVE (B) |
| 124 | 6685174 | ENGINE CASE ASS'Y |
| 125A | 6685175 | INNER CAP |
| 129 | 6685179 | TANK CAP PACKING |
| 130 | 6685180 | TANK CAP ASS'Y |
| 131 | 6684679 | SET SCREW |
| 132 | 6685182 | CAM PLATE |
| 133 | 6685183 | DAMPER SPRING |
| 134 | 6685184 | STARTER PULLEY |
| 135 | 6685185 | SPRING CASE SET |
| 137 | 6685187 | FAN CASE COMP. |
| 138 | 6685188 | STARTER HANDLE |
| 140 | 6685190 | RECOIL STARTER ASS'Y |
| 141 | 6685191 | TAPPING SCREW D4.5X20 |
| 164 | 6685196 | PIPE JOINT |
| 165 | 6685197 | SHIELD TUBE ASS'Y |
| 166A | 6685311 | CLIP |
| 169 | 6685153 | TAPPING SCREW D4.5X14 |
| 171 | 6685202 | INLET MANIFOLD SPACER |
| 173 | 6685203 | PULSE GUIDE |
| 174 | 6685204 | INTAKE COMP. |
| 175 | 6685205 | INTAKE PACKING |
| 176 | 6685206 | CHOKE LEVER |
| *178 | 6685208 | CARBURETOR ASS'Y WT-940 |
| 179 | 6685210 | SCREW |
| 181 | 6685212 | PUMP GASKET |
| 182 | 6685213 | PUMP DIAPHRAGM |
| 183 | 6684700 | INLET SCREEN |
| 184 | 6685215 | NEEDLE VALVE |
| 186 | 6685217 | CONTROL LEVER |
| 187 | 6685218 | HINGE PIN SET SCREW |
| 188 | 6685219 | HINGE PIN |
| 189 | 6685220 | DIAPHRAGM PACKING-METERING |
| 190 | 6684690 | METERING DIAPHRAGM |
| 192 | 6685223 | SET SCREW |
| 193 | 6685224 | IDLE SPONGE |
| 194 | 6685225 | AIR CLEANER BASE |
| 195 | 6685226 | WASHER M5 (BLACK) |
| 196 | 6685114 | HEX. SOCKET HD. BOLT M5X50 |
| 197 | 6685227 | CLEANER COVER |
| 198 | 6685228 | CLEANER KNOB |
| 199 | 6685229 | CLEANER SPONGE (B) |
| 200 | 6685230 | CLEANER ELEMENT A COMP. |
| 201 | 6685231 | CLEANER ELEMENT B COMP. |
| 202 | 6685232 | CLEANER SPONGE (A) |
| 203 | 6685233 | TAPPING SCREW D5X45 |
| 205A | 6696800 | COLLAR 28.2 |
| 207 | 6685153 | TAPPING SCREW D4.5X14 |
| 210 | 6685239 | STOP SWITCH |
| 212 | 6685241 | THROTTLE WIRE COMP. |
| 213 | 6685242 | THROTTLE LEVER |
| 214A | 6698691 | THROTTLE LEVER SPRING |
| 215 | 6685244 | TRIGGER LOCKOUT |
| 217 | 6685245 | MUFFLER COVER |
| 219 | 6685247 | SHIELD TUBE |
| 220A | 6685311 | CLIP |
| 221 | 6684661 | WASHER 5 |
| 222A | 6685310 | OIL FILTER BODY |
| 223 | 6685249 | OIL FILTER BODY ASS'Y |
| 226 | 6685252 | CORD 180MM |
| 228 | 6685074 | TAPPING SCREW D5X16 |
| 230 | 6685297 | IDLE ADJUST SPRING |
| 231 | 6685298 | IDLE ADJUST SCREW |
| 501A | 6685401 | CHAIN COVER 12" |
| 501A | 6685439 | CHAIN COVER 14" |
