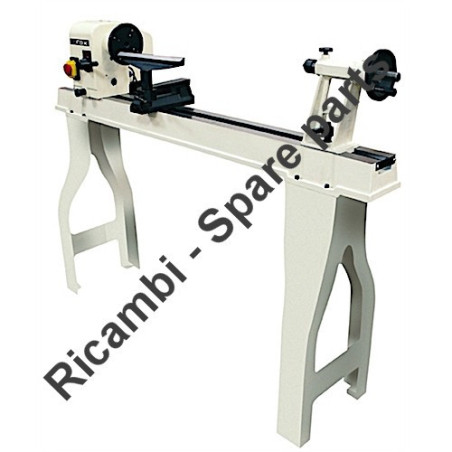

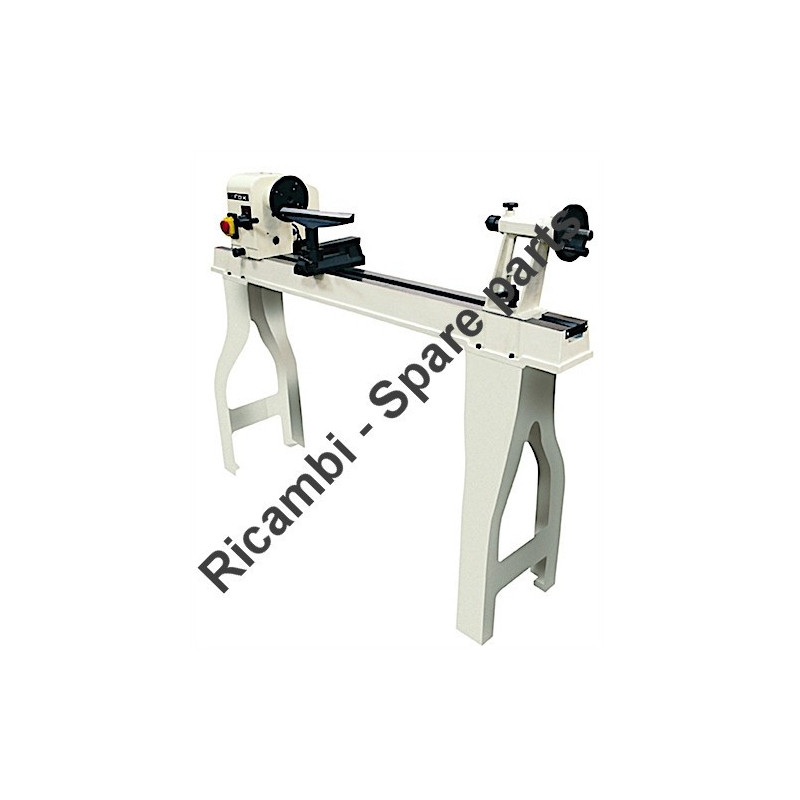

Fox Spare Parts for Wood Lathe F46-717A
€1.36
Tax included
Fox Spare Parts for Wood Lathe F46-717A
Fox Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly solve any repair issues forWood lathe with variable speed and max lenght 1060 mm F46-717A.- SPARE PARTS NOT SUITABLE FOR MACHINES DISTRIBUTED WITH THE DELTA FRANCE BRAND
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Fox Spare Parts for Wood Lathe F46-717A
Fox Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues forWood lathe with variable speed and max lenght 1060 mm F46-717A.- SPARE PARTS NOT SUITABLE FOR MACHINES DISTRIBUTED WITH THE DELTA FRANCE BRAND
In the following table, look for the model of the Wood Lathe Machines and the respective parts of the code.
| Wood lathe with variable speed Fox F46-717A | ||
| # | Part Num. | Description |
| 1 | F46717A-1 | Screw |
| 2 | F46717A-2 | Cover motor |
| 3 | F46717A-3 | Hex screw |
| 4 | F46717A-4 | Washer |
| 5 | F46717A-5 | Motor |
| 6 | F46717A-6 | Pin-injection |
| 7 | F46717A-7 | C ring |
| 8 | F46717A-8 | Screw |
| 9 | F46717A-9 | Motor pulley set, left & right |
| 10 | F46717A-10 | C ring |
| 11 | F46717A-11 | Bearing |
| 12 | F46717A-12 | Bracket-Shifting Lever |
| 13 | F46717A-13 | C ring |
| 14 | F46717A-14 | Rack |
| 15 | F46717A-15 | Switch Box |
| 16 | F46717A-16 | Headstock |
| 17 | F46717A-17 | Key 4x4x80 |
| 18 | F46717A-18 | C ring |
| 19 | F46717A-19 | Sleeve |
| 20 | F46717A-20 | Spring |
| 21 | F46717A-21 | Spindle Pullet Set, left & right |
| 22 | F46717A-22 | V-Belt 625 |
| 23 | F46717A-23 | C ring |
| 24 | F46717A-24 | Plastic Jaw Nut M20x1,5 |
| 25 | F46717A-25 | Poxer wire |
| 30 | F46717A-30 | Wrench |
| 31 | F46717A-31 | Drive center |
| 32 | F46717A-32 | Disc |
| 33 | F46717A-33 | Spindle |
| 34 | F46717A-34 | Key 4x4x80 |
| 35 | F46717A-35 | Bearing |
| 36 | F46717A-36 | C ring |
| 37 | F46717A-37 | C ring |
| 38 | F46717A-38 | Bearing |
| 39 | F46717A-39 | C ring |
| 40 | F46717A-40 | C ring |
| 41 | F46717A-41 | Label |
| 42 | F46717A-42 | Gear Assembly |
| 43 | F46717A-43 | Screw |
| 44 | F46717A-44 | Screw |
| 45 | F46717A-45 | Angular setting assembly |
| 46 | F46717A-46 | Special Screw |
| 47 | F46717A-47 | Index Bracket |
| 48 | F46717A-48 | Clamp |
| 49 | F46717A-49 | Nut |
| 50 | F46717A-50 | C ring |
| 51 | F46717A-51 | Lever |
| 52 | F46717A-52 | Handle |
| 53 | F46717A-53 | Screw |
| 54 | F46717A-54 | Nut |
| 55 | F46717A-55 | Screw |
| 56 | F46717A-56 | Plate |
| 57 | F46717A-57 | Plate |
| 58 | F46717A-58 | Bed |
| 59 | F46717A-59 | Bolt |
| 60 | F46717A-60 | C ring |
| 61 | F46717A-61 | Handle |
| 62 | F46717A-62 | Shaft |
| 63 | F46717A-63 | Tool rest body |
| 64 | F46717A-64 | Nut |
| 65 | F46717A-65 | Clamp |
| 66 | F46717A-66 | Bolt-A |
| 67 | F46717A-67 | Handle Assembly |
| 68 | F46717A-68 | C ring |
| 69 | F46717A-69 | Handle Assembly |
| 70 | F46717A-70 | Extension Tool Rest |
| 71 | F46717A-71 | Tool Rest |
| 72 | F46717A-72 | Center |
| 73 | F46717A-73 | Shaft |
| 74 | F46717A-74 | Tailstock |
| 75 | F46717A-75 | Tail Spindle |
| 76 | F46717A-76 | Tailstock Screw |
| 77 | F46717A-77 | Handle Assembly |
| 78 | F46717A-78 | Handle Wheel |
| 79 | F46717A-79 | Screw |
| 80 | F46717A-80 | C ring Special Bolt |
| 81 | F46717A-81 | Clamp |
| 82 | F46717A-82 | Nut |
| 83 | F46717A-83 | Screw |
| 84 | F46717A-84 | Plate |
| 85 | F46717A-85 | Washer |
| 86 | F46717A-86 | Nut |
| 87 | F46717A-87 | Leg |
| 88 | F46717A-88 | Leg |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fox websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fox F46-717A FEMI Italy
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS APPROX.
- MORE INFO:
- PLEASE PAY ATTENTION! FOR MACHINES FEMI SPA DISTRIBUTION ONLY
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
