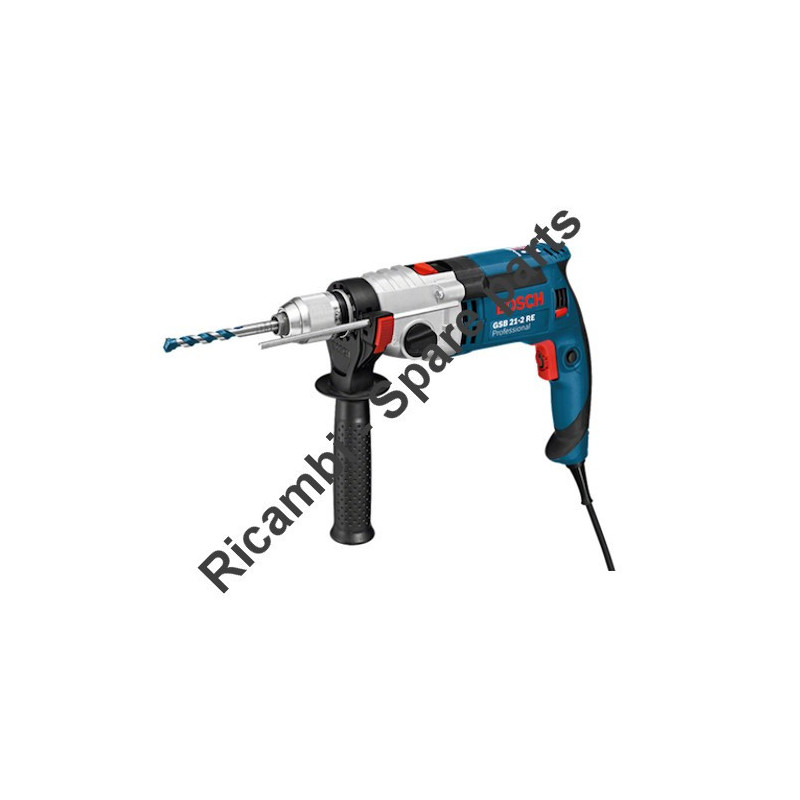

Bosch Spare Parts for Impact Drill GSB 21-2 RE
€2.66
Tax included
Bosch Spare Parts for Impact Drill GSB 21-2 RE
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Impact Drill GSB 21-2 RE - 3601A9C500.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Bosch Spare Parts for Impact Drill GSB 21-2 RE
We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Impact Drill GSB 21-2 RE - 3601A9C500.In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Impact Drill GSB 21-2 RE/3 601 A9C 500 | ||
| # | Part Num. | Description |
| 1 | 2605105141 | Motor Housing DARK BLUE |
| 2 | 2604220727 | Field 230-240V |
| 4 | 2607200664 | Switch |
| 6 | 1600703034 | Grommet Ø7,3-Ø8,6x66 MM |
| 8 | 2601115950 | Nameplate |
| 9 | 2601115904 | Manufacturer's nameplate GSB 21-2 RE |
| 14 | 2600905095 | groove ball bearing 9x24x7 |
| 19 | 2603490017 | Torx Oval-Head Screw 3x10 |
| 20 | 2601115903 | Reference Plate |
| 24 | 2606135148 | Drilling Spindle |
| 26 | 2604616013 | Compression Spring |
| 27 | 1900905163 | groove ball bearing 17x35x10 |
| 28 | 2600100695 | Shim 0,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17x1 MM |
| 30 | 2602300032 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 33 | 2606317086 | Cylindrical Gear |
| 34 | 2606317098 | Cylindrical Gear |
| 35 | 2600101047 | Shim 0,3 MM |
| 36 | 2600190105 | Catch Disk |
| 38 | 2600000021 | Shim washer 1,0 MM |
| 38 | 2600000030 | Shim washer 1,35 MM |
| 38 | 2600000031 | Shim washer 1,7 MM |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 40 | 2603230007 | Ball 5,25 MM |
| 41 | 2602026168 | Rotary Knob BLACK |
| 42 | 2603120064 | Control Shaft |
| 44 | 2601015091 | Seal |
| 46 | 2603435086 | Tapping Screw |
| 47 | 2605132070 | Housing Cover DARK BLUE |
| 53 | 2600550008 | Disc Spring |
| 61 | 2600100607 | Shim 0,3 MM |
| 63 | 2603435085 | Headless Screw |
| 68 | 2604616014 | Compression Spring |
| 69 | 2602026117 | Rotary Knob BLACK |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 2603490027 | Torx Oval-Head Screw 4x40 |
| 73 | 2603490022 | Torx Oval-Head Screw 4x16 |
| 74 | 2601324062 | Switch Contact |
| 75 | 2601099260 | Contact |
| 76 | 1614336061 | Brush Plate |
| 78 | 2916660014 | Spring retaining ring DIN 472 35x1,5 MM |
| 84 | 2916660008 | Spring retaining ring DIN 472-24x1,2 MM |
| 85 | 2608572143 | Keyless Chuck HSB 4 |
| 86 | 1614448014 | Connecting Cable L=80 MM |
| 87 | 2604448338 | Connecting Cable |
| 89 | 2605510206 | Bulb Shield BLACK |
| 210 | 2601115906 | Reference Plate ANTI-ROTATION |
| 653 | 2602025184 | Auxiliary Handle BLACK |
| 655 | 1613001009 | Depth-Gauge SW 6x210 MM |
| 803 | 2604011401 | Armature 230-240V |
| 805 | 2604460912 | Power supply cord |
| 810 | 1617000525 | Carbon-Brush Set |
| A | 1607000485 | Carbon-Brush Set 10 x 1 617 000 525 |
| 825 | 2605806882 | Gear Housing |
| 843 | 2605700946 | Bearing Bracket |
| 845 | 2600148016 | Air-Deflector Ring |
| 859 | 2606309941 | Transmission |
| 866 | 2602033018 | Adjusting Slide |
| 867 | 2606308925 | Toothed rack |
| 888 | 2601328900 | Holding Plate BLACK |
| 890 | 2607001305 | Fastening parts kit |
| 895 | 3605430003 | Grease Tube Albida |
