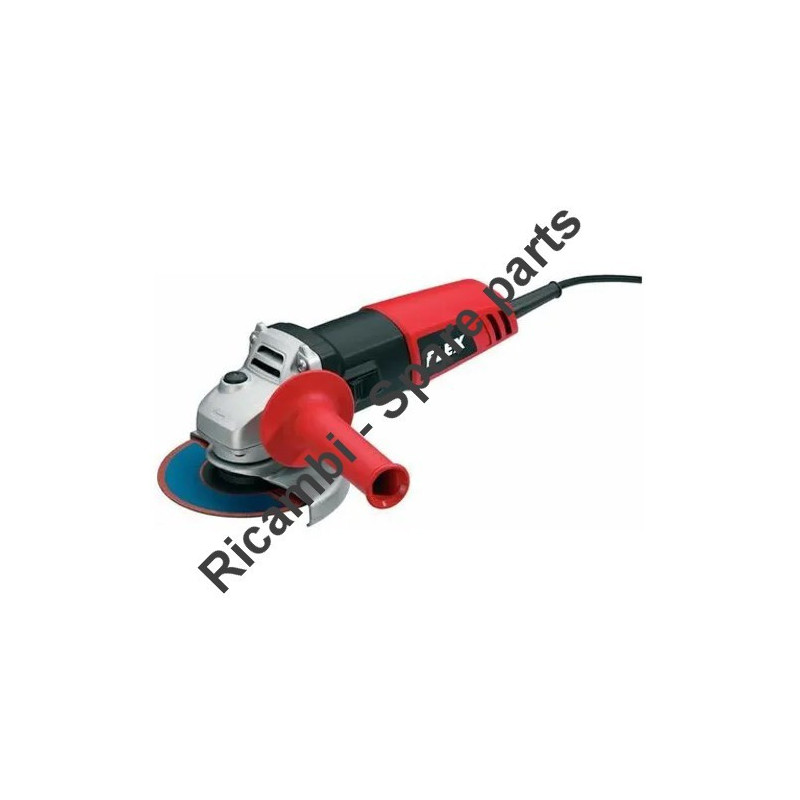

| L 800 from 01.06.2014 - 345.132 | ||
| # | Part Num. | Description |
| 1 | 336440 | Knob For Spindle Lock |
| 2 | 396459 | Knob for spindle lock |
| 3 | 336467 | Spring for spindle lock |
| 4 | 908939 | Screw KT 5x25 |
| 5 | 336475 | Gear housing |
| 6 | 336483 | Needle bushing |
| 7 | 336491 | Crown wheel |
| 8 | 336505 | Washer |
| 9 | 336513 | Retaining ring |
| 10 | 119482 | Ball bearing DIN 625 |
| 11 | 336521 | Sealing ring |
| 12 | 336548 | Bearing Cover |
| 13 | 331457 | Screw M4x12 |
| 14 | 336556 | Gear shaft |
| 15 | 336564 | Guide rail |
| 16 | 335258 | Protection guard - 115 |
| 16 | 335266 | Protection guard - 125 |
| 17 | 336572 | Dust protector |
| 18 | 331430 | Screw M 4x10 |
| 19 | 336580 | Rubber ring |
| 20 | 221872 | Hex Nut M6 |
| 21 | 396598 | Spiral Bevel Gear |
| 22 | 336602 | Washer |
| 23 | 336610 | Ball bearing |
| 24 | 336629 | Fan |
| 25 | 336637 | Armature |
| 26 | 336845 | Insulation washer |
| 27 | 254443 | Ball bearing |
| 28 | 336653 | Bearing Ring |
| 29 | 335282 | Clamping flange |
| 31 | 100080 | Clamping Nut M 14 |
| 32 | 100110 | Pin spanner |
| 33 | 336661 | Air Guide |
| 34 | 336623 | Screw KT 4.2x65 |
| 35 | 336688 | Magnetic field |
| 36 | 336696 | Motor housing |
| 37 | 336716 | Carbon Brush Holder |
| 38 53 | 336807 | Shut-off carbon brush AB |
| 39 | 336726 | Capacitor |
| 41 | 336734 | Hood |
| 42 | 329797 | Screw KT 4x16 |
| 43 | 336742 | Cable clamp |
| 44 | 336750 | Cable protection sleeve |
| 46 | 295663 | Power Cord |
| 47 | 308203 | Screw 3.5x14 |
| 48 | 336769 | Switch ---> 440558 |
| 49 | 336777 | Compression spring |
| 50 | 336785 | Actuating rod |
| 51 | 336793 | Switch lever |
| 52 | 336831 | Screw KT 2.9x8 |
| 54 | 336858 | Spring |
| * | 336274 | Grip (not shown) |
| 56 | 336955 | Suppressor choke |
