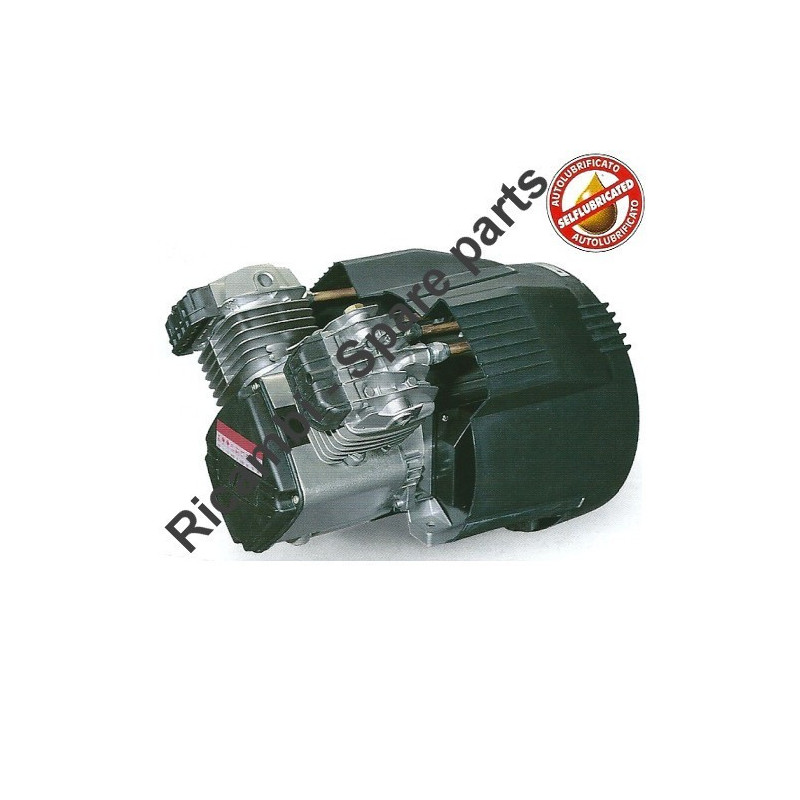

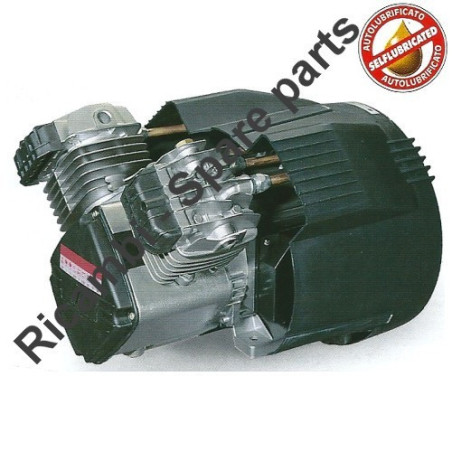

FIAC Spare Parts for Piston Air Compressor Pump VS 314 S

€325.56
Tax included

FIAC Spare Parts for Piston Air Compressor Pump VS 314 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 314 S.
ITEM CODE: 4013450000
Quantity
Usually Ships in: 10/15 Business Days Approx.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

FIAC Spare Parts for Piston Air Compressor Pump VS 314 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 314 S

In the following table , look for the model of the pumping unit and the respective parts of the code.
Fiac VS 314 S

VS 314 S data validità - da 02/03/2011
# Part Num. Description
1 7011060000 Screw M6x45 UNI-5737
2 5030170008 Head
3 7458031000 filter plate
4 7210010000 filter element
5 7210640000 INTAKE FILTER VS204S-VS254S
6 7012100000 screw Ø3,9X16
7 7196000000 Start valve M1/4" 2.2 bar
8 7081100000 3/8 ''
9 7231770000 PIPE HEAD VS 204 / 254S COPPER D.10 SX
10 7010120000 Screw M6X25 UNI-5931
11 7089950000 Collector
12 7231760000 PIPE HEAD VS 204 / 254S COPPER D.10 DX
13 7078500000 Head gasket
14 7459580000 valve plate --> 1127450951
15 7078150000 gasket
16 7150370000 Plastic Hood
17 7078740000 gasket
18 7575290000 Cylinder
19 7020070000 Nut M8 UNI-5587
20 7015020000 prisoner M.8X35X14X16
21 5070160008 sump
22 5041370008 Crank
23 7038070000 Washer Ø20,1X26X2 UNI-6593
24 7011390000 Screw M8x20 DIN-6921
26 7031010000 Washer Ø8 UNI-3703
27 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF
30 7041010000 Seeger Ø12
31 7050050000 Pin Ø12 / 8,5X46 GMS
32 7220300000 Piston
36 7151030000 COVER CARTER GMVS
37 7012020000 Screw Ø3,9X12,7 DIN-7981
38 7210120000 FILTER HOUSING COVER
39 7151040000 COVER-FILTER GMV / S
40 7060050000 6007 35-62-14-bearing 2RS1 SKF
41 4280780000 Rotor Kit
42 4013450000 stator
43 7382340000 terminal cover
44 7038020000 Washer Ø8X30X3 UNI-6593
45 7310380000 Condenser MF.40 V450
46 7329900000 Cable Pressure / Motor
47 7015100000 guy M6X185
48 7501050000 cable locks
49 7200340000 Fan
50 7410750000 Prot. 12 Thermal AMP.P & B
51 7060090000 6204-2RS1-bearing SKF
52 7640010000 cover
100 4021350000 Kit head
101 4191140000 SET CON-Rod PIST.VS-BAND SINGLE RING-DSB
102 4190320000 rod kit
103 4080043000 Kit Rings
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac VS314S
