FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda
€30.62
Tax included

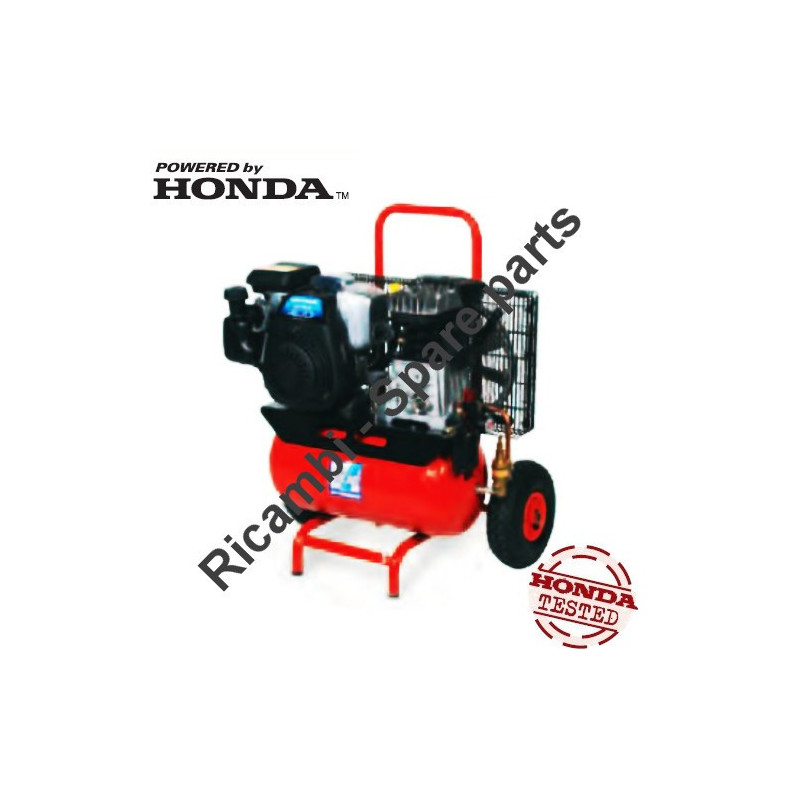

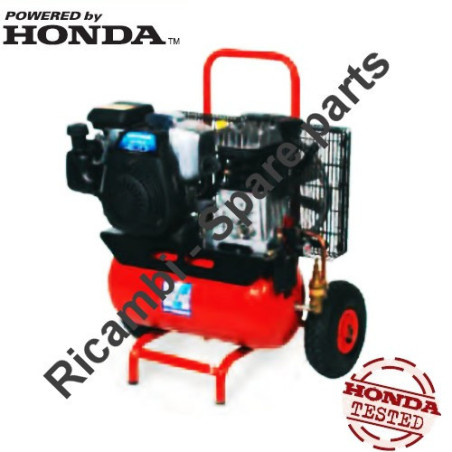

FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda
Genuine Parts FIAC for Air compressors with petrol engines Agri 25-Agri 40 for use where there is no available electric power supply. Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Parts for Petrol Engine Air Compressors Agri 25/40 - AB248 - Honda
Genuine Parts FIAC for Air compressors with petrol engines Agri 25 - Agri 40 for use where there is no available electric power supply. Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them on impracticable ground. Equipped with pressure regulator/filter and, in the Agri models, also with a lubricator, they are remarkably powerful, sturdy, versatile, handy and easy to use.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.
In the following table, look for the type of the air compressor and the respective parts of the code .
| Petrol Engine Agri 25/40 - AB248- Honda Pump Unit AB 248-338 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 7385080000 | Combustion Engine |
| 2 | 7240260000 | Belt Guard HP.4 S-16 HONDA |
| 3 | 9110930000 | Pumping Unit AB 268 |
| 4 | 5140390008 | Handle |
| 5 | 7110140000 | Manometer |
| 6 | 7230030000 | Rilsan Tube Ø10X8 |
| 7 | 7014100000 | Screw M8x20 UNI-5449 |
| 8 | 7517330000 | DISTRIBUTOR ALLUM.6047 3 / 8-1 / 4-3 |
| 9 | 7130160000 | Bleeding Tap M3 / 8 " |
| 10 | 7130570000 | Universal Tap M1 / 4 " |
| 11 | 7232710000 | Rubber Hose |
| 12 | 7195100000 | Circuit Breaker |
| 13 | 7090030000 | Cap 1/2 |
| 14 | 7084190000 | Fitting "L" 3 / 8-1 / 2 MM |
| 15 | 7110240000 | Manometer Ø40-1 / 8 " |
| 16 | 7100410000 | Pressure Reducer |
| 17 | 7100420000 | Lubricator |
| 18 | 7011050000 | Screw M6x30 UNI-5739 |
| 19 | 7360140000 | Rubber Foot |
| 20 | 7084260000 | Fitting M3 / 8 "X10 |
| 21 | 7370740000 | V-Belt. A 45 |
| 22 | 7408780000 | Pulley OP100 1-A-F15 |
| 23 | 7192010000 | Valve Sic. M1 / 4-10,5Bar |
| 24 | 7260310000 | WHEEL PNEUM.D.320X120 |
| 25 | 5151050008 | Tank 100lt |
| 26 | 7021010000 | Nut M6 UNI-7473 |
| 27 | 7101500000 | Mounting Kit |
| 28 | 7152550000 | HOOD X S 24 |
| 28 | 7152570000 | Spacer |
| 29 | 7062680000 | Bush |
| 30 | 7012090000 | Screw M5x12 UNI-8112 |
| 31 | 7031010000 | Washer Ø8 UNI-3703 |
| 32 | 7011970000 | Screw 5/16 "25 UNF |
| 33 | 7012150000 | Ø Screw 4,2X45 UNI-6954 |
| 34 | 7030190000 | Washer Ø6,4X18X1,5 UNI-6593 |
| 35 | 7030050000 | Washer Ø6X24 UNI-6593 |
| 36 | 7090080000 | Cap M3 / 8 " |
| 37 | 7010320000 | Screw M5x25 UNI-5931 |
| 38 | 7040190000 | Safety Pin |
| 39 | 7280030000 | Knob |
| 40 | 7084250000 | The Fitting 3 / 8M RAP10X8 |
| 41 | 7030020000 | Ø6 Washer UNI-6592 |
| 42 | 7014330000 | Screw M5x60 UNI-6107 |
| 43 | 7011130000 | Screw M8X40 UNI-5739 |
| 44 | 7030010000 | Washer Ø5 UNI-6592 |
| 45 | 7011040000 | Screw M6X20 UNI-5739 |
| 46 | 7011120000 | Screw M10x45 UNI-5739 |
| 47 | 7030040000 | Washer Ø10 UNI-6592 |
| 48 | 7038020000 | Washer Ø8X30X3 UNI-6593 |
| 49 | 7020050000 | M5 Nut UNI-5587 |
| 50 | 7459200000 | SUPP.DISTR.S-16 / S-33R / GONF. "AGRIAIR |
| 001A | 7382680000 | Combustion Engine |
| 011A | 7231350000 | Tube Feeding |
| 022A | 7408140000 | Pulley Op 90 F 19 A |
| 043A | 7011120000 | Screw M10x45 UNI-5739 |
| Pump Unit AB 248-338 Pag.2 | ||
| 1 | 9700001075 | Carter |
| 2 | 9700001076 | Casing Cover |
| 3 | 9700000531 | Screw M5X18 UNI 7687 |
| 4 | 9700001077 | Gasket |
| 5 | 9100270140 | Crankshaft |
| 6 | 7060180000 | Bearing 6203 17X40X12 |
| 7 | 7060200000 | Bearing 6204 |
| 8 | 9100270150 | Oil Seal 20x47x7 |
| 9 | 9100270160 | Front Cover |
| 10 | 9100270170 | Back Cover |
| 11 | 9100280010 | O-Ring 144 |
| 12 | 7011460000 | Screw M6X16 TAP-TITE |
| 13 | 9100280020 | 4x6 Key |
| 14 | 9100280030 | Con Rod |
| 15 | 9100020080 | Pin |
| 16 | 9100020120 | Piston |
| 17 | 4080030000 | Kit Segments |
| 18 | 9100010580 | Seeger |
| 19 | 7575230000 | Cylinder |
| 20 | 7012220000 | Screw M8X 25 UNI-8112 |
| 21 | 9100280040 | Filter Plate |
| 22 | 9100280050 | Filter Element |
| 23 | 9100280060 | Suction Filter |
| 24 | 7012730000 | Screw M.4X45 |
| 25 | 9100280070 | Oil Level |
| 26 | 9100270180 | Gasket |
| 27 | 9100270190 | Gasket |
| 28 | 9100280080 | Valves Plate |
| 29 | 9100270200 | Gasket |
| 30 | 9100280090 | Valve |
| 31 | 9100270210 | Gasket |
| 32 | 9100280100 | Head |
| 33 | 7010080000 | Screw M8x35 UNI-5931 |
| 34 | 9100270220 | Conveyor |
| 35 | 7012090000 | Screw M5x12 UNI-8112 |
| 36 | 7011460000 | Screw M6X16 TAP-TITE |
| 37 | 9100280110 | Cork |
| 38 | 7030270000 | Washer 8 5X30X4 UNI-6593 |
| 39 | 9100270230 | Flywheel |
| 40 | 7011100000 | Screw M8X25 UNI-5739 |
| 41 | 7031010000 | Washer 8 UNI-3703 |
| 100 | 9100280210 | Kit Valve Plate |
| 101 | 9700000078 | Seal Kit |
| 102 | 4291030000 | Piston Kit |
| 033A | 7030030000 | Washer 8 UNI-6592 |
