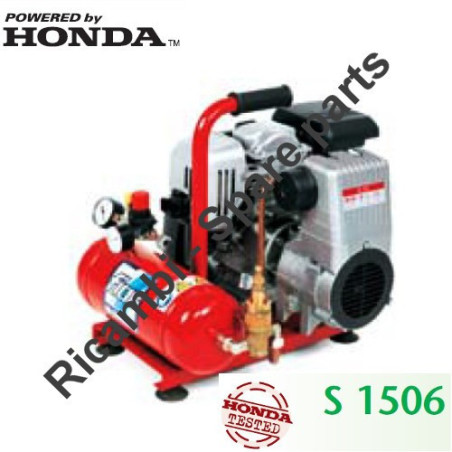

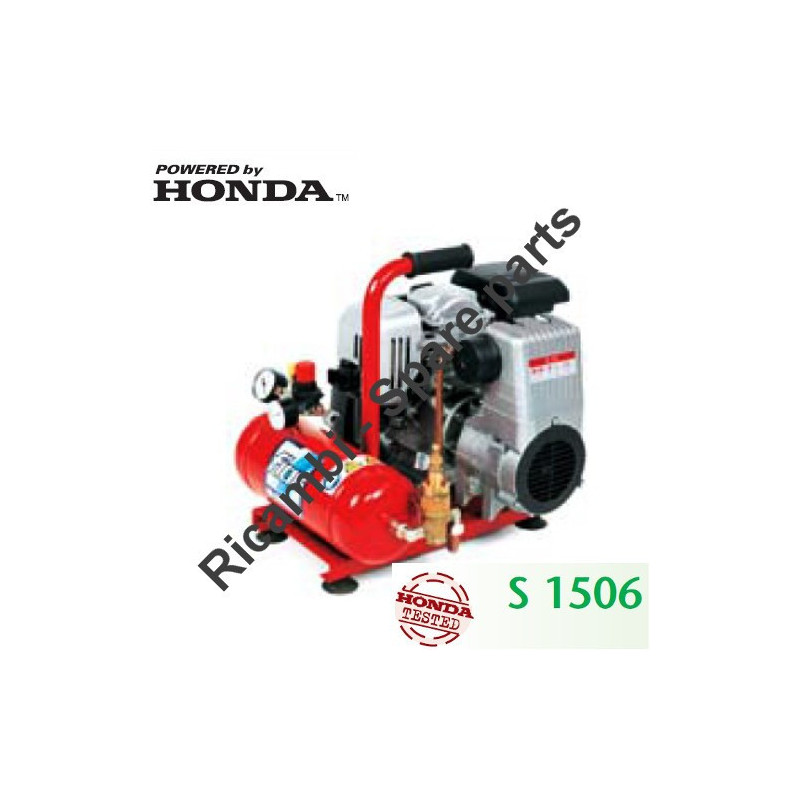

FIAC Spare Parts for Petrol Engine Air Compressors S1506 - S15 Honda
€376.89
Tax included
FIAC Spare Parts for Petrol Engine Air Compressors S1506 - S15 Honda
Genuine Parts FIAC for Air compressors with petrol engines S1506 for use where there is no available electric power supply.Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Petrol Engine Air Compressors S1506 - S15 Honda
Genuine Parts FIAC for Air compressors with petrol engines S1506 for use where there is no available electric power supply.
In the following table, look for the type of the air compressor and the respective parts of the code.
| Petrol Engine S 1506 - S15 Honda Pag.1 |
||
| # | Part Num. | Description |
| 1 | 5152300008 | Tank |
| 2 | 7382680000 | Engine |
| 3 | 7030030000 | Washer Ø8 UNI-6592 |
| 4 | 7011350000 | Screw M8x35 UNI-5739 |
| 5 | 7021030000 | Nut M8 UNI-7473 |
| 6 | 7270080000 | Sucker |
| 7 | 7011040000 | Screw M6X20 UNI-5739 |
| 8 | 7030020000 | Ø6 Washer UNI-6592 |
| 9 | 7021010000 | Nut M6 UNI-7473 |
| 10 | 7280030000 | Knob |
| 11 | 7081140000 | Fitting 1/4 "MM |
| 12 | 7086010000 | Fitting FFFM 1/4 |
| 13 | 7110180000 | Manometer |
| 14 | 7192010000 | Valve Sic. M1 / 4-10,5Bar |
| 15 | 7100530000 | Pressure Regulator |
| 16 | 7110240000 | Manometer Ø40-1 / 8 " |
| 17 | 7130010000 | Tap M1/4" |
| 18 | 7080010000 | 3/8 MF |
| 19 | 7195100000 | Circuit Breaker |
| 20 | 7084190000 | Fitting "L" 3 / 8-1 / 2 MM |
| 21 | 7239750000 | Tube Feeding |
| 22 | 7130090000 | Drain Tap M1/4" |
| 23 | 2022010000 | Pumping Unit S-15 |
| 24 | 6002901438 | NIPPLE M1 / 4XM3 / 8-CIL.FRL290 |
| Pump Unit S 15 Pag.2 | ||
| 1 | 7011220000 | Screw M6x40 UNI-5737 |
| 2 | 7210010000 | Filter Element |
| 3 | 5030150008 | Head |
| 5 | 7459530000 | Kit Valve Plate |
| 8 | 7575360000 | Cylinder |
| 10 | 4080240000 | Piston Ring Kit |
| 11 | 7220050000 | Piston |
| 12 | 7050030000 | Pin Ø 13 |
| 13 | 7041030000 | Seeger Ø13 |
| 14 | 7098120000 | Stopper |
| 15 | 7070010000 | O-Ring 108 |
| 16 | 7090090000 | Stopper M1/4" Brass |
| 17 | 7072010000 | Seal |
| 18 | 7060060000 | Bearing 6205 |
| 19 | 5041280008 | Crank Shaft |
| 20 | 7040040000 | And Seeger 20 |
| 21 | 5040720008 | Fan Shaft |
| 22 | 7030030000 | Washer Ø8 UNI-6592 |
| 23 | 7010420000 | Screw M8x20 UNI-5931 |
| 24 | 5080060008 | Cover |
| 25 | 7200150000 | Cooling Fan |
| 26 | 7248060000 | Grid |
| 27 | 7012060000 | Screw M4X12 UNI-8112 |
| 28 | 7071260000 | Oil Seal SM 1728/7 |
| 29 | 7012290000 | Screw M5X20 TAP-TITE |
| 30 | 7070250000 | O-Ring 4500 |
| 31 | 7071090000 | Oil Seal 2552/10 |
| 32 | 5070260008 | Carter |
| 33 | 7011970000 | Screw 5/16 "25 UNF |
| 34 | 7040510000 | Ring |
| 35 | 7051280000 | Woodruff Key 4,76X4,76X22 X GC135 S-13 |
| 36 | 7016100000 | Screw M8x10 UNI-5923 |
| 37 | 7015020000 | Prisoner M.8X35X14X16 |
| 38 | 5050160008 | Piston ConRod |
| 39 | 7020070000 | Nut M8 UNI-5587 |
| 40 | 4081050000 | Kit Valves |
| 41 | 7084190000 | Fitting "L" 3 / 8-1 / 2 MM |
| 42 | 7382680000 | Engine |
| 43 | 7016190000 | Screw M5X8 UNI-5923 |
| 44 | 7488011000 | Plate |
| 45 | 7040200000 | Centering Ring |
| 46 | 7012080000 | Screw Ø4,2X12,7 UNI-6954 |
| 47 | 7030020000 | Ø6 Washer UNI-6592 |
| 48 | 7210800000 | Suction Filter |
| 49 | 7090080000 | Stopper M3 / 8 " |
| 50 | 7458031000 | Filter Plate |
| 100 | 4082970000 | Valve Plate Kit |
| 101 | 4191040000 | KIT ROD-PISTON-PISTON TINGS 55 / VX 304 |
| 102 | 4280800000 | GR.CARTER + TREE S-14 "HONDA" |
| 103 | 4082340000 | Gasket Set |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
