FIAC AB598S Pump Unit Parts
€179.74
Tax included

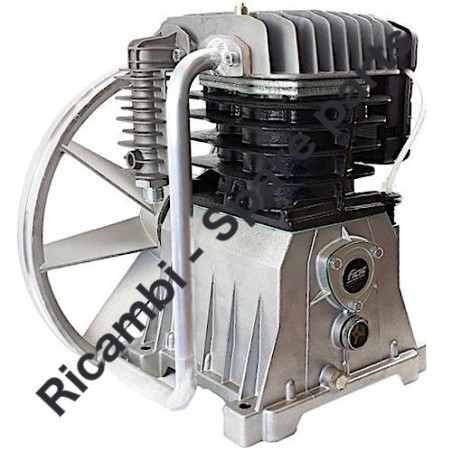

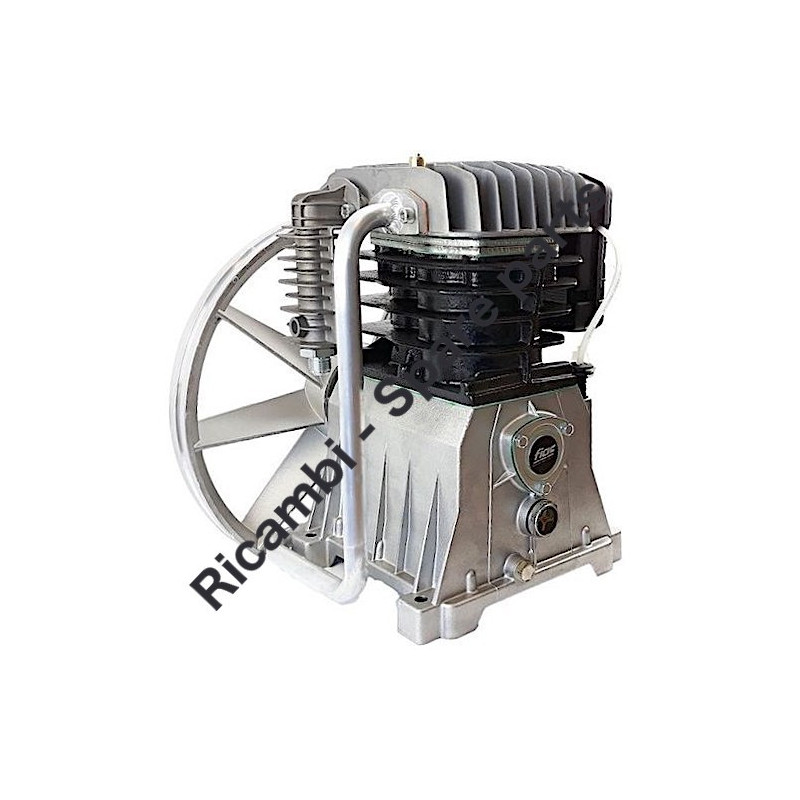

FIAC AB598S Pump Unit Spare Parts
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Pump Unit AB598S.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC AB598S Pump Unit Spare Parts
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Pump Unit AB598S.
In the following table, look for the type of the Pumping Unit and the respective parts of the code.
| FIAC Pump Unit AB598S - 1123020106 Parts List | ||
| # | Part Num. | Description |
| 1 | 5071020008 | Crankcase |
| 2 | 7650080000 | Front cover |
| 3 | 7060150000 | BEARING |
| 4 | 5041490008 | CRANKSHAFT |
| 5 | 7060060000 | BEARING |
| 6 | 7650070000 | Rear cover |
| 7 | 7090090000 | PLUG |
| 8 | 7180060000 | Oil level sight glass |
| 9 | 7051520000 | FEATHER |
| 10 | 7575460000 | Cylinder |
| 11 | 4231230000 | Valve Plate KIT |
| 11.1. | PLATE | |
| 11.2. | VALVE | |
| 11.3. | VALVE | |
| 11.4. | GASKET | |
| 12 | 5030610008 | Head |
| 13 | 4086830000 | Oil breather pipe plug kit |
| 14 | 7232330000 | COOLER |
| 15 | 5130110008 | Aftercooler |
| 16 | 7458910000 | BRACKET |
| 17 | 7192350000 | RELIEF VALVE |
| 18 | 7081190000 | FITTING |
| 19 | 7201050000 | Flywheel |
| 20 | 7650090000 | Lower cover |
| 21 | 4082280000 | Gaskets kit |
| 21.1. | GASKET | |
| 21.2. | 7079890000 | Gasket |
| 21.3. | 7079150000 | Gasket |
| 21.4. | 7079190000 | Lower Cover Gasket |
| 21.5. | 7071060000 | OIL SEAL 30/62/10 |
| 21.6. | 7079160000 | REAR COVER GASKET |
| 21.7. | 7079170000 | CYLINDER PLATE GASKET |
| 22 | 4080920000 | SCREWS KIT |
| 22.1. | SCREW | |
| 22.2. | SCREW | |
| 22.3. | SCREW | |
| 22.4. | WASHER | |
| 22.5. | SCREW | |
| 22.6. | WASHER | |
| 22.7. | SCREW | |
| 22.8. | SCREW | |
| 22.9. | SCREW | |
| 23 | 4080290000 | INTAKE FILTER KIT |
| 23.1. | FILTER COVER | |
| 23.2. | BASE PLATE | |
| 23.3 | 7210690000 | Filter CARTRIDGE |
| 23.4. | SCREW | |
| 24 | 4080850000 | LP Conn.rod/Piston |
| 24.1 | 4080840000 | PISTON RING KIT |
| 24.2. | 7220340000 | PISTON |
| 24.3. | 7050270000 | GUDGEON PIN |
| 24.4. | 6214342000 | INTERNAL SNAPRING |
| 24.5. | 5050580008 | CONNECTING ROD |
| 25 | 4080860000 | HP conn.rod/piston |
| 25.1 | 4080080000 | PISTON RING KIT |
| 25.2. | 7220120000 | Piston HP |
| 25.3. | 5050580008 | CONNECTING ROD |
| 25.4. | 7050130000 | Piston pin |
| 25.5. | 6214342000 | INTERNAL SNAPRING |
| 26 | 7083550000 | FITTING |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
