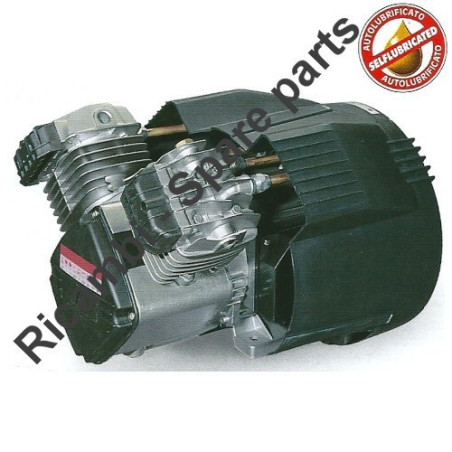

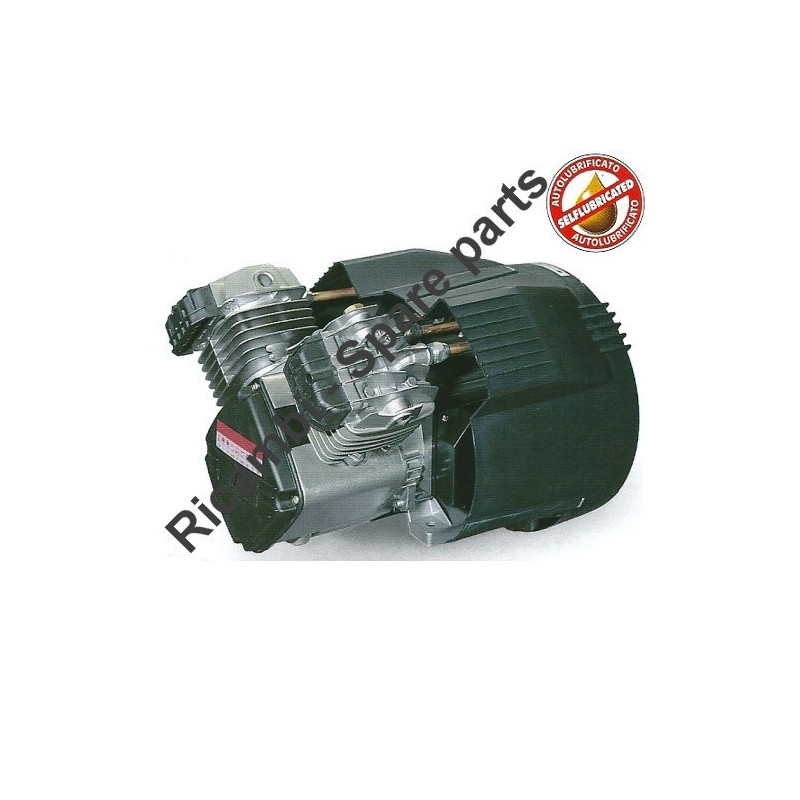

FIAC Pump Unit VS204S Spare Parts
€1.48
Tax included
FIAC Pump Unit VS204S Spare Parts
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS204S data validità - da 27/08/2003.Fix Your Pump unit, VS204S. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Pump Unit VS204S Spare Parts
Fix Your Pump unit, VS204S data validità - da 27/08/2003. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table , look for the model of the pumping unit and the respective parts of the code.
| FIAC VS204S MONOFASE - SINGLE PHASE V230-50/1 cod. 2025420000 | ||
| TRIFASE - THREE PHASE V400-50/3 | ||
| # | Part Num. |
Description |
| 1 | 7011220000 | Screw - Vite T.E. M6x40 UNI 5737 |
| 2 | 5030170008 | Head - Testa |
| 3 | 7458031000 | Filter plate - Piastrina filtro |
| 4 | 7210010000 | Filtering element - Elemento filtrante |
| 5 | 7210640000 | Intake filter - Filtro aspirazione |
| 6 | 7012010000 | Screw - Vite ø 3.9x19 "B" UNI 6954 |
| 7 | 7196020000 | START valve - Valvola START |
| 8 | 7081100000 | Joint - Raccordo |
| 9 | 7231770000 | Tube sx. - Tubo sx. |
| 10 | 7010120000 | Screw - Vite T.C.C.E. M6x25 UNI 5931 |
| 11 | 7089950000 | Manifold - Collettore |
| 12 | 7231760000 | Tube dx. - Tubo dx. |
| 13-16-17 | 4082380000 | Set of gasket - Kit guarnizioni |
| 14 | 7459510000 | Valve plate unit - Gruppo Piastra Valvole |
| 15 | 7150370000 | Housing - Carenatura |
| 18 | 7575290000 | Cylinder - Cilindro |
| 19 | 7020070000 | Nut - Dado M8 UNI 5587 |
| 20 | 7015020000 | Stud bolt - Prigioniero |
| 21 | 5070160008 | Carter - Carter |
| 22 | 5041360008 | Crank lever - Manovella |
| 23 | 7038070000 | Ring - Anello |
| 24 | 7011090000 | Screw - Vite T.E. M8x20 UNI 5739 |
| 25-28-29 | 4190320000 | Con rod unit - Gruppo biella |
| 26 | 7031010000 | Washer - Rondella ø 8 UNI 3703 |
| 27 | 7060140000 | Bearing - Cuscinetto 6204-2RS2-C3-HT22 |
| 30 | 7041010000 | Ring - Anello |
| 31 | 7050050000 | Piston pin - Spinotto |
| 32 | 7220070000 | Piston - Pistone - 1127220030+1127140104 |
| 33-34-35 | 4080040000 | Piston rings - Kit segmenti |
| 36 | 7151030000 | Carter cover - Coperchio carter |
| 37 | 7012020000 | Screw - Vite ø 3.9x12.7 UNI 6954 |
| 38 | 7210120000 | Filtering element - Elemento filtrante |
| 39 | 7151040000 | Filter cover - Coperchio filtro |
| 40 | 7060050000 | Bearing - Cuscinetto 6007 2RS |
| 41 | 4280770000 | Single phase rotor - Indotto monofase |
| 41A | 4280810000 | Three phase rotor - Indotto trifase |
| 42 | 4010810000 | Motor - Motore V230-50/1 |
| 42A | 4010980000 | Motor - Motore V400-50/3 |
| 43 | 7382340000 | Single phase cover - Coperchio monofase |
| 43A | 7382350000 | Three phase cover - Coperchio trifase |
| 44 | 7012020000 | Screw - Vite ø 3.9x12.7 UNI 6954 |
| 45 | 7310330000 | Capacitor - Condensatore 30 µF |
| 46 | 7329900000 | Single phase cable - Cavo monofase |
| 46A | 7329870000 | Three phase cable - Cavo trifase |
| 47 | 7501060000 | Stretch eliminator - Bloccacavo |
| 48 | 7501050000 | Stretch eliminator - Bloccacavo steab |
| 49 | 7410460000 | 3ph. thermal protection - Termica trifase |
| 50 | 7410470000 | 1ph. thermal protection - Termica monofase |
| 51 | 7060030000 | Bearing - Cuscinetto 6204 2RS |
| 52 | 7640010000 | Cover - Calotta |
| 53 | 7015100000 | Tension rod - Tirante |
| 54 | 7200340000 | Fan - Ventola |
| 55 | 7038020000 | Washer - Rondella ø 8x30x3 |
| 100 | 4021350000 | Head Unit - Gruppo Testa |
| 101 | 4191011000 | Set Con rod/Piston - Kit Biella/Pistone - 1124190114 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
