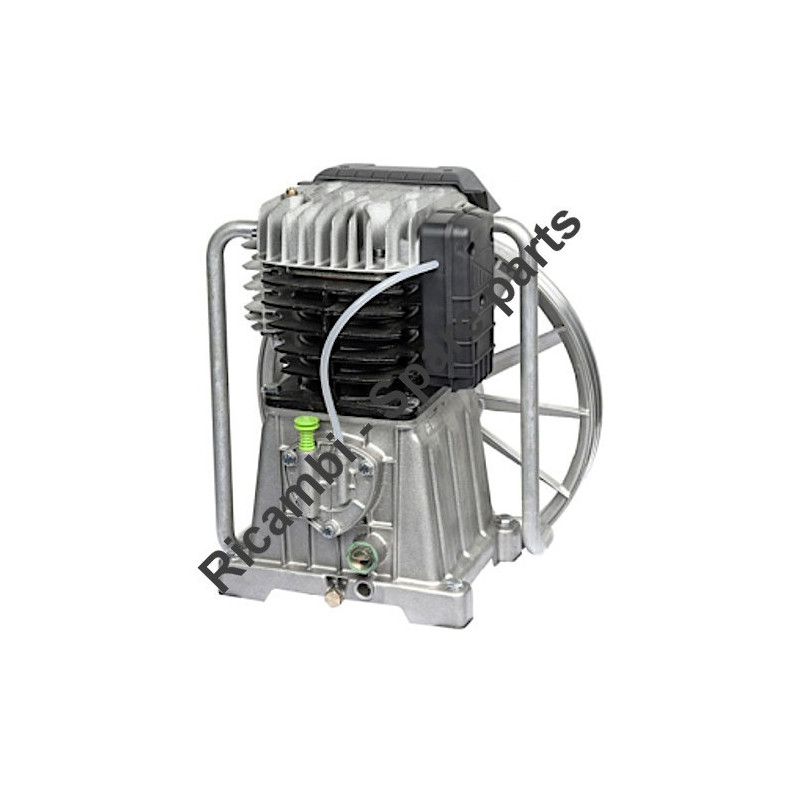

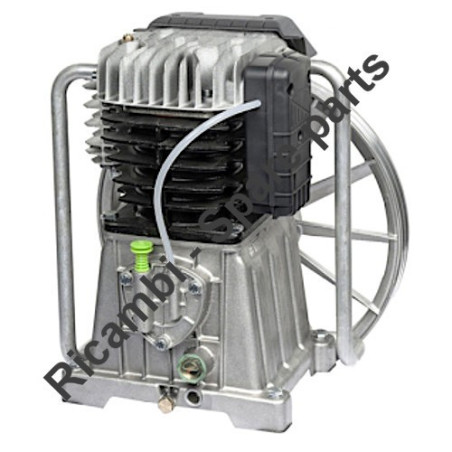

FIAC Spare Parts for Pump Unit AB998 S
€17.75
Tax included
FIAC Spare Parts for Pump Unit AB998 S
FIAC AIR COMPRESSORS Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressors Piston Pump Unit AB998 S - 1123020109.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Pump Unit AB998 S
FIAC AIR COMPRESSORS Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressors Piston Pump Unit AB998 S - 1123020109.
In the following table, look for the type of the Pump Unit and the respective parts of the code.
| FIAC PUMP UNIT AB998 S - 01-06-2015 - 1123020109 ING | ||
| # | Part Num. | Description |
| 1 | 4080910000 | SCREWS KIT |
| 1.1 | X | SCREW |
| 1.2 | X | SCREW |
| 1.3 | X | SCREW |
| 1.4 | X | WASHER |
| 1.5 | X | SCREW |
| 1.6 | X | WASHER |
| 1.7 | X | SCREW M8X25 UNI-5739 |
| 1.8 | X | SCREW M8X20 - UNI5931 |
| 1.9 | X | SCREW M8X40 - UNI5931 |
| 2 | 4081870000 | CON ROD-PISTON KIT |
| 2.1 | 4080270000 | PISTON RING KIT |
| 2.2 | X | INTERNAL SNAP RING I18 UNI7437 |
| 2.3 | 7220240000 | Piston HP Ø55 + Piston Ring Kit |
| 2.4 | 4190390005 | CONNECTING ROD |
| 2.5 | X | GUDGEON PIN Ø18 |
| 2.6 | 7060530000 | BEARING AB 991 |
| 2.7 | X | NUT M8 DIN-980 |
| 3 | 4081880000 | CON ROD-PISTON KIT LP |
| 3.1 | 7220350000 | PISTON Ø120 |
| 3.2 | 4080890000 | PISTON RING KIT LP |
| 3.3 | 4190390005 | CONNECTING ROD |
| 3.4 | X | GUDGEON PIN 18X99X12 |
| 3.5 | X | INTERNAL SNAP RING I18 UNI7437 |
| 3.6 | 7060530000 | BEARING AB 991 |
| 3.7 | X | NUT M8 DIN-980 |
| 4 | 4081890000 | GASKETS KIT |
| 4.1 | X | O RING Ø82X2 |
| 4.2 | X | GASKET |
| 4.3 | X | OIL SEAL 30X47X7 |
| 4.4 | X | GASKET |
| 4.5 | X | GASKET |
| 4.6 | X | GASKET |
| 5 | 4231290000 | VALVE PLATE |
| 5.1 | X | VALVE PLATE |
| 5.2 | X | VALVE |
| 5.3 | X | VALVE |
| 5.4 | X | GASKET |
| 6 | 5030630008 | HEAD |
| 7 | 5041260008 | CRANKSHAFT |
| 8 | 5070270008 | CRANKCASE |
| 9 | 5082050008 | SUPPORT |
| 10 | 5082090008 | SUPPORT |
| 11 | 5130010008 | COOLER |
| 12 | 7051520000 | FEATHER 6X9 |
| 13 | 7060150000 | BALL BEARING 6206 |
| 14 | 7060160000 | BALL BEARING 6006 |
| 15 | 9700001377 | PLUG |
| 16 | 7090090000 | PLUG M1/4 |
| 18 | 7153050000 | CONVEYOR |
| 19 | 1127180006 | OIL LIGHT |
| 20 | 7192350000 | RELIEF VALVE M1/4-6BAR |
| 21 | 7201240000 | FLYWHEEL |
| 22 | 7230040000 | PIPE 6X4 |
| 23 | 7232720000 | COOLER |
| 24 | 7458910000 | BRACKET |
| 25 | 7575470000 | CYLINDER |
| 26 | 9700002979 | Filter Kit |
| 26.1 | X | BASE PLATE |
| 26.2 | 9103760330 | FIiltering element |
| 26.3 | X | FILTER COVER |
| 27 | 7083610000 | NIPPLE |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB998S 1123020109
