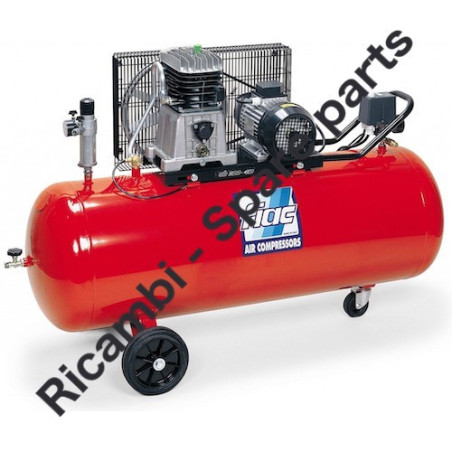

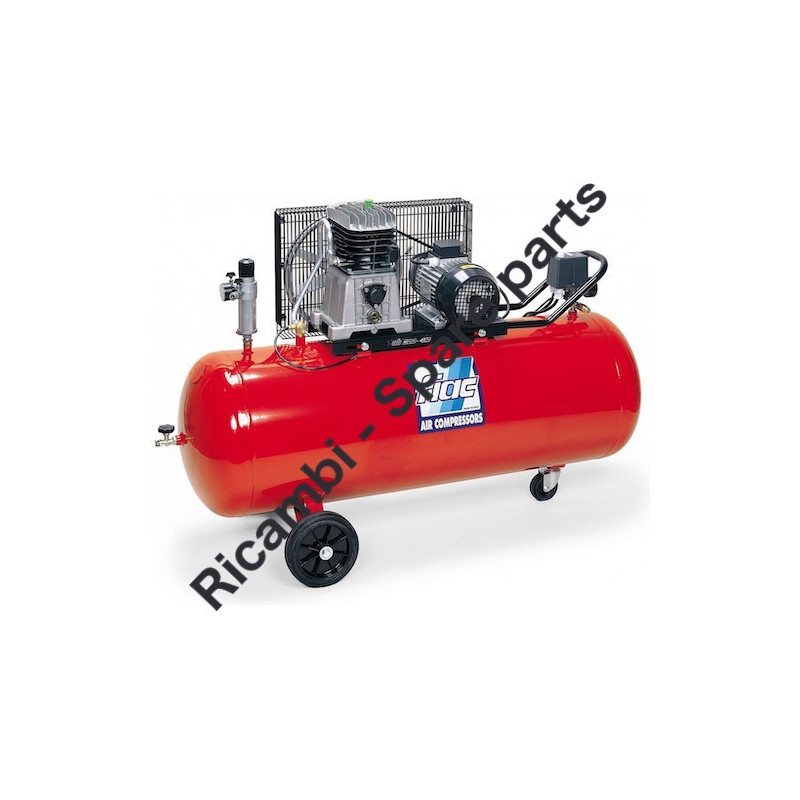

FIAC Parts for Piston Air Compressor AB 300-808 TC 400-50-3
€959.64
Tax included
FIAC Spare Parts for Piston Air Compressor AB 300-808 TC 400-50-3
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300-808 TC 400-50-3 14-04-2017 - 1121550509.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Piston Air Compressor AB 300-808 TC 400-50-3
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300-808 TC 400-50-3 14-04-2017 - 1121550509.
In the following table, look for the type of the air compressor and the respective parts of the code .
| AB 300-808 TC 400-50-3 14-04-2017 - 1121550509 ING__4198 Pag.1 | ||
| # | Part Num. | Description |
| 1 | 5159560008 | TANK |
| 2 | 7100560000 | PRESSURE REDUCER |
| 3 | 7192090000 | RELIEF VALVE |
| 4 | 7090030000 | PLUG |
| 5 | 7130160000 | DISCHARGE TAP |
| 6 | 7190150000 | CHECK VALVE |
| 7 | 7230010000 | RILSAN TUBE |
| 8 | 4051670000 | PRESS. SWITCH KIT |
| 8.1 | 7082690000 | FITTING |
| 8.2 | 7090070000 | PLUG |
| 8.3 | 7250490000 | PRESSURE SWITCH |
| 8.4 | 7328700000 | POWER CABLE |
| 8.5 | 7328690000 | CABLE |
| 9 | 7110060000 | PRESSURE GAUGE |
| 10 | 7085110000 | FITTING |
| 11 | 7130150000 | BALL COCK |
| 12 | 1125010086 | BASE PLATE |
| 13 | 7232070000 | PIPE |
| 14 | 7231550000 | INFEED HOSE |
| 15 | 1123020552 | PUMP UNIT AB808 |
| 16 | 4170110000 | BELT GUARD KIT |
| 17 | 1127450619 | BELT GUARD SUPPORT |
| 18 | 7370700000 | BELT |
| 19 | 4083060000 | KIT |
| 20 | 4083040000 | KIT |
| 21 | 7380850000 | THREE PHASE MOTOR |
| 22 | 7405610000 | PULLEY |
| 23 | 5140140008 | HANDLE |
| 24 | 4080520000 | SCREWS KIT |
| Pump Unit AB808 - 14-04-2017 1123020112 ING Pag.2 | ||
| 1 | 5071020008 | CRANKCASE |
| 2 | 7650080000 | COVER |
| 3 | 7060150000 | BEARING |
| 4 | 5041490008 | CRANKSHAFT - DISCONTINUED |
| 5 | 7060060000 | BEARING |
| 6 | 7650070000 | COVER |
| 7 | 7090090000 | PLUG |
| 8 | 1127180006 | OIL LIGHT |
| 9 | 7051520000 | FEATHER |
| 10 | 7575460000 | CYLINDER |
| 11 | 4231230000 | VALVE PLATE |
| 11.1 | 1129102571 | PLATE |
| 11.2 | 9106600020 | VALVE |
| 11.3 | 7199130000 | VALVE |
| 11.4 | GASKET | |
| 12 | 5030610008 | HEAD |
| 13 | 9700000300 | OIL VENT CAP |
| 14 | 7232220000 | INTERMEDIATE AFTERCOOLER |
| 15 | 5130110008 | AFTERCOOLER |
| 16 | 7458910000 | BRACKET |
| 17 | 7192350000 | RELIEF VALVE |
| 18 | 7081190000 | FITTING |
| 19 | 7201240000 | FLYWHEEL |
| 20 | 7650090000 | LOWER COVER |
| 21 | 4082280000 | GASKET KIT |
| 21.1 | 7079900000 | GASKET |
| 21.2 | 7079890000 | GASKET |
| 21.3 | 7079150000 | GASKET |
| 21.4 | 7079190000 | GASKET |
| 21.5 | 7071060000 | OIL SEAL SMIM 3062/10 |
| 21.6 | 7079160000 | GASKET |
| 21.7 | 7079870000 | GASKET |
| 22 | 4080920000 | SCREWS KIT |
| 22.1 | 7010050000 | SCREW |
| 22.2 | 7011100000 | SCREW |
| 22.3 | 1127010144 | SCREW |
| 22.4 | 7031010000 | WASHER |
| 22.5 | X | SCREW |
| 22.6 | 7030270000 | WASHER |
| 22.7 | 7010800000 | SCREW |
| 22.8 | 7011460000 | SCREW |
| 22.9 | 1127010009 | SCREW |
| 23 | 4080290000 | INTAKE FILTER KIT |
| 23.1 | 7152370000 | FILTER COVER |
| 23.2 | 7152360000 | BASE PLATE |
| 23.3 | 7210690000 | FILTER ELEMENT |
| 23.4 | 7010640000 | SCREW |
| 24 | 4080850000 | CON ROD-PISTON KIT LP |
| 24.1 | 4080840000 | KIT |
| 24.2 | 7220340000 | PISTON |
| 24.3 | 7050270000 | GUDGEON PIN |
| 24.4 | 7040140000 | INTERNAL SNAPRING |
| 24.5 | 1125050058 | CONNECTING ROD |
| 25 | 4080860000 | CON ROD-PISTON KIT HP |
| 25.1 | 4080080000 | KIT |
| 25.2 | 7220120000 | PISTON |
| 25.3 | 1125050058 | CONNECTING ROD |
| 25.4 | 7050130000 | PISTON PIN |
| 25.5 | 7040140000 | CIRCLIP HOLE I18 UNI 7437 |
