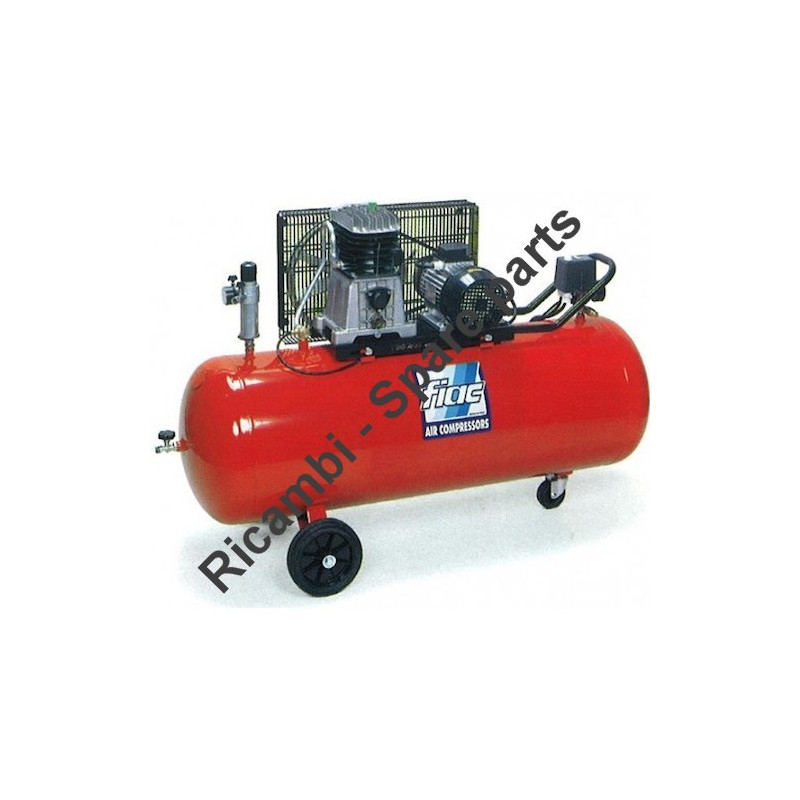

FIAC Spare Parts for Air Compressor 200 Liters for AB 480 - AB 530
€188.16
Tax included
FIAC Spare Parts for Air Compressor 200 Liters for AB 480 - AB 530
Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Air Compressor 200 LITERS with Pump Unit AB480 AB530.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
FIAC Spare Parts for Air Compressor 200 Liters for AB 480 - AB 530
Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Air Compressor 200 LITERS with Pump Unit AB480 AB530.
In the following table, look for the model of the pumping unit and the respective parts code.
| AIR COMPRESSOR 200 LITERS per AB 480 AB 530 pag.1 | ||
| # | Part Num. | Description |
| 1 | 5010850008 | Base - Base (AB450) |
| 1A | 5010460008 | Base - Base (AB671) |
| 2 | 7370230000 | Belt - Cinghia |
| 3 | 7380840000 | 3HP Electric Motor V230-400/50/3 - Motore Elettrico HP3 V230-400/50/3 |
| 4 | 7011170000 | Screw - Vite |
| 5 | 7030040000 | Washer - Rondella |
| 6 | 7408400000 | Pulley - Puleggia (AB450) |
| 6A | 7408050000 | Pulley - Puleggia (AB671) |
| 7 | 5140140008 | Handle - Manico |
| 8 | 7030030000 | Washer - Rondella ø8 UNI 6592 |
| 9 | 7020070000 | Nut - Dado M8 UNI 5587 |
| 10 | 7030040000 | Washer - Rondella ø10 UNI 6592 |
| 11 | 7011140000 | Screw - Vite T.E. M10x20 UNI 5739 |
| 12 | 7100440000 | Pressure reducer - Riduttore di pressione |
| 13 | 7090030000 | Plug - T appo |
| 14 | 7020100000 | Nut - Dado M12 UNI 5588 |
| 15 | 7030140000 | Washer - Rondella ø12 UNI 6592 |
| 16 | 4170160000 | Belt guard Kit - Kit paracinghia |
| 17 | 7260110000 | Wheel - Ruota |
| 18 | 7011230000 | Screw - Vite T.E. M12x80 UNI 5737 |
| 19 | 7030200000 | Washer - Rondella ø12 UNI 6593 |
| 20 | 7330010000 | Spacer Wheel - Distanziale ruota |
| 21 | 7260070000 | Wheel - Ruota |
| 22 | 7030140000 | Washer - Rondella ø12 UNI 6592 |
| 23 | 7020100000 | Nut - Dado M12 UNI 5588 |
| 24 | 7130160000 | Discharge tap - Rubinetto spurgo 3/8" G |
| 25 | 7130150000 | T ap - Rubinetto |
| 25A | 7130050000 | German type T ap - Rubinetto rapido T ed |
| 25B | 7130350000 | Orion T ap - Rubinetto rapido Orion |
| 26 | 7239640000 | Infeed tube - Tubo alimentazione |
| 27 | 7190090000 | Non return valve - Valvola ritegno 1/2" MM (AB450) |
| 27A | 7190150000 | Non return valve - Valvola ritegno 1/2" MM (AB671) |
| 28 | 7192090000 | Safety valve - Valvola di sicurezza |
| 29 | 7082690000 | Joint - Raccordo |
| 30 | 7110060000 | Pressure gauge - Manometro |
| AIR COMPRESSOR 200 LITERS per AB 480 AB 530 pag.2 | ||
| 31 | 7250490000 | Pressure switch - Pressostato |
| 32 | 7328690000 | Pressure switch/Electric motor cable - Cavo Pressostato/Motore |
| 33 | 7328700000 | Infeed cable - Cavo alimentazione |
| 34 | 7090070000 | Plug - T appo |
| 35 | 7085460000 | Joint - Raccordo |
| 36 | 5153820008 | T ank - Serbatoio |
| 37 | 3020500000 | Pump unit - Gruppo pompante AB498-598 EX AB450 |
| 37A | 3020811000 | Pump unit - Gruppo pompante AB 678 EX AB671 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB480 AB530
12 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10/15 BUSINESS DAYS APPROX.
- MORE INFO:
- info@bricoutensili.com
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
