FIAC Air Compressor WHISPER AB335 Spare Parts
Genuine Parts FIAC for Air compressor WHISPER AB 335 SINGLE PHASE V230-50/1
In the following table, look for the type of the air compressor and the respective parts of the code.

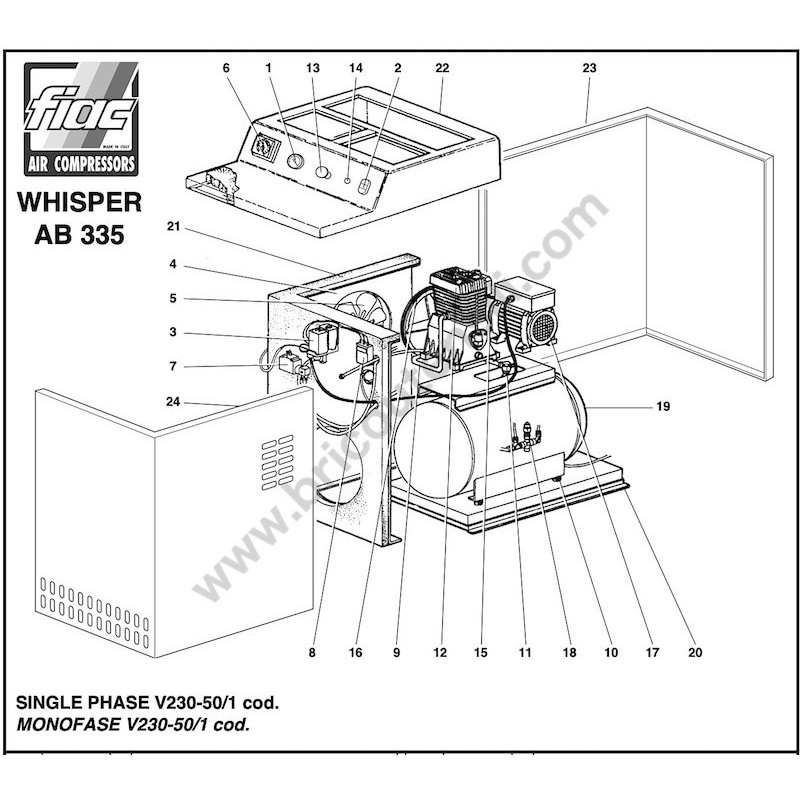

| WHISPER AB 335 Pag.1 |
||
| SINGLE PHASE V230-50/1 | ||
| MONOFASE V230-50/1 | ||
| Pos. | Codice | Descrizione |
| 1 | 7111010000 | Pressure gauge - Manometro |
| 2 | 7300190000 | ON/OFF switch - Pulsante ON/OFF |
| 3 | 7250240000 | Pressure switch - Pressostato |
| 4 | 7381800000 | Electric motor fan - Motore elettroventola |
| 5 | 7200110000 | Fan - Ventola |
| 6 | 7563511000 | Hour meter - Contaore |
| 7 | 7194070000 | Solenoid valve - Elettrovalvola |
| 8 | 7563760000 | Fan thermostat - Termostato ventola |
| 9 | 7232150000 | Pipe - Tubo |
| 10 | 7364180000 | Shock absorber - Antivibrante |
| 11 | 7190150000 | Non return valve - Valvola ritegno |
| 12 | 3020441000 | AB 335 Unit - Gruppo AB 335 --> AB360 |
| 13 | 7300080000 | Emergency push button - Pulsante emergenza |
| 14 | 7432050000 | Green warning lamp - Spia verde |
| 15 | 7408370000 | Pulley - Puleggia |
| 16 | 7370060000 | Belt - Cinghia |
| 17 | 7381200000 | Electric motor - Motore elettrico |
| 18 | 7192010000 | Safety valve - Valvola di sicurezza |
| 19 | 5159130008 | Tank - Serbatoio |
| 20 | 5011080008 | Base - Base |
| 21 | 5162020008 | Intermediate panel - Pannello intermedio |
| 22 | 7155110000 | Plastic cover - Coperchio |
| 23 | 5163000008 | Rear cover - Guscio posteriore |
| 24 | 5163240008 | Front cover - Guscio anteriore |
| PUMP UNIT AB 335 data validità - da 11/03/2002 Pag.2 |
||
| # | Part Num. | Description |
| 1 | 7010080000 | Screw M8x35 UNI-5931 |
| 2 | 7091120000 | stopper |
| 3 | 7010350000 | Screw M6X22 UNI-5931 |
| 4 | 7570580000 | Head |
| 5 | 7079540000 | gasket |
| 6 | 4231170000 | Valves plate |
| 7 | 7079550000 | gasket |
| 8 | 4080030000 | Piston rings Set |
| 9 | 7220050000 | PISTON |
| 10 | 7050030000 | Pin Ø 13 |
| 11 | 7041030000 | Seeger Ø13 |
| 12 | 5050550008 | Connecting Rod |
| 13 | 7070360000 | O-Ring Ø53x2 |
| 14 | 7012220000 | Screw M8X 25 UNI-8112 |
| 15 | 5060740008 | CYLINDER |
| 16 | 7079530000 | GASKET |
| 17 | 7670060000 | sump |
| 18 | 7060180000 | Bearing 6203 "17X40X12 |
| 19 | 7070350000 | O-Ring |
| 20 | 7151200000 | SIDE BLIND HOLDER AB 245 PLASTIC |
| ** | 7151410000 | SIDE BLIND HOLDER AB 245 + PLASTIC VENT - DISCONTINUED |
| 21 | 7011460000 | Screw M6X16 TAP-TITE |
| 22 | 7180120000 | OIL SIGHT GLASS D. 20 AB 245 |
| 23 | 7011460000 | Screw M6X16 TAP-TITE |
| 24 | 7012060000 | Screw M4X12 UNI-8112 |
| 25 | 7151240000 | Plastic cover |
| 26 | 4086990000 | Kit suction filter |
| 27 | 7151230000 | FILTER PLATE AB 410/510-NEW |
| 28 | 7210610000 | filter element |
| 29 | 5041160008 | CRANKSHAFT - DISCONTINUED |
| 30 | 7071290000 | OIL SEAL 20X40X7 |
| 31 | 7051500000 | tab 4X6,5 |
| 32 | 7060200000 | bearing 6204 |
| 33 | 7151210000 | SIDE PERFORATED HOLDER AB 245 "PLASTIC" |
| 34 | 7201000000 | flywheel |
| 35 | 7030270000 | Washer Ø8,5X30X4 UNI-6593 |
| 36 | 7031010000 | Washer Ø8 UNI-3703 |
| 37 | 7011100000 | Screw M8X25 UNI-5739 |
| 38 | 7070110000 | O-Ring 3037 |
| 39 | 7153070000 | conveyor |
| 40 | 7012090000 | Screw M5X12 UNI-8112 |
| 41 | 7040160000 | Seeger E 32 |
| 100 | 4082800000 | Kit Valve plate |
| 101 | 4291030000 | Kit piston + Ring + Pin |
| 102 | 4082220000 | Gasket Kit |
