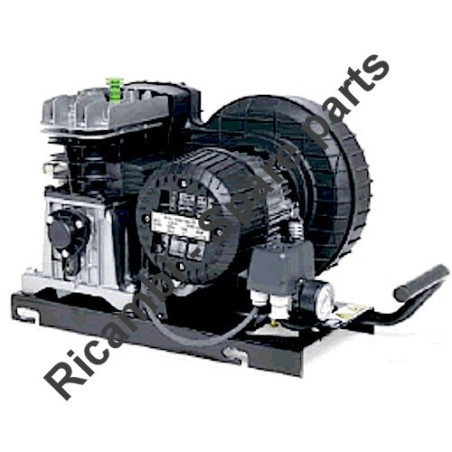

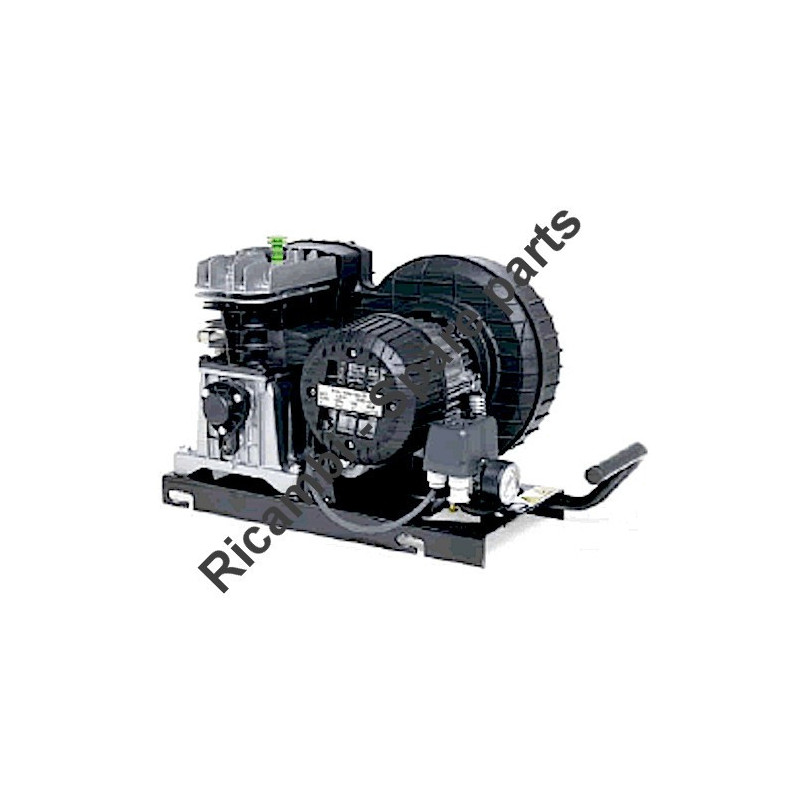

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit CCS 335 validity date - from 01/01/2000.
In the following table , look for the model of the pumping unit and the respective parts of the code.![]()
| Pump Unit CCS 335 validity date - from 01/01/2000 | ||
| # | Part Num. | Description |
| 1 | 7015370000 | ROD F = 25MM M6X149 |
| 2 | 7640080000 | Cover |
| 3 | 7060010000 | Bearing 6203 ZZ 17:40:12 QE6 |
| 4 | 7500030000 | Fairlead |
| 5 | 7020070000 | Nut M8 UNI-5587 |
| 6 | 7310360000 | 60 uF capacitor - Repl. by 7310550000 |
| 7 | 4012880000 | Stator |
| 8 | 7660190000 | Rotor |
| 9 | 7580160000 | CRANKSHAFT ELETTR.CCS 335 3HP. |
| 10 | 7060010000 | Bearing 6203 ZZ 17:40:12 QE6 |
| 11 | 7160060000 | Spring A 693 |
| 12 | 7021030000 | Nut M8 UNI-7473 |
| 13 | 7230060000 | Tube Rilsan Ø12X10 |
| 14 | 7090090000 | Cap M1 / 4 "Brass |
| 15 | 7192050000 | Valve Sic. M3 / 8 to 10.5 Bar |
| 16 | 7085530000 | Fitting 1/4 "-3/8" MF |
| 17 | 7250360000 | Pressure Switch |
| 18 | 7110060000 | Manometer |
| 19 | 7084220000 | Fitting DIR.M1 / 4 "-6 QUICK |
| 20 | 5011060008 | Basis |
| 21 | 7360020000 | Rubber Ø16 |
| 22 | 7018470000 | Guy ENGINE CCS 335 HP.3 |
| 23 | 7329070000 | Power cable |
| 24 | 7020200000 | Nut M6 UNI-5587 |
| 25 | 7012090000 | Screw M5X12 UNI-8112 |
| 26 | 7409580000 | Pulley OP90 1 Z-F16 |
| 27 | 7012130000 | Screw Ø 4,8X22 UNI-6954 |
| 28 | 7200080000 | Cooler Fan |
| 29 | 7038080000 | Fan Washer |
| 30 | 7012060000 | Screw M4X12 UNI-8112 |
| 31 | 7151060000 | Carena plastic top |
| 32 | 7011420000 | Screw M6X16 UNI-5739 |
| 33 | 7011090000 | Screw M8X20 UNI-5739 |
| 34 | 7030270000 | Washer Ø8,5X30X4 UNI-6593 |
| 35 | 7051500000 | Tab 4X6,5 |
| 36 | 7408520000 | Pulley Øp160 1 "A" |
| 37 | 7370640000 | Belt SPZX 787-SERRATED |
| 38 | 7151070000 | Plastic bottom HOUSING |
| 39 | 3020460000 | Pumping unit AB 335 |
| 40 | 7012200000 | Screw M8x35 UNI-8112 |
| 41 | 7640070000 | Cover |
| 42 | 7051240000 | Tab "A 5X5X22" UNI 6604-69 |
| 43 | 7012240000 | Screw M5X15 UNI-8112 |
| 44 | 7311000000 | Headset condenser Ø45x65 |
| 45 | 7501050000 | Block Cable |
| 46 | 7151130000 | Plastic HOUSING |
| 47 | 7012060000 | Screw M4X12 UNI-8112 |
| 48 | 7082700000 | Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M |
| 49 | 7196010000 | Valve Start M3 / 8 "1.5 bar |
| 100 | 4280720000 | Kit Shaft / Rotor (single phase) |
| 020A | 5011070008 | Base |
